Visaton BF 32 - 4 1,3'' Full-Range Neodymium Driver 4 Ohm
Visaton BF 32 - 4 1,3'' Full-Range Neodymium Driver 4 Ohm
Visaton BF 32 - 4 1,3'' Full-Range Neodymium Driver 4 Ohm
Visaton BF 32 - 4 1,3'' Full-Range Neodymium Driver 4 Ohm
Visaton BF 32 - 4 1,3'' Full-Range Neodymium Driver 4 Ohm
Visaton BF 32 - 4 1,3'' Full-Range Neodymium Driver 4 Ohm

Visaton BF 32 - 4 1,3'' Full-Range Neodymium Driver 4 Ohm

Visaton BF 32 - 4 1,3'' Full-Range Neodymium Driver 4 Ohm

3.2 cm (1.3") Full-range speaker with a wide and balanced frequency response and very good low range reproduction.

SHIPMENT IN 5-7 WORKING DAYS
€12.95
Tax included
rating No review at the moment

The minimum purchase order quantity for the product is 2.

Estimated Shipping Costs
Shipping Costs
€12.60
Shipping Time
.
Want to check another country or courier?

You might also like



Visaton BF 32 - 4 1,3'' Full-Range Neodymium Driver 4 Ohm

3.2 cm (1.3") Full-range speaker with a wide and balanced frequency response and very good low range reproduction.

.

Highlights

  • Powerful Neodymium driver
  • Very good low range reproduction
  • Wide and balanced frequency respons

.

Product Details

Visaton BF 32 1,3'' Full Range Neodymium Driver 4 Ohm

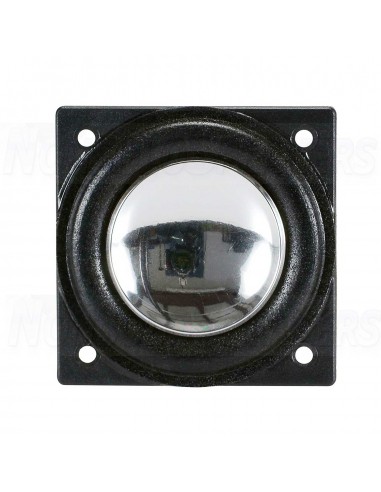

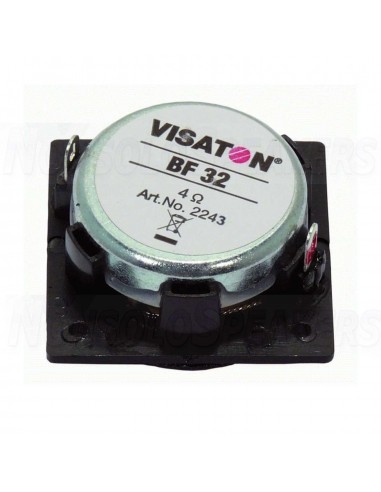

Visaton designed this full range speaker with a wide and balanced frequency response, and very good low range reproduction. A powerful neodymium motor helps to achieve a rather high sensitivity for a driver this size, and is mated to an inverted aluminum dome and a resilient treated-foam surround. This driver is perfect for micro-thin line arrays, modern multimedia use in flat panel TVs, informational use in point-of-purchase displays, and other audio applications where conventional speakers are simply too large.
Superior off-axis response out to, and above, 8,000 Hz also allows you to use this driver as a tweeter. The polymer square basket is built with four mounting holes for easy mounting.

.

Technical Data

  • Article number BF 32 - 4
  • Woofer Series BF Series
  • Woofer Type Full-range
  • Nominal Diameter 1.3"
  • Power Handling (RMS) 2 Watts
  • Power Handling (max) 5 Watts
  • Impedance (Z) 4 ohms
  • Sensitivity (SPL at 1m / 2.83V) 78 dB
  • Frequency Response 150 – 20,000 Hz
  • Voice Coil Diameter 20 mm
  • Resonant Frequency (Fs) 220 Hz
  • Overall Outside Diameter 32 mm
  • Overall Depth 13 mm
  • Baffle Cutout Diameter 31.5 mm
  • # Mounting Holes 4 Mounting Hole Diameter 2 mm
Visaton BF 32 - 4
