Visaton ALTO II DIY components pack

Components for 2 speakers , (cabinet not included)

.

Product description

This DIY audio component package for a 2-way tower speaker is designed as a 30 liter vented system and is another suggested design from the ALTO series.

Highlights

Great value for money

Powerful bass reproduction

-

Product details

Visaton ALTO II DIY Components Pack

The same driver arrangement has been selected as for the ALTO I but, here, the lower range octaves benefit from the enlarged cabinet volume and optimum bass frequency to produce powerful, responsive bass. ALTO II is also well suited to improving the sound of low-priced compact hifi systems. The ALTO II can be positioned freely anywhere in the room, producing clearly defined spatial sound character.

.

Extract from Klang & Ton

"It’s bass reproduction is not only very rich and very powerful, but in addition highly precise, full of detail and free of coloration. Both the base and lower mid-range remained perfectly neutral. Music reproduction is airy and far reaching."

"Value for money: very good”

.

Extract from HiFi Test

"The elegant ALTO II bass reflex column speaker fascinated us with its bass reproduction that would put many a speaker twice the size to shame."

-

Technical specifications:

Frequency response: 30-22,000 Hz (-8 dB, according to Visaton)

Load capacity (nominal/music): 60 / 100 watts

Separation frequency: 4000 Hz

mean characteristic sound pressure: 84 dB (1W/1m)

Impedance: 4 ohms

-

The Visaton Alto II kit includes:

1 x tweeter DT 94, 8 ohms

1 x woofer W 170 S, 4 ohms

1 x terminal block with finished crossover

2 x bags of cushioning material

12 x various screws

1 x BR 15.34 bass reflex tube

Internal wiring cable

Description and blueprint

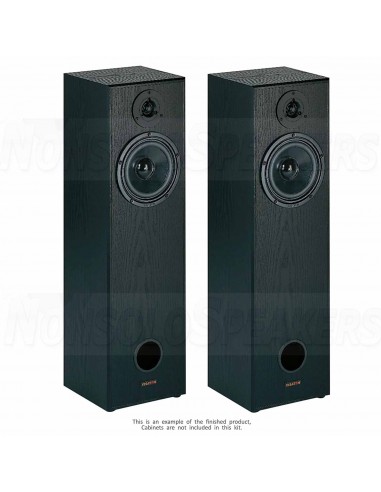

Note: Cabinets are not included.
