55 mm (2.2”) Cone tweeter with special basket for the high-frequency range above 5,000 Hz.

Out-of-Stock
€14.75
Tax included
rating No review at the moment

The minimum purchase order quantity for the product is 2.


Estimated Shipping Costs
Shipping Costs
€14.40
Shipping Time
.
Want to check another country or courier?

You might also like



Visaton  TW 70 Replacement Cone Tweeter

55 mm (2.2”) Cone tweeter with special basket for the high-frequency range above 5,000 Hz.

.

Highlights

  • Balanced response for easy system integration
  • Great replacement driver
  • Sealed rear

Product Details

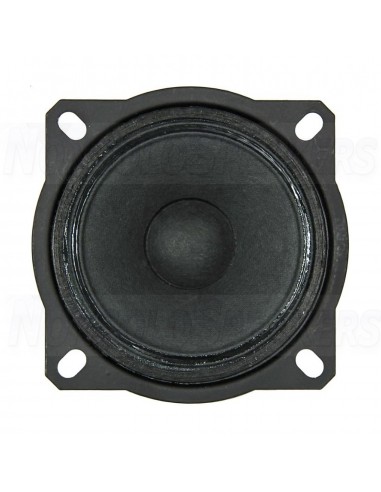

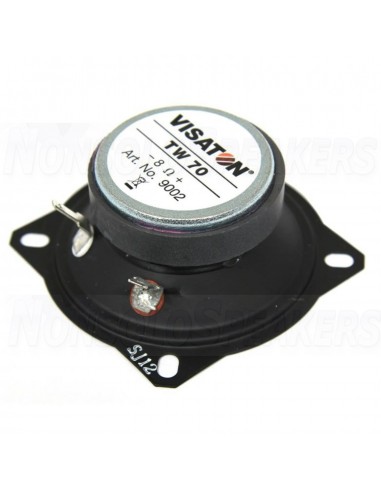

Visaton TW 70 2.5" Cone Tweeter 8 Ohm

This tweeter has a balanced frequency response with brilliant treble and high power handling. Due to the sealed rear no separate high-frequency range housing construction necessary. Especially suitable as replacement unit for many HiFi speakers.

.

Technical Specifications

  • Article number TW 70
  • Tweeter Type Cone
  • Tweeter Series TW Series
  • Cone / Dome Diameter 64 mm | 2.5"
  • Power Handling (RMS) 80 Watts
  • Power Handling (max) 100 Watts
  • Impedance (Z) 8 Ω
  • Sensitivity (SPL at 1m / 2.83V) 90 dB
  • Frequency Response 800 - 20,000 Hz
  • Resonant Frequency (Fs) 1500 Hz
  • DC Resistance (Re) 7 ohms
  • Voice Coil Inductance (Le) 0.16 mH
  • Mechanical Q (Qms) 1.26
  • Electromagnetic Q (Qes) 4.21
  • Total Q (Qts) 0.97
  • Overall Outside Diameter 70 mm
  • Cutout Diameter 64 mm
  • Depth 29.7 mm
  • Recommended cut frequency 5,000 Hz
