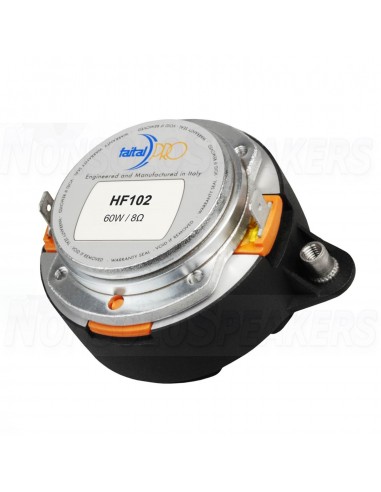

FAITAL HF102
FAITAL HF102
  • -5%
FAITAL HF102
FAITAL HF102

FAITAL HF102 - Compression Driver 1" Neodimio - 8ohm

SHIPMENT IN 7-10 WORKING DAYS
€84.55 €89.00 -5%
Tax included
rating No review at the moment

FAITAL HF102 - Compression Driver  1" Neodimio - 8ohm

Estimated Shipping Costs
Shipping Costs
€15.00
Shipping Time
.
Want to check another country or courier?

You might also like



FAITAL HF102 - Compression Driver  1" Neodimio - 8ohm

TECHNICAL PARAMETERS

Nominal Impedance8 Ohm
Minimum Impedance6.6 Ohm
AES Power Handling (1)30 W
Maximum Power Handling (2)60 W
Minimum Crossover Frequency (3)2.6 kHz
Sensitivity (1W/1m) (4)107 dB
Frequency Range1.8÷20 kHz
Voice Coil Diameter25 mm (0.98 in)
Winding MaterialAl
Former MaterialKapton
Diaphragm MaterialKetone Polymer
Diaphragm ShapeDome
Winding Depth1.7 mm (0.07 in)
Magnetic Gap Depth2 mm (0.08 in)
Flux Density1.3 T
MagnetNeodymium Ring
Re6 Ohm
Phase Plug DesignRadial
Exit Angle (5)9° Conical
NET Air Volume filled by HF Driver0.1 dm^3 (0.004 ft^3)

NOMINAL SPECIFICATIONS

Throat Diameter25.4 mm (1 in)
Overall Diameter91 mm (3.58 in)
180° Mounting Holes Diameter (2xM6)76 mm (2.99 in)
Depth43 mm (1.69 in)
Net Weight300 g (0.7 lb)
Shipping Box
(Single carton box)		98 x 90 x 64 mm
(3.9 x 3.5 x 2.5 in)
Shipping Weight330 g (0.72 lb)


QUICK ACOUSTIC SPECS

Nominal Impedance8 Ohm
Minimum Impedance6.6 Ohm
AES Power Handling (1)30 W
Maximum Power Handling (2)60 W
Minimum Crossover Frequency (3)2.6 kHz
Sensitivity (1W/1m) (4)107 dB
Frequency Range1.8÷20 kHz
Voice Coil Diameter25 mm (0.98 in)
Diaphragm MaterialKetone Polymer
Diaphragm ShapeDome
Flux Density1.3 T
Re6 Ohm
Phase Plug DesignRadial


QUICK MECHANICAL SPECS

Throat Diameter25.4 mm (1 in)
Overall Diameter91 mm (3.58 in)
180° Mounting Holes Diameter (2xM6)76 mm (2.99 in)
Depth43 mm (1.69 in)
Net Weight300 g (0.7 lb)
Shipping Box
(Single carton box)		98 x 90 x 64 mm
(3.9 x 3.5 x 2.5 in)
Shipping Weight330 g (0.72 lb)
