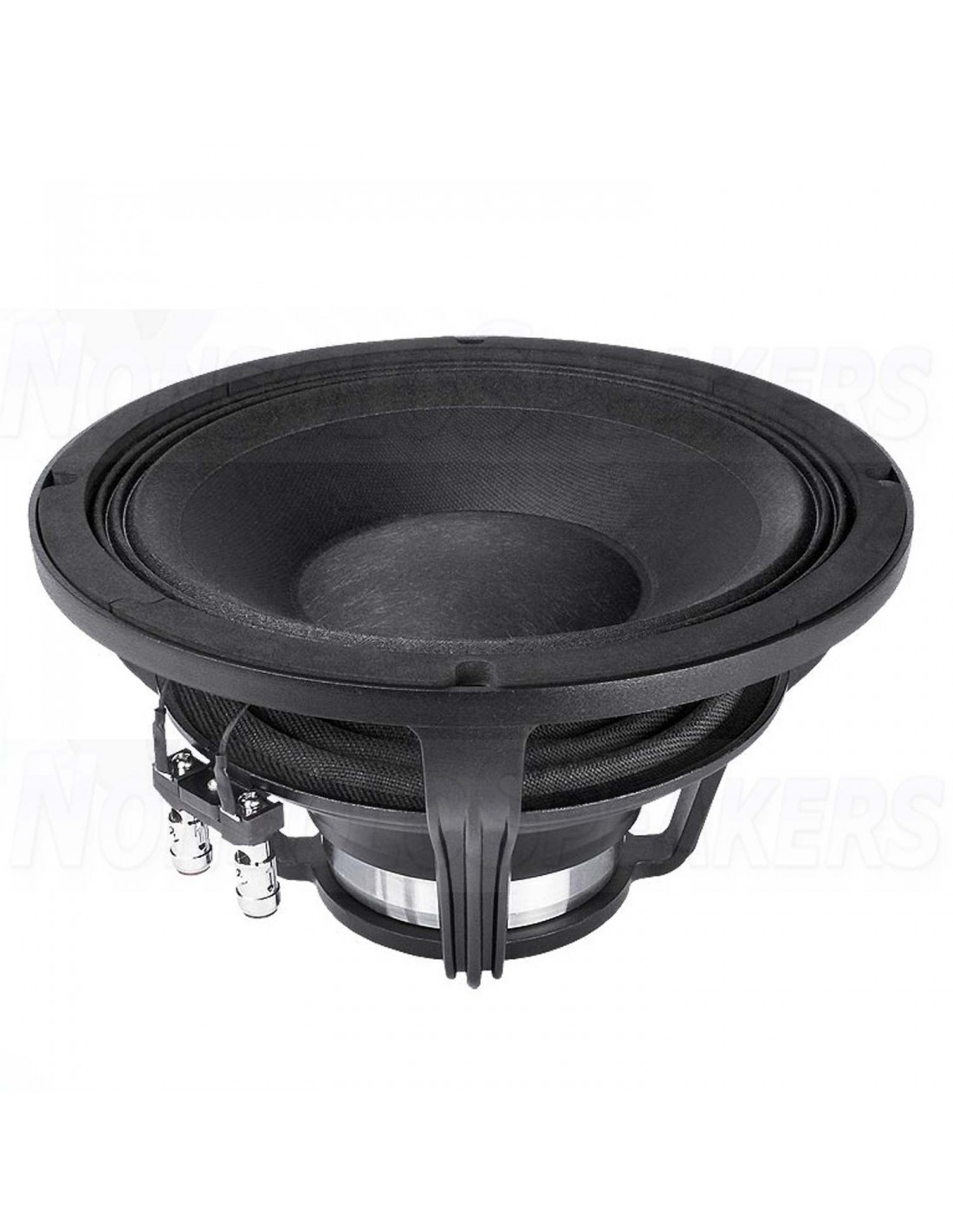

Faital 10FH520-8P - Midwoofer 10" Neodimio - 8 ohm
Faital 10FH520-8P - Midwoofer 10" Neodimio - 8 ohm

Faital 10FH520-8P - Midwoofer 10" Neodimio - 8 ohm

Faital 10FH520-8P - Midwoofer 10" Neodimio - 8 ohm

SHIPMENT IN 7-10 WORKING DAYS
€263.13 €276.98 -5%
Tax included
rating No review at the moment

Estimated Shipping Costs
Shipping Costs
€19.08
Shipping Time
.
Want to check another country or courier?

You might also like



Faital 10FH520-8P - Midwoofer 10" Neodimio - 8 ohm

Nominal Specifications

Nominal Diameter 250 mm (10 in)
Overall Diameter 261 mm (10.28 in)
Bolt Circle Diameter 246 mm (9.69 in)
Baffle Cutout Diameter 232 mm (9.13 in)
Depth 141.3 mm (5.56 in)
Flange and Gasket Thickness 12.5 mm (0.49 in)
Net Weight 3.7 Kg (8.2 lb)
Shipping Box
(Single Carton Box)		 294 x 290 x 203 mm
(11.6 x 11.4 x 8.0 in)
Shipping Weight 4.3 Kg (9.5 lb)



Technical Parameters

Nominal Impedance 8 Ohm
Minimum Impedance 6 Ohm
AES Power Handling (1) 600 W
Maximum Power Handling (2) 1200 W
Sensitivity (1W/1m) 97 dB
Frequency Range 60÷4000 Hz
Voice Coil Diameter 77 mm (3 in)
Winding Material Al
Former Material Glass Fiber
Winding Depth 18.5 mm (0.71 in)
Magnetic Gap Depth 12 mm (0.47 in)
Flux Density 1.1 T
Magnet Neodymium Slug
Basket Material Aluminum
Demodulation Aluminum Ring
Cone Surround (3) Triple Roll
NET Air Volume filled by Loudspeaker 1.7 dm^3 (0.060 ft^3)
Spider Profile 1x variable height waves

10FH520_response_8.gif 10FH520_impedance_8.gif

Quick acoustic specs

Nominal Impedance 8 Ohm
Minimum Impedance 6 Ohm
AES Power Handling (1) 600 W
Sensitivity (1W/1m) 97 dB
Frequency Range 60÷4000 Hz
Flux Density 1.1 T
Magnet Neodymium Slug
Demodulation Aluminum Ring
Cone Surround (2) Triple Roll
Fs 60 Hz
Re 5.1 Ohm
Qes 0.30
Qms 11.1
Qts 0.29
Vas 23.5 dm^3 (0.83 ft^3)
Sd 347 cm^2 (53.79 in^2)
Xmax (3) 7.25 mm
Xdamage (4) 19.5 mm
Mms 50.3 g
Bl 18 N/A
Le 0.9 mH
Mmd 43.0 g
Cms 0.14 mm/N
Rms 1.7 Kg/s
Eta Zero 1.65 %
EBP 200 Hz

tools_prod_corner_sx.png 10FH520_2D.gif

Quick mechanical specs

Nominal Diameter 250 mm (10 in)
Overall Diameter 261 mm (10.28 in)
Bolt Circle Diameter 246 mm (9.69 in)
Baffle Cutout Diameter 232 mm (9.13 in)
Depth 141.3 mm (5.56 in)
Flange and Gasket Thickness 12.5 mm (0.49 in)
Net Weight 3.7 Kg (8.2 lb)
Shipping Box
(Single Carton Box)		 294 x 290 x 203 mm
(11.6 x 11.4 x 8.0 in)
Shipping Weight 4.3 Kg (9.5 lb)

10FH520-8P
