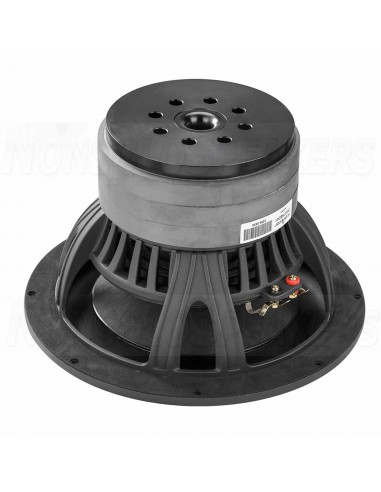

    Wavecor SW275BD01 Woofer  25 cm paper cone

    10.75" Ultra-High Performance Subwoofer Unit
    When nothing but the most extreme in bass output and performance is required.
    Very low distortion from below 20 Hz

    FEATURES

    • Extreme overhung voice coil with +/-16mm of linear stroke to ensure lowest distortion at very high drive levels
    • FEA optimized suspension for improved symmetry and lower distortion
    • Very large motor structure with 2.5” voice coil for better control and power handling
    • Balanced Drive motor for optimal drive force symmetry resulting in largely reduced even order harmonic distortion
    • Rigid Foamed Paper cone to ensure piston motion even at high levels - for reduced distortion
    • Dual-spider design for higher mechanical durability and high-excursion stability
    • Rigid die cast alu chassis with extensive venting for lower air flow speed reducing audible distortion
    • Vented center pole with dual flares for reduced noise level at large cone excursions
    • Heavy-duty fiber glass voice coil former to reduce mechanical losses resulting in better dynamic performance and low-level details
    • Built-in alu field-stabilizing ring for reduced distortion at high levels
    • Low-loss suspension (high Qm) for better reproduction of details and dynamics
    • Black plated motor parts for better heat transfer to the surrounding air
    • Conex spider for better durability under extreme conditions
    • Gold plated terminals to ensure long-term trouble free connection

    Delivered with foam gasket attached for hassle-free mounting and secure cabinet sealing

    SW275BD01-FR

    Measuring conditions, SPL
    Driver mounting: Flush in infinite
         baffle, back side open (no cabinet)
    Microphone distance: 1.0 m
    Input signal: 2.83 VRMS stepped sine wave
    Smoothing: 1/6 oct.

    Measuring conditions, impedance
    Driver mounting: Free air, no baffle,
         back side open (no cabinet)
    Input signal: Stepped sine wave, semi-
         current-drive, nominal current 2 mA
    Smoothing: None

    SW275BD01-IMP
    SW275BD02-FR

    Measuring conditions, SPL
    Driver mounting: Flush in infinite
         baffle, back side open (no cabinet)
    Microphone distance: 1.0 m
    Input signal: 2.83 VRMS stepped sine wave
    Smoothing: 1/6 oct.

    Measuring conditions, impedance
    Driver mounting: Free air, no baffle,
         back side open (no cabinet)
    Input signal: Stepped sine wave, semi-
         current-drive, nominal current 2 mA
    Smoothing: None

    SW275BD02-IMP

    HARMONIC DISTORTION

    OUTLINE DRAWING AND NOMINAL DIMENSIONS

    SW275BD01_02 outline drawing PDF
    SW275BD01-dwg

    TERMINAL NOMINAL DIMENSIONS (mm)

    Terminals

    Thickness, both terminals: 0.8 mm
    Terminal plating: Gold

    PACKAGING AND ORDERING INFORMATION

    Part no. SW275BD01-01

    4 ohm version, individual packaging (one piece per box)

    Part no. SW275BD02-01

    8 ohm version, individual packaging (one piece per box)

    SPECIFICATIONS

    Notes

      Parameter

    SW275BD01

    SW275BD02

    Unit

    Before burn-in

    After burn-in

    Before burn-in

    After burn-in



    Nominal size

    10.75

    10.75

    [inch.]



    Nominal impedance

    4

    8

    [ohm]



    Recommended max. upper frequency limit

    400

    400

    [Hz]

    1, 4

    Sensitivity, 2.83V/1m (calculated from T/S parameters)

    85.5

    82.5

    [dB]

    2, 4

    Power handling, short term, IEC 268-5, no additional filtering





    [W]

    2, 4

    Power handling, long term, IEC 268-5, no additional filtering





    [W]

    2

    Power handling, continuous, IEC 268-5, no additional filtering

    250

    250

    [W]



    Effective radiating area, Sd

    314

    314

    [sq.cm]

    3, 4, 6

    Resonance frequency (free air, no baffle), Fs

    30.8



    31.6



    [Hz]



    Moving mass, incl. air (free air, no baffle), Mms

    121

    115

    [g]

    3, 4

    Force factor, Bxl

    12.1

    15.2

    [N/A]

    3, 4, 6

    Suspension compliance, Cms

    0.22



    0.22



    [mm/N]

    3, 4, 6

    Equivalent air volume, Vas

    31



    31



    [lit.]

    3, 4, 6

    Mechanical resistance, Rms

    1.85



    1.85



    [Ns/m]

    3, 4, 6

    Mechanical Q, Qms

    12.7



    12.4



    [-]

    3, 4, 6

    Electrical Q, Qes

    0.59



    0.70



    [-]

    3, 4, 6

    Total Q, Qts

    0.57



    0.67



    [-]

    4

    Voice coil resistance, RDC

    3.7

    7.1

    [ohm]

    5

    Voice coil inductance, Le (measured at 1 kHz)

    0.94

    1.54

    [mH]



    Voice coil inside diameter

    64

    64

    [mm]



    Voice coil winding height

    39

    39

    [mm]



    Air gap height

    7

    7

    [mm]



    Theoretical linear motor stroke, Xmax

    +/-16

    +/-16

    [mm]



    Magnet weight





    [g]



    Total unit net weight excl. packaging

    8

    8

    [kg]

    3, 4, 5

    Krm

    16

    51

    [mohm]

    3, 4, 5

    Erm

    0.52

    0.44

    [-]

    3, 4, 5

    Kxm

    2.4

    3.5

    [mohm]

    3, 4, 5

    Exm

    0.87

    0.87

    [-]

    SW275BD01
    4 Items
