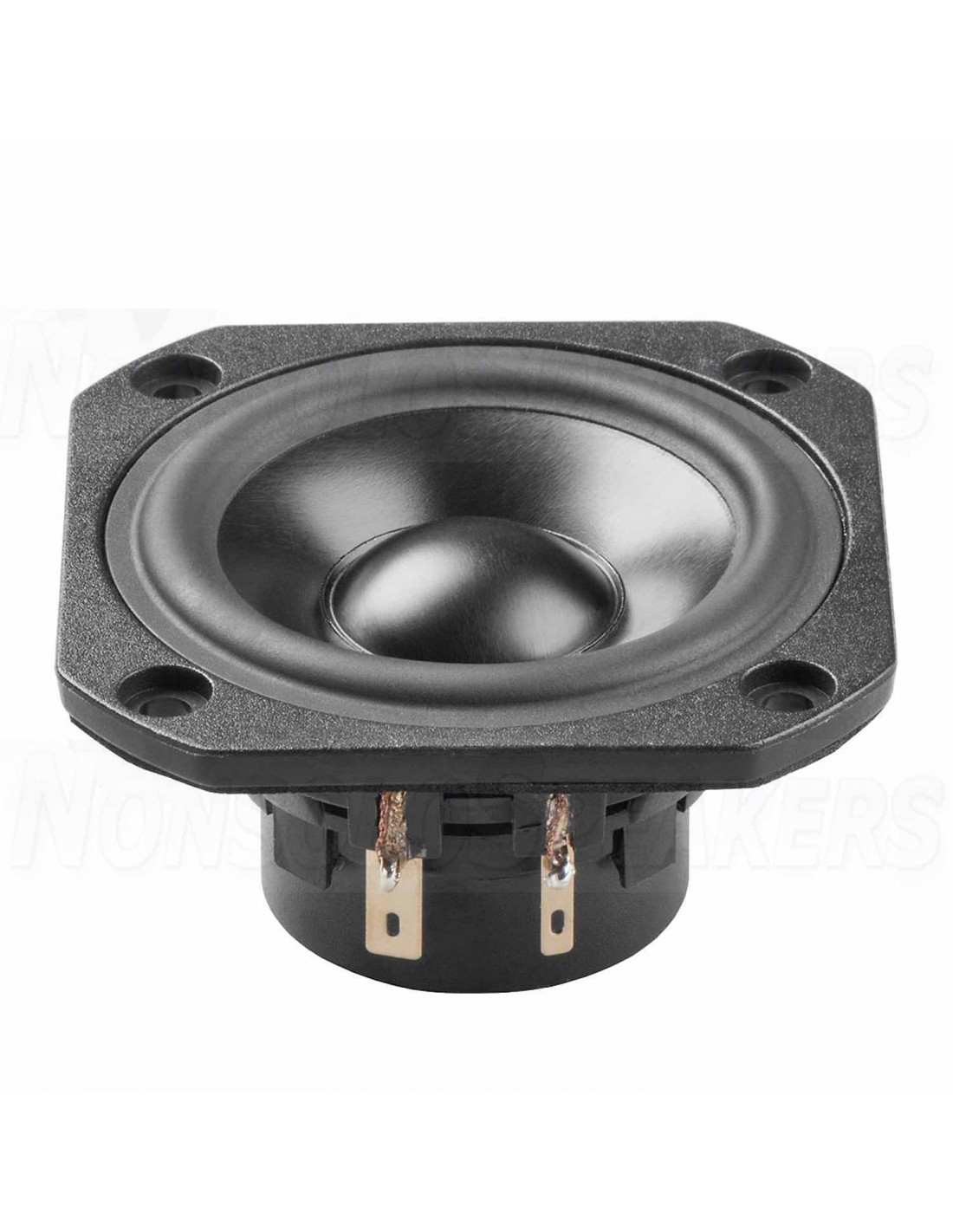

Wavecor FR070WA01 2¾ alu-con fullrange 4 ohm

The 2¾” transducers FR070WA01 (4 ohm) and FR070WA02 (8 ohm) were designed especially for high quality multimedia and lifestyle speakers, where sound reproduction without compromises is required. Ideal for combining with the Wavecor SW070WA 2¾” subwoofers.

• • True full-range design with on-axis output to beyond 25kHz
  • Dual neodymium magnet structure for high efficiency and almost ideal magnetically shielding
  • Copper cap on center pole to reduce voice coil inductance and to minimize variations in voice coil inductance as a function of voice coil position
  • Black anodized alu cone for better heat transfer
  • Optimized off-axis response
  • Vented polymer chassis for lower air flow speed reducing audible distortion
  • Vented voice coil former for reduced distortion and compression
  • Heavy-duty black fiber glass voice coil bobbin to reduce mechanical losses resulting in better dynamic performance and low-level details
  • Large motor with 22 mm voice coil diameter for better control and power handling
  • Low-loss suspension (high Qm) for better reproduction of details and dynamics
  • Black motor parts for better heat transfer to the surrounding air
  • Conex spider for better durability under extreme conditions
  • Gold plated terminals to ensure long-term trouble free connection
  •

  • Notes

    	Parameter	FR070WA01		FR070WA02		Unit
    		Before burn-in	After burn-in	Before burn-in	After burn-in
    	Nominal size	2¾		2¾		[inch.]
    	Nominal impedance	4		8		[ohm]
    	Recommended max. upper frequency limit	full range		full range		[kHz]
    1, 5	Sensitivity, 2.83V/1m (average SPL in range 200 - 10,000 Hz)	86.5		84		[dB]
    2	Power handling, short term, IEC 268-5, no additional filtering					[W]
    2	Power handling, long term, IEC 268-5, no additional filtering					[W]
    2	Power handling, continuous, IEC 268-5, no additional filtering	10		10		[W]
    	Effective radiating area, Sd	21		21		[sq.cm]
    3, 5, 7	Resonance frequency (free air, no baffle), Fs	121	114	124	117	[Hz]
    	Moving mass, incl. air (free air, no baffle), Mms	2.0		1.9		[g]
    3	Force factor, Bxl	3.0		3.6		[N/A]
    3, 5, 7	Suspension compliance, Cms	0.87	0.97	0.87	0.97	[mm/N]
    3, 5, 7	Equivalent air volume, Vas	0.54	0.61	0.54	0.61	[lit.]
    3, 5, 7	Mechanical resistance, Rms	0.12	0.12	0.12	0.12	[Ns/m]
    3, 5, 7	Mechanical Q, Qms	12.6	12.0	12.3	11.7	[-]
    3, 5, 7	Electrical Q, Qes	0.58	0.55	0.73	0.69	[-]
    3, 5, 7	Total Q, Qts	0.56	0.53	0.69	0.65	[-]
    4	Voice coil resistance, RDC	3.45		6.4		[ohm]
    6	Voice coil inductance, Le(measured at 10 kHz)	71		110		[μH]
    	Voice coil inside diameter	22		22		[mm]
    	Voice coil winding height	7		7		[mm]
    	Air gap height	3		3		[mm]
    	Magnet weight	25+10		25+10		[g]
    	Total unit net weight excl. packaging	0.15		0.15		[kg]
    3, 6	Krm	2.9		4.6		[mohm]
    3, 6	Erm	0.59		0.57		[-]
    3, 6	Kxm	44		34		[mH]
    3, 6	Exm	0.32		0.39		[-]
