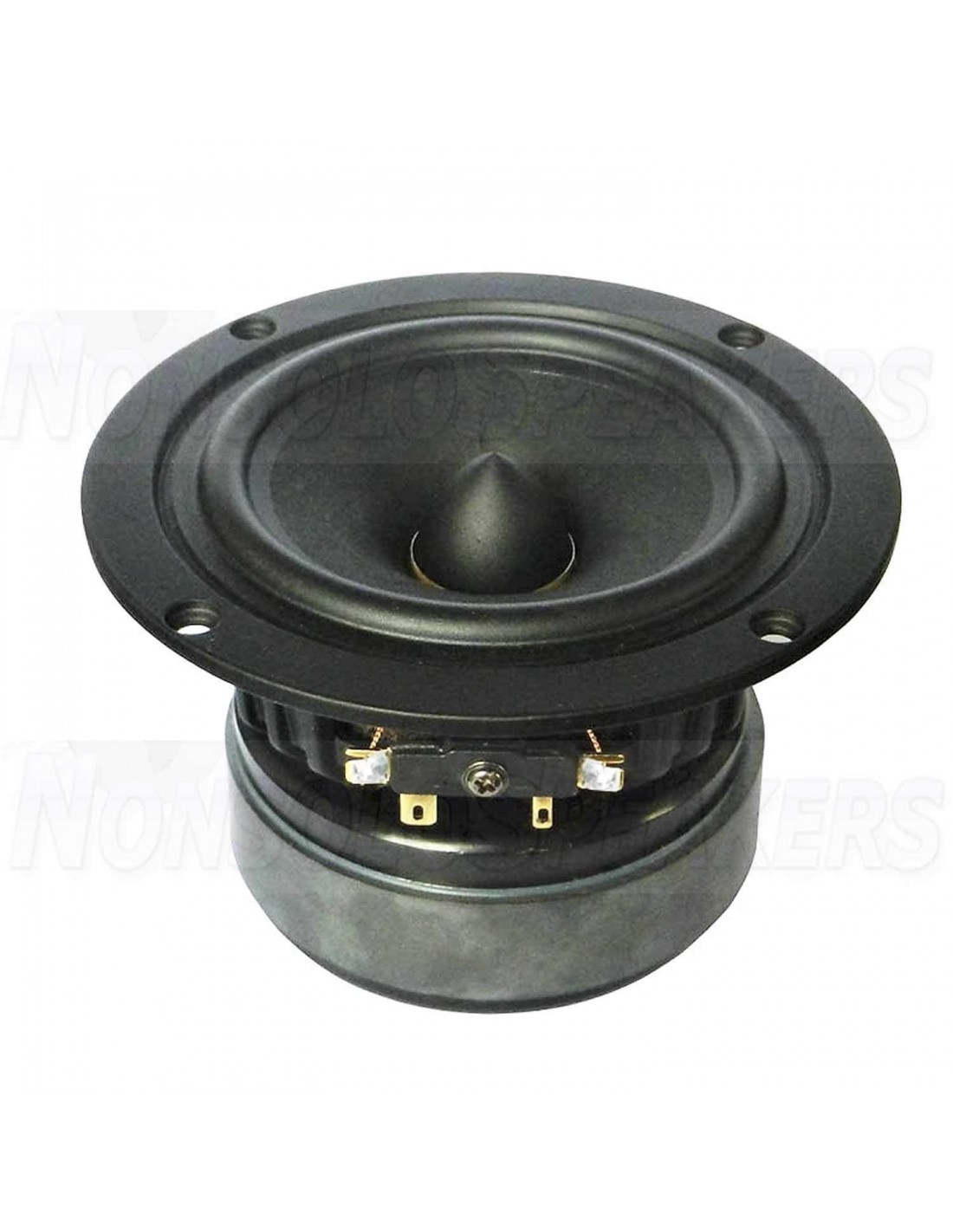

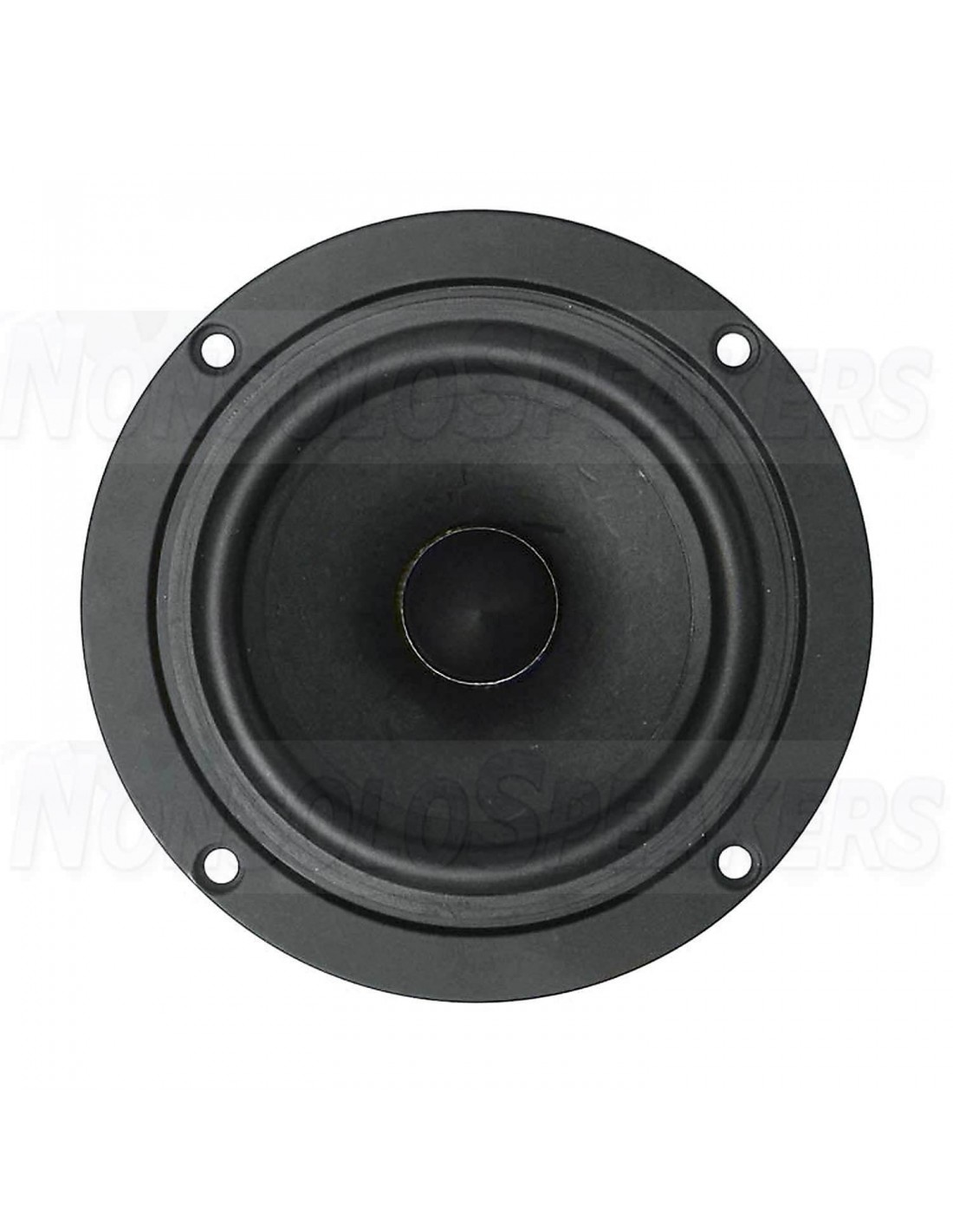

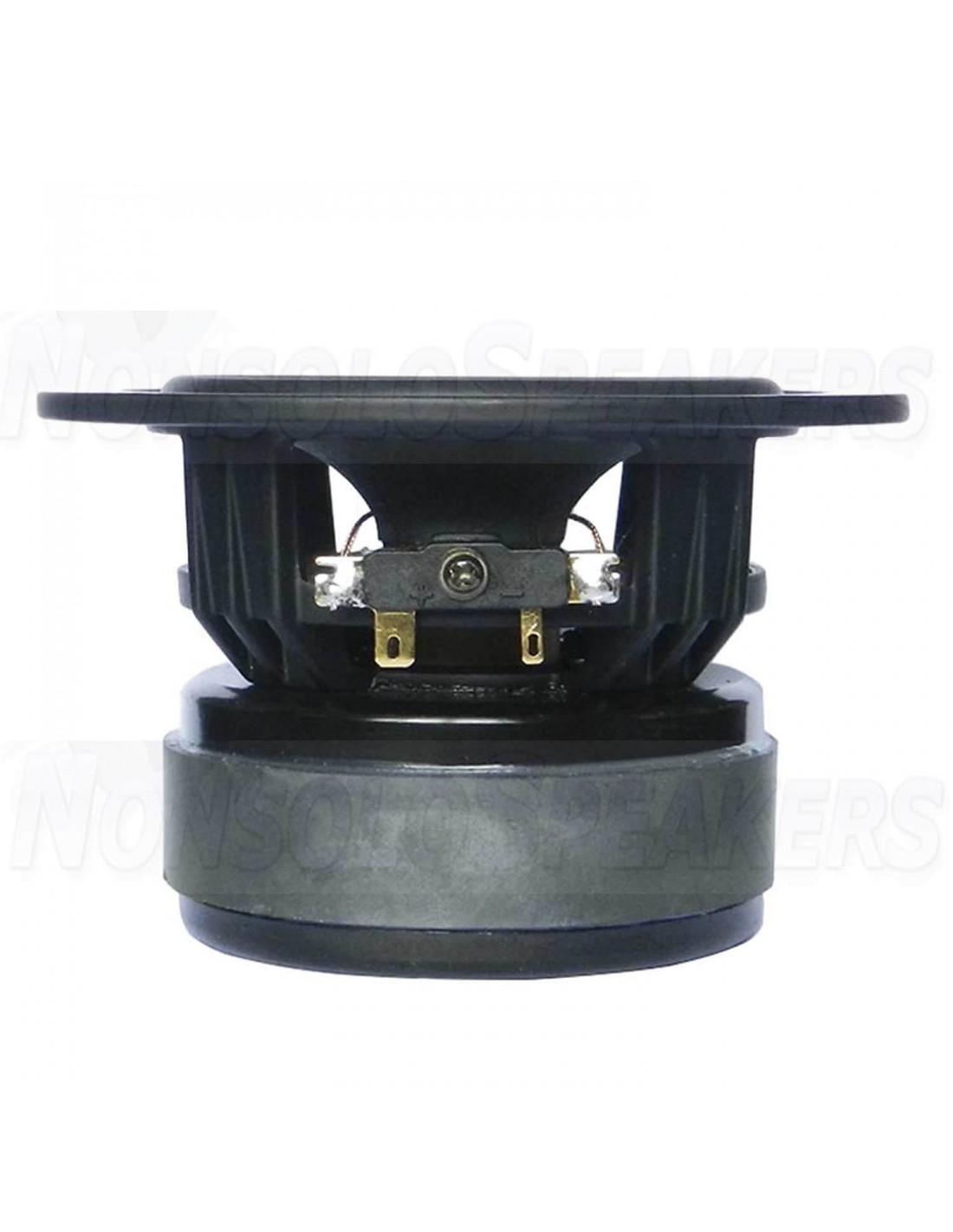

OmnesAudio BB 4 black broadband 10 cm

The Tang Band broadband W4-1320 is one of the best known and most widely sold broadband in the 10 cm range.
Not quite as successful as its little brother, the W4-655, it convinces with a finer resolution in the high frequency range.
We had an OEM version built for the OmnesAudio from the W4-1320.
The label on the product is W4-1320SMF.
The underhang voice coil remains the same, as well as low distortion and optimal broadband frequency response.

Application:

• Small bass reflex box with approx. 5.5 liters -3dB 60Hz horn
• As a midrange speaker in high quality 3 way constructions
• As a small bass driver (2 pieces or more ...) with tweeter

The difference:

• 4 ohms (less power is required)
• Black colored paper membrane (no color change due to sunlight)
• Black phase plug at the request of a customer with a special low-reflection coating

• Revc = 3,400 ohms
• Fo = 75 Hz
• Sd = 5,300m M˜
• Vas = 4 Ltr
• Cms = 0.996m M / N
• Mmd = 4,136 g
• Mms = 4,358 g
• BL = 3,496
• Qms = 2,234
• Qes = 0.581
• Qt = 0461
• No = 0.453%
• SPLo = 86.85dB
