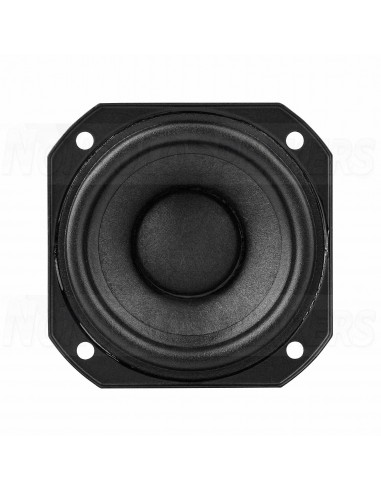

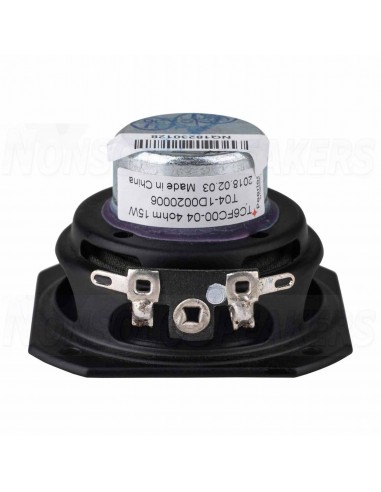

Peerless by Tymphany TC6FC00-04 Full-range Woofer
Peerless by Tymphany TC6FC00-04 Full-range Woofer
Peerless by Tymphany TC6FC00-04 Full-range Woofer
Peerless by Tymphany TC6FC00-04 Full-range Woofer
Peerless by Tymphany TC6FC00-04 Full-range Woofer
Peerless by Tymphany TC6FC00-04 Full-range Woofer

Peerless by Tymphany TC6FC00-04 Full-range Woofer

Peerless by Tymphany TC6FC00-04 Full-range Woofer

The Peerless TC6FC00-04 is a 2-inch full-range woofer that is designed to be a cost-effective and high-performance option for compact music and media systems

Out-of-Stock
€15.90
Tax included
rating No review at the moment


Estimated Shipping Costs
Shipping Costs
€12.60
Shipping Time
.
Want to check another country or courier?

You might also like



Peerless by Tymphany TC6FC00-04 Full-range Woofer

.

Product description

The Peerless TC6FC00-04 is ideally suited for use in flat panel televisions and sound bars, MP3 and cell phone docking stations, hi-fi speaker line arrays, and multimedia PCs.

.

Highlights

Neodymium magnet for strong power handling and durability

Stamped steel frame for structural rigidity

PentaCut cone technology for controlled resonance and improved performance

Under-spider venting for increased power handling

Half-roll rubber surround for smooth, extended excursion

Copper pole piece cap for reduced impedance and extended HF response

.

Product details

Peerless by Tymphany TC6FC00-04 Full-range Woofer

The Peerless TC6FC00-04 is a 2-inch full-range woofer that is designed to be a cost-effective and high-performance option for compact music and media systems. It features a neodymium magnet and stamped steel frame, as well as a patented PentaCut cone technology that helps to control resonances and improve performance. The driver also features under-spider venting, a half-roll rubber surround, and a copper pole piece cap that controls impedance and extends the HF response.

.

Specifications

DC Resistance Revc Ohms 3.43 5.0%

Energy Bandwidth Product EBP (1/Qes)*fs

Minimum Impedance Zmin Ohms 3.89 7.5%

Moving Mass Mms g 1.1

Voice Coil Inductance Le mH 0.03

Suspension Compliance Cms um/N 641

Resonant Frequency Fs Hz 186.8 15%

Effective Cone diameter D cm 4.4

Mechanical Q Factor Qms 3.29

Effective Piston Area Sd cm^2 15.2

Electrical Q Factor Qes 1

Effective Volume Vas L 0.21

Total Q Factor Qts 0.77

Motor Force Factor BL Tm 2.14

Ratio Fs/Qts F Fs/Qts 243.87

Motor Efficiency Factor ß (T*M^2)/Ohms 1.3

Half Space Sensitivity @2.83V [email protected]/1M dB 86.34 +/- 1.0db

Voice coil former Material VCfm ASV

Half Space Sensitivity @1W/1M db@1W/1M dB 83.2 +/- 1.0db

Voice coil inner diameter VCd mm 19.32

Gap Height Gh mm 3 Rated Noise Power P W 15

Maximum Linear Excursion Xmax mm 1

Test Spectrum Bandwidth 150Hz - 20kHz

Ferrofluid Type FF

Driver Size Inch 2 in

Driver Mass Kg 0.08

TC6FC00-04
