Peerless by Tymphany OX20SC00-04 Dome Tweeter

.

Product description

Tymphany's OX20SC00-04 tweeter features a coated textile diaphragm, high-energy neodymium magnet, and does not include a faceplate.

.

Highlights

Faceplate-less design for custom mounting

Smooth, extended response and high efficiency

3/4" textile dome

Self-shielding neodymium motor

Low Fs, low distortion

High efficiency

.

Product details

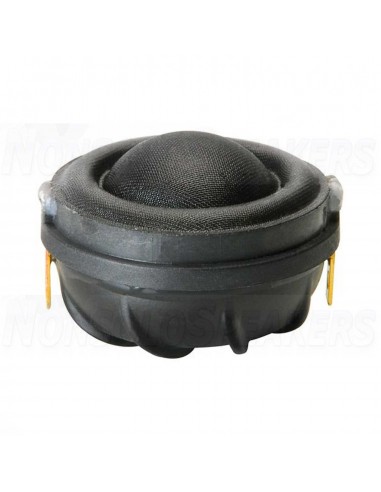

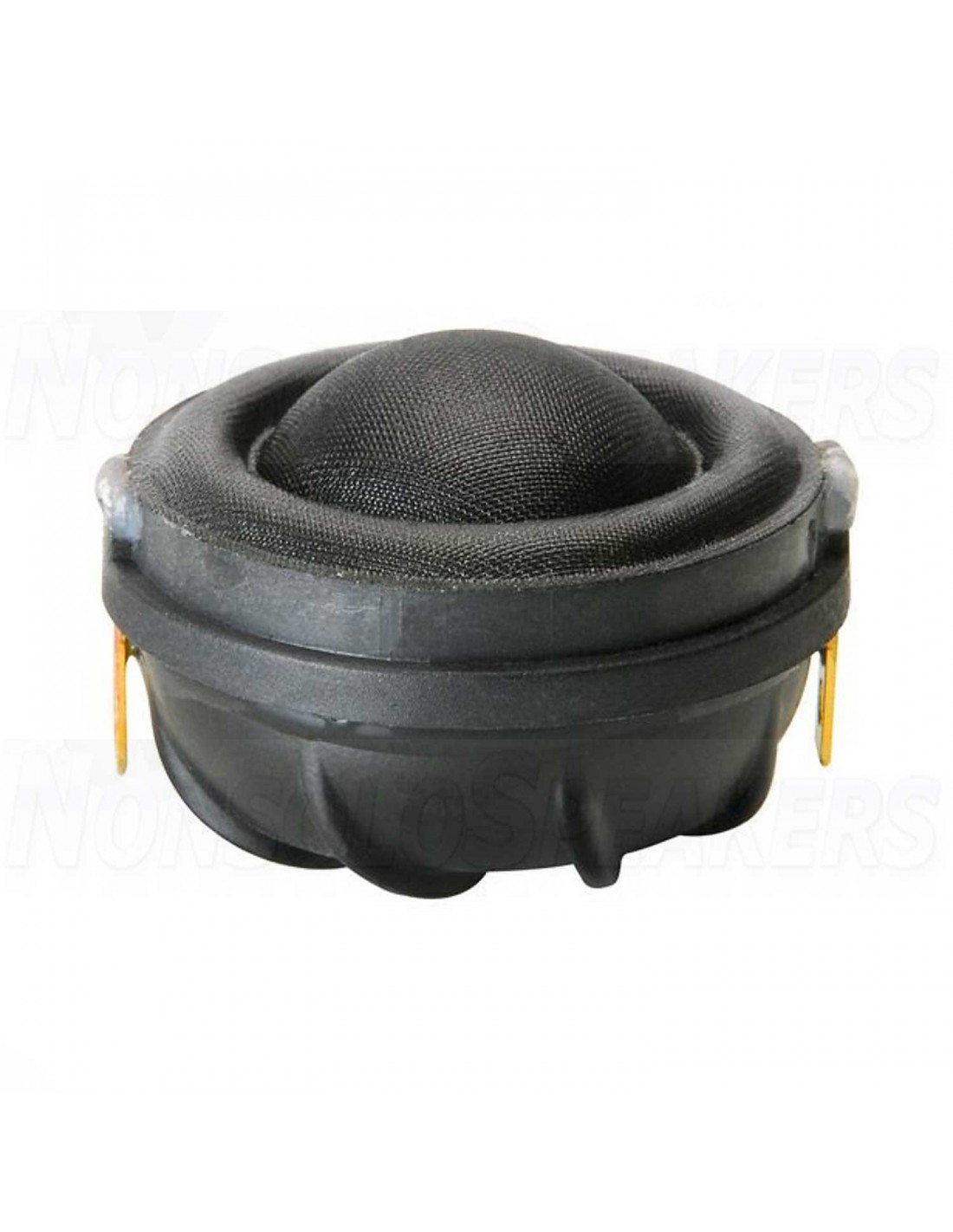

Peerless by Tymphany OX20SC00-04 3/4" Fabric Dome Tweeter

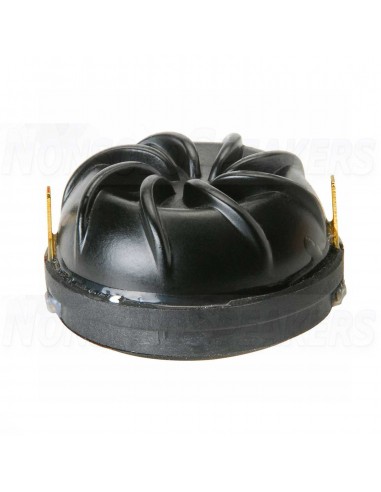

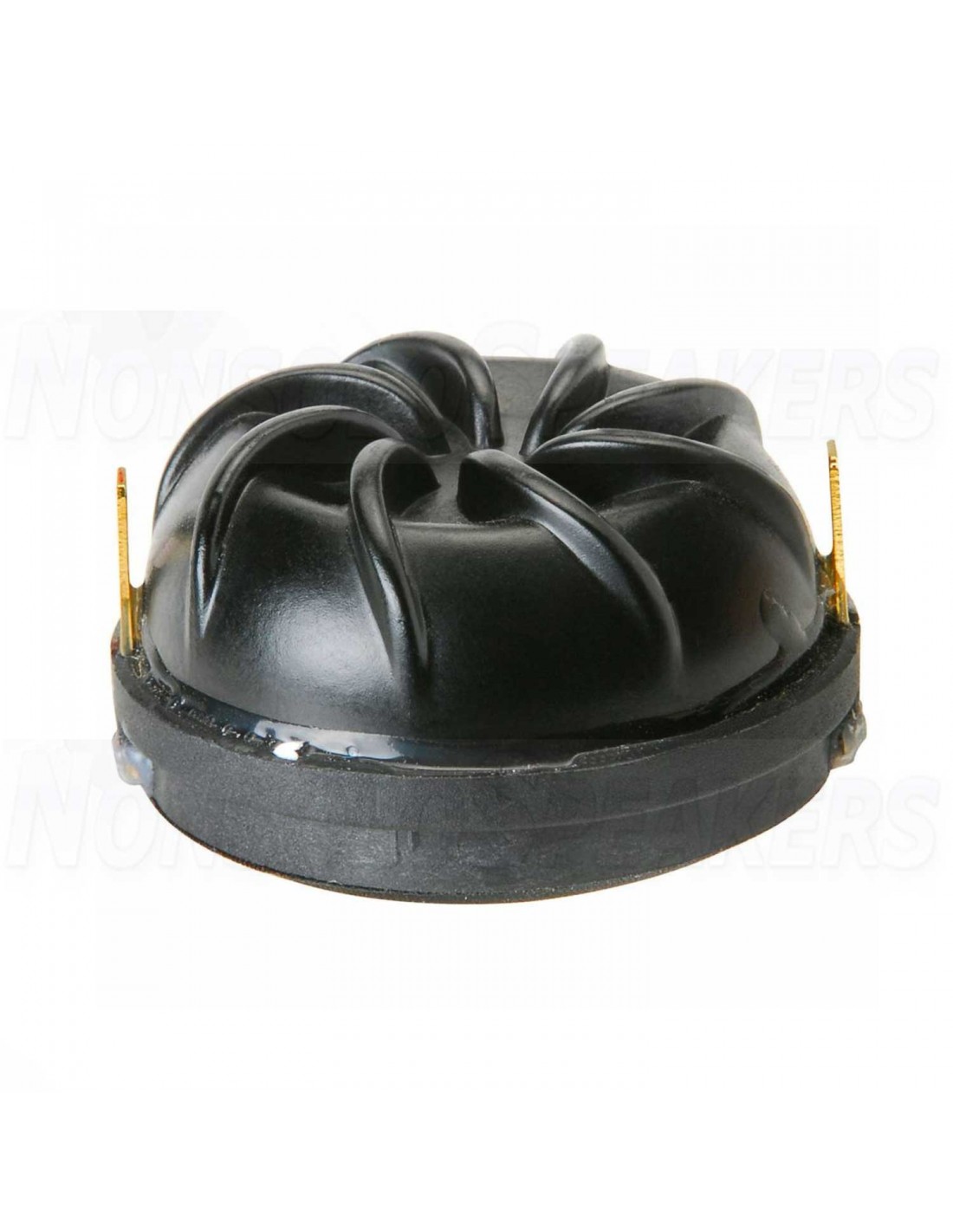

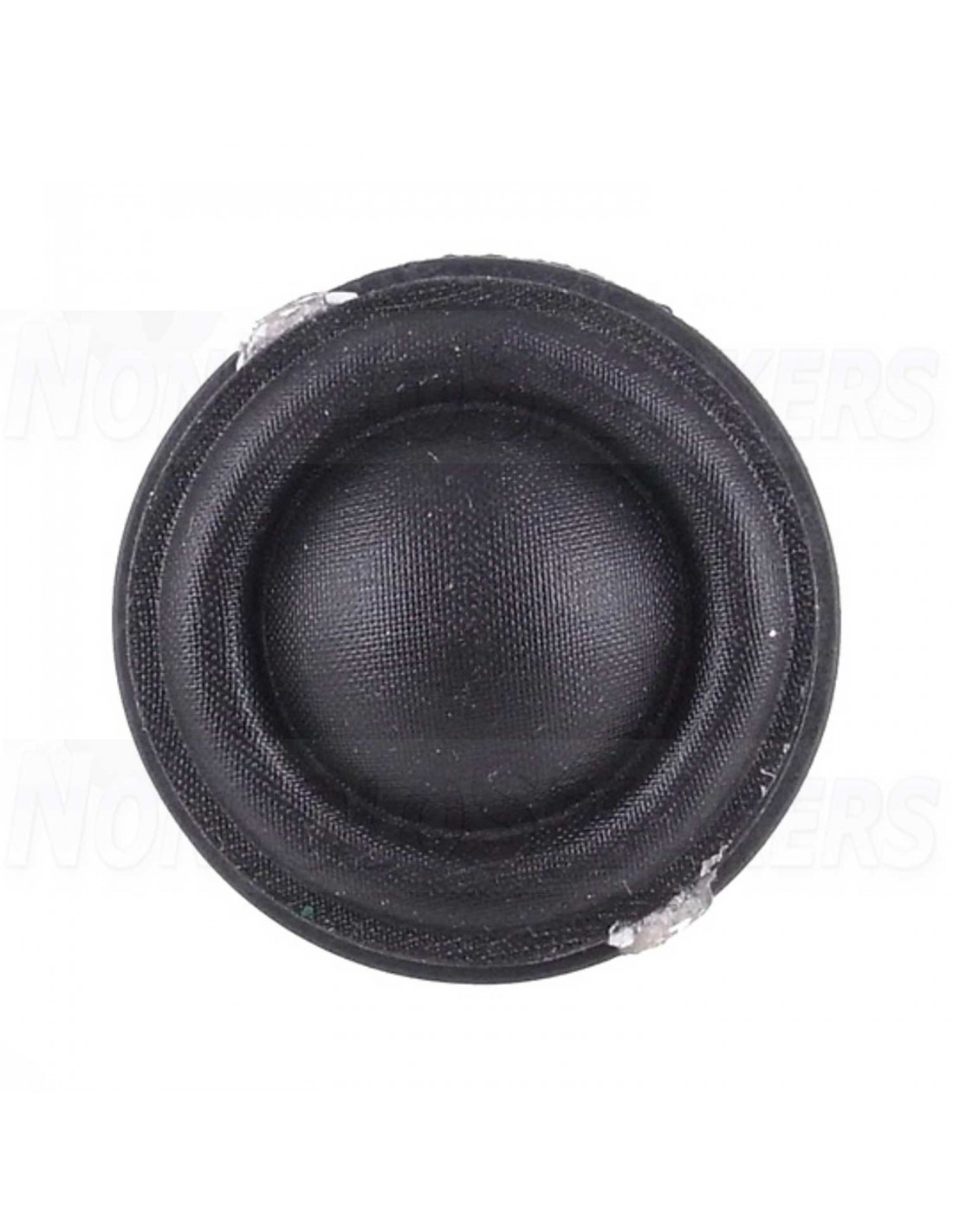

This OX family tweeter features a 19 mm diameter 4 ohm voice coil, a damped silk diaphragm with large surround roll, a neodymium magnet motor to produce a compact motor, and a metal rear chamber to provide both a lower resonant frequency and added heat sinking for power handling capacity. The product is designed to fit snugly into small applications, while providing excellent dynamic sound quality.

.

Specifications

Article number OX20SC00-04

Tweeter Type Soft Dome

Tweeter Series OX Series

Cone / Dome Diameter 19 mm | 3/4"

Power Handling (RMS) 20 Watts

Impedance (Z) 4 Ω

Sensitivity (SPL at 1m / 2.83V) 93 dB

Frequency Response 2200 to 28,000 Hz

Resonant Frequency (Fs) 1060 Hz

DC Resistance (Re) 3.20 ohms

Voice Coil Inductance (Le) 0.01 mH

Mechanical Q (Qms) 7.72

Electromagnetic Q (Qes) 1.70

Total Q (Qts) 1.39

Overall Outside Diameter 1.31"

Cutout Diameter 1.13''

Depth 0.92"

OX20SC00-04
