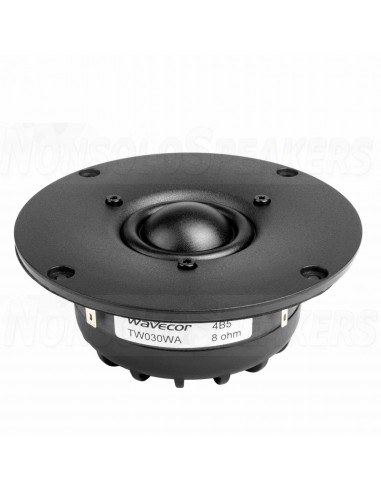

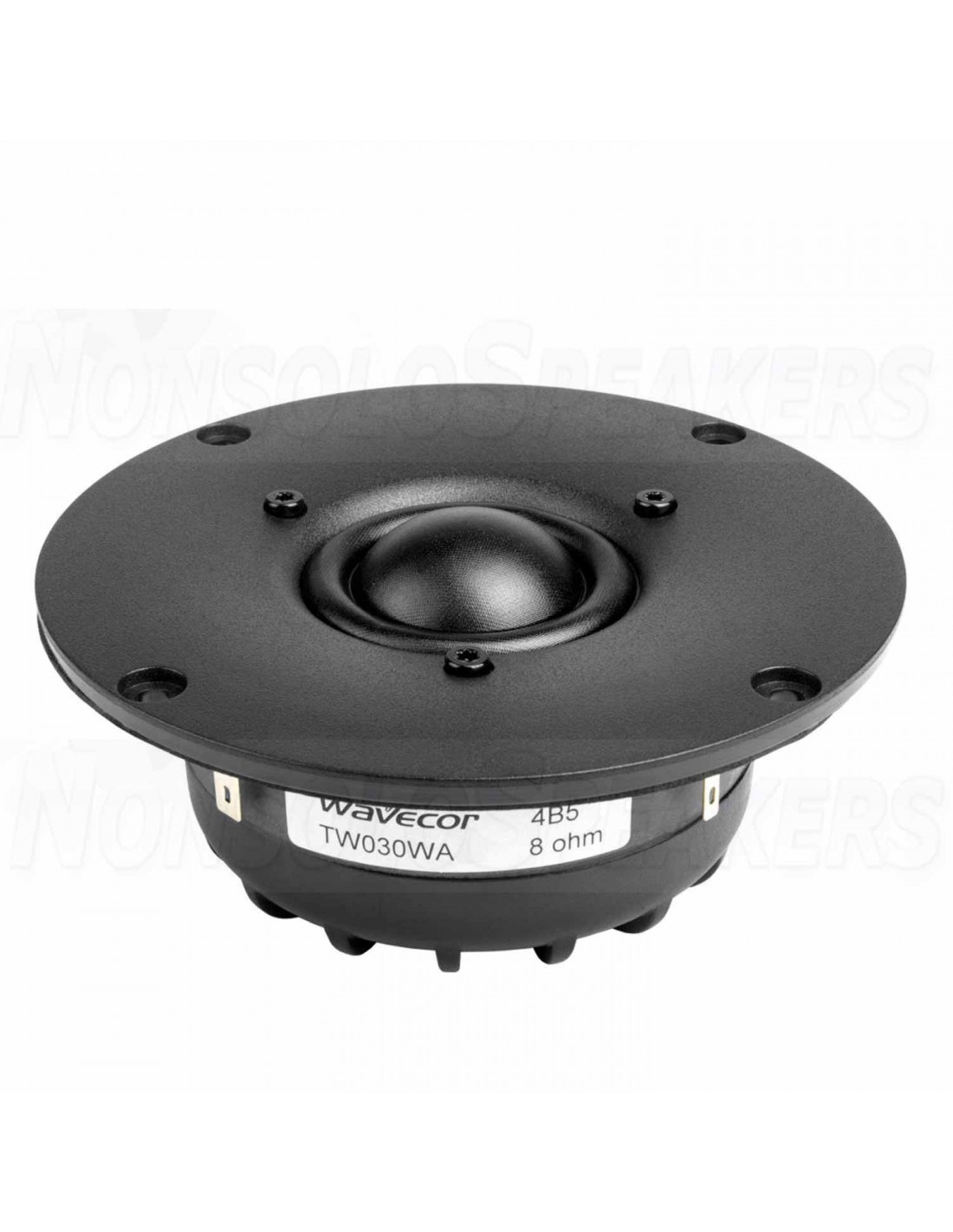

Wavecor TW030WA08 30 mm tweeters 8 ohm

Real high-end tweeter design with extremely low resonance frequency and distortion.
Thanks to the extensive internal venting between three internal cavities no air inside is trapped. This feature extends the usable frequency range downwards to an extend very rarely found on tweeters.
Adding the high power handling this tweeter is the natural candidate for high-end 2-way speaker systems.


• Precision-coated textile diaphragm for improved consistency and high-frequency extension
• Extreme internal venting through pole, voice coil former, and top plate to 3 internal chambers
• Copper-clad aluminium voice coil wire offering lower moving mass for improved efficiency and transient response
• Reflection-free rear chamber design with solid reinforcement ribs
• Large ferrite magnet for improved efficiency and transient response
• With or without high-stability light ferro fluid
• Flexible lead wires for higher power handling and larger excursion
• Black anodized magnet structure for increased power handling and reduced power compression
• Gold plated terminals to prevent oxidation for long-term reliable connection
• Delivered with EVA gasket attached for hassle-free mounting and secure cabinet sealing
•

•

   Parameter

  					Unit
  Nominal size	30				[mm]
  Nominal impedance	4		8		[ohm]
  Recommended freq. range	1.5-25				[kHz]
  Sensitivity, 2.83V/1m, (average 1-20kHz)	91½	91	89	88½	[dB]
  Voice coil diameter	30.4				[mm]
  Voice coil height	1.7				[mm]
  Air gap height	2.5				[mm]
  Voice coil resistance, RDC	3.4		6.3		[ohm]
  Voice coil inductance	20		28		[μH]
  Magnet weight	260				[g]
  Effective radiating area, Sd	11.5				[sq.cm]
  Power handling, continuous, IEC 268-5,  2.0kHz@12dB/oct.	50	60	50	60	[W]
  Resonance freq., Fs	450	450	470	470	[Hz]
  Moving mass, incl. air (free air, no baffle)	0.40	0.42	0.37	0.39	[g]
  Force factor, Bxl	2.0	2.0	2.4	2.4	[Tm]
  Mechanical Q, Qm	1.5	1.2	1.6	1.3	-
  Electrical Q, Qe	0.96	1.01	1.19	1.25	-
  Total Q, Qt	0.59	0.55	0.68	0.64	-
  Suspension compliance, Cms	0.31	0.30	0.31	0.30	[mm/N]
  Equiv. air volume, Vas	0.059	0.056	0.059	0.056	[lit.]
  Total unit net weight	0.59				[kg]
  Krm (note 1)	100	152	67	64	[μohm]
  Erm (note 1)	0.85	0.82	0.91	0.92	-
  Kxm (note 1)	3.3	2.8	5.1	4.3	[mH]
  Exm (note 1)	0.56	0.56	0.56	0.56	-
