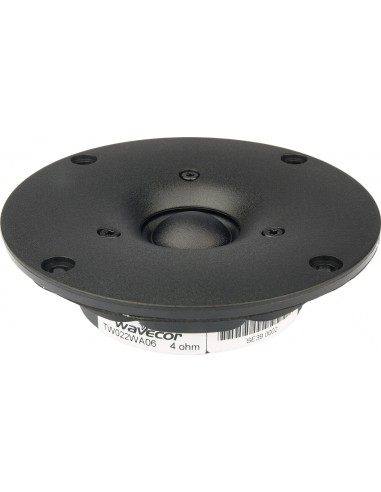

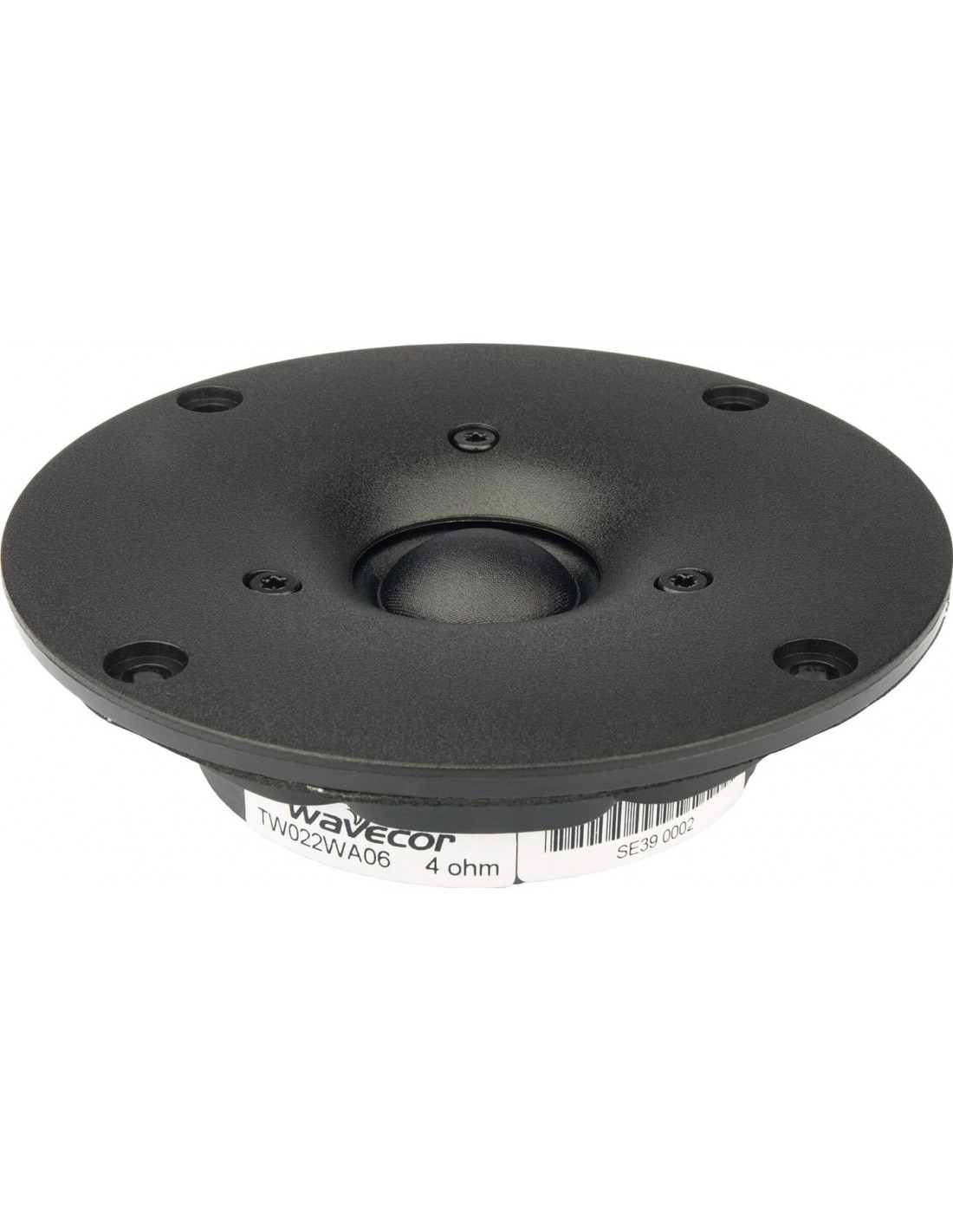

Wavecor TW022WA05 22 mm textile tweeter 4 ohm

    Wavecor TW022WA05 22 mm textile tweeter 4 ohm

    SHIPMENT IN 5-7 WORKING DAYS
    €78.00
    Tax included
    rating No review at the moment

    Wavecor TW022WA05 22 mm textile tweeter 4 ohm

    Estimated Shipping Costs
    Shipping Costs
    €18.00
    Shipping Time
    .
    Want to check another country or courier?



    TW022WA05 is a tweeter designed for applications requiring the highest level of performance and most extended and linear high frequency response.

    Innovation
    Tweeters used to feature a separate rear chamber in order to obtain low resonance frequency. Not any longer. By designing the internal parts to accommodate new larger internal volumes, the TW022WA05 offers an unusually low  resonance frequency.
    The design with 22 mm voice coil and wide surround caters for both applications that would normally require traditional ¾” tweeters and those, where 1” tweeters would usually be used.

    • 22 mm design for optimal compromise between on- and off-axis frequency response, resonance frequency, and power handling
    • Internal volumes for low resonance frequency and distortion
    • Precision-coated textile diaphragm for improved consistency and high-frequency extension
    • Optimized dome shape for ultra high frequency cutoff
    • Vented voice coil former for reduced distortion and compression
    • Copper-clad aluminium voice coil wire offering lower moving mass for improved efficiency and transient response
    • Build-in cavities under dome/edge to equalize pressure for lower distortion and lower resonance frequency
    • Flexible lead wires for higher power handling and larger excursion
    • Gold plated terminals to prevent oxidation and ensure long-term reliable connection
    • Delivered with foam gasket attached for hassle-free mounting and secure cabinet sealing
    • TW022WA05-SPL-responseTW022WA05-imp-response
    • Notes

        Parameter

      Value

      Unit



      Nominal size

      22

      [mm]



      Nominal impedance

      4

      [ohm]



      Recommended frequency range

      2.5 - 25

      [kHz]

      1, 4

      Sensitivity, 2.83V/1m (average SPL in range 2.5 - 20 kHz)

      91.5

      [dB]

      2

      Power handling, short term, IEC 268-5, 2 kHz@12dB/oct.



      [W]

      2

      Power handling, long term, IEC 268-5, 2 kHz@12dB/oct.

      80

      [W]

      2

      Power handling, continuous, IEC 268-5, 2 kHz@12dB/oct.

      25

      [W]



      Effective radiating area, Sd

      6.1

      [sq.cm]

      3, 4, 6

      Resonance frequency (free air, no baffle), Fs

      750

      [Hz]



      Moving mass, incl. air (free air, no baffle), Mms

      0.28

      [g]

      3

      Force factor, Bxl

      1.9

      [N/A]

      3, 4, 6

      Suspension compliance, Cms

      0.16

      [mm/N]

      3, 4, 6

      Equivalent air volume, Vas

      0.0085

      [lit.]

      3, 4, 6

      Mechanical resistance, Rms

      0.25

      [Ns/m]

      3, 4, 6

      Mechanical Q, Qms

      5.3

      [-]

      3, 4, 6

      Electrical Q, Qes

      1.36

      [-]

      3, 4, 6

      Total Q, Qts

      1.08

      [-]

      4

      Voice coil resistance, RDC

      3.7

      [ohm]

      5

      Voice coil inductance, Le(measured at 20 kHz)

      36

      [μH]



      Voice coil inside diameter

      22

      [mm]



      Voice coil winding height

      1.8

      [mm]



      Air gap height

      2.5

      [mm]



      Theoretical linear motor stroke, Xmax

      ±0.35

      [mm]



      Magnet weight

      139

      [g]



      Total unit net weight excl. packaging

      0.34

      [kg]

      3, 4, 5

      Krm

      0.0046

      [mohm]

      3, 4, 5

      Erm

      1.07

      [-]

      3, 4, 5

      Kxm

      1.10

      [mH]

      3, 4, 5

      Exm

      0.67

      [-]

      TW022WA05-outline-drawingTW022WA05-terminals
