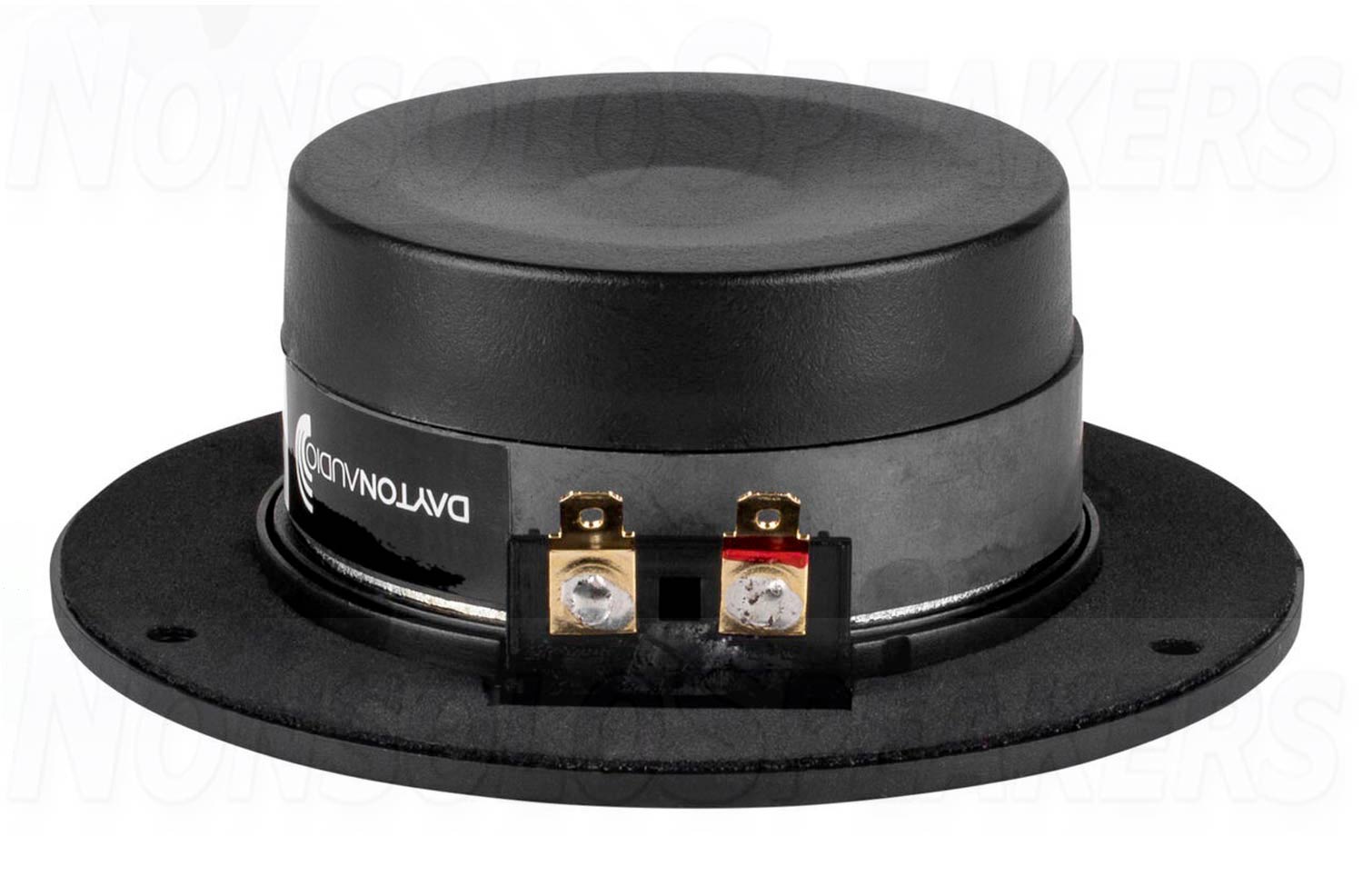

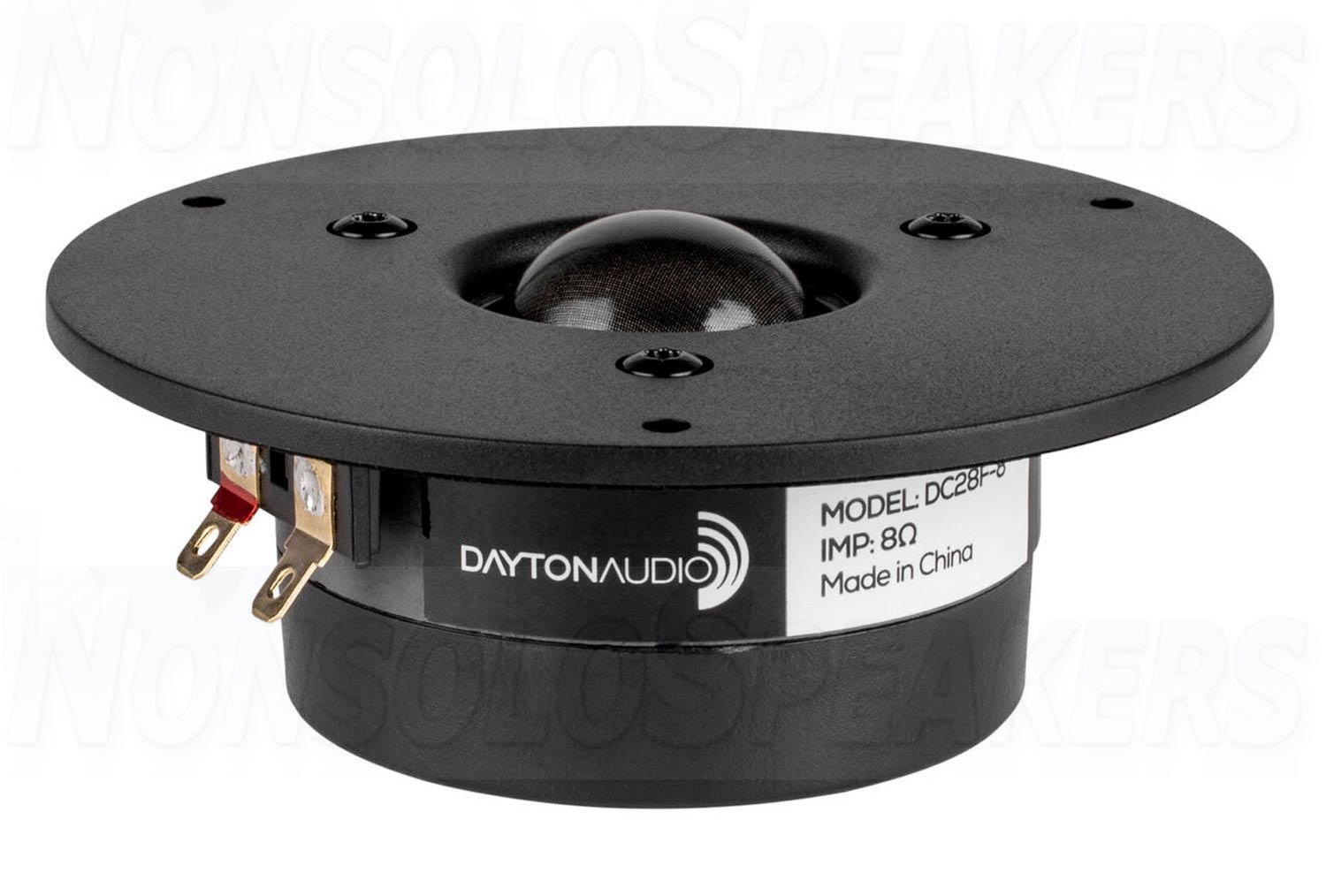

Dayton Audio DC28F-8 28mm Silk Dome Tweeter

The Dayton Audio DC28F-8 1-1/8" Silk Dome Tweeter is a great option for DIY speaker enthusiasts, as it offers amazing performance at an unbelievable price point. Featuring treated silk dome, this tweeter delivers smooth sound, while the damped rear chamber diminishes the resonance for better clarity. Thanks to the Ferrofluid cooled voice coil, this tweeter has excellent capabilities to handle high power. Replacement diaphragm 275-072

.

Product Details

Brand Dayton Audio

Model DC28F-8

Part Number 275-070

UPC 844632014130

Unit of Measure Each

Weight 1.25

Product Specifications

Cone / Dome Diameter 1.125"

Cutout Diameter 2.91

Tweeter Type Soft Dome

Power Handling (RMS) 50 Watts

Impedance 8Ω

Frequency Response 1,300 to 20,000Hz

Sensitivity 89dB 2.83V/1m

Thiele-Small Parameters

Resonant Frequency (Fs) 834Hz

DC Resistance (Re) 5.4Ω

Voice Coil Inductance (Le) 0.09mH

Mechanical Q (Qms) 0.81

Electromagnetic Q (Qes) 1.33

Total Q (Qts) 0.5

Mounting Information

Overall Outside Diameter 4.33"

Depth 1.53"
