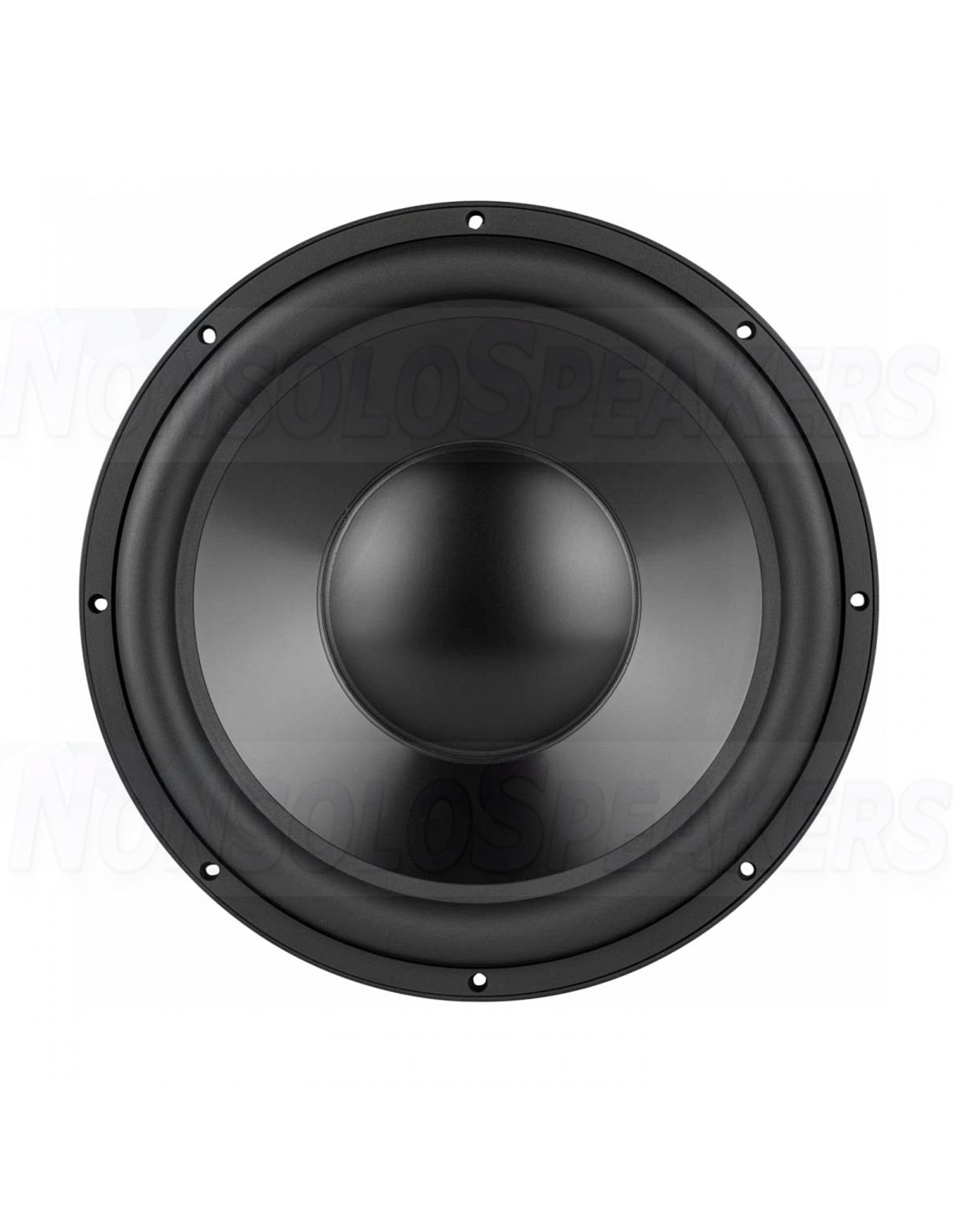

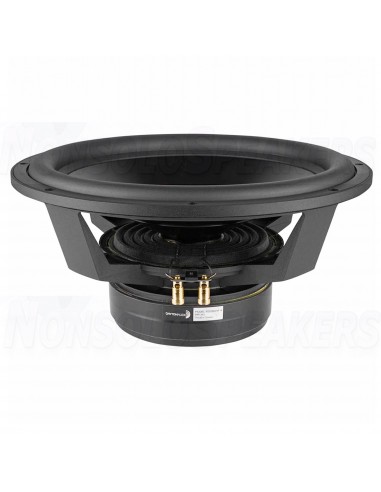

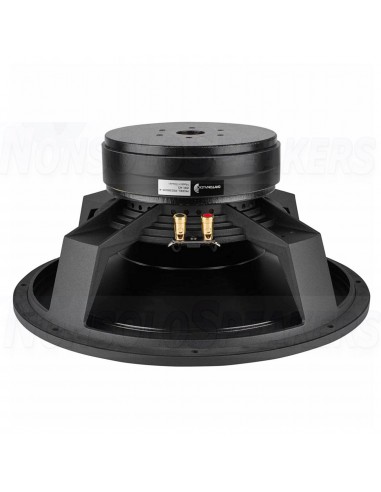

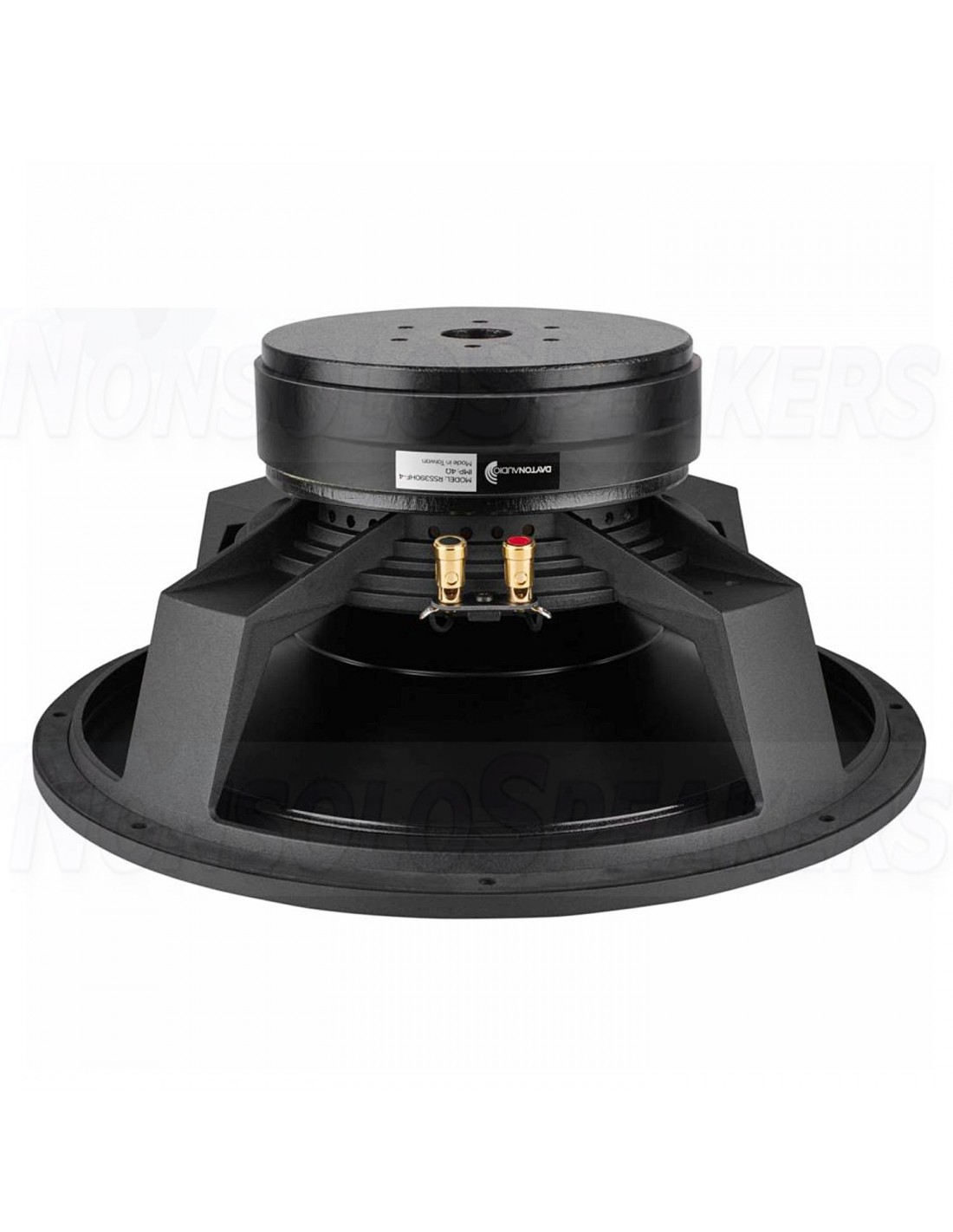

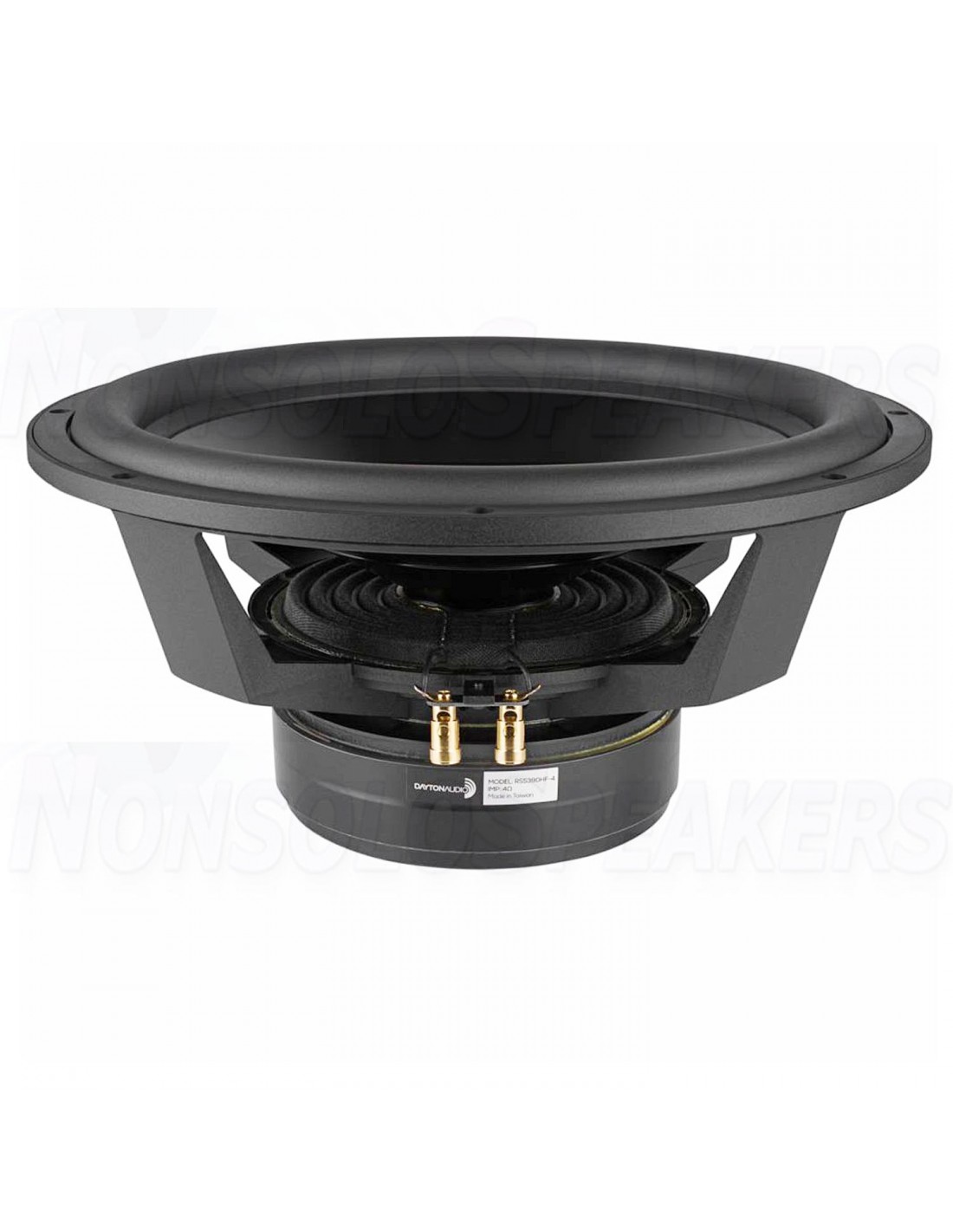

Dayton Audio RSS390HF-4 15" Reference HF Subwoofer 4 Ohm

Engineered to provide high-volume, low-distortion bass in larger rooms and other highly demanding applications, the Dayton Audio RSS390HF-4 15" Reference Series subwoofer speaker offers the perfect combination of high definition sound quality and low frequency impact.

-

Highlights

• Extensively vented motor eliminates compression and allows quiet excursion
• Lightweight black anodized aluminum cone for rigidity and lower moving mass
• Triple shorting ring motor for ultra-low distortion 2-layer coil for reduced back EMF
• Suitable for sealed or vented enclosures
• Highest quality materials throughout for long-lasting performance

.

Product Description

The Dayton Audio Reference Series subwoofers take the quality and performance of the much acclaimed RS line into the subwoofer realm. As with the rest of the Reference Series, the main focus of these subwoofers is ultra-low-distortion. Second, third, and intermodulation distortion are kept extremely low by utilizing three short-circuit paths within the motor structure. A durable aramid fiber spider and extensive venting throughout provide quiet and uniform excursion. The black anodized cone, rubber surround, and custom basket give this driver a unique, high-end look. Choose the high fidelity version for home systems when you are looking for clean, low bass and are not restricted by cabinet size.

OPTIMUM CABINET SIZE

* Sealed Volume 2.88 ft.³ Sealed F3 37 Hz Vented Volume 8.96 ft.³ Vented F3 21 Hz

* Enclosure volume/F3s based on BassBox "optimum" calculations

.

Product Details

Speaker Series Reference Series

Model Number RSS390HF-4

Color Black

Unit of Measure Each

UPC 844632055027

Product Shipping Weight (lbs.) 30

Speaker Type Subwoofer

Nominal Diameter 15"

Power Handling (RMS) 500 watts

Power Handling (max) 1000 watts

Continuous Program Power --

Impedance 4 ohms

Sensitivity 91.2 dB @ 2.83V/1m

Frequency Response 18 - 800 Hz

Voice Coil Diameter 64 mm

Magnet Weight 150 oz.

DC Resistance (Re) 3 ohms

Voice Coil Inductance (Le) 0.92 mH @ 1 kHz

Resonant Frequency (Fs) 19.5 Hz

Mechanical Q (Qms) 3.02

Electromagnetic Q (Qes) 0.5

Total Q (Qts) 0.43

Diaphragm Mass Inc. Airload (Mms) 306g

Moving Mass Of Diaphragm (Mmd) --

Mechanical Compliance of Suspension (Cms) 0.22 mm/N

Surface Area Of Cone (Sd) 829.6 cm²

Volume of Displacement (Vd) 1,161.4 cm³

BL Product (BL) 15 Tm

Compliance Equivalent Volume (Vas) 212 liters

Maximum Linear Excursion (Xmax) 14.0 mm

Drivers Mechanical Losses (Rms) --

Cone / Diaphragm Material Black Anodized Aluminum Cone

Entry / Exit Diameter --

Surround Material Rubber

Voice Coil Wire Material Copper

Voice Coil Former Aluminum

Basket/Frame Material Cast Aluminum

Magnet Material Ferrite

Overall Outside Diameter 388.4 mm

Overall Depth 178 mm

Baffle Cutout Diameter 355.8 mm

# Mounting Holes 8

Mounting Hole Diameter --

Bolt Circle Diameter --

Product Weight --
