Dayton Audio 12" Reference subwoofer kit

Product description

42 L CNC-cut cabinet made of 18 mm MDF panels with a 36 mm" thick front baffle

Includes the ultra-low distortion Dayton Audio 12" Reference Series High Output subwoofer

.

Product details

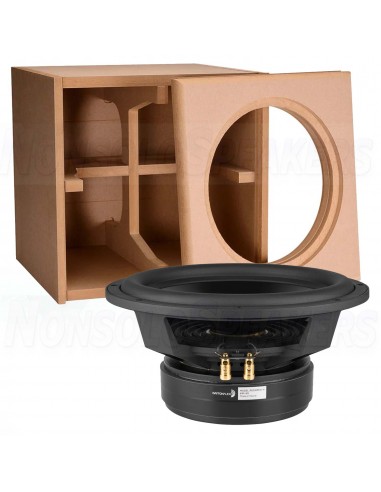

Dayton Audio 12" Reference Series HO Subwoofer and Cabinet Bundle

.

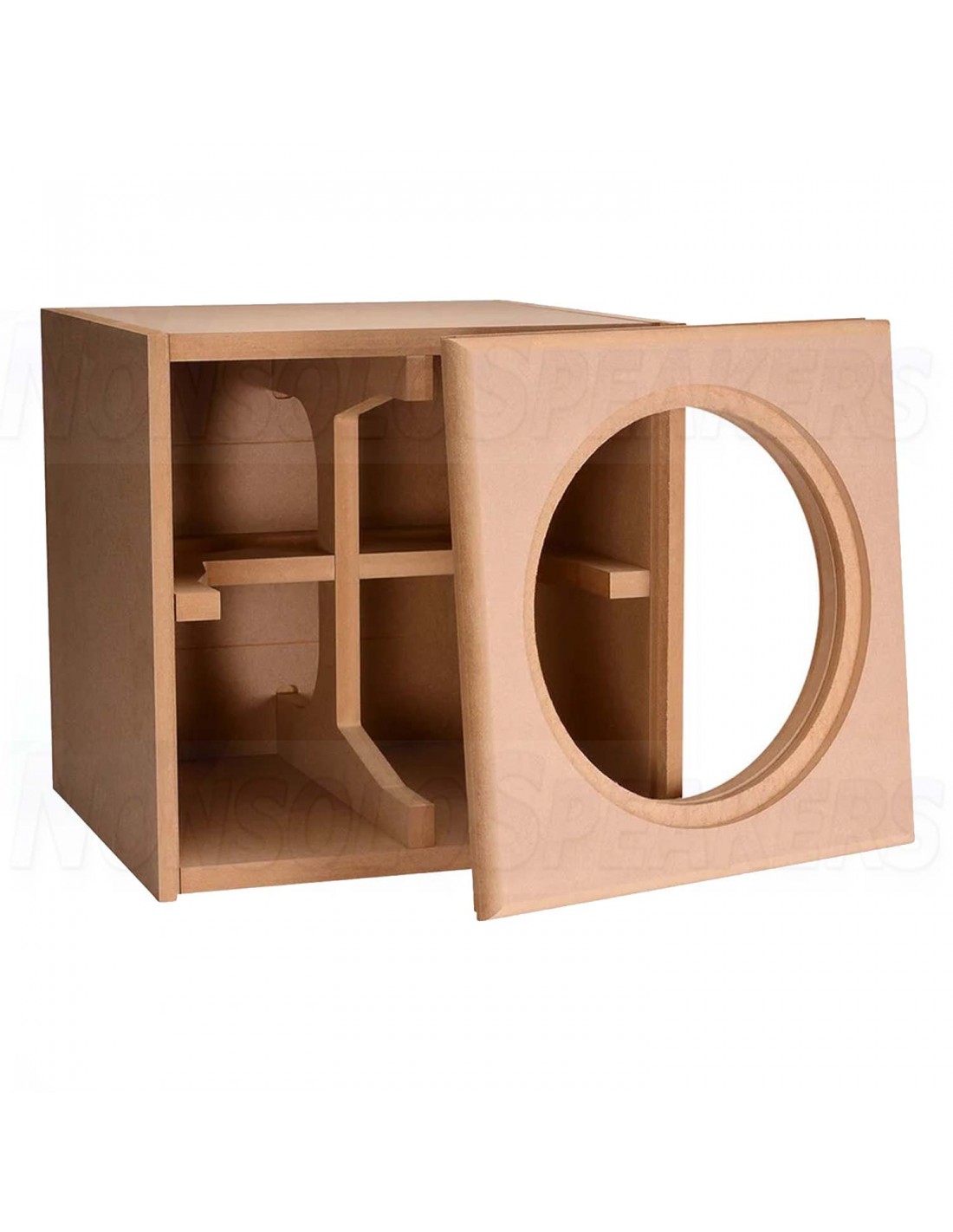

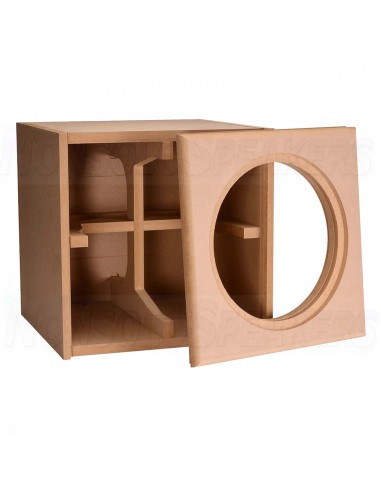

About the Cabinet

This particular cabinet is designed specifically for the Dayton Audio RSS315HO-4 12" Reference Series High Output subwoofer but works for any subwoofer with an overall diameter of 12-3/8" or less, and a cutout requirement of 11-1/8" or less. For optimum performance, the cabinet is oversized to allow for the use of a plate amplifier with bass boost (such as the Dayton Audio SPA250 or Dayton Audio SPA500 plate amplifiers) to extend the frequency response while staying musical.

During the CNC manufacturing process, rabbets and dadoes are cut into the back panel for precise panel alignment. A unique two-piece brace adds superior rigidity without affecting the subwoofer's performance. Both side panels feature 18 mm rabbeted extensions with recesses to perfectly install the first piece of the two-part, double-thick baffle.

The end result is a resonance-free, sealed subwoofer cabinet that is purpose-built to extract the best performance from Dayton Audio's 12" Reference Series High Output subwoofer. All that's left to do is finish it to match your décor or paint it to stand out.

.

Specifications:

Panel thickness: 18 cm, front baffle is 36 cm • Panel material: Medium Density Fiberboard (MDF) • Finished net cabinet volume (subtracting the double thick baffle, bracing, and subwoofer volume): 35.3 L • External dimensions: 393 x 393 x 412 mm • Subwoofer recess: 12.7 mm • Weight: 16.7 Kg • Holes (# and size in mm): 8 x 5,5 mm Ø.

.

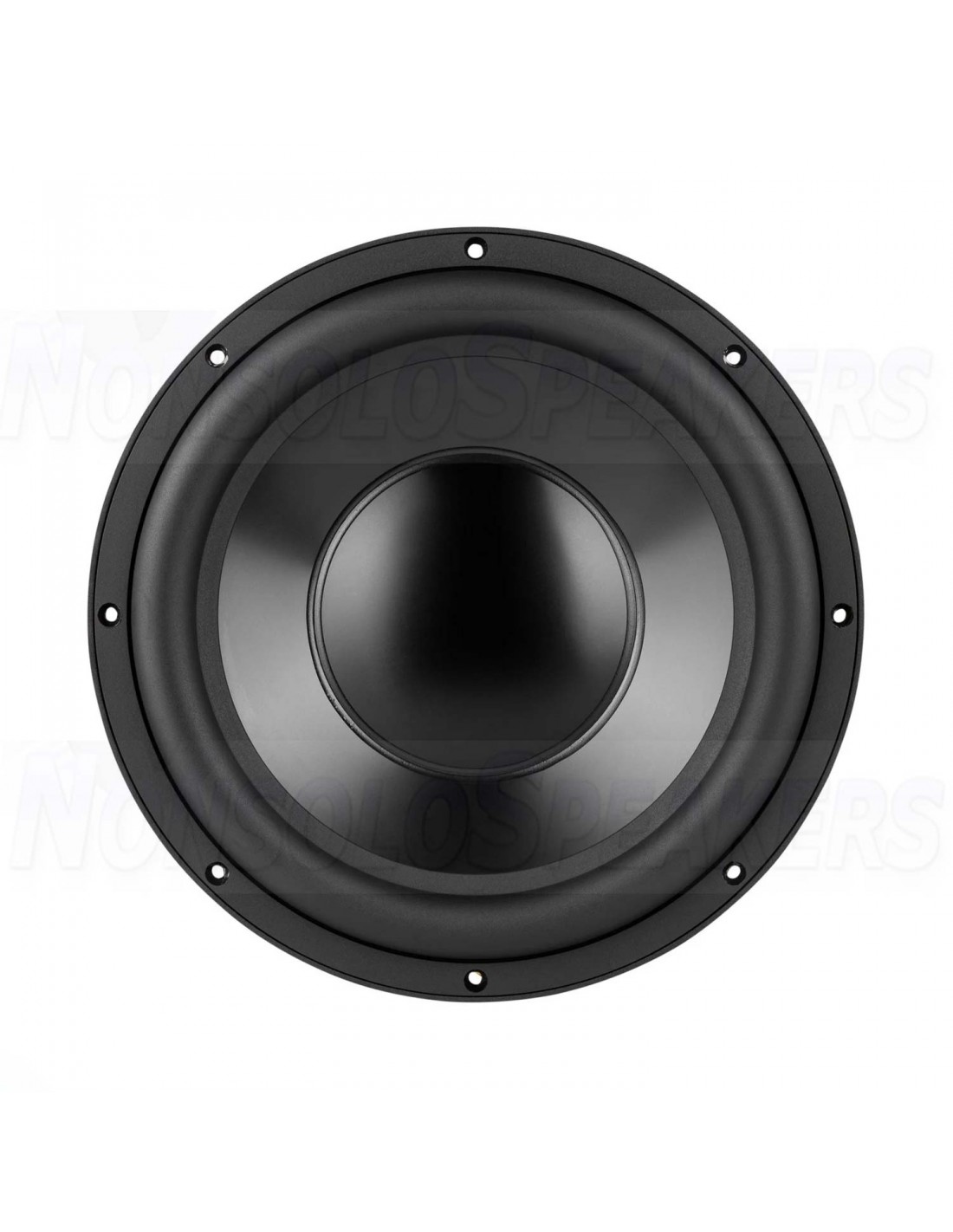

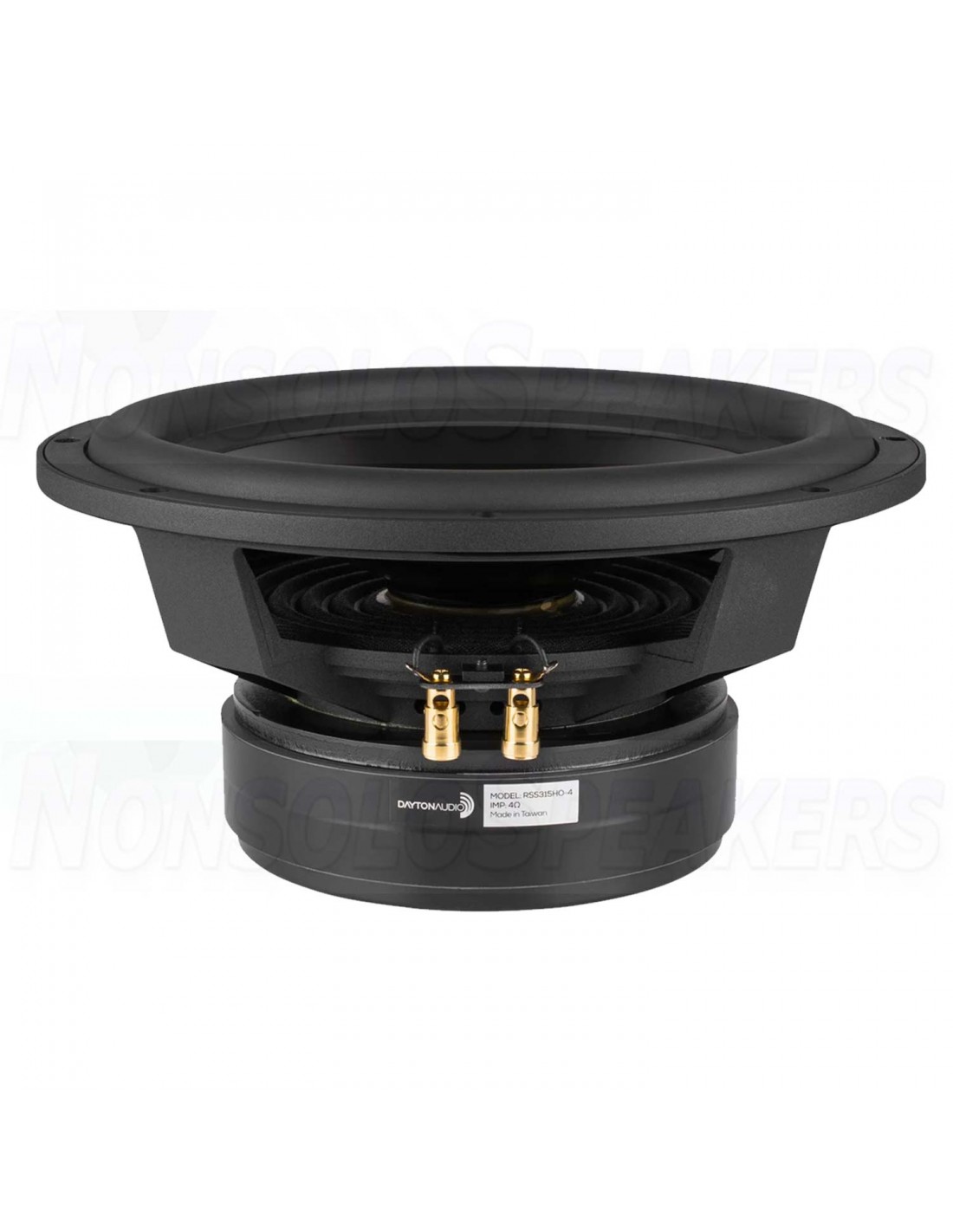

About the Subwoofer

The Dayton Audio Reference Series subwoofers take the quality and performance of the much acclaimed RS line into the subwoofer realm. As with the rest of the Reference Series, the main focus of these subwoofers is ultra-low-distortion. Second, third, and intermodulation distortion are kept extremely low by utilizing three short-circuit paths within the motor structure.

A durable aramid fiber spider and extensive venting throughout provide quiet and uniform excursion. The black anodized cone, rubber surround, and custom basket give this driver a unique, high-end look. Choose the high output version for automotive applications or for equalized high-power home subwoofers.

.

Specifications:

Power handling: 700 watts RMS/1400 watts max • VCdia: 2-1/2" • Le: 1.93 mH • Impedance: 4 ohms • Re: 3.4 ohms • Frequency range: 26-600 Hz • Fs: 31.6 Hz • Magnet weight: 150 oz. • SPL: 85 dB 1W/1m • Vas: 1.18 cu. ft. • Qms: 4.27 • Qes: 0.45 • Qts: 0.41 • Xmax: 12.3 mm • Dimensions: Overall diameter: 313.9 mm, Cutout diameter: 281.9 mm, Depth: 146 mm.

.

Note: Here is a list of what you need to build this subwoofer-cabinet bundle that's not included and where to find it on our webshop:

.

Passive:When building passive, the kit requires a low passfiltered signal.

External amps: Dayton Audio SA1000 / Dayton Audio APA1200DSP

Speaker wire

Binding posts

.

Active:

Plate amps: Dayton Audio SPA500 / Dayton Audio SPA1000

Scribing for cutout: Yes

Braces have to be cut out too

.

Needed for both:

Screws: 8 x Monacor MZF-8615

Feet  (optional)

Coating (optional)

Damping material (optional for tuning the response): Visaton VIS 5070

.

Specifications:

Mounting holes (# and size in mm): 8 x 5,5 mm Ø

Panel thickness: 18 mm

Front baffle thickness: 36 mm

Panel material: Medium Density Fiberboard (MDF)
