Passive Epique 7" Mini Subwoofer Kit

Name: Passive Epique 7" Mini Subwoofer Kit
Brand: Dayton Audio
SKU: Passive Epique 7"
Price: 296.1 EUR
Availability: InStock

Passive Epique 7" Mini Subwoofer Kit

SHIPMENT IN 5-7 WORKING DAYS

€296.10 €329.00 -10%

Tax included

No review at the moment

Estimated Shipping Costs

Shipping Costs

€46.80

Shipping Time

Want to check another country or courier?

Passive Epique 7" Mini Subwoofer Kit

Product description

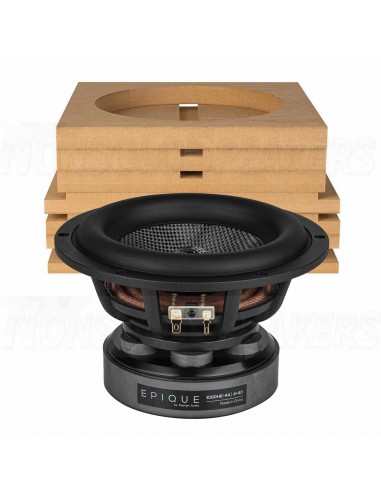

Occupying only 9.9L, this Hi-Fidelity passive mini 17,8cm (7") subwoofer kit will deliver surprisingly powerful output making it a perfect addition to smaller stereo and home theater systems. With the brand new Epique H180HE-44 MMAG ultra-low distortion 7" driver and precision CNC cut compact enclosure, this system can be used as a dedicated subwoofer, or used as a small separate woofer bin in a multi-way design.

Highlights

Extremely compact design will fit almost anywhere

Use multiples to help minimize room modes for more even, room-filling low end

High excursion, extended range Epique E180HE-44 7" driver provides powerful output capability

CNC-cut 19mm MDF panels for precise fit, easy assembly, and smooth finish

Product Details

Passive Dayton Audio Epique 7" Mini Subwoofer Kit

Housed in just a 25,4cm cube, the Hi-Fidelity Epique E180HE-44 17,8cm (7") Passive Mini Subwoofer Kit is the perfect solution for providing high performance bass response without taking up much space. With the Epique high excursion extended range E180HE-44 7" subwoofer driver you can expect incredibly accurate response with ultra-low distortion. Thanks to the small size this subwoofer is ideal for using multiples strategically positioned around rooms to minimize room nodes (null and peaks) for more even bass distribution.

If your endgame is ultimate fidelity in a small package, this is the subwoofer for you. The Epique E180HE-44 will immerse you in clarity and low distortion low frequencies. Perfect for a desktop, 2.1 music system, small studio or even in your car, the Hi-Fidelity Epique 7" mini subwoofer kit is one of the best sounding small subwoofers available anywhere.

Simulated Performance Specifications:

• Maximum output: 107 dB • F3: 60 Hz • F10: 34 Hz

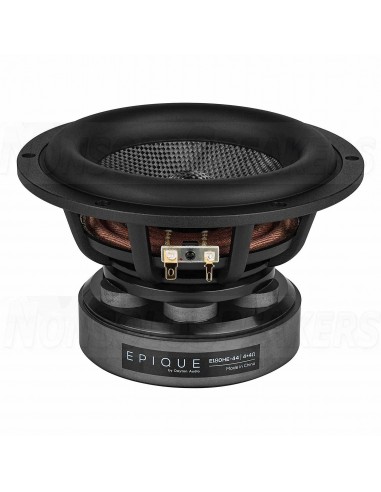

Epique H180HE-44 7" Subwoofer Specifications:

• Power handling: 200 watts RMS/400 watts max • Le: 1.5 mH • Impedance: 8 ohms (series)• Re: 6.8 ohms • Frequency range: 25 to 3,000 Hz • Fs: 35 Hz • SPL: 85.7 dB 2.83V/1m • Vas 16L. • Qms: 2.93 • Qes: .54 • Qts: .46 • Xmax: 14.7 mm.

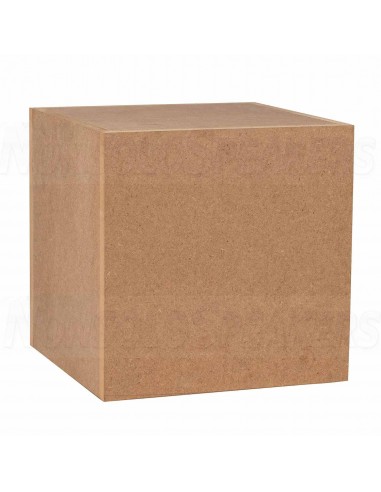

Enclosure Specifications:

• Panel thickness: 19mm • Panel material: Medium Density Fiberboard (MDF) • Finished internal cabinet volume: 9.9L • External dimensions: 25,4cm H x 25,4cm W x 25,4cm D • Weight: 10.4kg. • Made in the USA.

Note: Mounting screws, binding posts and feet are not included.
