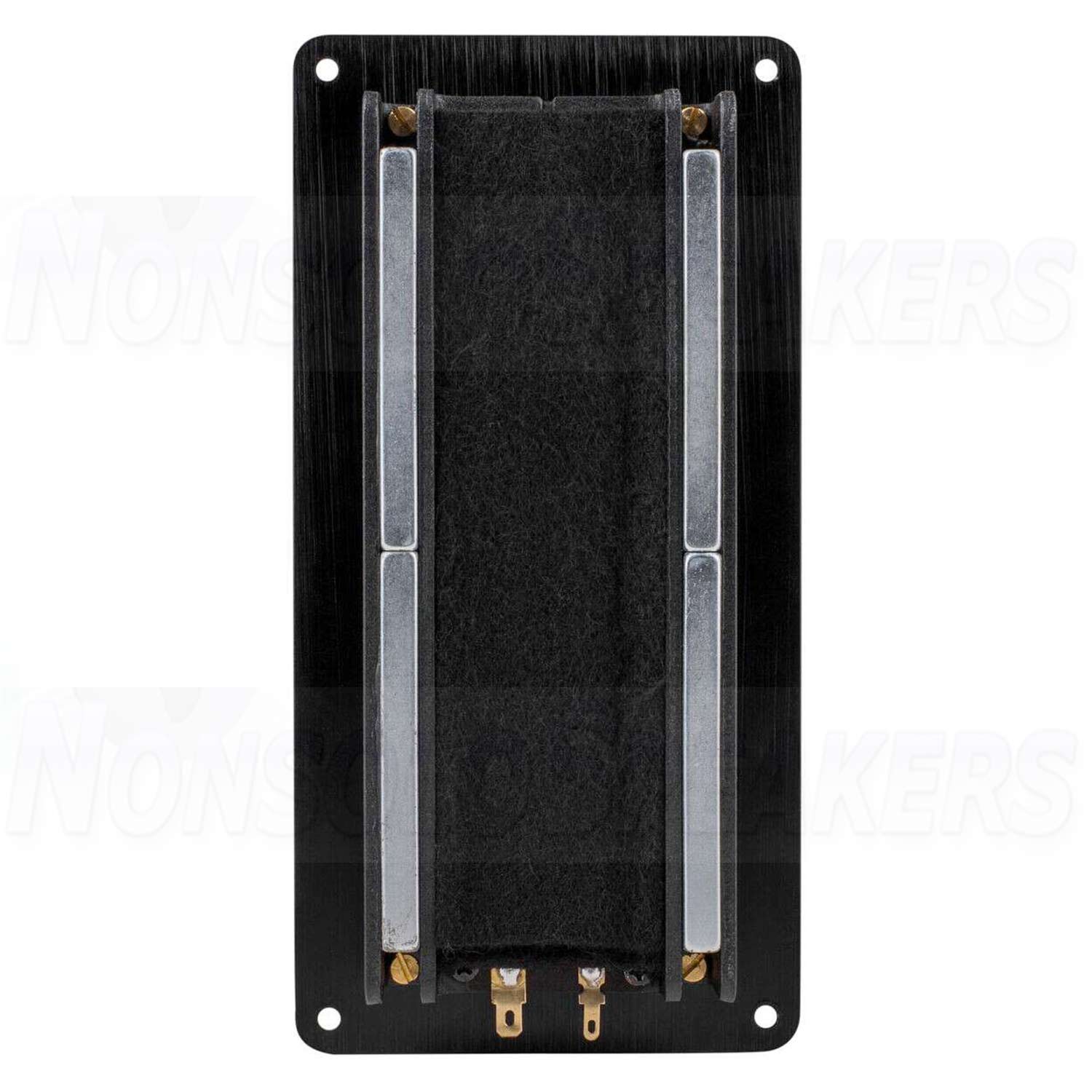

Dayton Audio AMTPRO-4 Air Motion Transformer Tweeter 4 Ohm

Dayton Audio AMTPRO-4 Air Motion Transformer Tweeter 4 Ohm

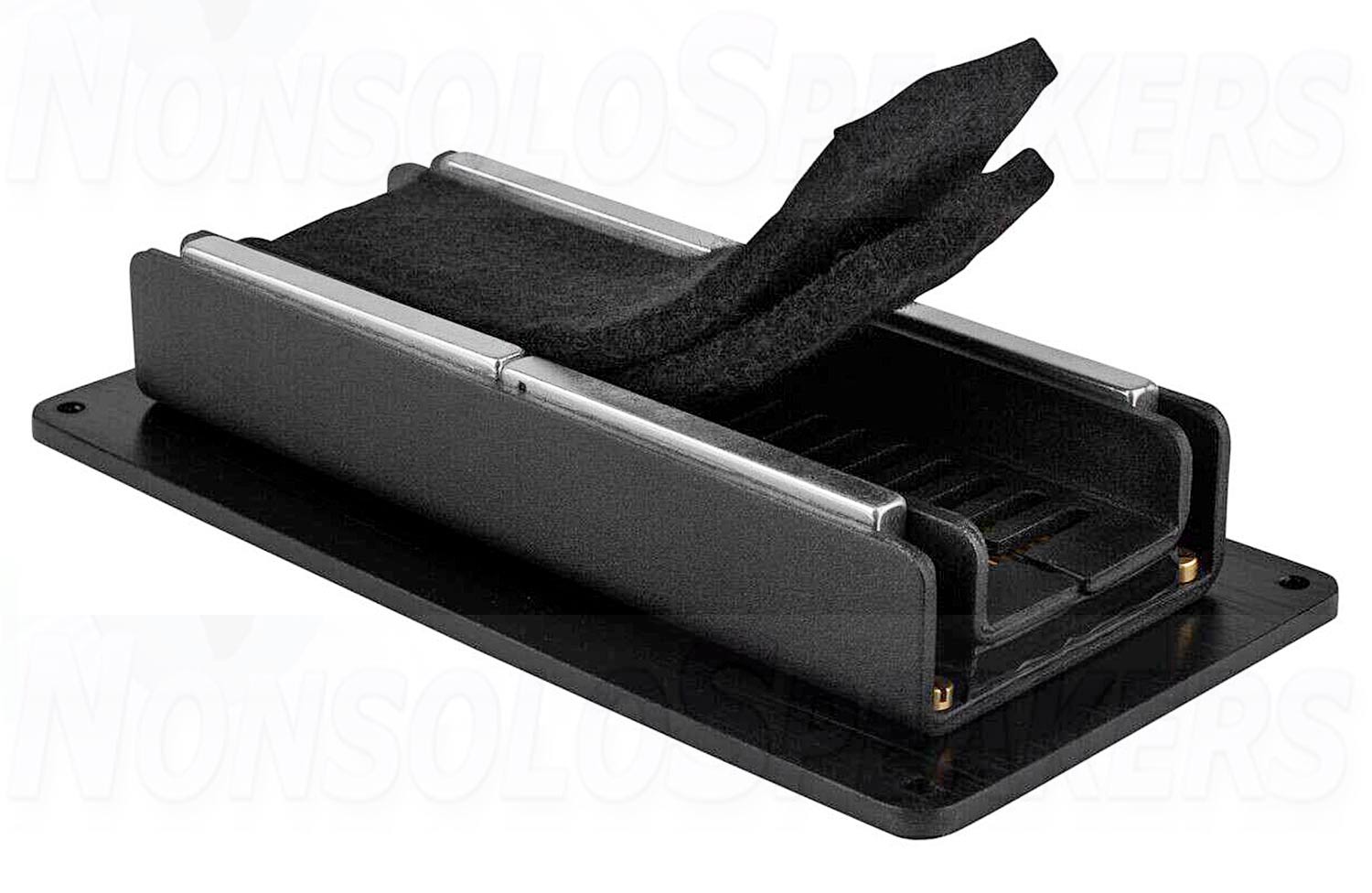

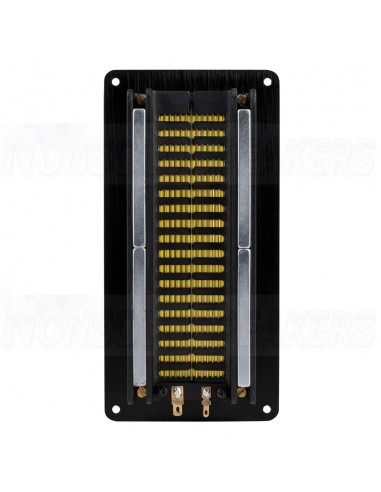

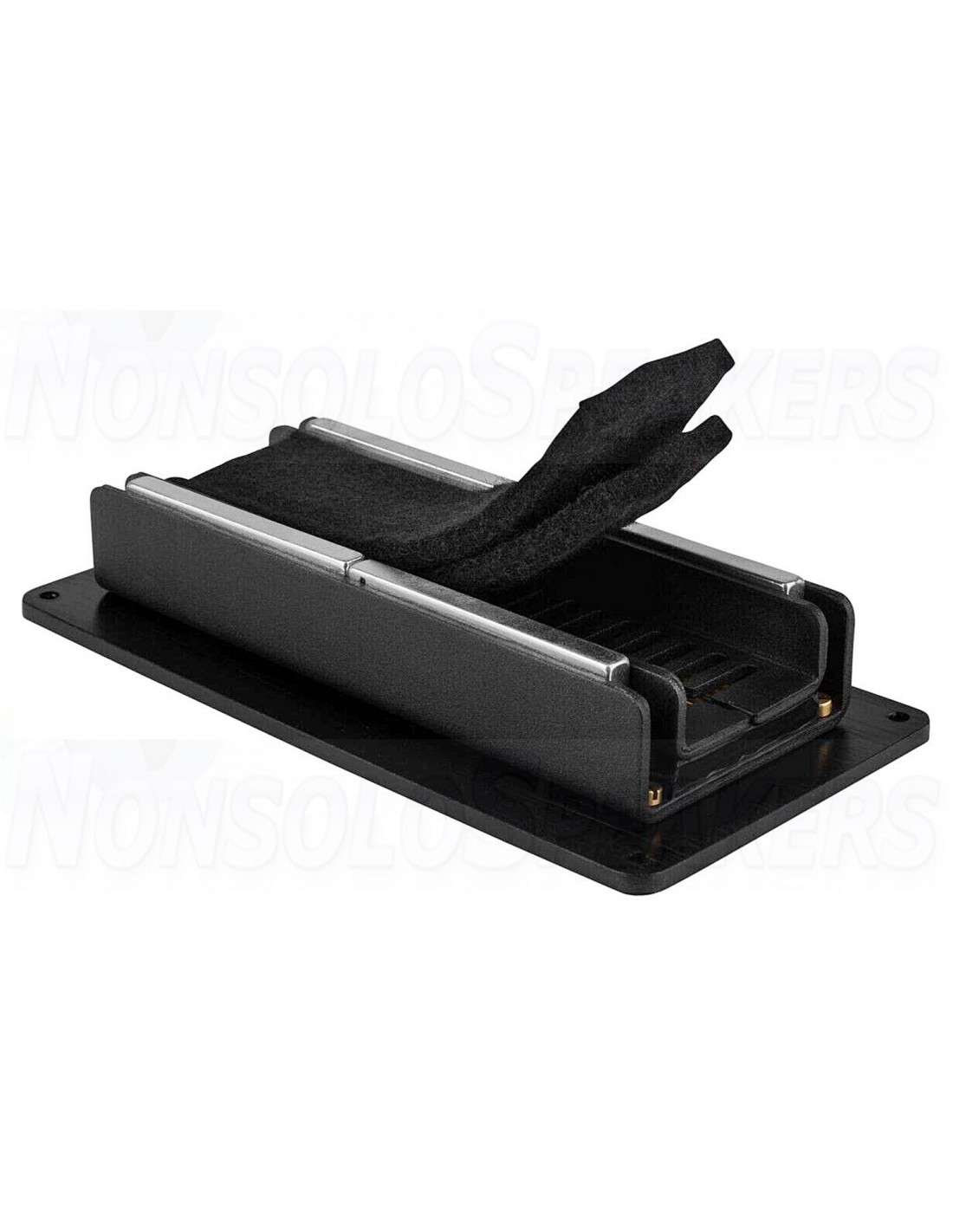

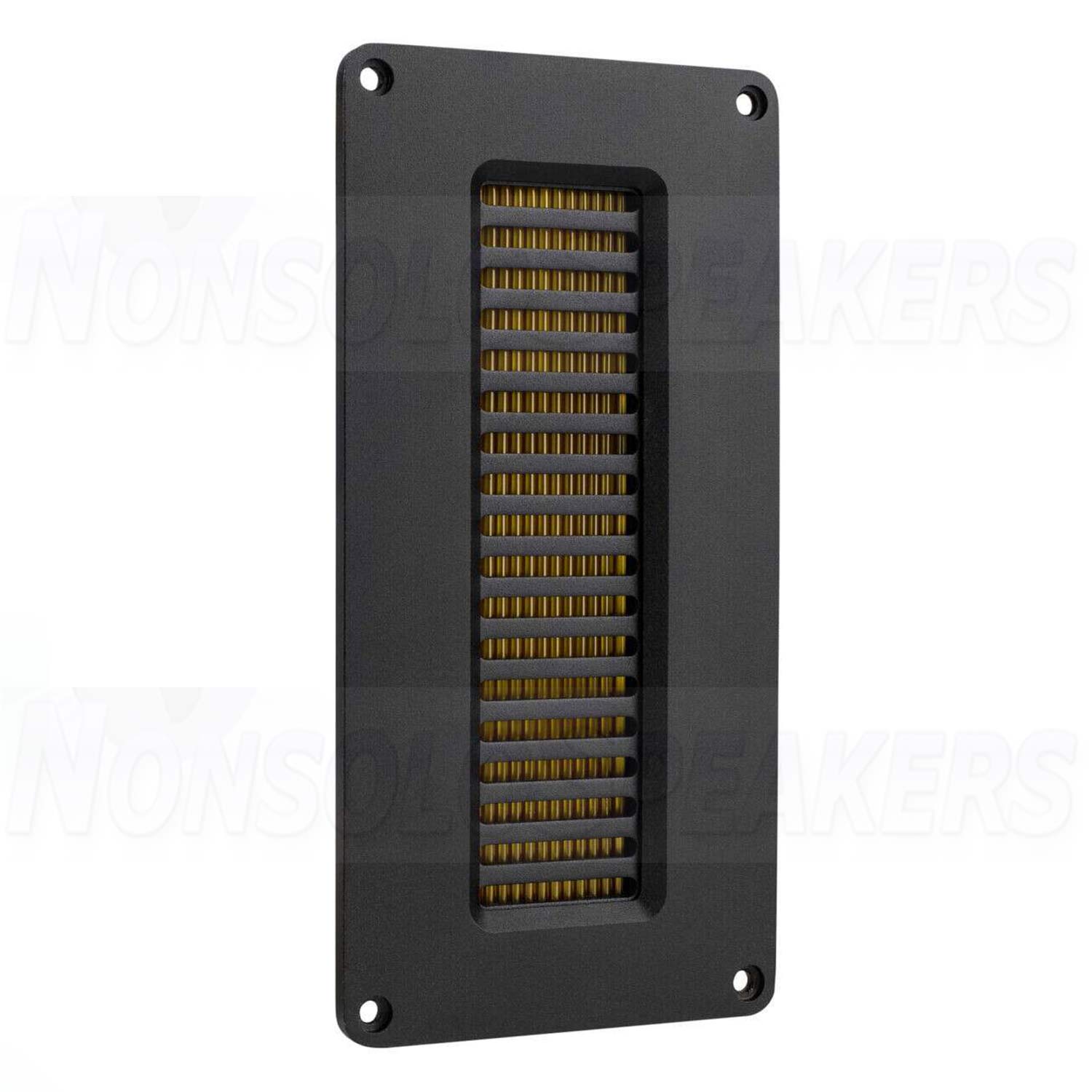

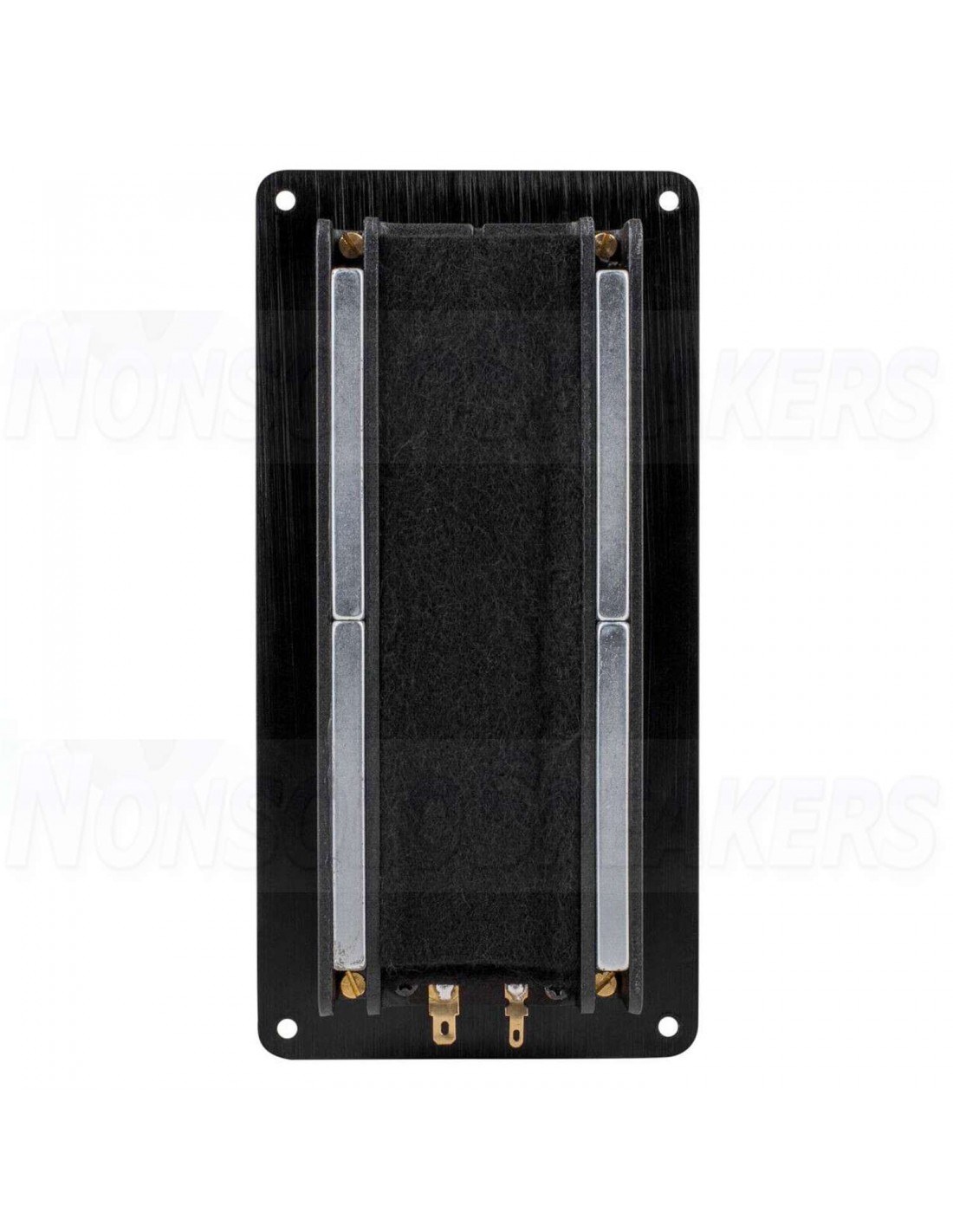

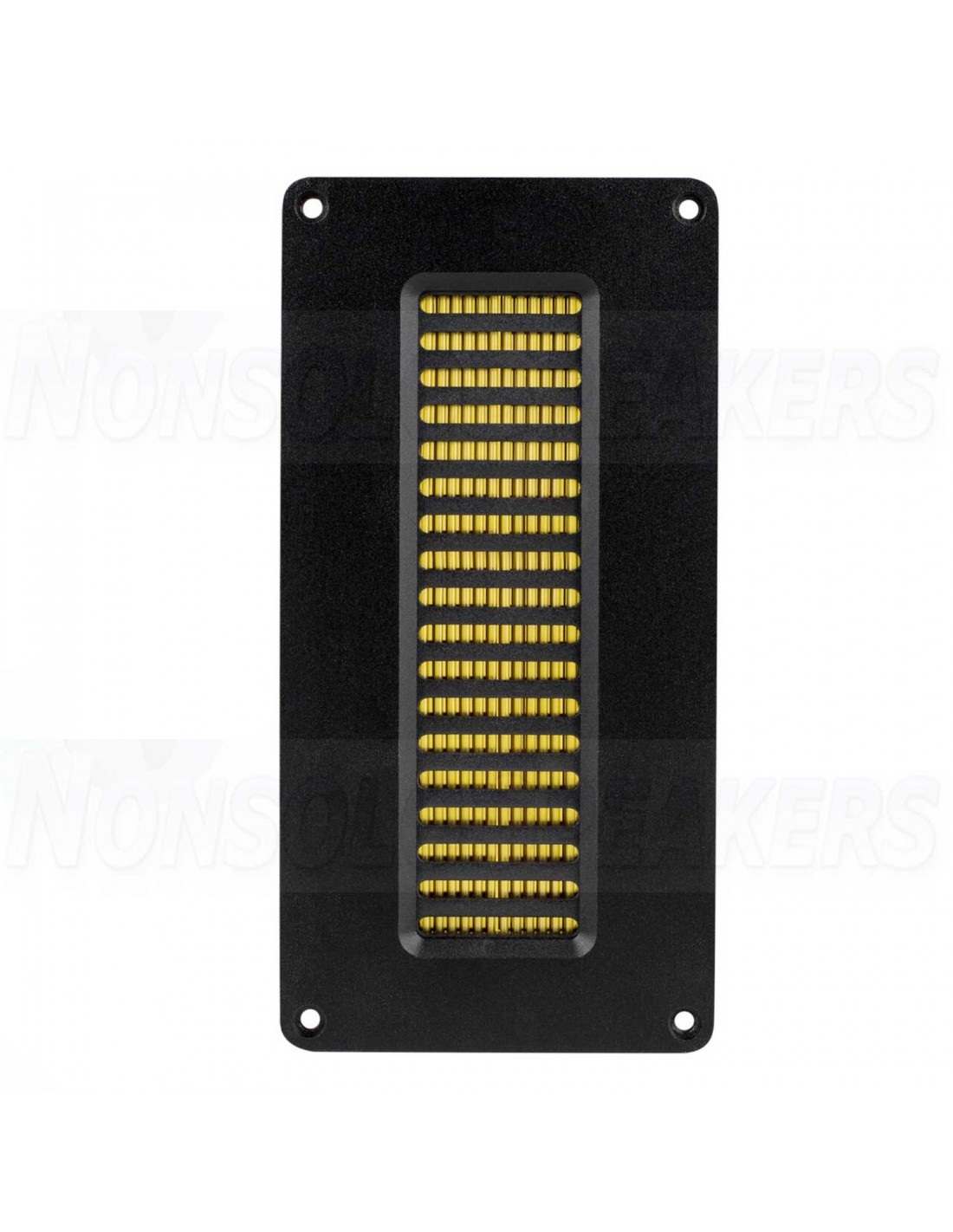

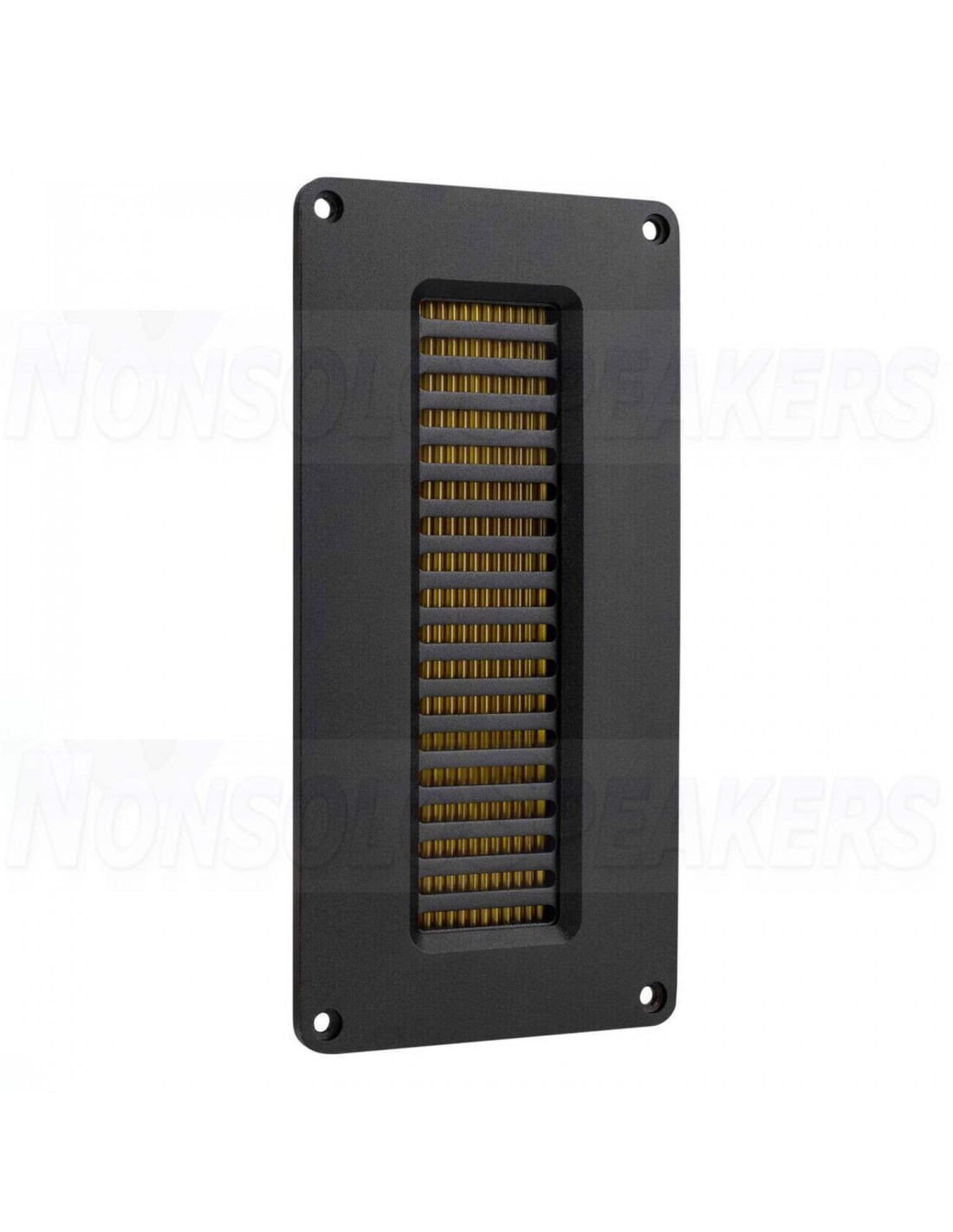

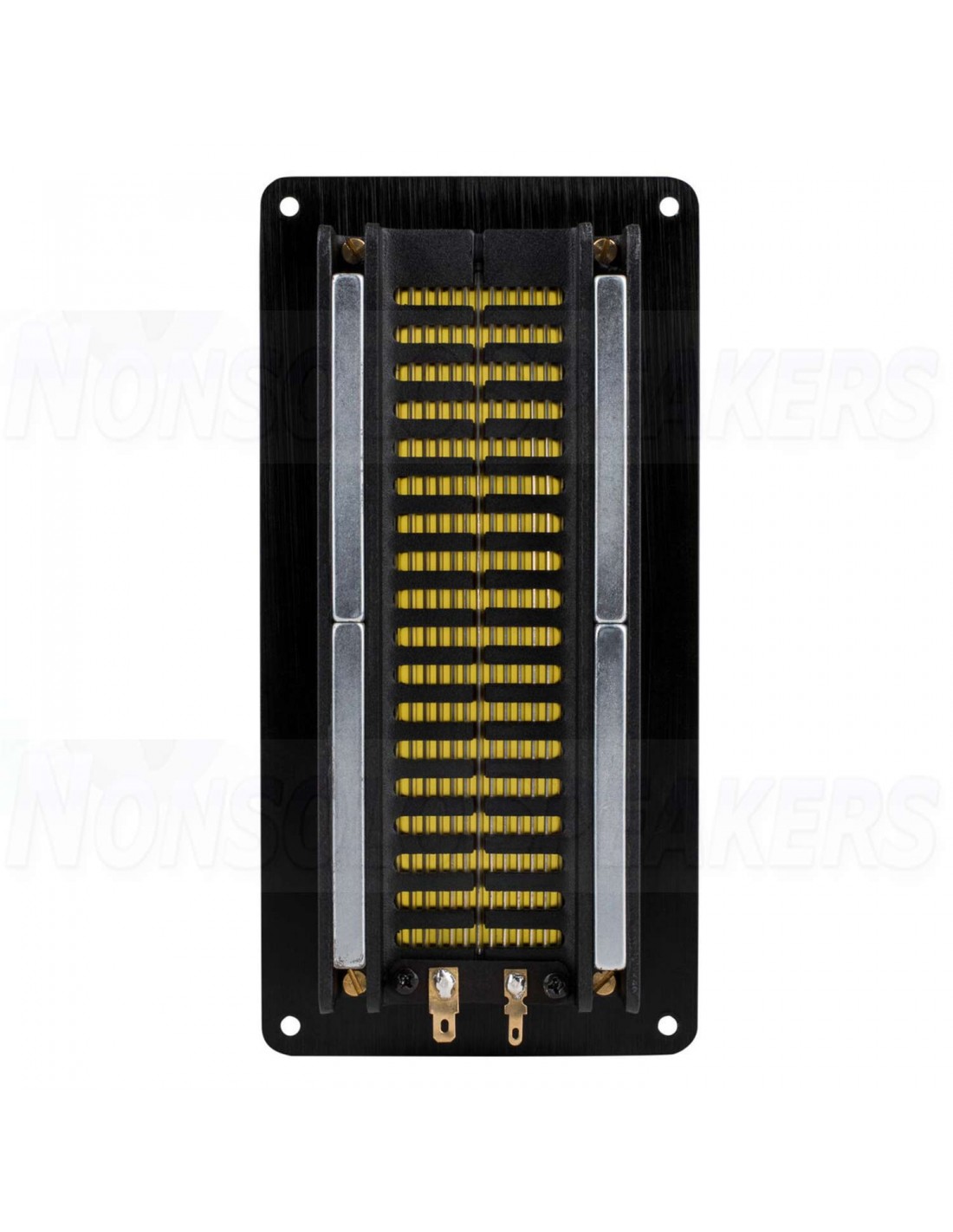

Dayton Audio's AMTPRO-4 model features an extremely large AMT diaphragm with an open-back design and powerful neodymium magnetic assembly. This combination produces high output and low distortion over a broad frequency range, while handling large amounts of amplifier power.

Perfect for use in PA loudspeakers, large-format studio monitors, custom cinema speakers, or extreme performance hi-fi loudspeakers, the AMTPRO-4 can easily be chamber-loaded or open-baffle loaded as required by a particular dipole application. Thanks to its ability to be crossed over as low as 800 Hz, the AMTPRO-4 driver is a uniquely effective solution for midrange reproduction as well as treble, and can even be used as a wide-bandwidth “mid-tweeter” driver.

Dayton Audio AMT (Air Motion Transformer) tweeters borrow technology from the original Heil Air Motion Transformer to provide ultra-clean, detailed, and dynamic treble output. The pleated ribbon diaphragm of an AMT provides a large acoustic radiating area condensed into a compact chassis, for extremely high SPL output, wide bandwidth, and improved power handling.

Product Details

Brand Dayton Audio

Model AMTPRO-4

Part Number 275-094

UPC 848791000645

Unit of Measure Each

Weight 2.65

Product Specifications

Cutout Diameter 2.83

Tweeter Type AMT Air Motion Transformer

Power Handling (RMS) 50 Watts

Impedance 4Ω

Frequency Response 800 to 18,000Hz

Sensitivity 94dB 2.83V/1m

Thiele-Small Parameters

Resonant Frequency (Fs) 800Hz

DC Resistance (Re) 3.96Ω

Voice Coil Inductance (Le) 0.06mH

Total Q (Qts) 4.12

Mounting Information

Overall Outside Diameter 7.87" x 3.94"

Depth 1.42"
