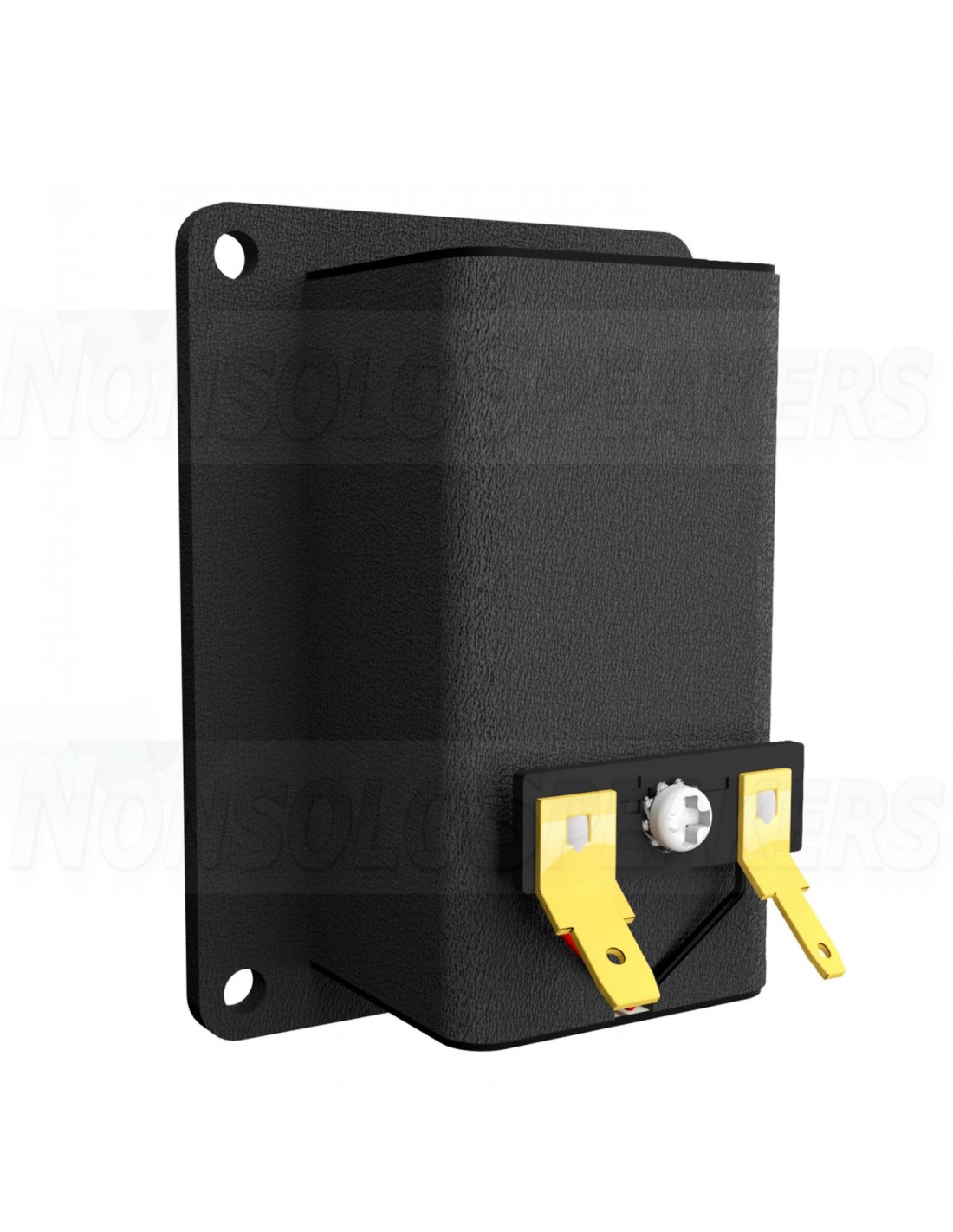

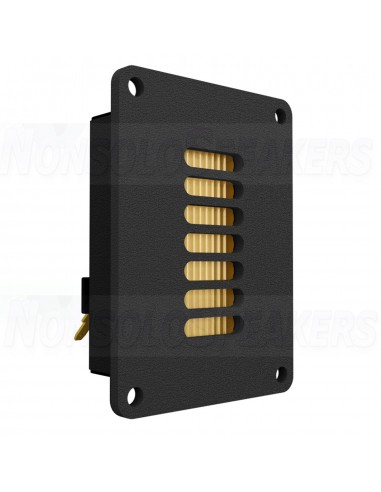

Mundorf AMT U60W1.1 Air Motion Transformer

Mundorf AMT U60W1.1 Air Motion Transformer

1 piece

4 Ohms · 55x75mm · Neodymium

AMT U60W1.1 and AMT U80W1.1 could be described as the small and the large all-rounder of this product range. Both can be used in small or medium 2-way and 3-way systems. AMT U60W1.1 offers a slightly larger vertical radiation angle. So it‘s ideally suited for situations with a short listening distance. Both convince with the decisive quality features of the AMT U.Series with Mundorf diaphragm: Exceptionally low K3 / K5 distortion data, a truly powerful music performance within the entire application range and, at the same time, the fine micro-dynamics and richness of music details that distinguish all Mundorf AMT’s.

• power handling (continuous/programme) = 10/70 W
• frequency range = 2100-34000 Hz
• resonance frequency fs = 2350 Hz
• impedance R = 4 Ohm
• sound pressure level SPL = 93 dB (2,83V; 1m)
• DC resistance Re = 4 Ohm
• effective piston radiating area Sd = 20,1 cm²
• overall diameter d = 75x55 mm
