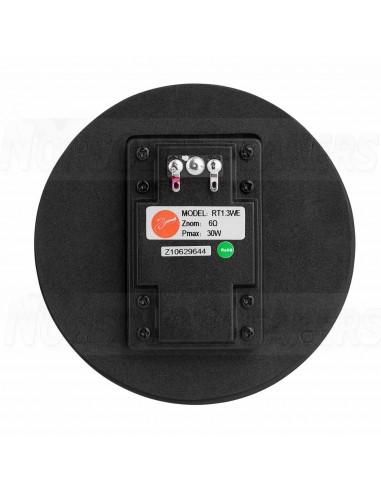

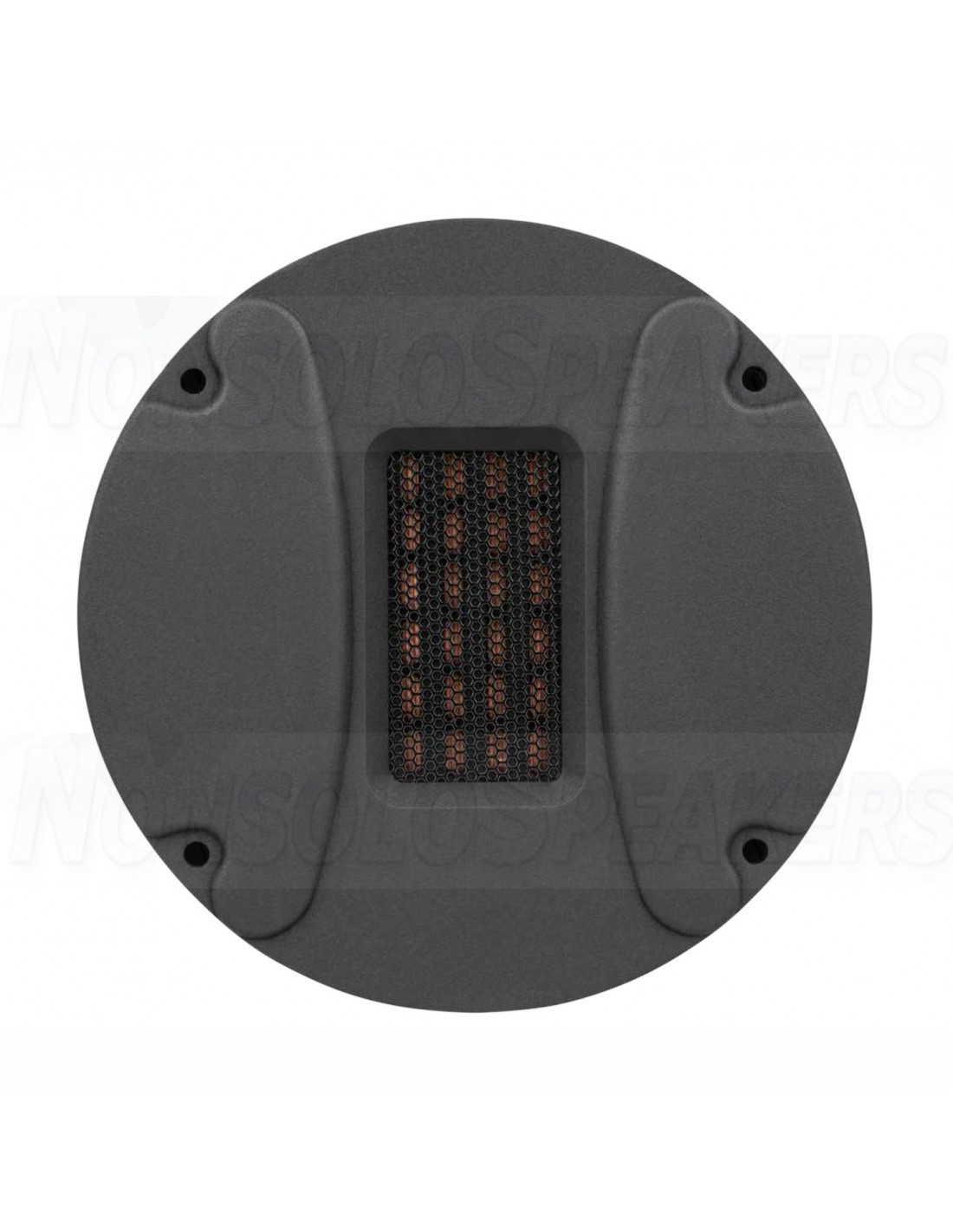

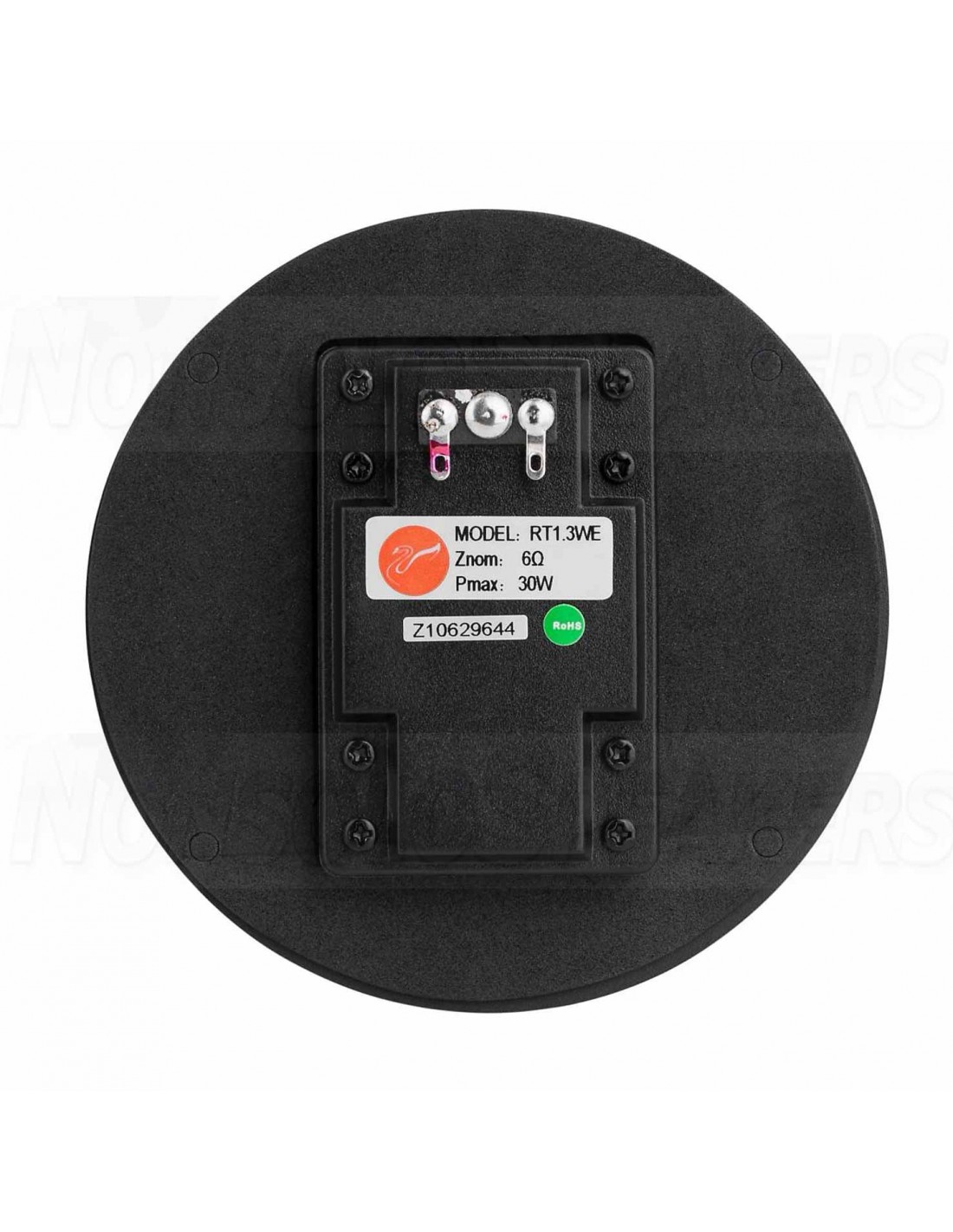

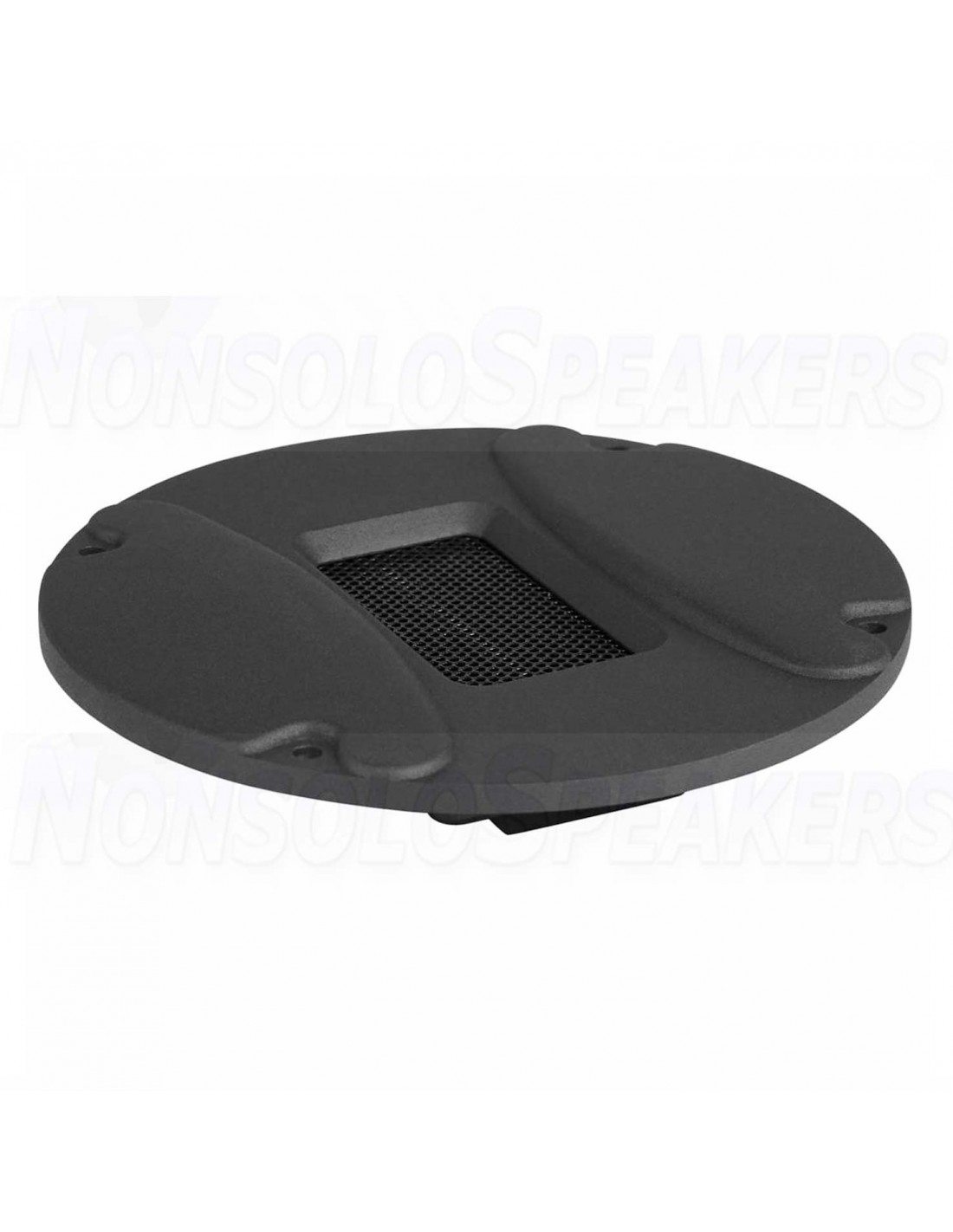

HiVi RT1.3WE Isodynamic Planar Tweeter 6 ohm

With a large radiating surface the HiVi RT1.3WE isodynamic tweeter is compatible with crossover points as low as 2,500 Hz while delivering impressive efficiency for its size. This planar tweeter is ideal for higher efficiency 2-way designs.

.

Highlights

• Large vibrating surface area delivers great dynamics with smooth response
• Even distribution of neodymium magnets provide a uniform driving force
• Extremely lightweight diaphragm for quick and accurate transient response
• Perfect for high-efficiency two-way single or multiple woofer designs

.

Product details

HiVi RT1.3WE Isodynamic Tweeter

This wide range planar tweeter features a large vibrating surface area for great dynamics and ease of sound reproduction. The radiating membrane is suspended within a large number of neodymium magnets, which provides a uniform driving force throughout the surface. The resulting high sensitivity is perfect for high-efficiency two-way single or multiple woofer designs.

.

Specifications

• Article number RT1.3WE
• Tweeter Type Planar
• Tweeter Series RT Series
• Cone / Dome Diameter 1.01'' W x 2.01'' H
• Power Handling (RMS) 10 Watts
• Impedance (Z) 6 Ω
• Sensitivity (SPL at 1m / 2.83V) 92 dB
• Frequency Response 2,500 to 40,000 Hz
• DC Resistance (Re) 5.4 ohms
• Overall Outside Diameter 120 mm
• Cutout Diameter 2" W x 3.125" H
• Depth 0.82"
• Recommended cut frequency 2,500Hz with 2nd order
