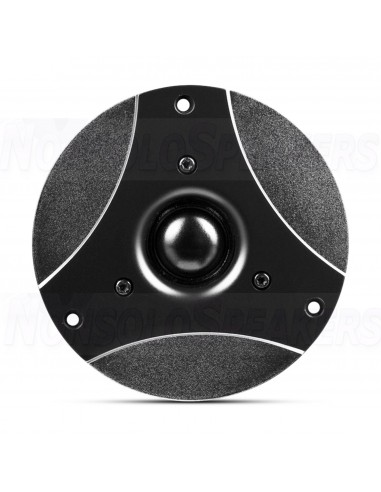

HiVi K1 Dome Tweeter 5 ohm

Product description

Hi-Vi K1 1" fabric dome tweeter with decorative face plate. Shielded magnet, 92dB, fs 800Hz, 5 ohm.

.

Highlights

• K1 is a new generation of high-frequency dome loudspeaker
• Natural fiber high damping dome membrane, coated with special damping material.
• Natural and detailed sound performance.
• Flat frequency, could reach 25 KHz in high frequency range.

.

Product details

HiVi K1 | 1" | Fabric Dome Tweeter

Heat-resistant alley(magnesium/aluminum) in frame, aluminum voice coil wire coated with copper, ferro fluid cooled. K1 has high -performance magnetic structure, a symmetrical driving magnetic field for low distortion degree, 92 dB sensitivity, high magnetic density and strong faceplate with creative design. Detailed and natural performance and be used widely.

.

Specifications

• Article number K1
• Tweeter Type Fabric Dome
• Cone / Dome Diameter 25 mm | 1"
• Power Handling (RMS) 15 Watts
• Impedance (Z) 5 Ω
• Sensitivity (SPL at 1m / 2.83V) 92 dB
• Resonant Frequency (Fs) 800 Hz
• DC Resistance (Re) 4.6
• Overall Outside Diameter 25 mm
• Recommended cut frequency >2500Hz
