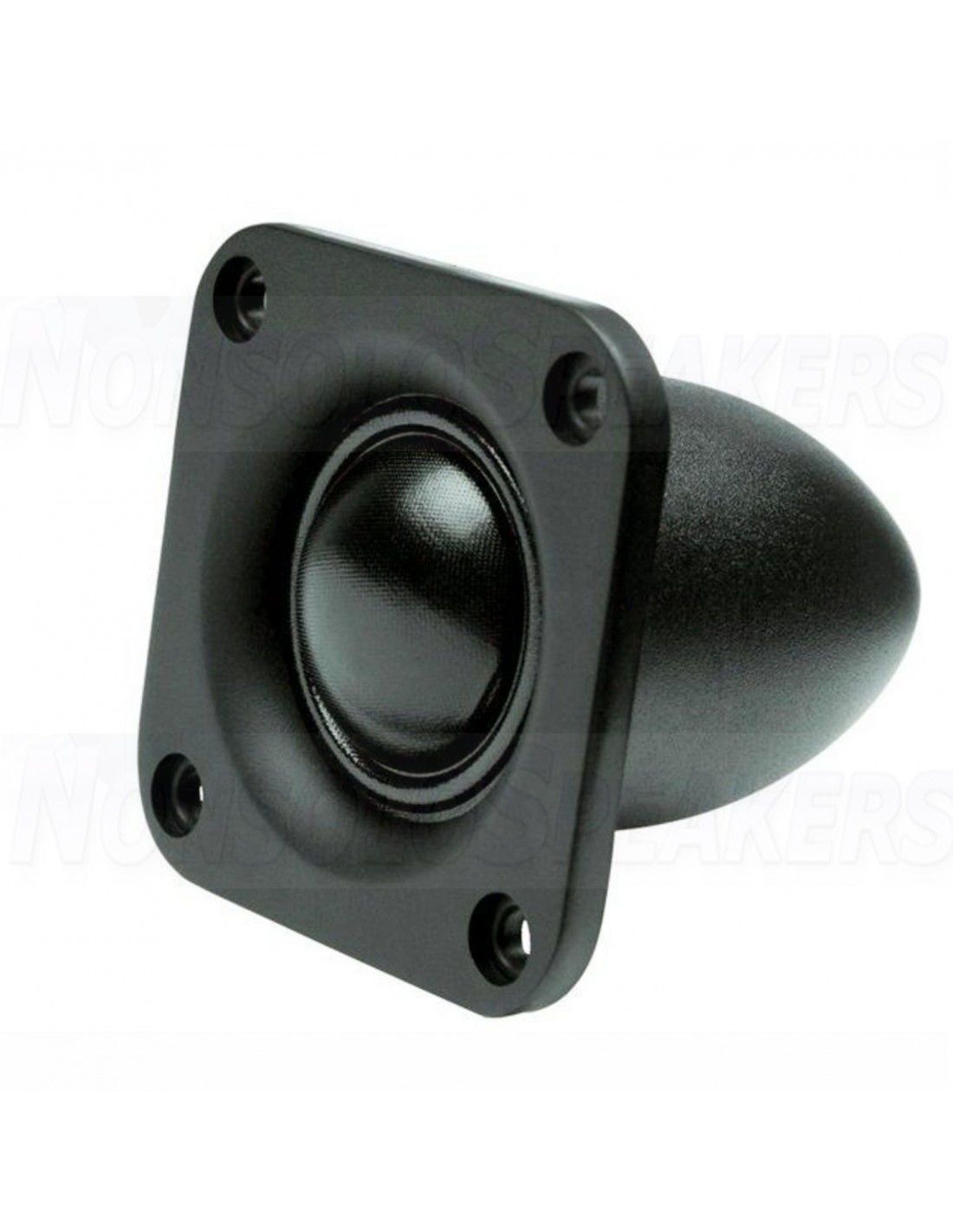

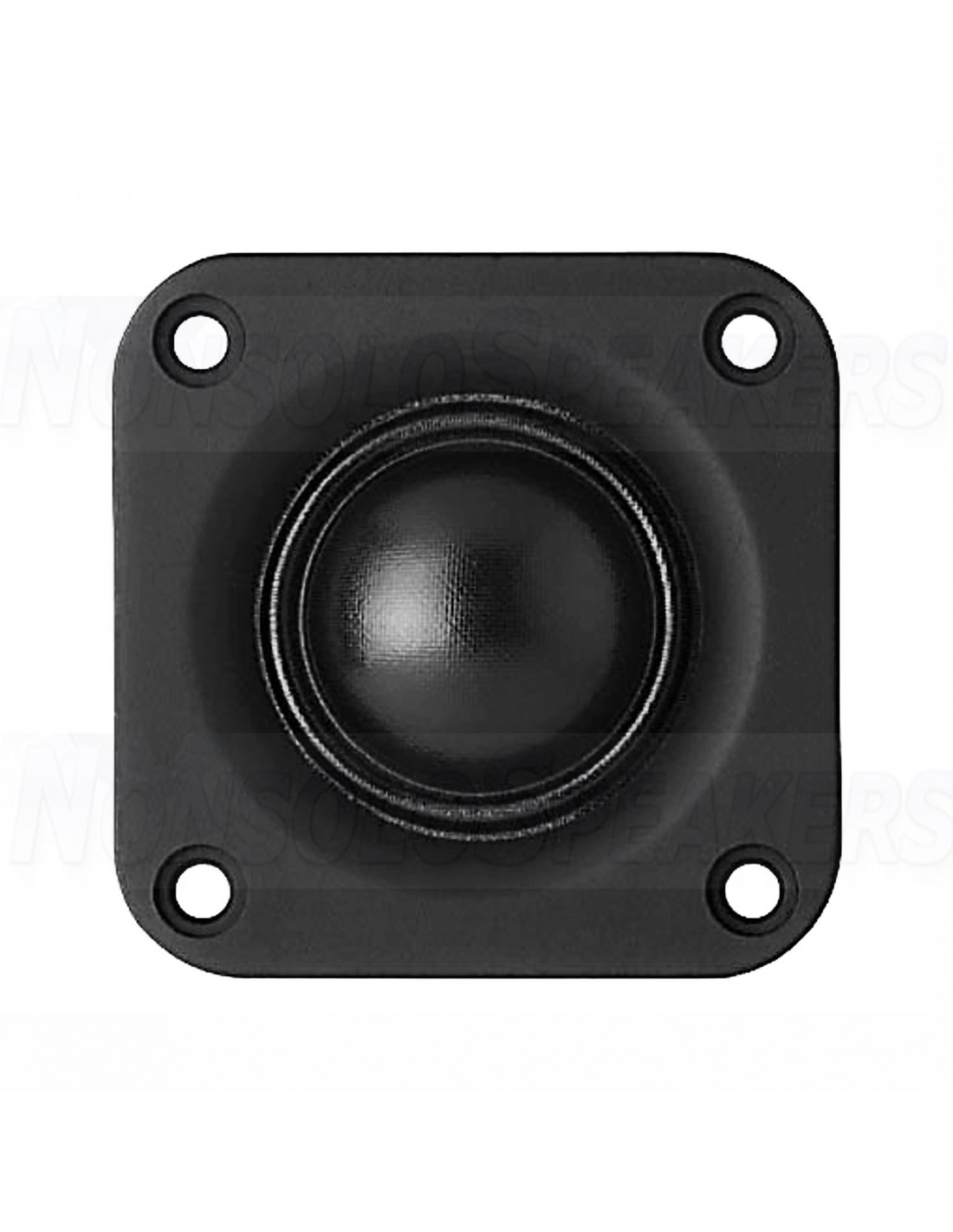

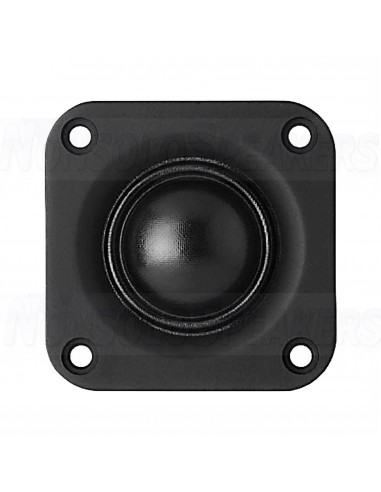

HiVi TN25 Dome Tweeter 5 ohm

Product description

HiVi combines a hand treated 1" fabric dome, large non-resonant rear acoustic chamber, and a Ferrofluid cooled voice coil together in the TN25, creating a high performance tweeter with small faceplate for close driver placement.

.

Highlights

• Inherently shielded neo motor
• Fabric dome for a smooth, natural sound
• Large acoustic chamber reduces Fs for low crossover points

.

Product details

HiVi TN25 Fabric Dome Tweeter

HiVi combines a hand treated 1" fabric dome, large non-resonant rear acoustic chamber, and a Ferrofluid cooled voice coil together in the TN25, creating a high performance tweeter with small faceplate for close driver placement. Self-shielded neodymium motor protects sensitive electronics while focusing the magnetic flux in the gap.

.

Specifications

• Article number TN25
• Tweeter Type Soft Dome Cone / Dome
• Diameter 25 mm | 1"
• Power Handling (RMS) 20 Watts
• Impedance (Z) 5 Ω
• Sensitivity (SPL at 1m / 2.83V) 91 dB
• Frequency Response 2,500 to 22,000 Hz
• Resonant Frequency (Fs) 1500 Hz
• DC Resistance (Re) 4.60 ohms
• Overall Outside Diameter 2.13" x 2.13"
• Cutout Diameter 1.69"
• Depth 2.50"
