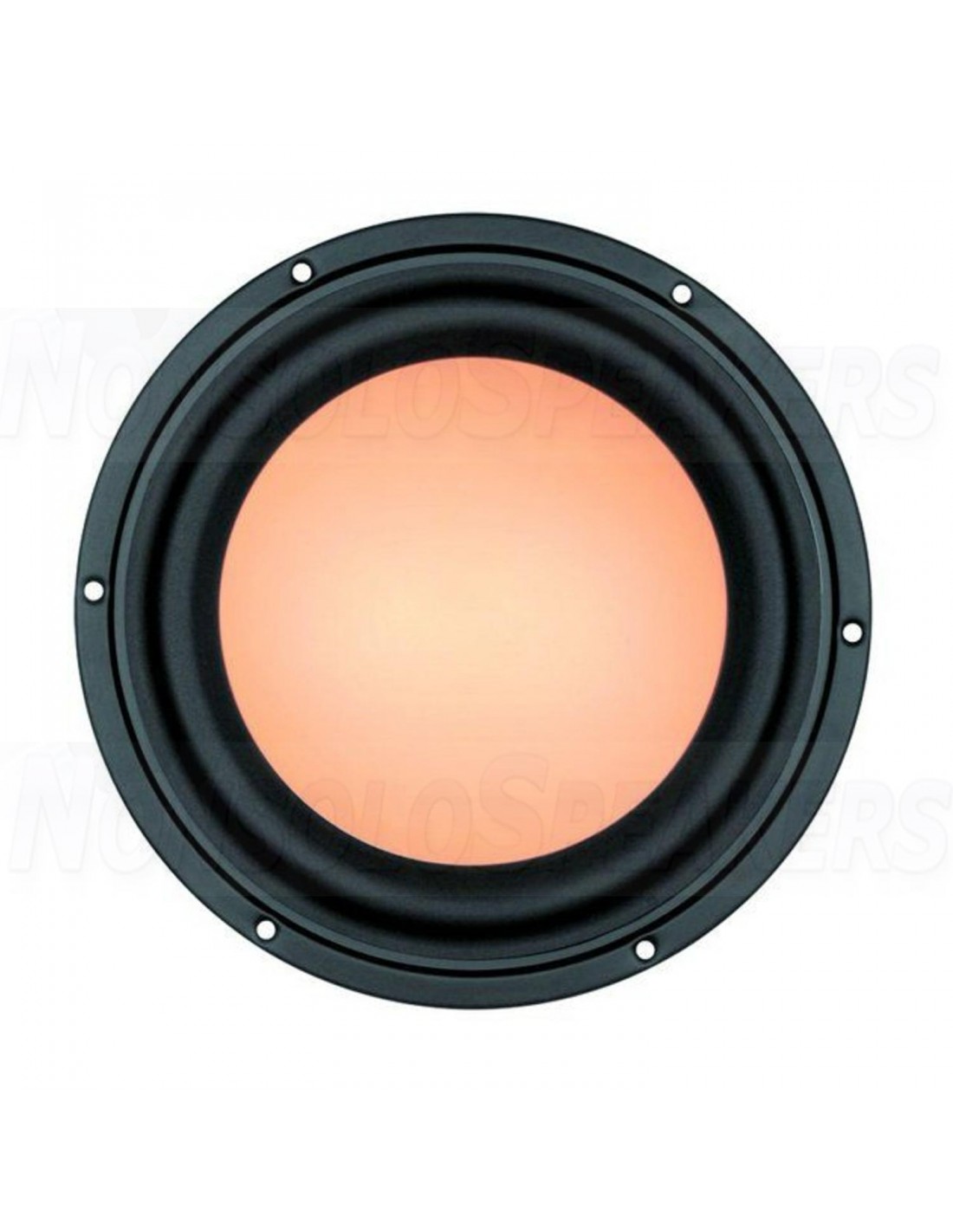

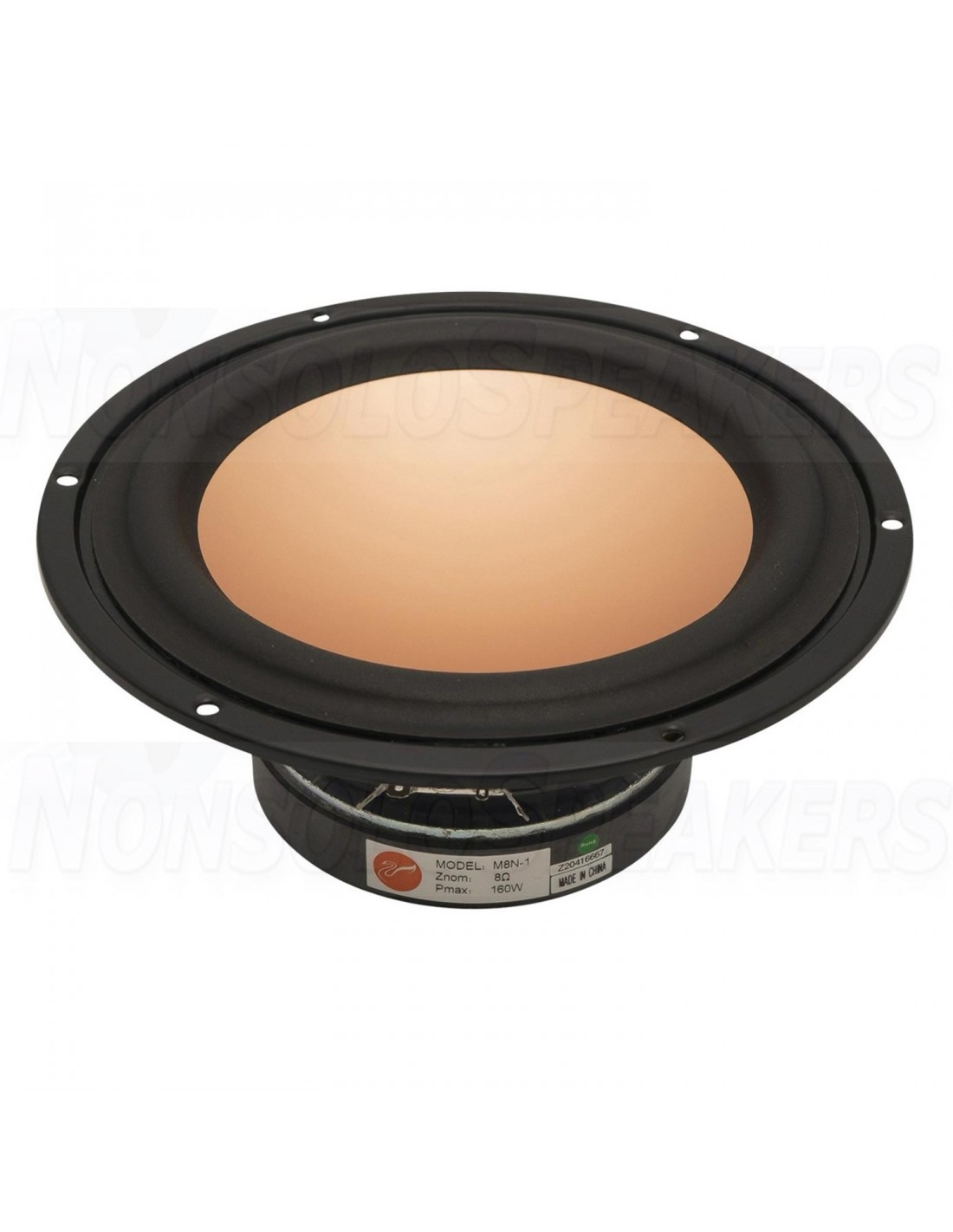

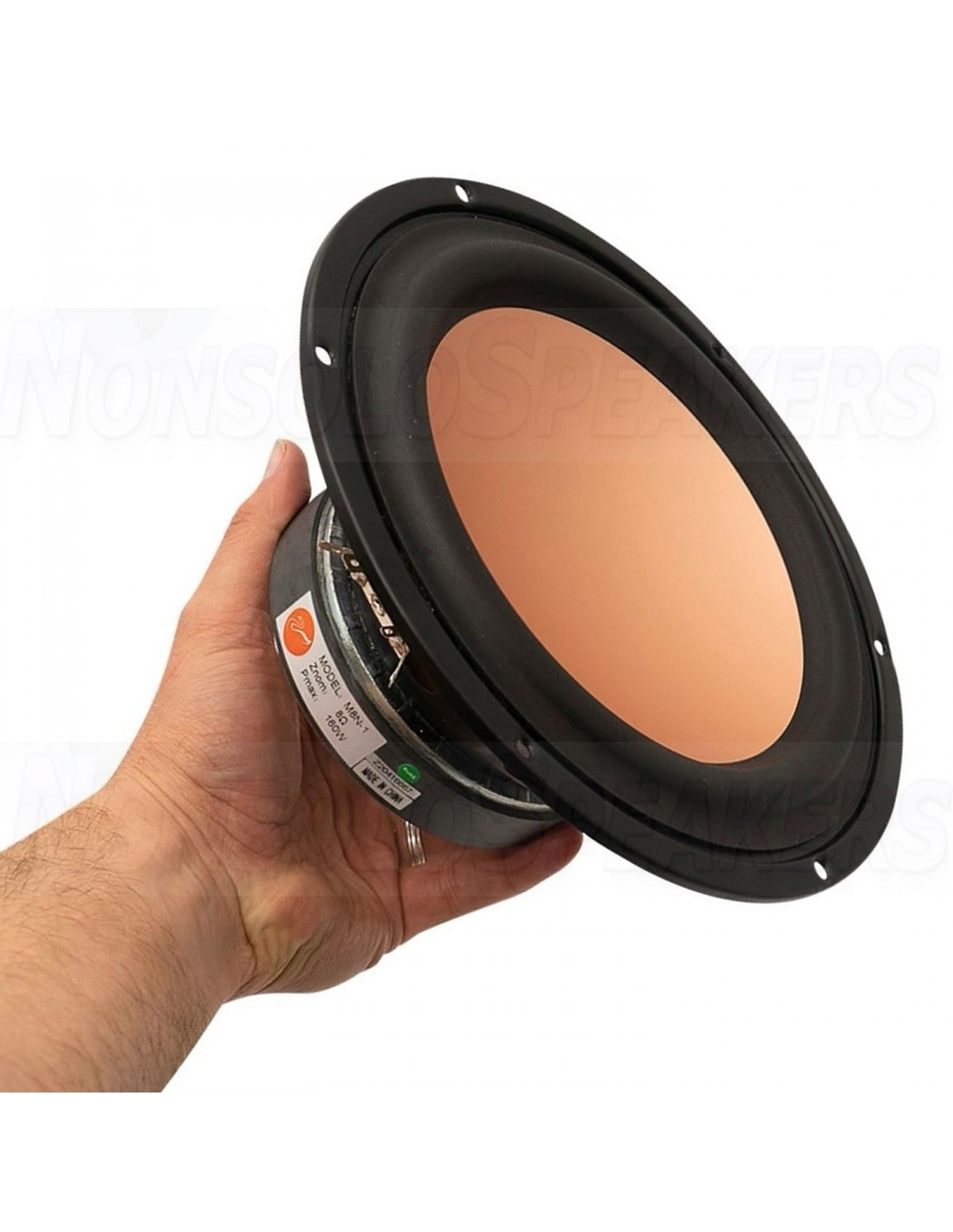

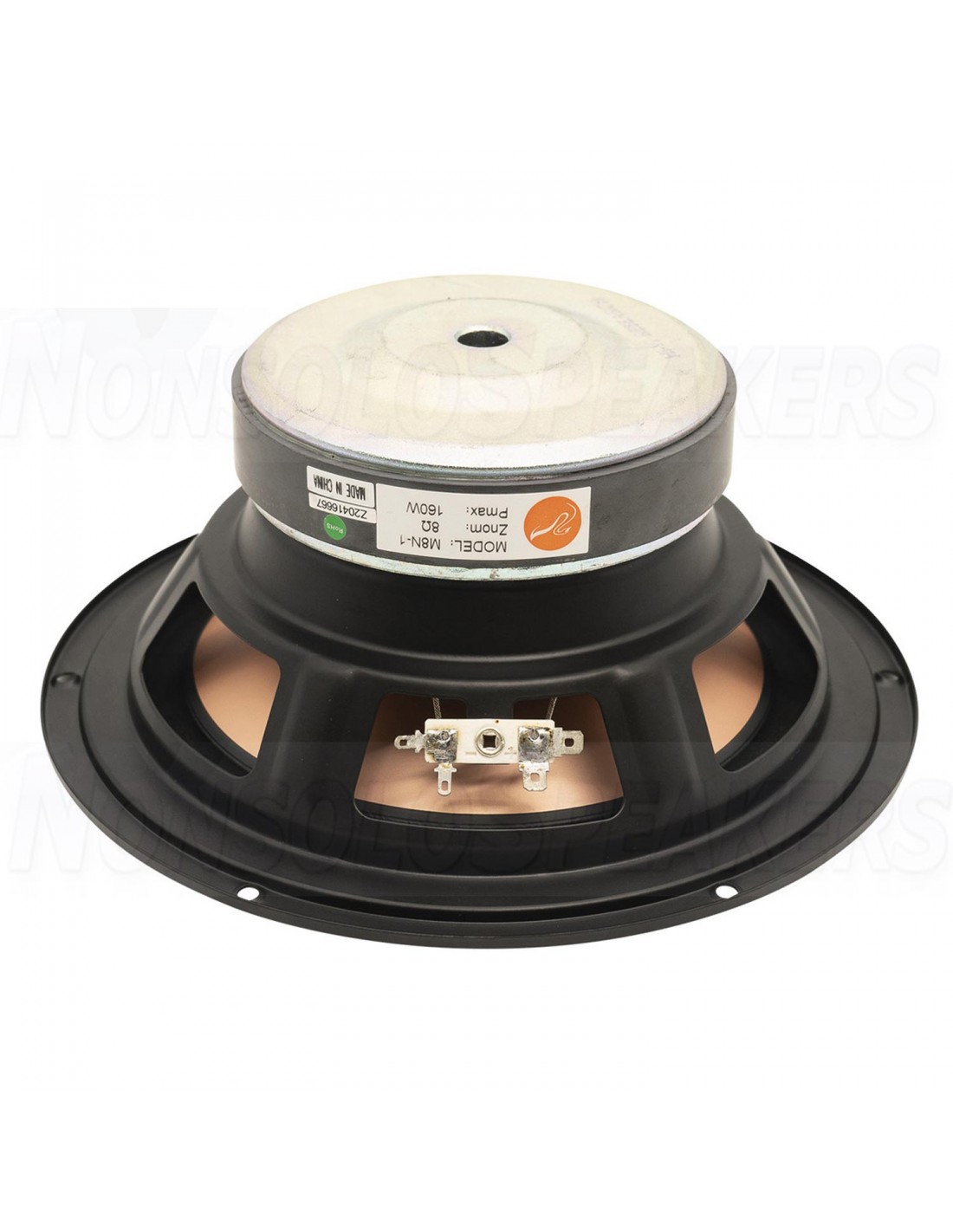

HiVi M8N-1 8" Aluminum / Magnesium Woofer

The HiVi M8N-1 has been optimized for extended and dynamic bass reproduction in vented systems. The clarity and accuracy provided by the unique one-piece aluminum/magnesium cone is remarkable.

.

Highlights

• Extremely rigid Aluminum/Magnesium cone
• Specially made high-loss rubber surround
• High power handling Kapton voice coil former
• Air transparent spider
• Symmetric Motor Drive (SMD) technology

.

Product details

HiVi M8N-1 8" Aluminum / Magnesium Woofer

The HiVi M8N-1 has been optimized for extended and dynamic bass reproduction in vented systems. The clarity and accuracy provided by the unique one-piece aluminum/magnesium cone is remarkable. This high rigidity diaphragm accurately reproduces transient attacks, contributing to a naturally dynamic and articulate sonic character in the bass and midbass regions. A high temperature Kapton voice coil, air transparent spider, and 1-3/8" voice coil provide good power handling. This woofer can be used to good effect in a medium sized 2-way system or as a woofer in a 3-way system. Recommended crossover upper frequency region for a 2-way system design is 1-2 kHz.

.

Specifications

• Article number M8N
• Woofer Type Midwoofer
• Nominal Diameter 8"
• Power Handling (RMS) 80 Watts
• Power Handling (max) 160 Watts
• Impedance (Z) 8 ohms
• Sensitivity (SPL at 1m / 2.83V) 86 dB
• Frequency Response 29 to 2,000 Hz
• Voice Coil Diameter 1.375"
• DC Resistance (Re) 6.5 ohms
• Resonant Frequency (Fs) 38 Hz
• Mechanical Q (Qms) 5.02
• Electromagnetic Q (Qes) 0.5
• Total Q (Qts) 0.45
• Compliance Equivalent Volume (Vas) 1.89 ft.³
• Maximum Linear Excursion (Xmax) 5.8 mm
• Cone / Diaphragm Material Aluminium / Magnesium
• Voice Coil Former Kapton® / Polyimide Basket / Frame
• Material Steel Magnet Material Ferrite
• Overall Outside Diameter 8.74"
• Overall Depth 3.62"
• Baffle Cutout Diameter 7.01"
• Mounting Holes 6
• Sealed Volume 0.67 ft.³
• Sealed F3 55 Hz
• Vented Volume 2.15 ft.³
• Vented F3 29 Hz
