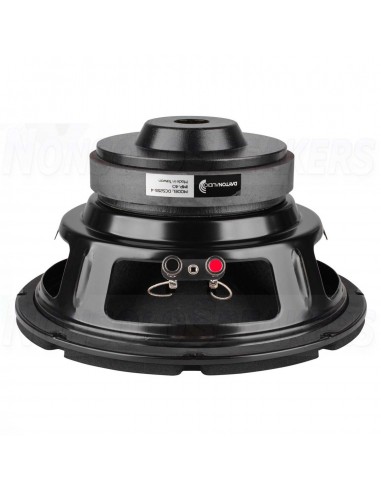

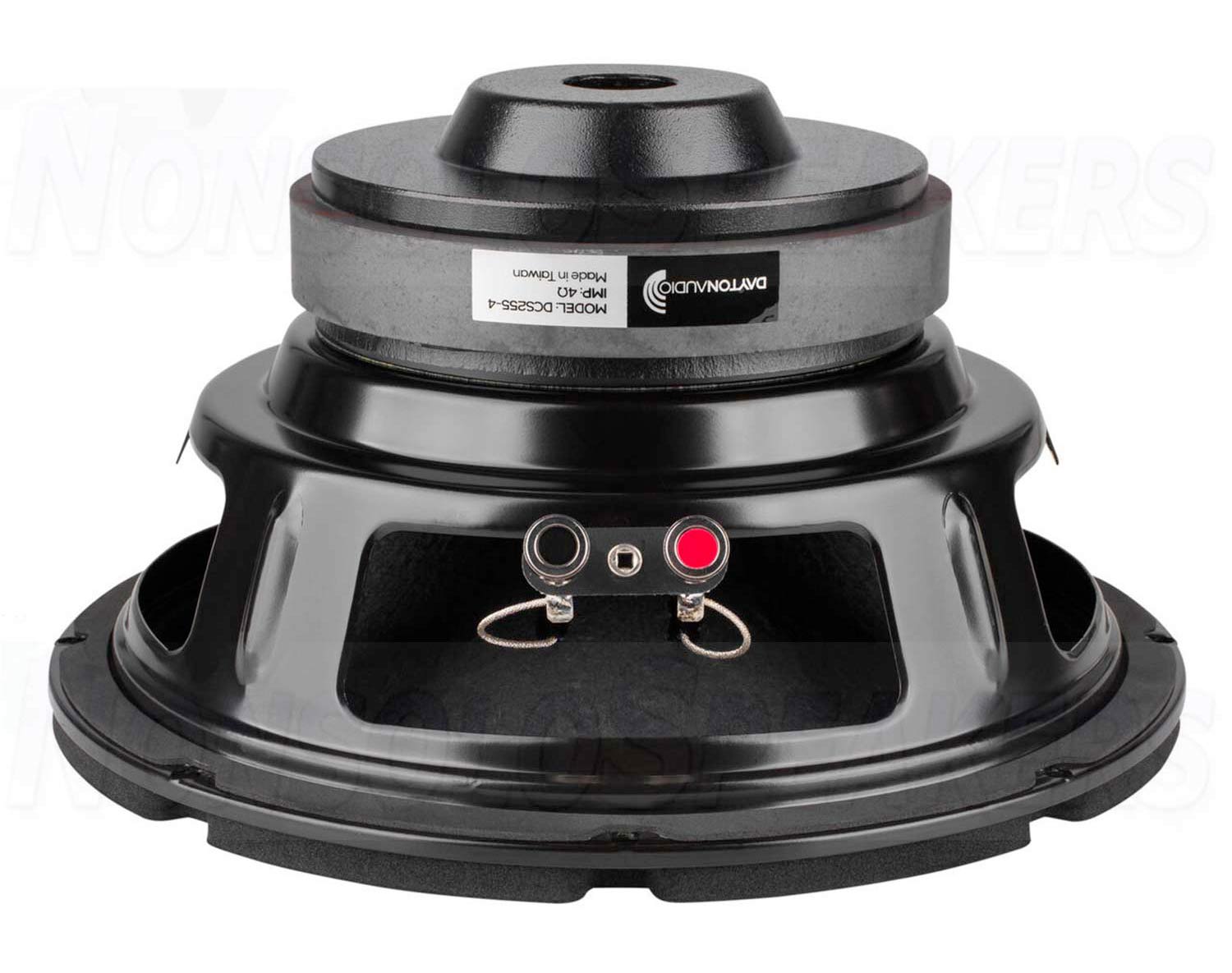

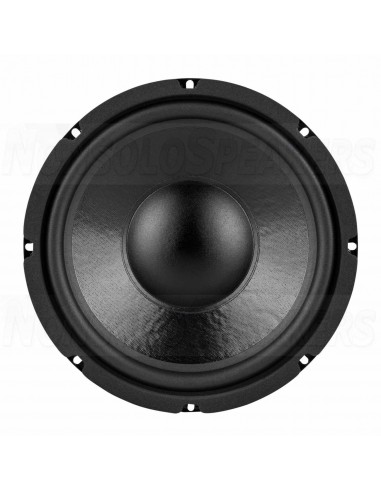

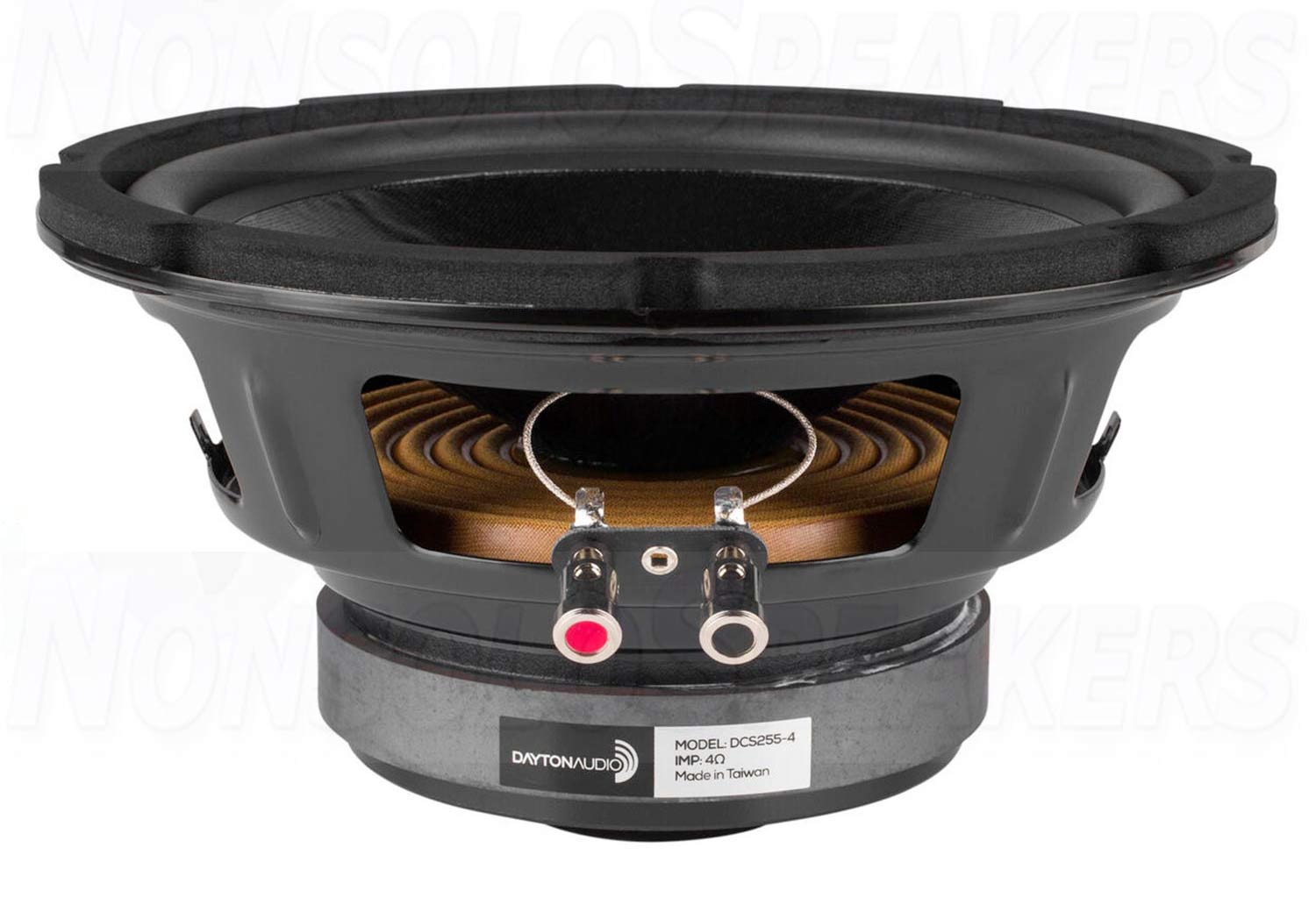

Dayton Audio DCS255-4 10" Classic Subwoofer 4 Ohm

The Dayton Audio Classic Series subwoofers offer solid value at lower price points. No compromises were made in the design, materials, or construction of these rugged 4-ohm powerhouses. The drivers feature a vented pole piece with copper cap, bumped back plate for improved excursion capability, Kevlar reinforced cone with rubber half-roll surround, and a high-temperature 4-layer copper voice coil wound on a polyimide former.

Product Details

Brand Dayton Audio

Model DCS255-4

Part Number 295-202

UPC 844632080661

Unit of Measure Each

Weight 10.45

.

Product Specifications

Nominal Diameter 10"

Moving Mass Of Diaphragm (Mmd) 95.5

Power Handling (RMS) 200 Watts

Power Handling (MAX) 400 Watts

Impedance 4Ω

Frequency Response 31 to 200Hz

Sensitivity 91dB 2.83V/1m

Voice Coil Diameter 2"

.

Thiele-Small Parameters

Resonant Frequency (Fs) 37.7Hz

DC Resistance (Re) 3.45Ω

Voice Coil Inductance (Le) 1.8mH

Mechanical Q (Qms) 7.42

Electromagnetic Q (Qes) 0.5

Total Q (Qts) 0.46

Compliance Equivalent Volume (Vas) 1.13ft³

Mechanical Compliance of Suspension (Cms) 0.19mm/N

BL Product (BL) 12.6T·m

Maximum Linear Excursion (Xmax) 8.3mm

Surface Area of Cone (Sd) 346.4cm²

.

Materials of Construction

Cone Material Paper / Kevlar

Surround Material Rubber

Voice Coil Wire Material Copper

Voice Coil Former Kapton® / Polyimide

Basket / Frame Material Steel

Magnet Material Ferrite

.

Mounting Information

Overall Outside Diameter 10.16"

Baffle Cutout Diameter 9.13"

Depth 5.54"

# Mounting Holes 8

.

Optimum Cabinet Size (determined using BassBox 6 Pro High Fidelity suggestion)

Sealed Volume 0.3ft³

Sealed F3 78Hz

Vented Volume 0.75ft³

Vented F3 47Hz
