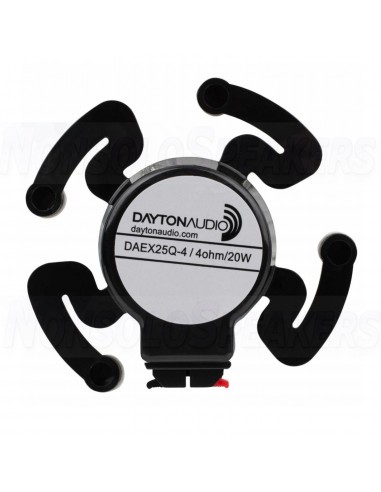

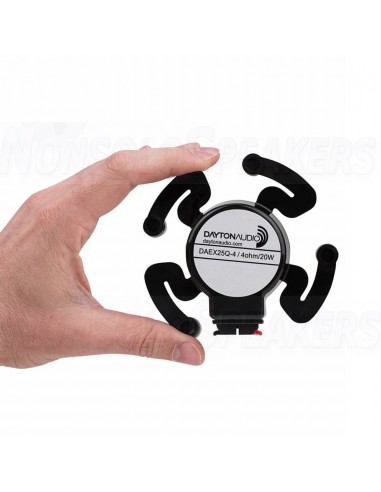

Dayton Audio DAEX25Q-4 25 mm x 4 Exciters 20W 4 Ohm

To convert larger areas into speakers and more bass output, Dayton Audio's DAEX25Q-4 features four extended arms. Spring-loaded speaker terminals facilitate fast electrical connection.

highlights

• Unique four-armed design for exciting a large surface area
• Pre-applied 3M™ VHB™
• Adhesive for quick and secure installation
• Rare-earth neodymium motor and a proprietary voice coil
• 4 ohm impedance for use with small class D amplifiers
• 20 watts RMS power handling for high performance

product details

Dayton Audio DAEX25Q-4 Quad Feet 25mm Exciter 20W 4 Ohm

Dayton Audio's DAEX25Q-4 Quad Arm Exciter features four arms extending from the main exciter body, allowing this exciter to transmit sound over a much larger surface area for enhanced low-end frequency response (more bass) to expand.

A neodymium magnet is used to create maximum magnetic flux around the proprietary voice coil to increase sensitivity compared to similarly sized exciters. This in turn reduces power requirements and allows the use of very small audio amplifiers without sacrificing overall performance. The 1-inch voice coil allows for more input power and produces a rich, dynamic sound.

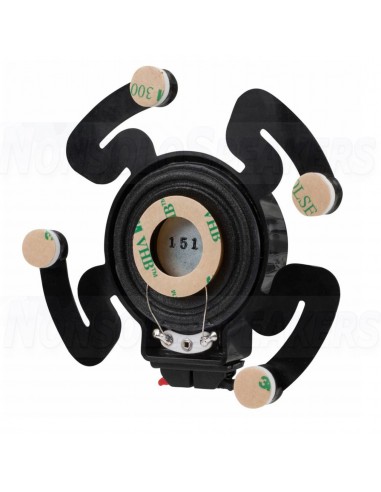

To ensure maximum acoustic energy transfer between the transducer and the surface to which it is attached, 3M VHB ( VeryHighBond ) adhesive is pre-applied to the main body and four arms...just peel and stick! Two spring-loaded terminals are constructed on the main body for quick electrical connection.

A great area of application for this exciter are so-called DML or flat loudspeakers. DML stands for Distributed Mode Loudspeaker and is a term for loudspeakers that stand out due to their incredibly slim design.
