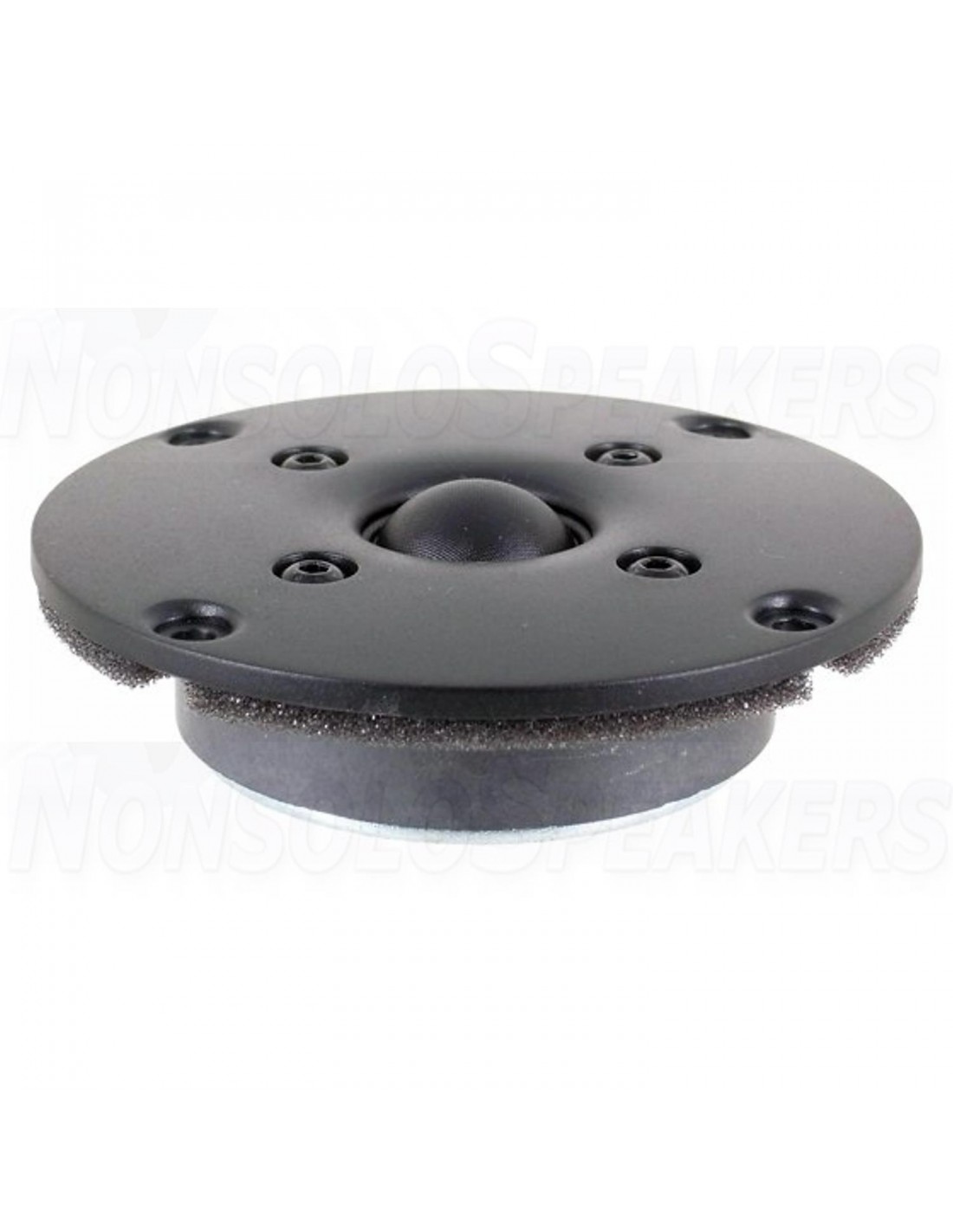

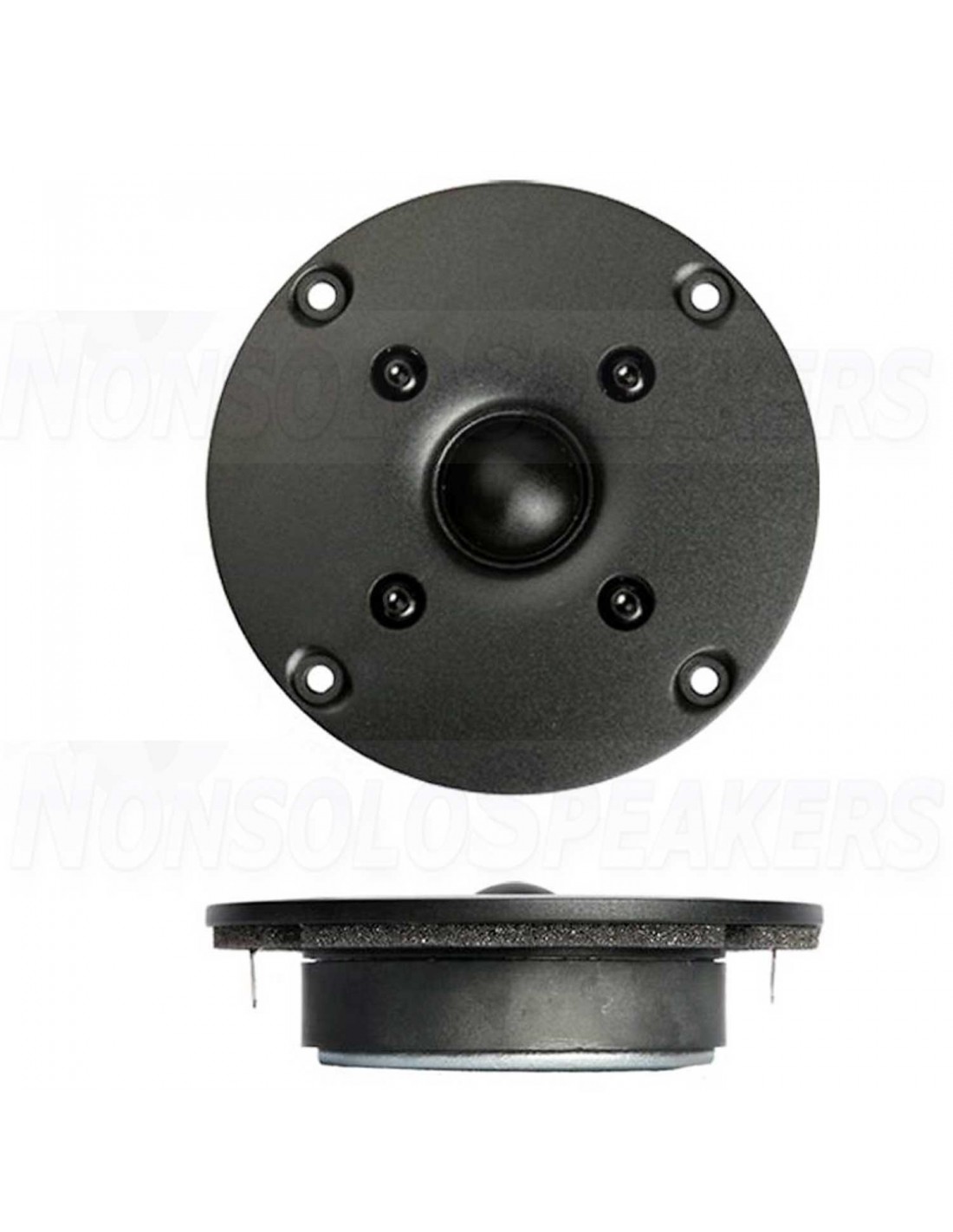

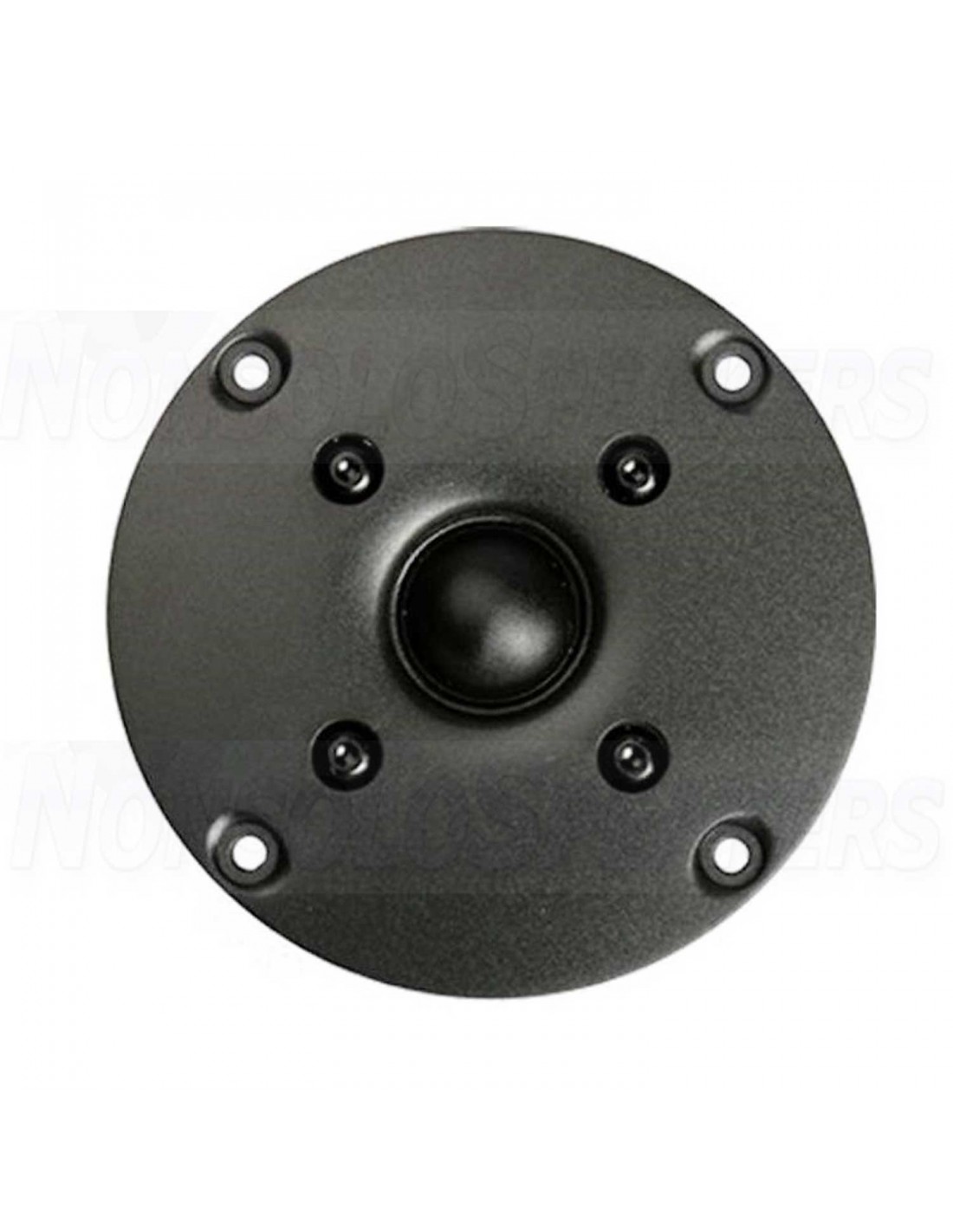

SB ACOUSTICS SB19ST-C000-4 - Tweeter 19mm SB Acoustics - Ferrite - 4 ohm

Optimized damping in pole cavity to eliminate internal reflection. The fine weave soft fabric dome provides a smooth frequency response. Saturation controlled motor system for reduced distortion. CCAW voice coil for low moving mass. Long life silver lead wires.

SHIPMENT IN 7/10 WORKING DAYS
€24.00
Tax included
rating No review at the moment

The minimum purchase order quantity for the product is 2.

Estimated Shipping Costs
Shipping Costs
€12.60
Shipping Time
.
Want to check another country or courier?

You might also like



SB ACOUSTICS SB19ST-C000-4 - Tweeter Ferrite

.

Product description

Optimized damping in pole cavity to eliminate internal reflection

Fine weave soft fabric dome for smooth frequency response

Saturation controlled motor system for reduced distortion

CCAW voice coil for low moving mass

Long life silver lead wires

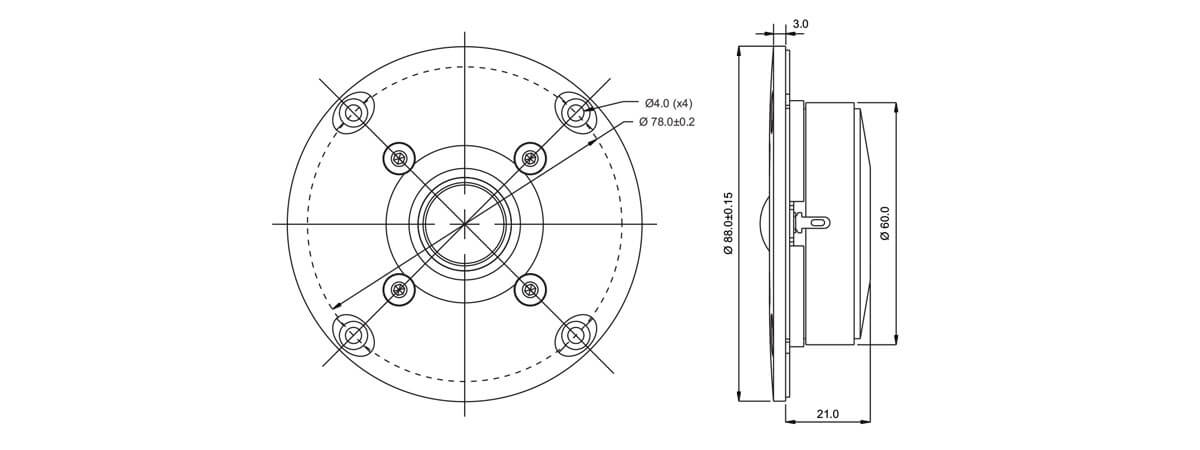

88 mm diameter flange (3.46")

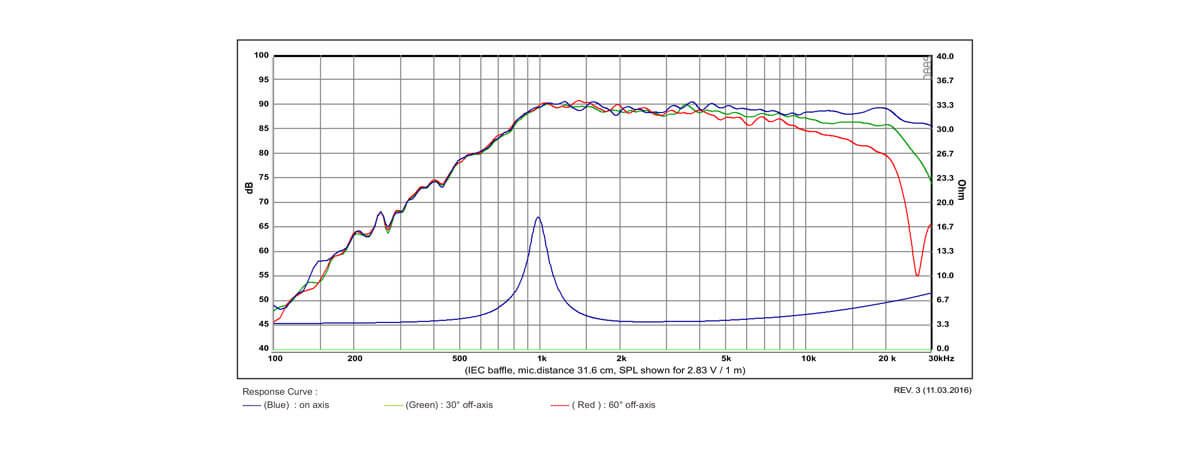

Extended frequency response - flat out to 30kHz

.

Product details

SB Acoustics SB19ST-C000-4 3/4" Dome Tweeter

Optimized damping in pole cavity to eliminate internal reflection. The fine weave soft fabric dome provides a smooth frequency response. Saturation controlled motor system for reduced distortion. CCAW voice coil for low moving mass. Long life silver lead wires.

Specifications: BL Product (BL): 1.75 Tm N • Diaphragm Mass Inc. Airload (Mms): 0.22 g • Maximum Linear Excursion (Xmax): 0.6 mm • Surface Area of Cone (Sd): 3.8 cm2

.

Specifications

Article numberSB19ST-C000-4
Tweeter TypeDome
Cone / Dome Diameter19 mm | 3/4"
Power Handling (RMS)30 Watts
Impedance (Z)4 Ω
Sensitivity (SPL at 1m / 2.83V)88.5 dB
Resonant Frequency (Fs)980 Hz
DC Resistance (Re)3.4 ohms
Voice Coil Inductance (Le)0.07 mH
Mechanical Q (Qms)6.45
Electromagnetic Q (Qes)1.50
Total Q (Qts)1.22

SB19ST-C000-4
