The Tymphany XT25BG60-04 features a patented dual concentric diaphragm and a unique waveguide center plug that provide an excellent on- and off-axis response.

Out-of-Stock
€59.95
Tax included
rating No review at the moment


Estimated Shipping Costs
Shipping Costs
€12.60
Shipping Time
.
Want to check another country or courier?

You might also like



Peerless by Tymphany XT25BG60-04 Ring Radiator Tweeter

.

Product description

The Tymphany XT25BG60-04 features a patented dual concentric diaphragm and a unique waveguide center plug that provide an excellent on- and off-axis response.

.

Highlights

Outstanding performance in 2-way systems

Dual ring radiator diaphragm (patented)

Waveguide center plug (patented)

Copper-clad aluminum VC wire

Double magnet system

Flat response well beyond 20 kHz

Low distortion

.

Product details

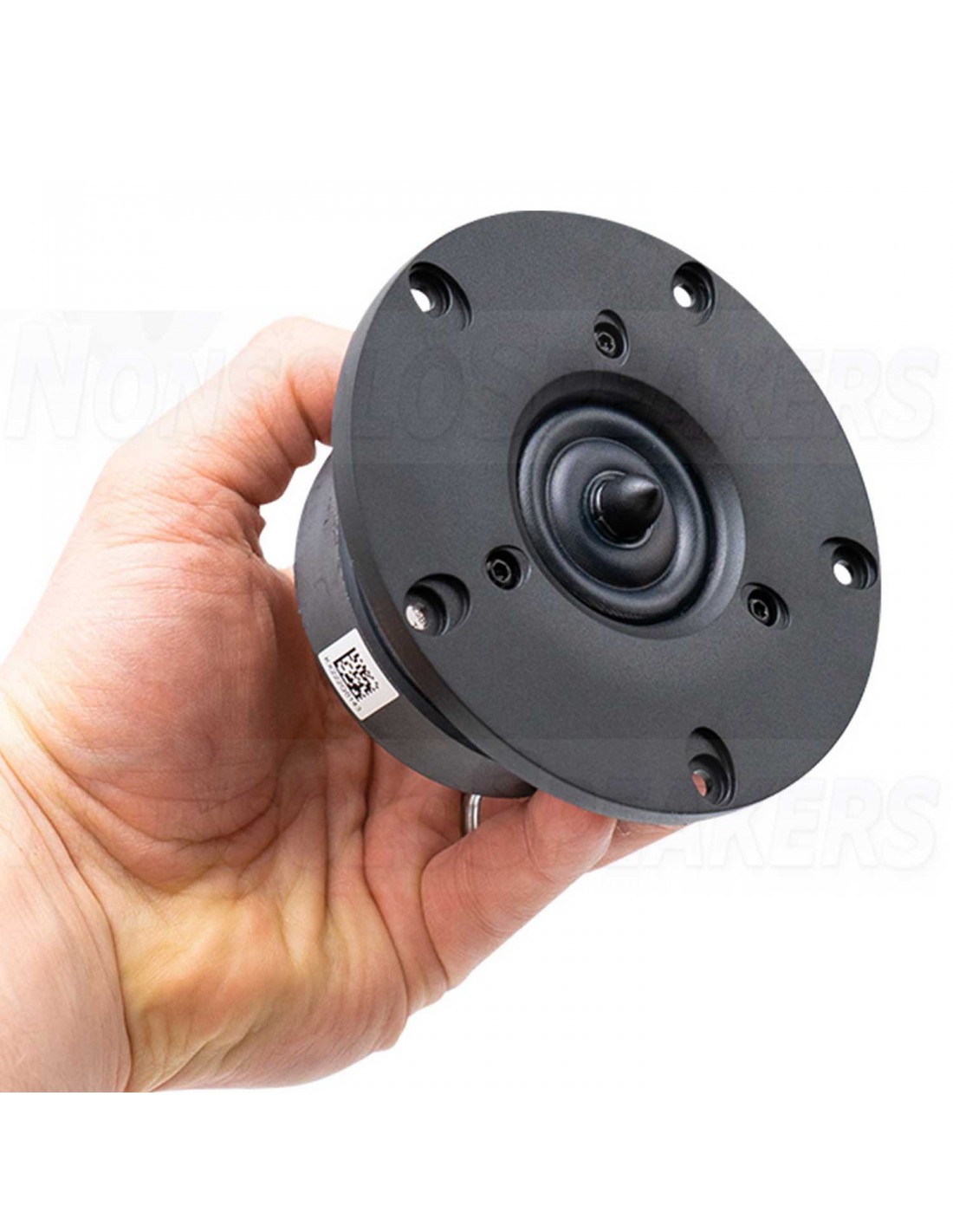

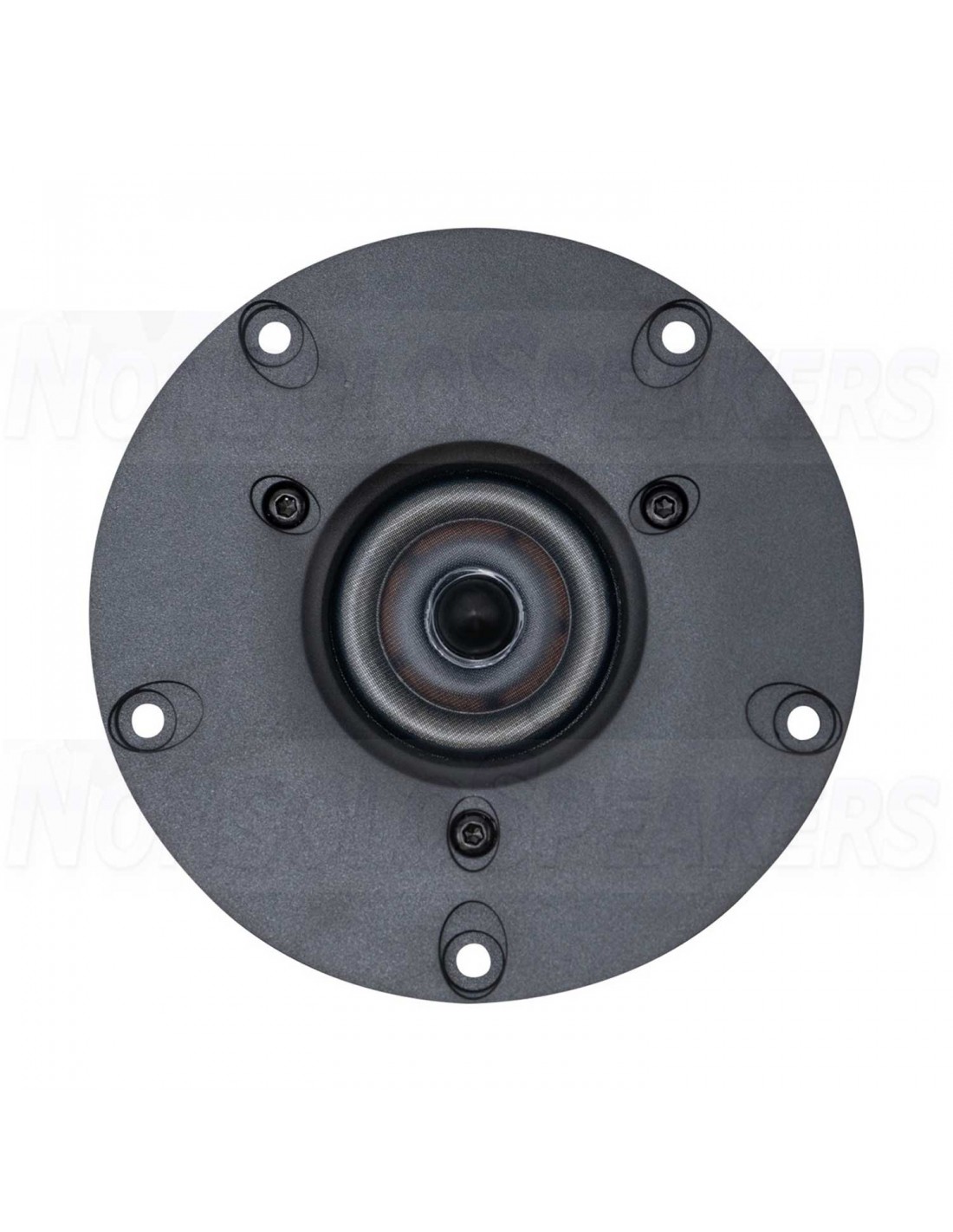

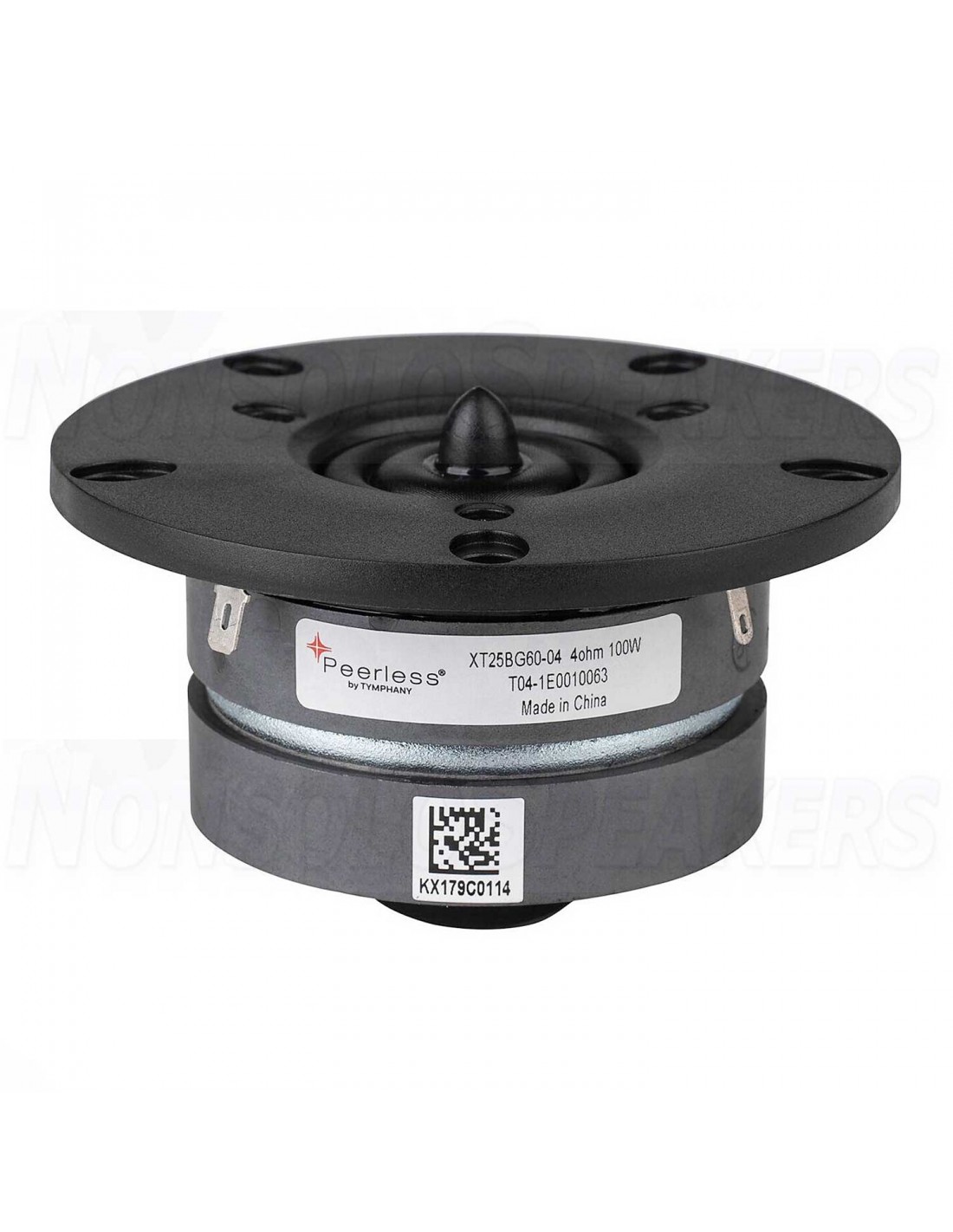

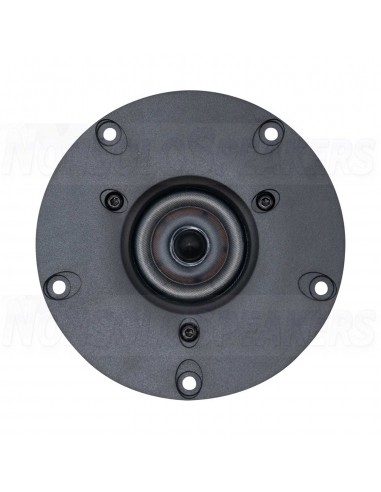

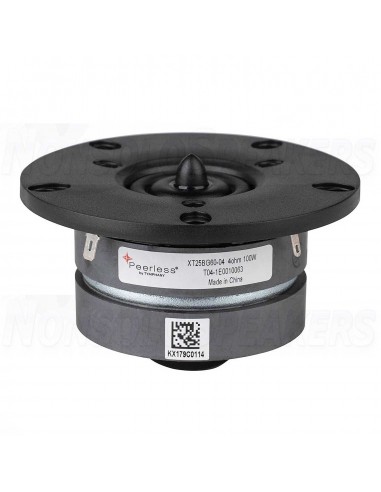

Peerless by Tymphany XT25BG60-04 1" Shielded Dual Ring Radiator Tweeter

This member of the XT tweeter family utilizes two Tymphany technologies to deliver exceptional sound quality: the ring radiator patent, and the central waveguide patent. This model features a 4 ohm 25 mm voice coil, mounted in a ferrite magnet motor. The tweeter also features a rear chamber to create extended low frequency response. The faceplate features recessed mounting holes which minimizes reflections off of mounting screws.

.

Specifications

Article number XT25BG60-04

Tweeter Type Ring Radiator

Cone / Dome Diameter 25 mm | 1"

Power Handling (RMS) 90 Watts

Impedance (Z) 4 Ω

Sensitivity (SPL at 1m / 2.83V) 95.4 dB

Frequency Response 1500 to 40,000 Hz

Resonant Frequency (Fs) 630 Hz

Voice Coil Inductance (Le) 0.01 mH

Mechanical Q (Qms) 1.31

Electromagnetic Q (Qes) 0.43

Total Q (Qts) 0.32

Overall Outside Diameter 4.09”

Cutout Diameter 2.83”

Depth 2.17"
