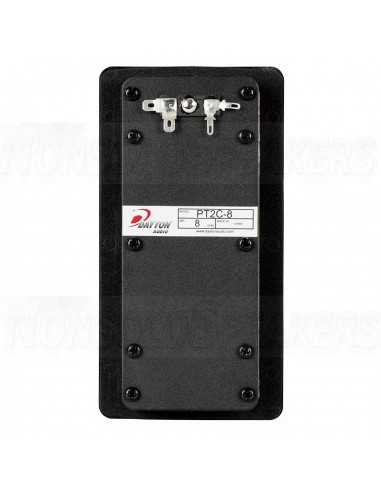

Dayton Audio PT2C-8 Planar tweeter 8 ohm

The immediacy and lack of coloration found in planar tweeters provide users with extremely detailed, effortless high frequency response. The physical shape and wide horizontal/narrow vertical coverage of the Dayton Audio PT2C-8 also make it a top choice for line arrays.

Highlights

• Outstanding resolution and detail for the most discerning audiophile
• Wide horizontal and narrow vertical dispersion
• Perfect for use in line arrays
• 3 kHz recommended crossover frequency at 12 dB per octave

Product details

Dayton Audio PT2C-8 planar tweeter Many audiophiles praise the outstanding clarity, transparency and imaging of the Dayton Audio PT2C-8 ribbon tweeter. Key to this remarkable performance is the almost weightless ribbon element: a Kapton foil cone patterned with aluminum conductors and precisely placed between two rows of neodymium magnets. The result is an instantaneous response to any transient impulse contained in the original signal.

The Dayton Audio PT2's ability to reproduce musical detail is clearly amazing. The large membrane and radiating surface of the tweeter ensure higher resilience and a significantly lower cut-off frequency. This diaphragm is thermally bonded to a cast aluminum plate that facilitates cooling and dramatically increases dynamic range. The wide horizontal dispersion of the flared waveguide projects excellent off-axis performance. At the same time, the vertical dispersion is limited, which reduces disruptive floor and ceiling reflections. Perfect for line array applications. The recommended second-order crossover crossover frequency is 3 kHz or higher, although the crossover point can be lowered to 2,500 Hz if a third-order crossover is used.

Specification:

• Brand Dayton Audio
• Series Specialty
• Magnet Material Neodymium
• Diaphragm Material Kapton
• Free Air Resonance [Hz] 1,607
• Impedance [Ohm] 8
• Sensitivity [dB] 94
• Power Handling [Watt] 80
