Dayton Audio NHP25Ti-4 1" Titanium Dome High Power Neodymium Tweeter 4 Ohm

The Dayton Audio compact NHP25Ti-4 1" titanium dome tweeter uses a high temperature neodymium motor, Ferrofluid cooling, and rear mounted heatsink for improved heat dissipation making this tweeter suitable for higher output systems and even professional line arrays. In addition, the flat response and high efficiency makes the NHP25Ti-4 an amazing value.

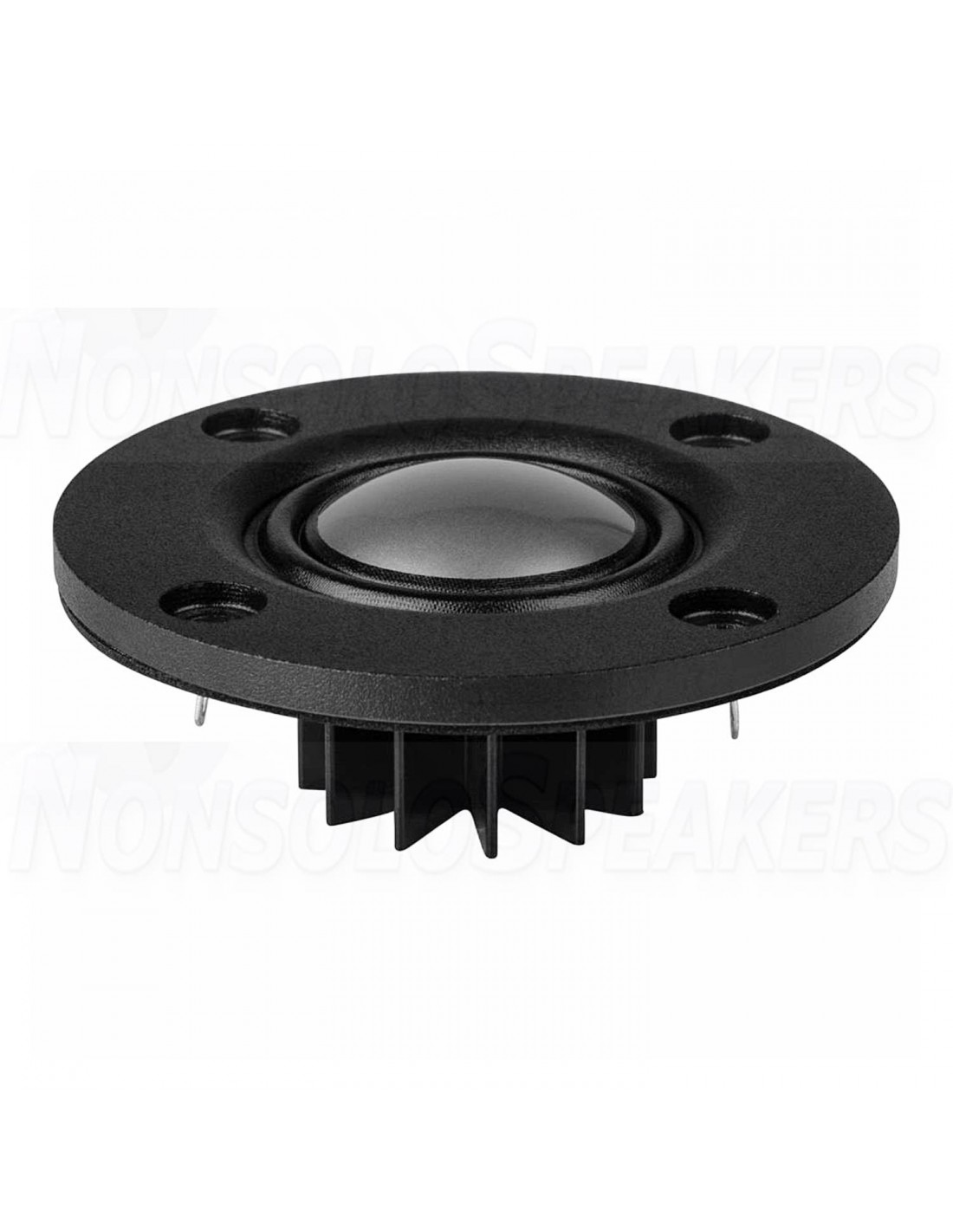

Dayton Audios versatile NHP25Ti-4 is a 1" titanium-dome tweeter that offers the performance of more expensive tweeters in a compact and stylish package. The small yet powerful high temperature neodymium motor with attached aluminum heatsink and Ferrofluid-filled magnetic gap reduces power compression and improves long-term power handling. In addition, the carefully designed titanium diaphragm provides accurate treble response to over 20 kHz, excellent off-axis dispersion, and superb sonic detail.

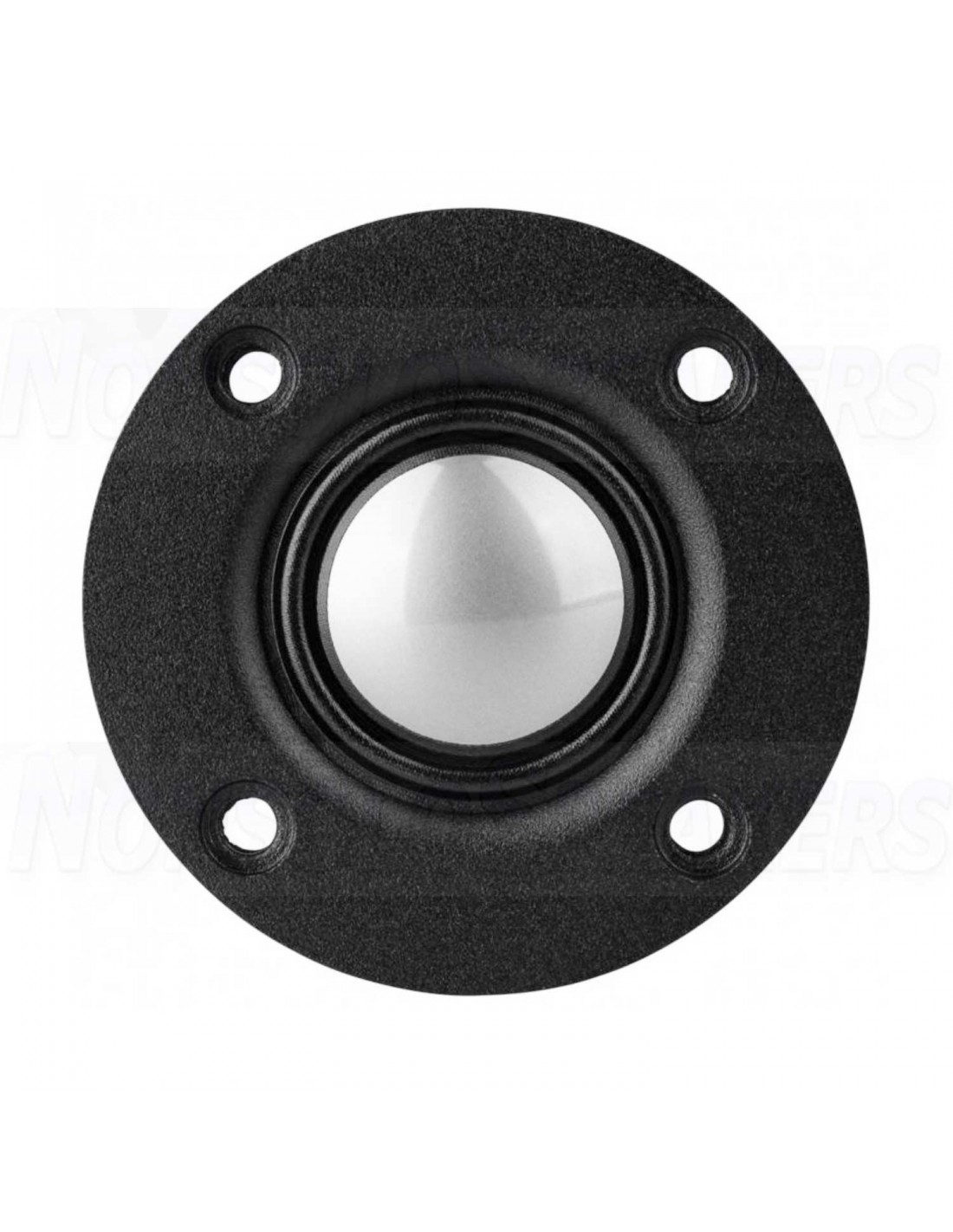

The NHP25Ti-4 includes a 2.5" cast aluminum faceplate, however Dayton Audio does offer an optional 4.09" (104 mm) and 4.33" (110 mm) faceplate allowing this tweeter to be used as a drop in replace for many common sized tweeters.

.

Highlights

• Attached heatsink and ferrofluid cooling for increased power handling
• Over 94 dB efficient is perfect for use in higher output designs
• Compact cast aluminum faceplate minimizes center to center distance
• High temperature neodymium motor allows high output for extended periods
• High-strength neodymium motor offers low distortion and high efficiency
• Extremely smooth response makes for easy transition to midrange diver

-

Product Details

Model Number NHP25Ti-4

Color Black

Unit of Measure Each

UPC 848791004889

Product Shipping Weight (lbs.) 0.25

Speaker Type Tweeter

Nominal Diameter 1"

Power Handling (RMS) 40 watts

Power Handling (max) 80 watts

Continuous Program Power --

Impedance 4 ohms

Sensitivity 94 dB 2.83V/1m

Frequency Response 3,000 - 20,000 Hz

Voice Coil Diameter 25.4 mm

Magnet Weight --

DC Resistance (Re) 3.23 ohms

Voice Coil Inductance (Le) 0.03 mH

Resonant Frequency (Fs) 1612 Hz

Mechanical Q (Qms) 5.23

Electromagnetic Q (Qes) 2.54

Total Q (Qts) 1.71

Diaphragm Mass Inc. Airload (Mms) --

Moving Mass Of Diaphragm (Mmd) --

Mechanical Compliance of Suspension (Cms) --

Surface Area Of Cone (Sd) --

Volume of Displacement (Vd) --

BL Product (BL) --

Compliance Equivalent Volume (Vas) --

Maximum Linear Excursion (Xmax) --

Drivers Mechanical Losses (Rms) --

Cone / Diaphragm Material Titanium Cone

Entry / Exit Diameter --

Surround Material --

Voice Coil Wire Material Copper

Voice Coil Former Aluminum

Basket/Frame Material Aluminum

Magnet Material Neodymium

Overall Outside Diameter 63.75 mm

Overall Depth 27.2 mm

Baffle Cutout Diameter 40.1 mm

Mounting Hole Diameter --

Bolt Circle Diameter --

Product Weight --
