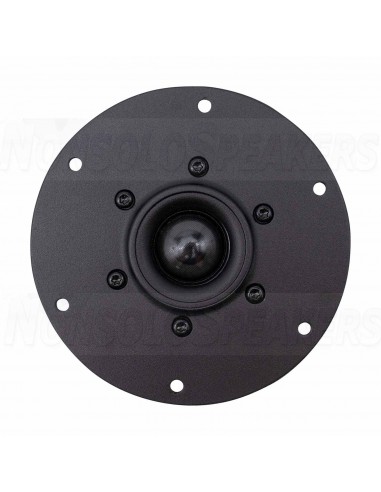

HiVi SD1.1-A Dome Tweeter 6 ohm

Product description

This high-quality tweeter utilizes a precisely coated diaphragm and a damping ring located below the dome. A special cast alloy faceplate offers excellent physical protection of the diaphragm, while also helping improve off-axis response.

.

Highlights

• Special cast alloy faceplate
• Utilizes a precisely coated diaphragm and a damping ring
• Fully shielded magnet structure

.

Product details

HiVi SD1.1-A 1" Textile Dome Tweeter

This high-quality tweeter utilizes a precisely coated diaphragm and a damping ring located below the dome. A special cast alloy faceplate offers excellent physical protection of the diaphragm, while also helping improve off-axis response. With a large, fully shielded magnet structure, ferrofluid, and aluminum former, the power handling is very good.

.

Specifications

• Article number SD1.1-A
• Tweeter Type Soft Dome
• Cone / Dome Diameter 25 mm | 1"
• Power Handling (RMS) 15 Watts
• Impedance (Z) 6 Ω
• Sensitivity (SPL at 1m / 2.83V) 92.5 dB
• Frequency Response 2,000 to 20,000 Hz
• Resonant Frequency (Fs) 1200 Hz
• Overall Outside Diameter 4.56"
• Cutout Diameter 3.31"
• Depth 1.63"
