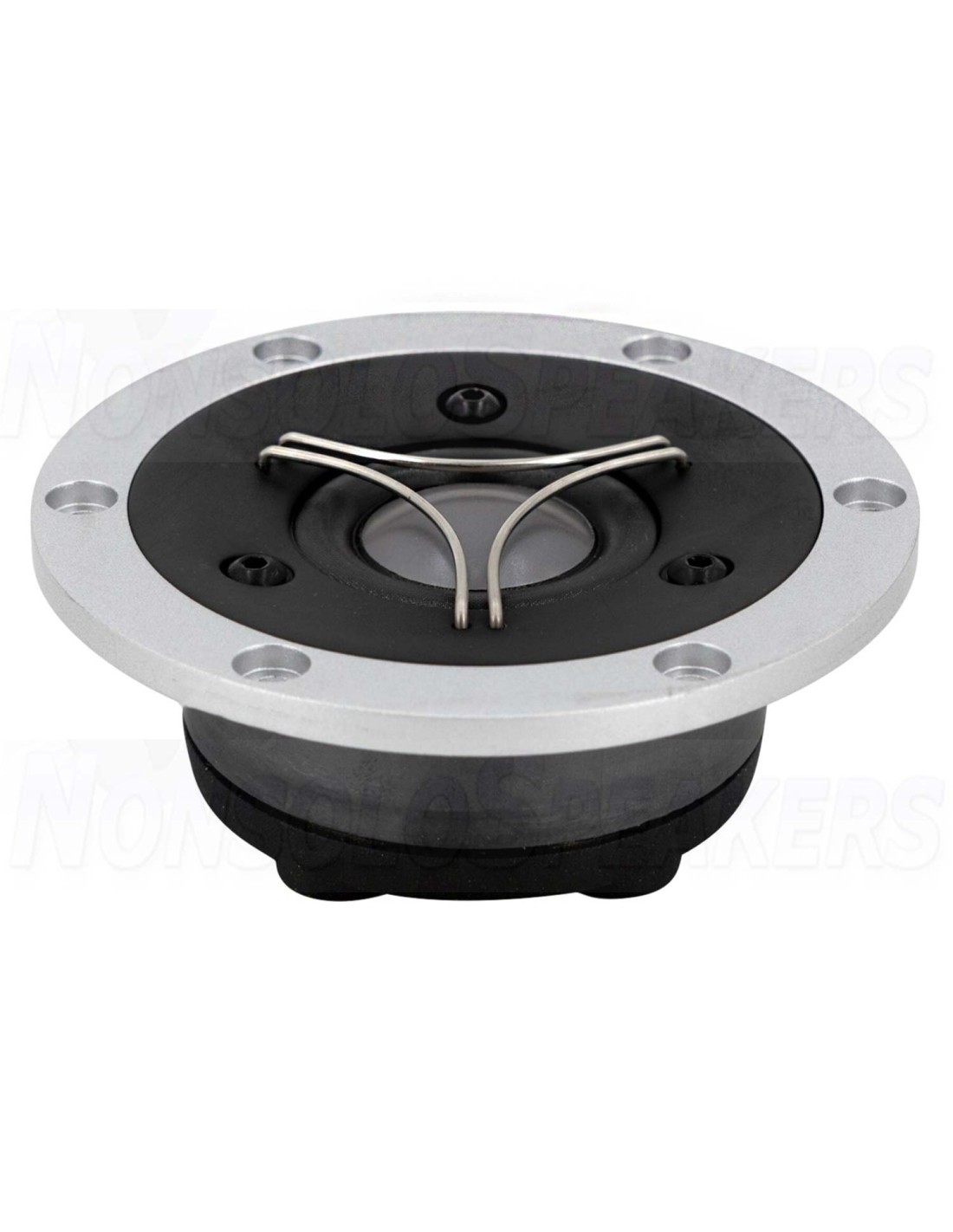

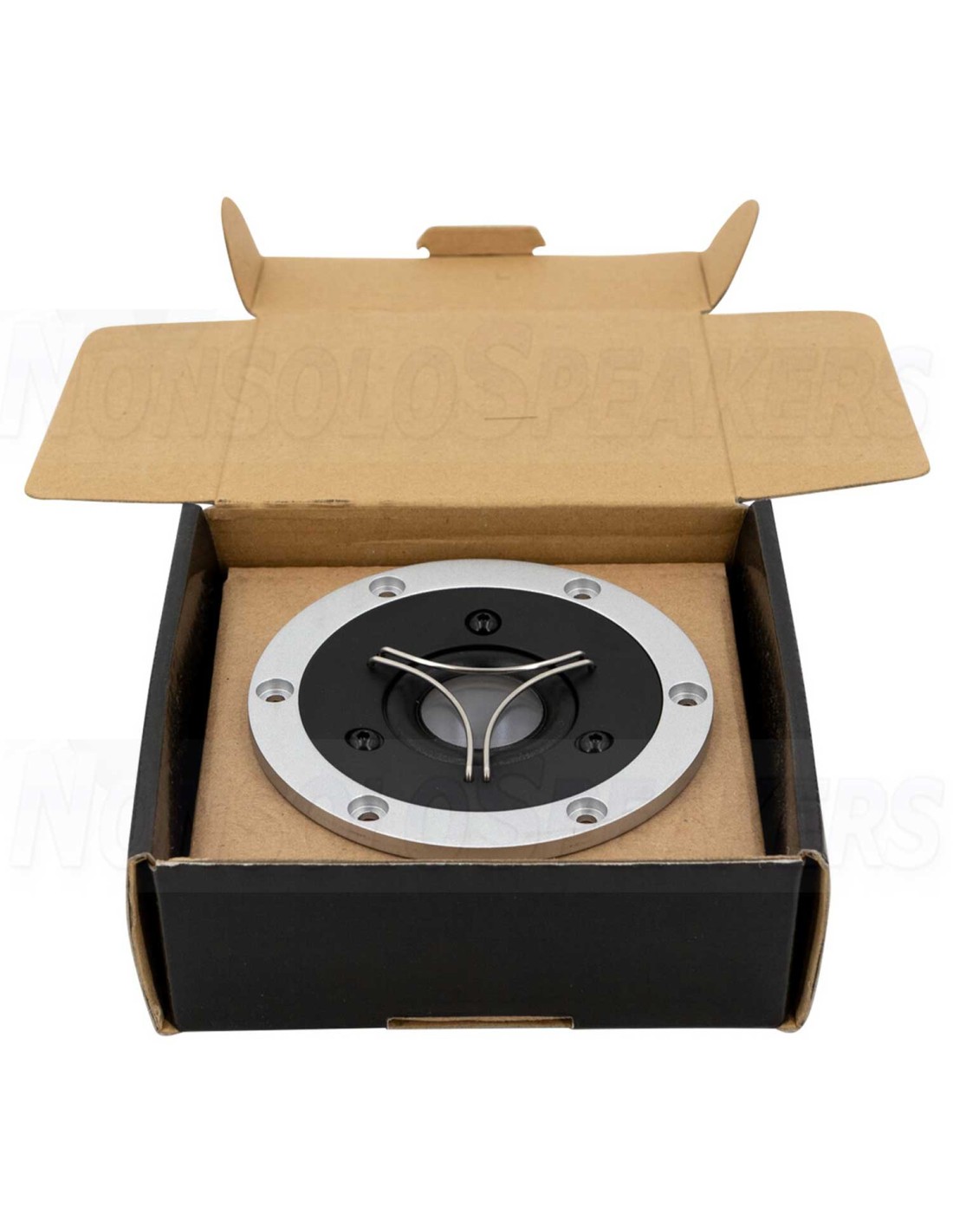

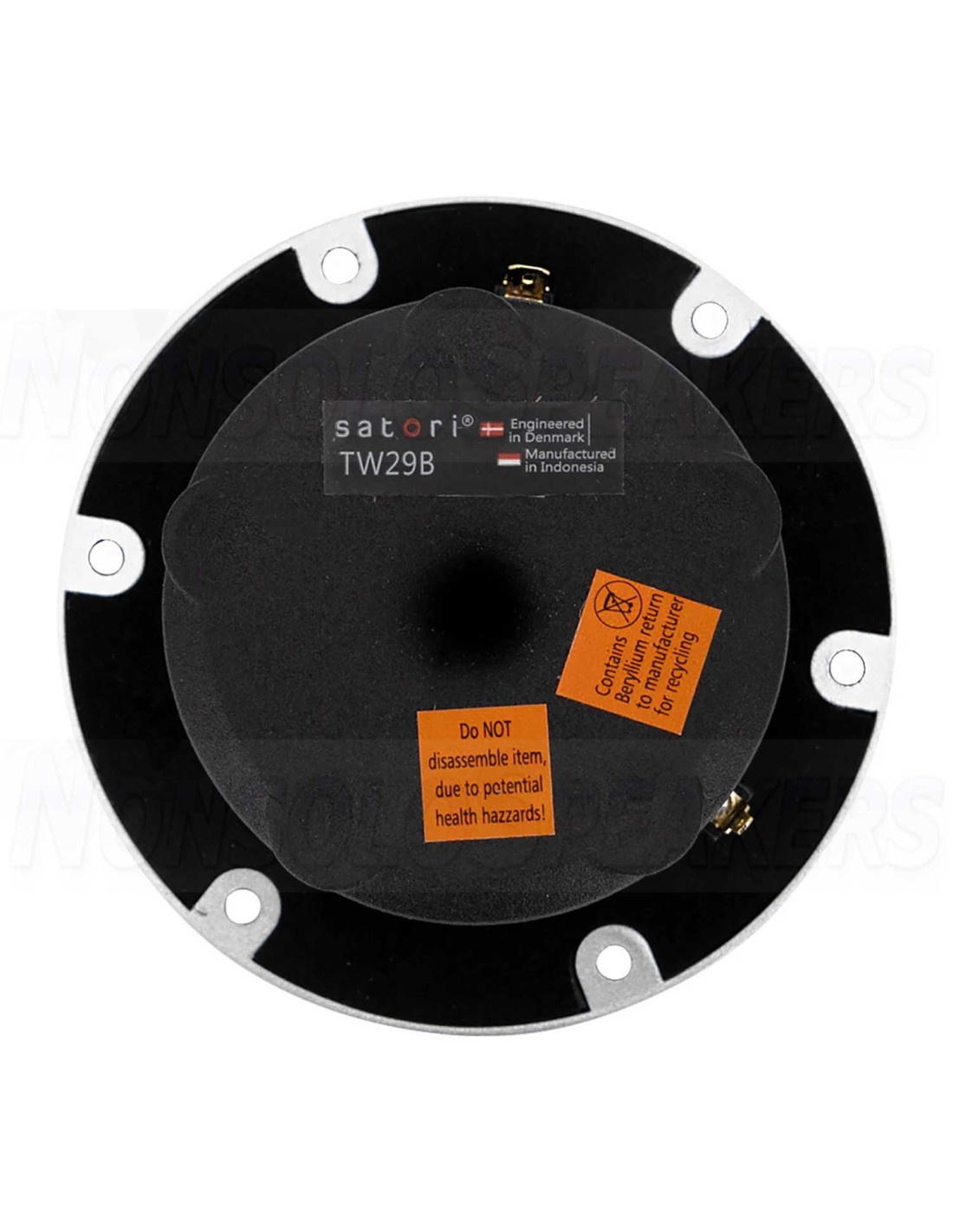

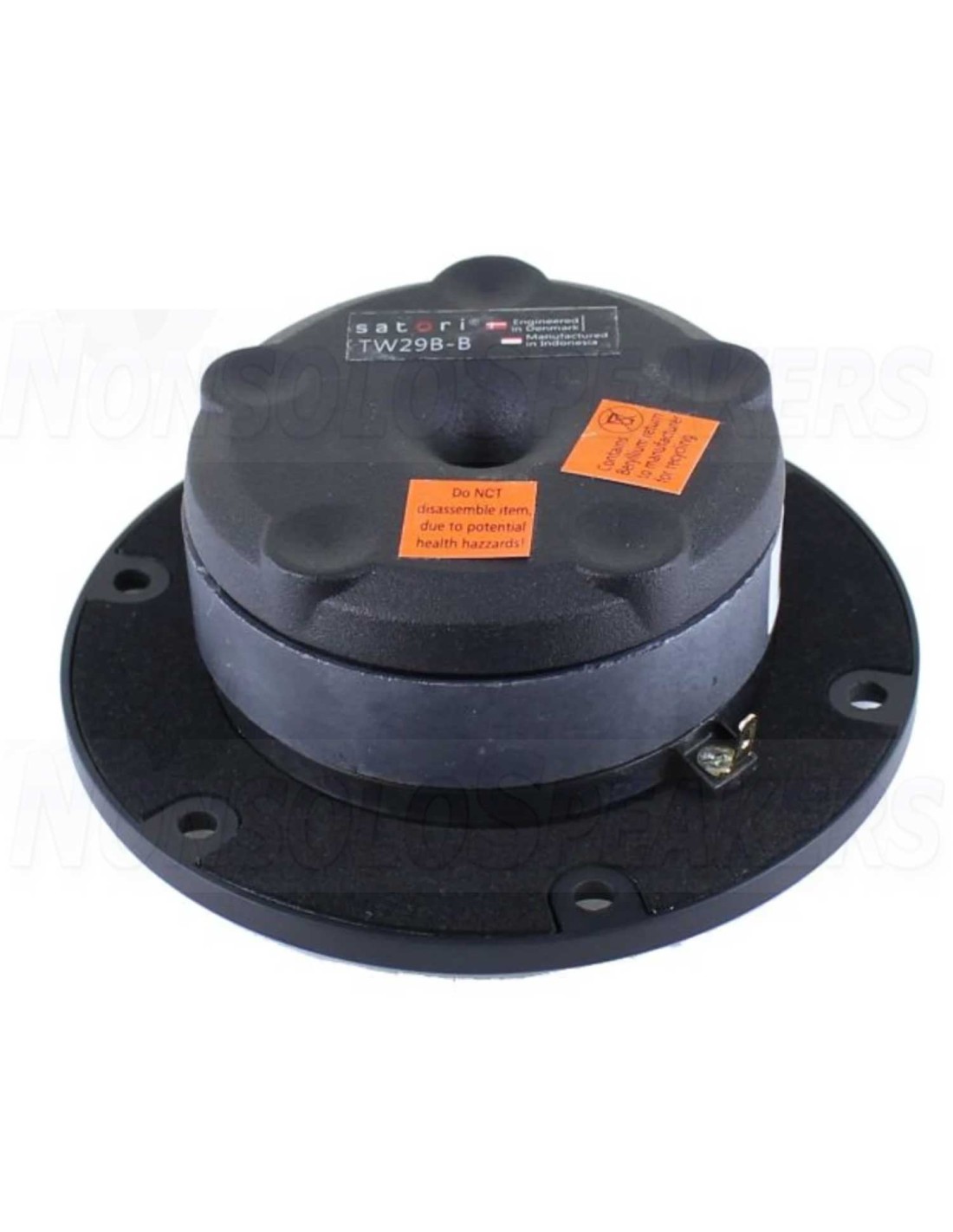

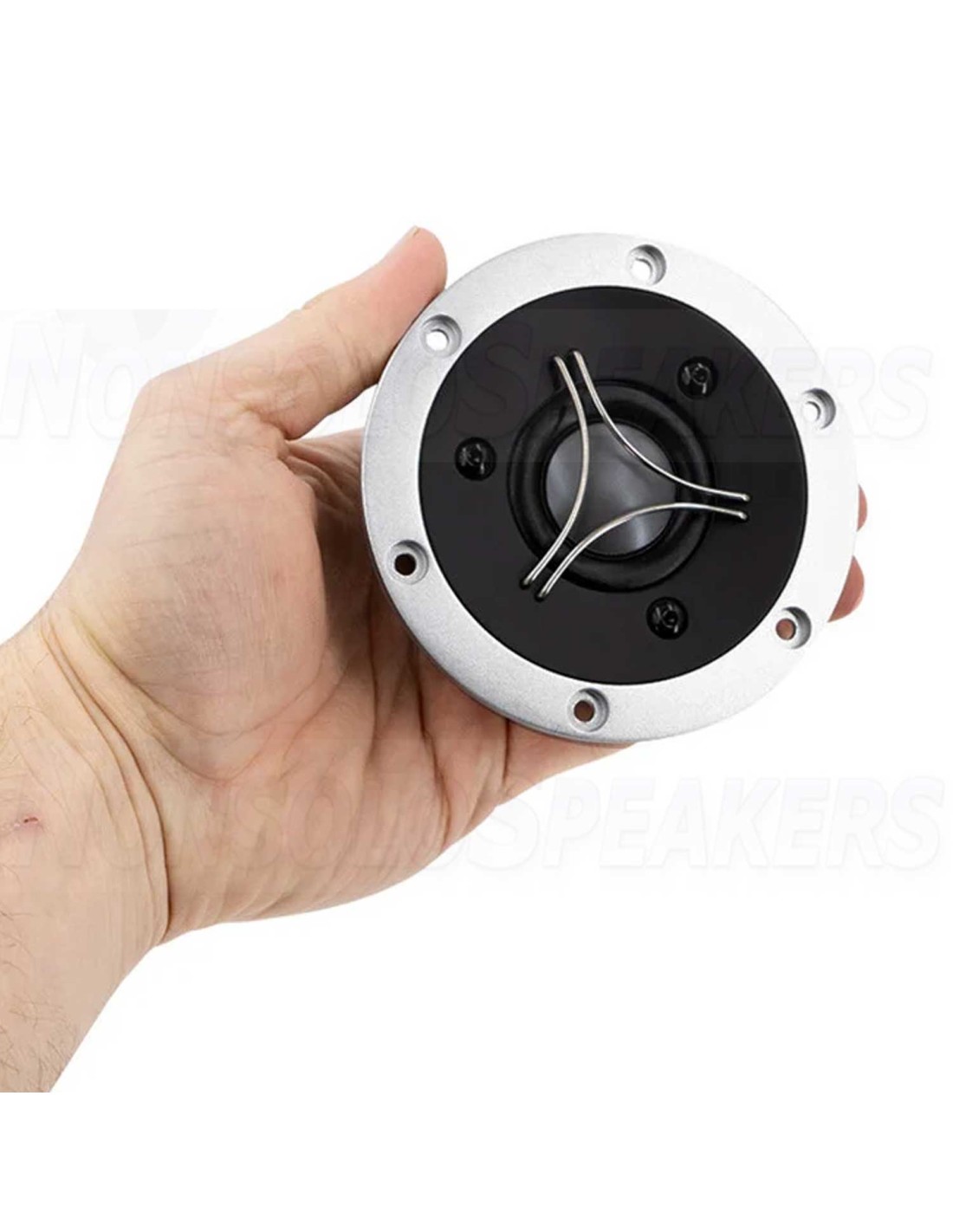

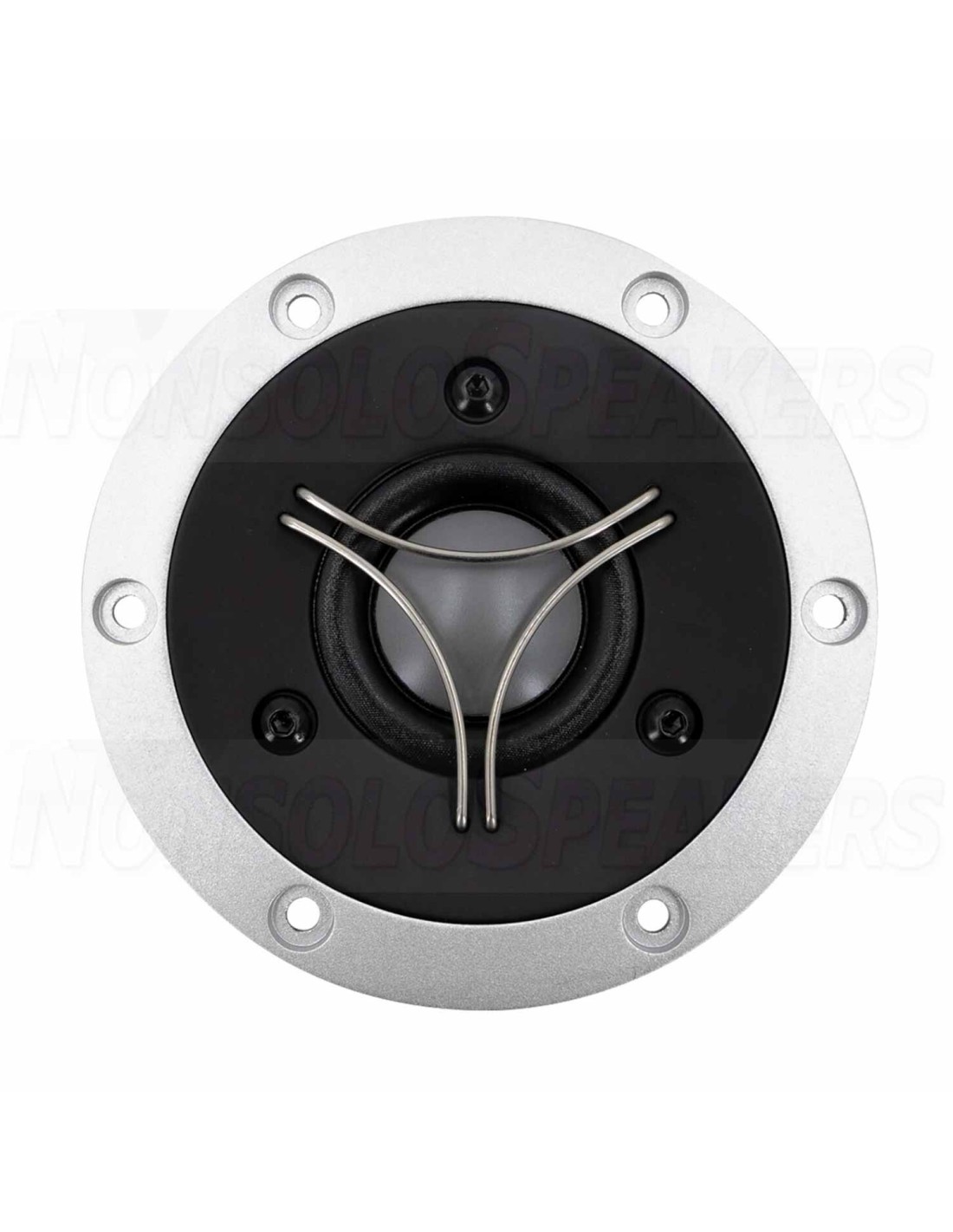

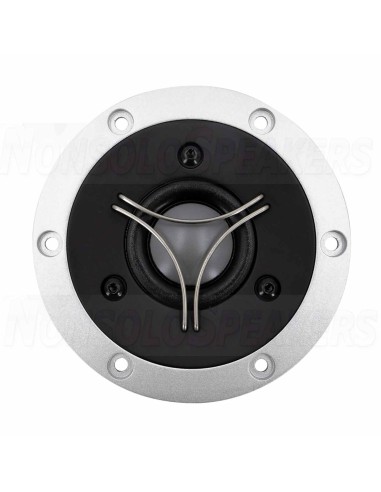

SB Acoustics Satori TW29B Beryllium dome tweeter
SB Acoustics Satori TW29B Beryllium dome tweeter
SB Acoustics Satori TW29B Beryllium dome tweeter
SB Acoustics Satori TW29B Beryllium dome tweeter
SB Acoustics Satori TW29B Beryllium dome tweeter
SB Acoustics Satori TW29B Beryllium dome tweeter
SB Acoustics Satori TW29B Beryllium dome tweeter
SB Acoustics Satori TW29B Beryllium dome tweeter
SB Acoustics Satori TW29B Beryllium dome tweeter
SB Acoustics Satori TW29B Beryllium dome tweeter
SB Acoustics Satori TW29B Beryllium dome tweeter
SB Acoustics Satori TW29B Beryllium dome tweeter

SB Acoustics Satori TW29B Beryllium dome tweeter

SB Acoustics Satori TW29B Beryllium dome tweeter

SHIPMENT IN 7/10 WORKING DAYS
€664.05 €699.00 -5%
Tax included
rating No review at the moment

The minimum purchase order quantity for the product is 2.

Estimated Shipping Costs
Shipping Costs
€12.60
Shipping Time
.
Want to check another country or courier?

You might also like



SB Acoustics Satori TW29B Beryllium dome tweeter

.

Highlights

Beryllium dome tweeter for resonance-free high-frequency extension.

Two-piece aluminum front panel with integrated mechanical decoupling.

Double-balanced compression chamber for improved dynamics.

Two copper capsules for minimal voice coil inductance and phase shift.

Reflection-free cast aluminum chamber with optimized damping for improved dynamics.

Optimized magnet structure for optimal coupling to the rear chamber.

CCAW voice coil for low moving mass.

Durable silver wire.

Low resonant frequency for extended throw.

.

Product details

The new Satori beryllium dome tweeter with ferrite magnet is here! Beryllium is known for its open and spacious sound, often described as holographic. Beryllium's self-damping properties allow for a wide frequency response without the sharp increase in frequency response at higher frequencies that occurs with most metal dome tweeters. All dome materials have different sonic and spatial representations. Beryllium makes a real difference and offers a different experience than all other dome materials. This new version with ferrite magnets offers slightly less power at a very affordable price.

Specifications: Product BL (BL): 2 Tm N • Diaphragm Mass Inc. Air Load (Mms): 0.46 g • Maximum Linear Excursion (Xmax): 0.25 mm • Cone Area (Sd): 9.6 cm2

.

Features

  • Item Number: TW29B
  • EAN 0696277268856
  • Tweeter Type Dome
  • Tweeter Series Satori Series
  • Cone / Dome Diameter 25 mm | 1"
  • Power Handling (QMW) 80 Watts
  • Impedance (Z) 4 Ω
  • Sensitivity (SPL at 1 m / 2.83 V) 92 dB
  • Resonant Frequency (Fs) 600 Hz
  • DC Resistance (Re) 3 ohms
  • Voice Coil Inductance (Le) 0.02 mH
  • Mechanical Q (Qms) 2.9
  • Electromagnetic Q (Qes) 1.3
  • Total Q (Qts) 0.90

.

TW29B
