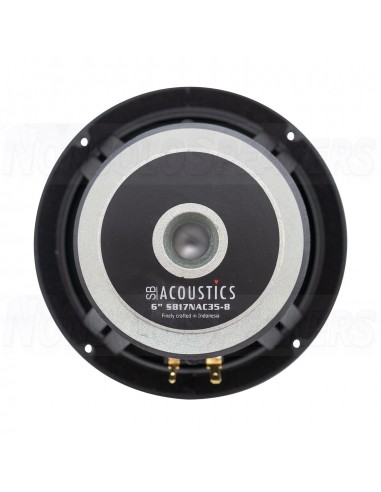

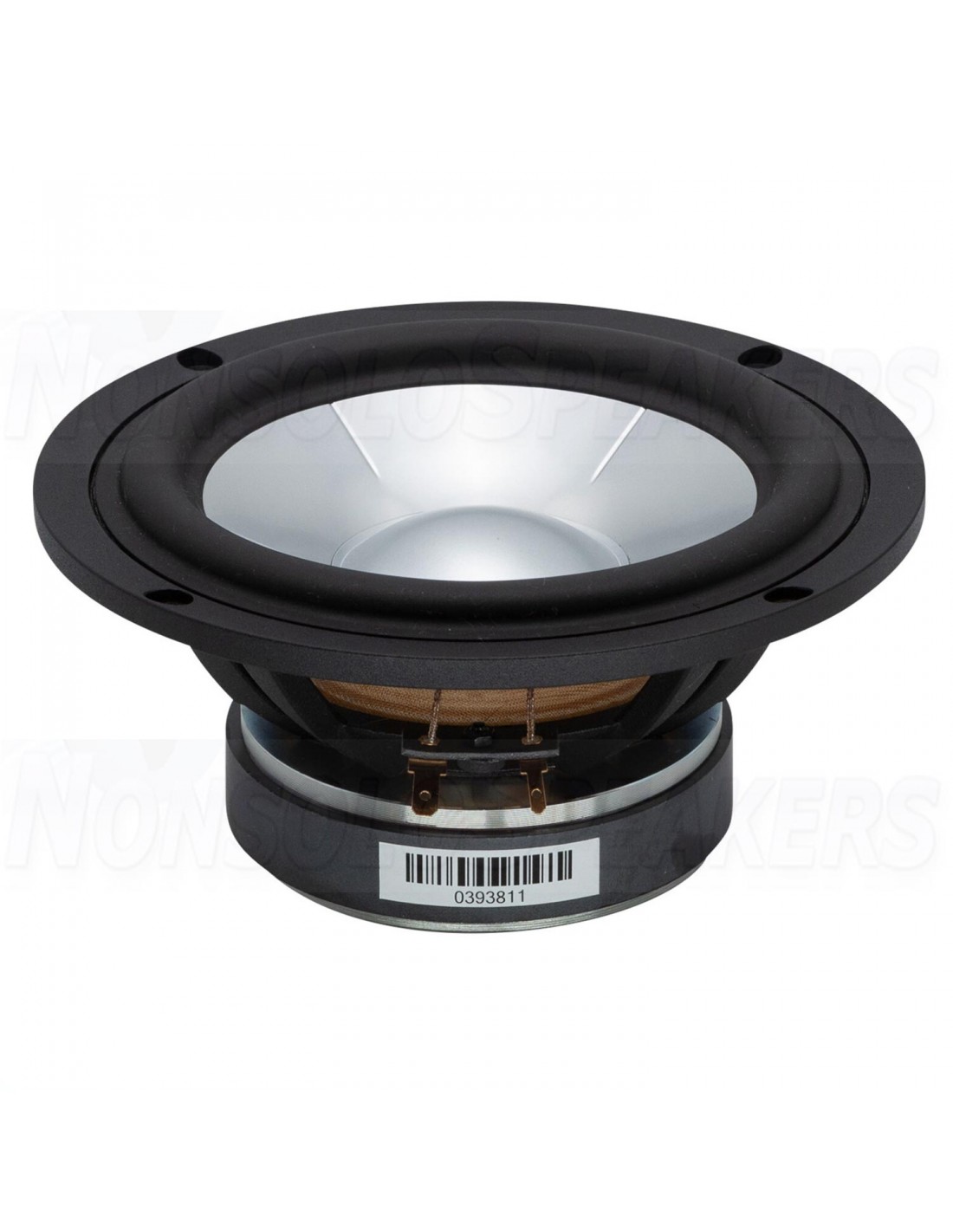

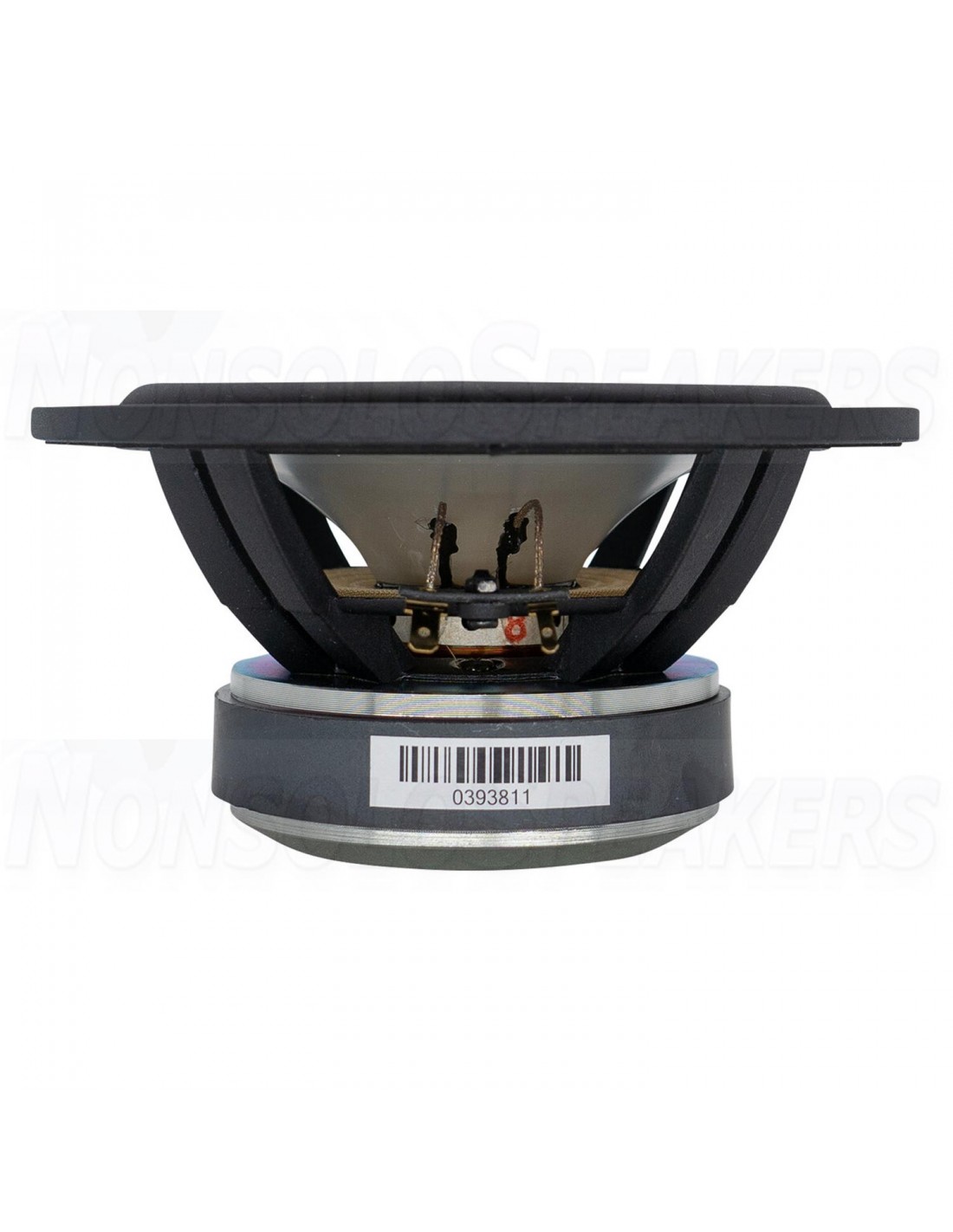

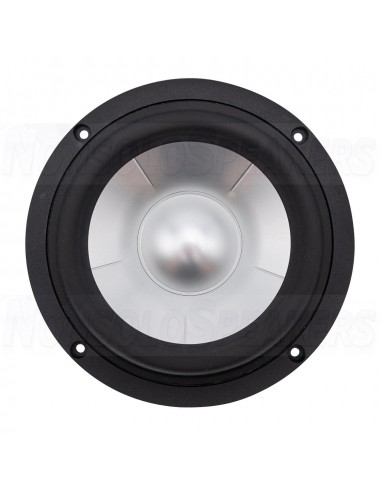

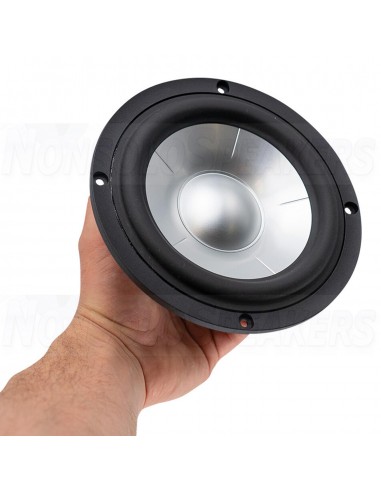

SB ACOUSTICS SB17NAC35-8 - 6" Midwoofer
SB ACOUSTICS SB17NAC35-8 - 6" Midwoofer
SB ACOUSTICS SB17NAC35-8 - 6" Midwoofer
SB ACOUSTICS SB17NAC35-8 - 6" Midwoofer
SB ACOUSTICS SB17NAC35-8 - 6" Midwoofer
SB ACOUSTICS SB17NAC35-8 - 6" Midwoofer
SB ACOUSTICS SB17NAC35-8 - 6" Midwoofer
SB ACOUSTICS SB17NAC35-8 - 6" Midwoofer
SB ACOUSTICS SB17NAC35-8 - 6" Midwoofer
SB ACOUSTICS SB17NAC35-8 - 6" Midwoofer
SB ACOUSTICS SB17NAC35-8 - 6" Midwoofer
SB ACOUSTICS SB17NAC35-8 - 6" Midwoofer
SB ACOUSTICS SB17NAC35-8 - 6" Midwoofer
SB ACOUSTICS SB17NAC35-8 - 6" Midwoofer

SB ACOUSTICS SB17NAC35-8 - 6" Midwoofer

SB ACOUSTICS SB17NAC35-8 - 6" Midwoofer SB Acoustics - 8ohm

The SB Acoustics SB17NAC35-8 features a vented cast aluminum chassis for optimum strength and low compression.

SHIPMENT IN 7/10 WORKING DAYS
€80.70 €84.95 -5%
Tax included
rating No review at the moment

The minimum purchase order quantity for the product is 2.

Estimated Shipping Costs
Shipping Costs
€14.40
Shipping Time
.
Want to check another country or courier?

You might also like



SB ACOUSTICS SB17NAC35-8 - 6" Midwoofer SB Acoustics - 8ohm

.

Product description

Highlights

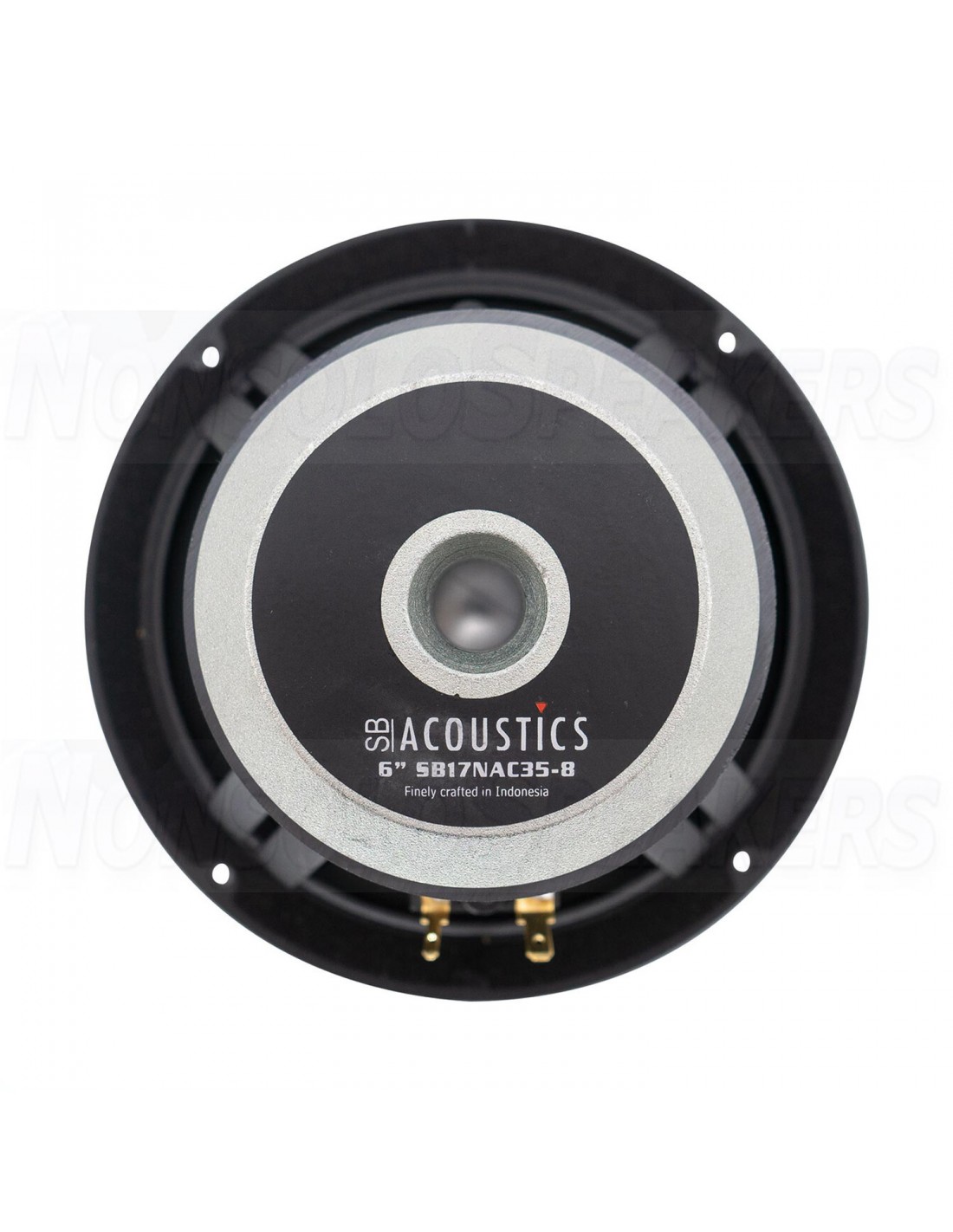

Vented cast aluminum chassis for optimum strength and low compression

Geometrically reinforced aluminum cone for optimum piston operation and reduced break-up

Soft low damping rubber surround for improved transient response

Non-conducting fiber glass voice coil former for minimum damping

Extended copper sleeve on pole piece for low inductance and low distortion

CCAW voice coil for reduced moving mass

Long life silver lead wires

Vented pole piece for reduced compression

.

Product details

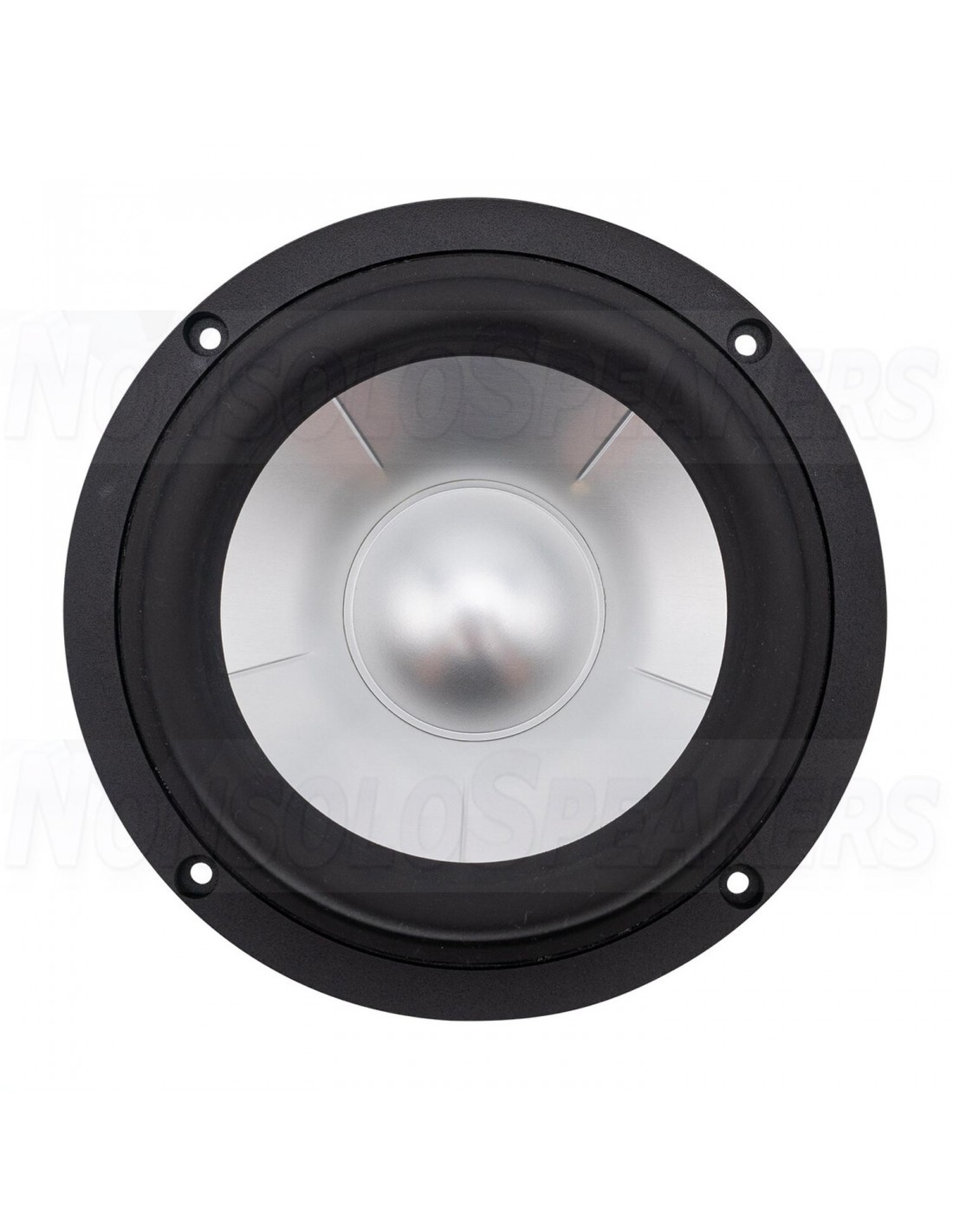

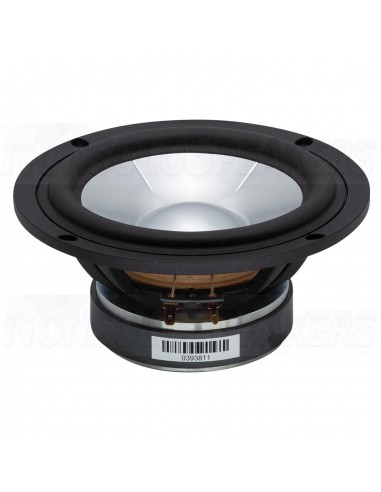

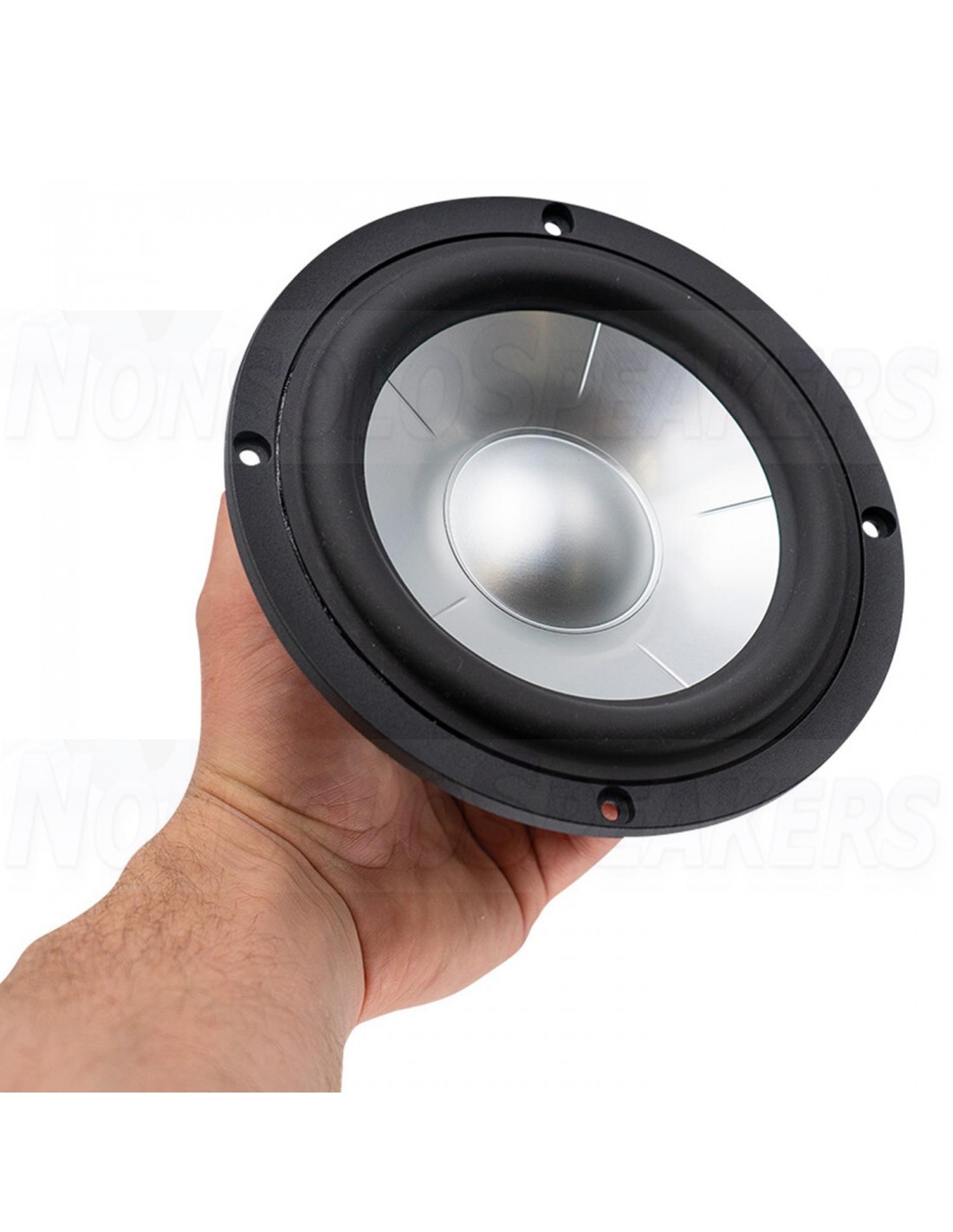

SB Acoustics SB17NAC35-8 6'' Aluminum Cone Mid-Woofer

The SB Acoustics SB17NAC35-8 features a vented cast aluminum chassis for optimum strength and low compression. Its geometrically reinforced aluminum cone allows an optimum piston operation and reduced break-up. Soft low damping rubber surround for improved transient response. Non-conducting fiber glass voice coil former for minimum damping. CCAW voice coil for reduced moving mass and long life silver lead wires.

.

Specifications

Article numberSB17NAC35-8
Woofer SeriesNAC Series
Woofer TypeMidwoofer
Nominal Diameter6"
Power Handling (RMS)60 Watts
Impedance (Z)8 ohms
Sensitivity (SPL at 1m / 2.83V)86.5 dB
Voice Coil Diameter1.39"
DC Resistance (Re)5.7 ohms
Voice Coil Inductance (Le)0.15 mH
Resonant Frequency (Fs)31.5 Hz
Mechanical Q (Qms)6
Electromagnetic Q (Qes)0.45
Total Q (Qts)0.42
Diaphragm Mass Inc. Airload (Mms)15.2 g
Mechanical Compliance of Suspension (Cms)1.68 mm/N
Surface Area of Cone (Sd)118 cm2
BL Product (BL)6.2 Tm
Compliance Equivalent Volume (Vas)1.16 ft.³
Maximum Linear Excursion (Xmax)5.5 mm

SB17NAC35-8
