Looking to add some punch to your bookshelf speakers or build your own custom speaker setup? The Visaton W 165 A might be the perfect woofer (bass-midwoofer) for the job. Despite its compact 6.5-inch size, this driver packs a powerful sound thanks to its durable build and high-quality materials.

Out-of-Stock
€169.95
Tax included
rating No review at the moment


Estimated Shipping Costs
Shipping Costs
€19.08
Shipping Time
.
Want to check another country or courier?

You might also like



Visaton W 165 A Bass-midwoofer 6.5“

Looking to add some punch to your bookshelf speakers or build your own custom speaker setup? The Visaton W 165 A might be the perfect woofer (bass-midwoofer) for the job. Despite its compact 6.5-inch size, this driver packs a powerful sound thanks to its durable build and high-quality materials.

.

Highlights

  • Compact Size: Ideal for bookshelf speakers or compact speaker builds where space is limited.
  • Durable Construction: Features a metal basket, robust rubber surround, and a black glass fiber cone for handling high sound pressure levels and potentially harsh environments.
  • Clear Mid-range and Bass: The glass fiber cone and optimized suspension system aim to deliver clear mid-range frequencies alongside a strong bass foundation.
  • 2-Ohm Impedance: An uncommon impedance that requires a compatible amplifier designed for such a low resistance.

.

Product Details

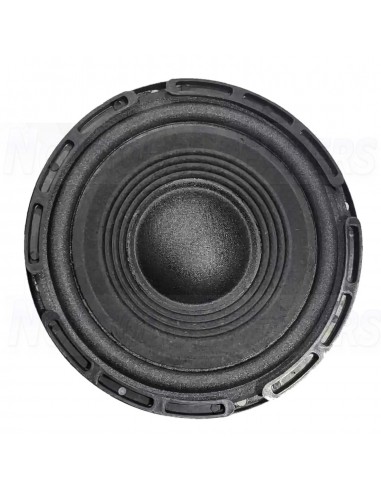

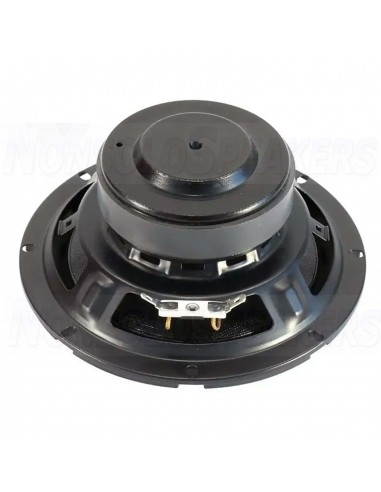

Visaton W 165 A Bass-midwoofer 16.5 cm (6.5“) woofer with black glass fibre cone, metal basket and robust rubber surround.

Thanks to a perfected selection of materials and adhesives, the loudspeaker can also be used under extreme environmental conditions, like in extreme heat or coldness and provide the necessary bass foundation.The computer-optimized suspension geometry, focused on a very high excursion but a small installation space at the same time, allows enormous sound pressure levels without fear of a sudden limitation.

This makes the W 165 A the perfect game partner, especially when it comes to high robustness

.

Technical Data

Rated power 60 W

Impedance 2 Ω

Frequency response (–10 dB) fu–5000 Hz

Mean sound pressure level 84 dB (1 W/1 m)

Excursion limit xmech ± 10.3 mm

Resonant frequency 60 Hz

Height of front pole-plate 6 mm

Voice coil diameter 31 mm Ø

Height of winding 15.3 mm

Baffle opening: Cut-out diameter 144 mm

Connection :Terminal 4.8 x 0.8 mm (+)/2.8 x 0.8 mm (–)

Net weight 1.26 kg

Visaton W 165 A
