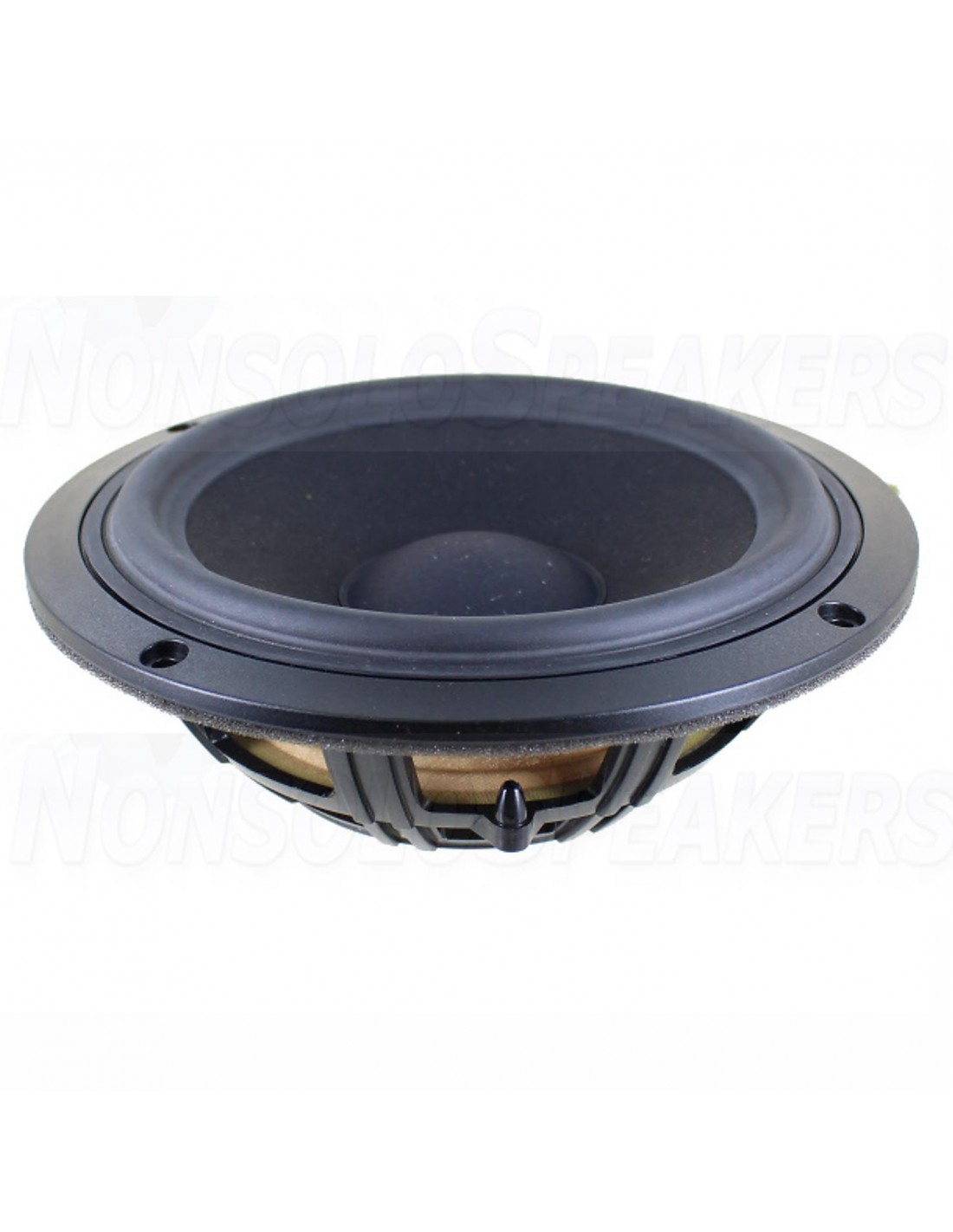

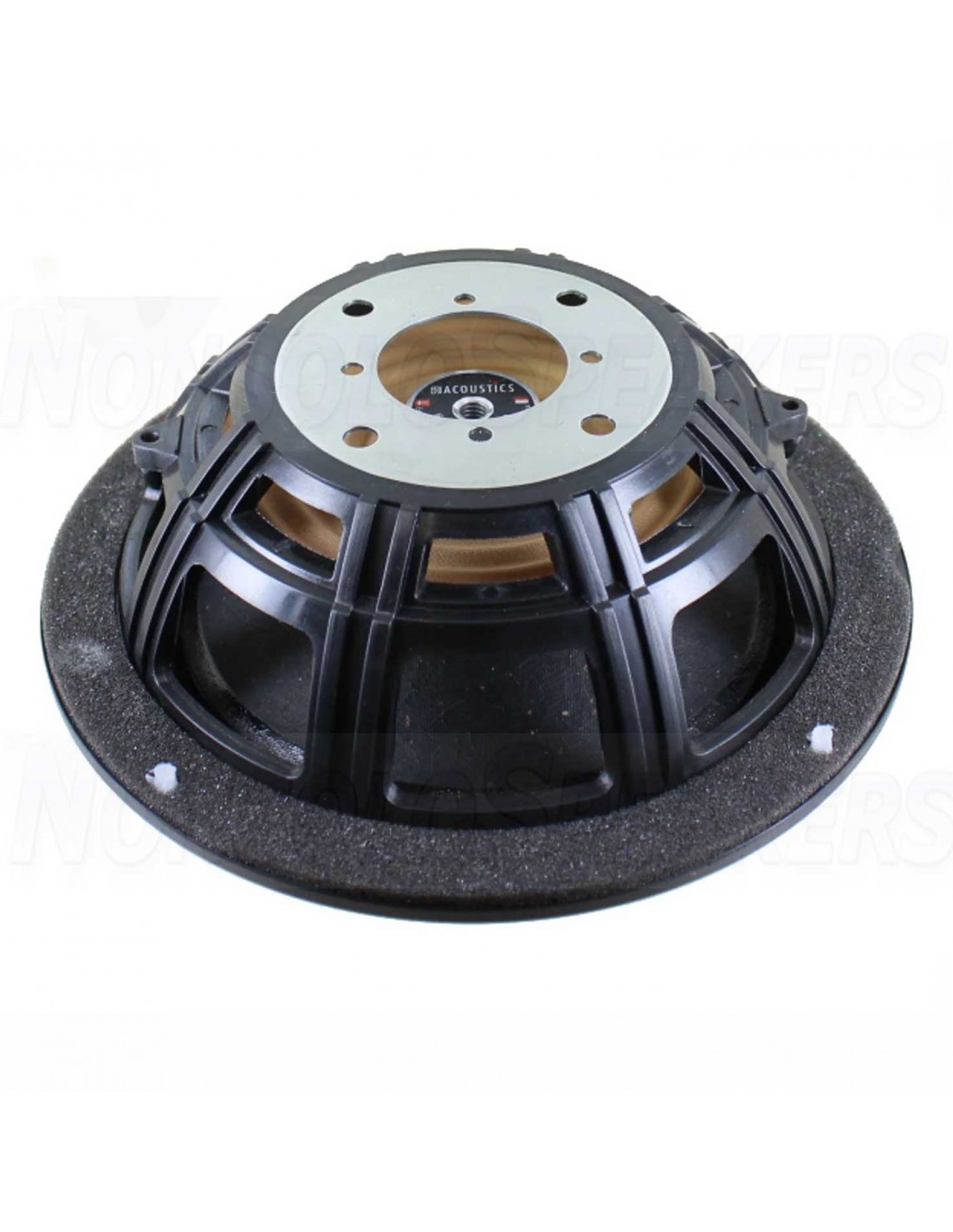

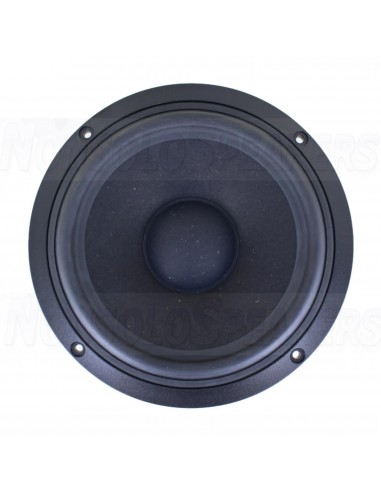

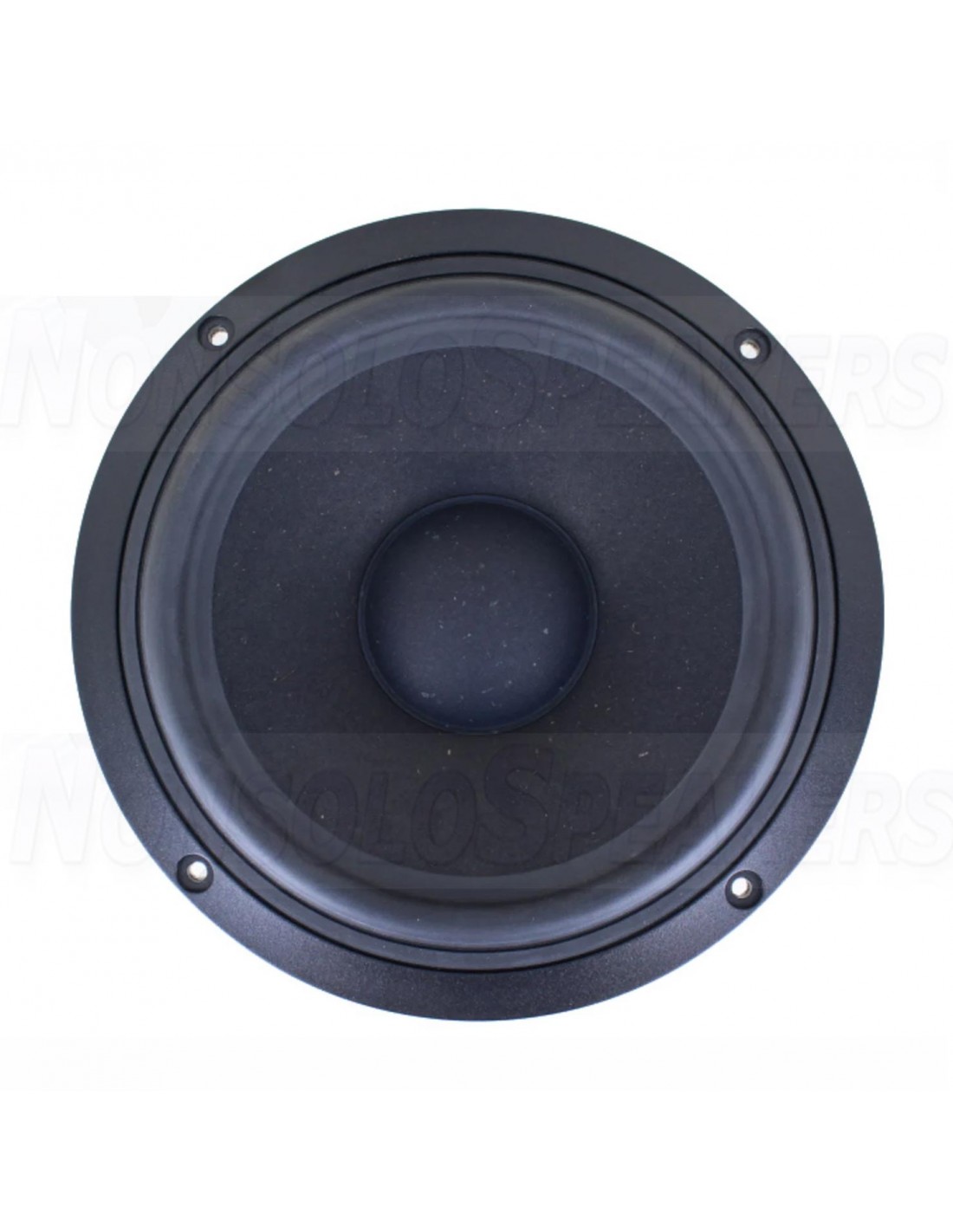

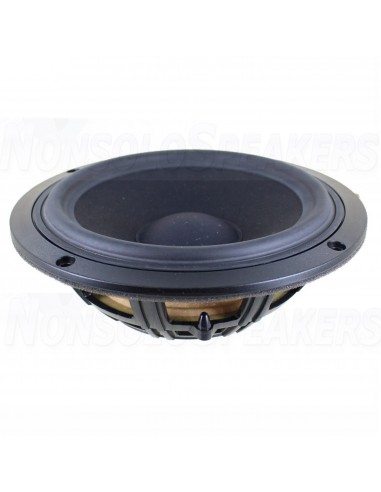

SB Acoustics SB16PFCR-00 6" Paper Cone Passive Radiator
SB Acoustics SB16PFCR-00 6" Paper Cone Passive Radiator
SB Acoustics SB16PFCR-00 6" Paper Cone Passive Radiator
SB Acoustics SB16PFCR-00 6" Paper Cone Passive Radiator
SB Acoustics SB16PFCR-00 6" Paper Cone Passive Radiator
SB Acoustics SB16PFCR-00 6" Paper Cone Passive Radiator

SB Acoustics SB16PFCR-00 6" Paper Cone Passive Radiator

SHIPMENT IN 7/10 WORKING DAYS
€21.85 €23.00 -5%
Tax included
rating No review at the moment

SB Acoustics SB16PFCR-00 6" Paper Cone Passive Radiator

The SB Acoustics SB16PFCR-00 is a perfect match for the PFCR series drivers. Both with its specifications and compatible visual style. A passive radiator can be used as an alternative to the port in a bass reflex cabinet.

The minimum purchase order quantity for the product is 2.

Estimated Shipping Costs
Shipping Costs
€14.40
Shipping Time
.
Want to check another country or courier?

You might also like



SB Acoustics SB16PFCR-00 6" Paper Cone Passive Radiator

.

Product description

Vented reinforced plastic chassis

Proprietary cone material with natural fibers made in-house

Soft low damping surround

Easily adjustable moving mass

-

Product details

SB Acoustics SB16PFCR-00 6" Paper Cone Passive Radiator

The SB Acoustics SB16PFCR-00 is a perfect match for the PFCR series drivers. Both with its specifications and compatible visual style. A passive radiator can be used as an alternative to the port in a bass reflex cabinet, together with an active woofer of similar size or smaller. In many applications the traditional bass reflex port may produce high speed air noise or even have poor effect due to a small port area or a large port length. In such cases, a passive radiator may bring about an improvement

.

Specifications

Article numberSB16PFCR-00
Woofer TypePassive radiator
Nominal Diameter6''
Resonant Frequency (Fs)22 Hz
Mechanical Q (Qms)4.4
Diaphragm Mass Inc. Airload (Mms)38 g
Mechanical Compliance of Suspension (Cms)1.4 mm/N
Surface Area of Cone (Sd)124 cm2
Maximum Linear Excursion (Xmax)5 mm
Driver's Mechanical Losses (Rms)1.2 kg/s
Cone / Diaphragm MaterialPaper
Surround MaterialRubber
Overall Outside Diameter178 mm
Baffle Cutout Diameter144.5 mm
# Mounting Holes4

SB16PFCR-00
