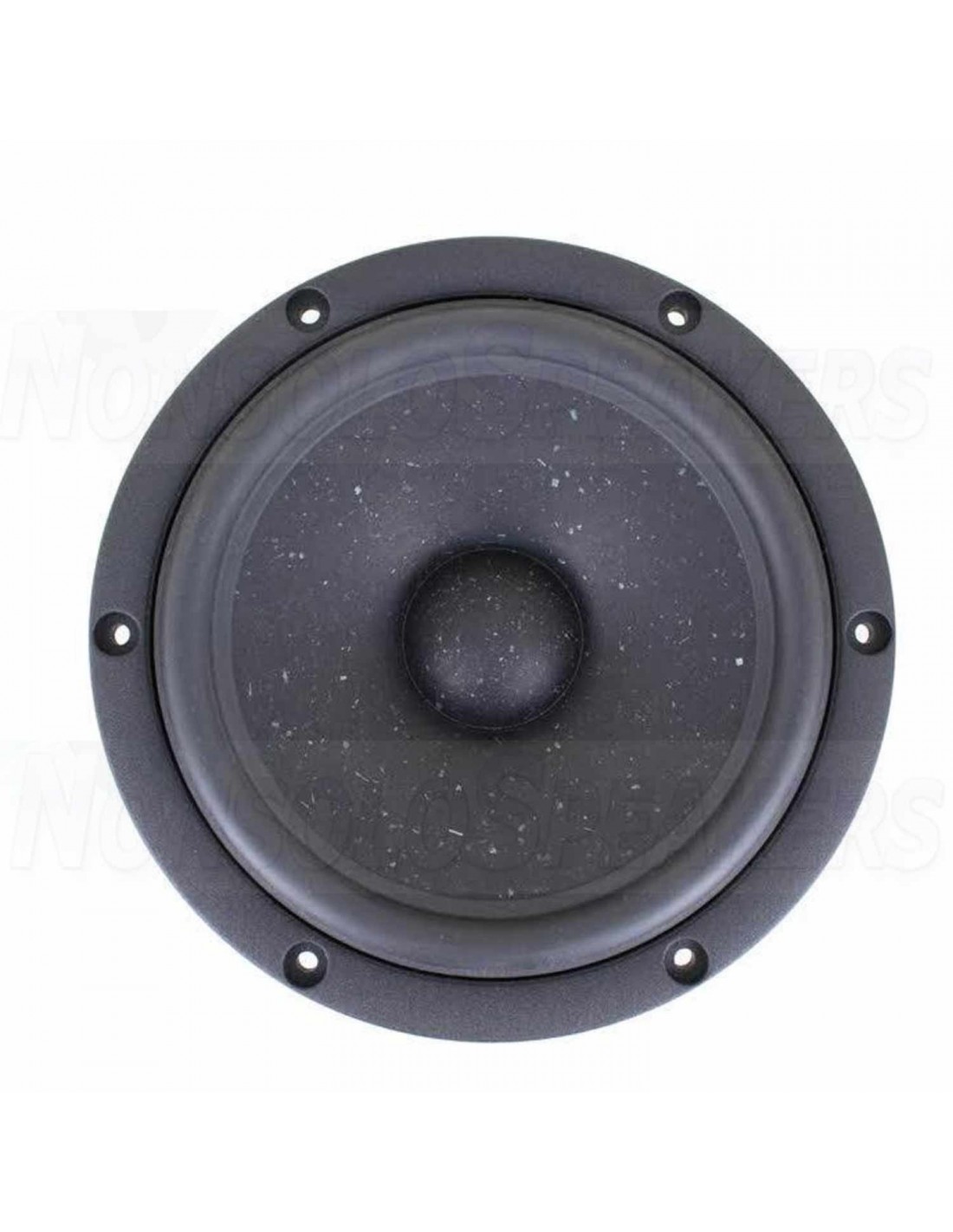

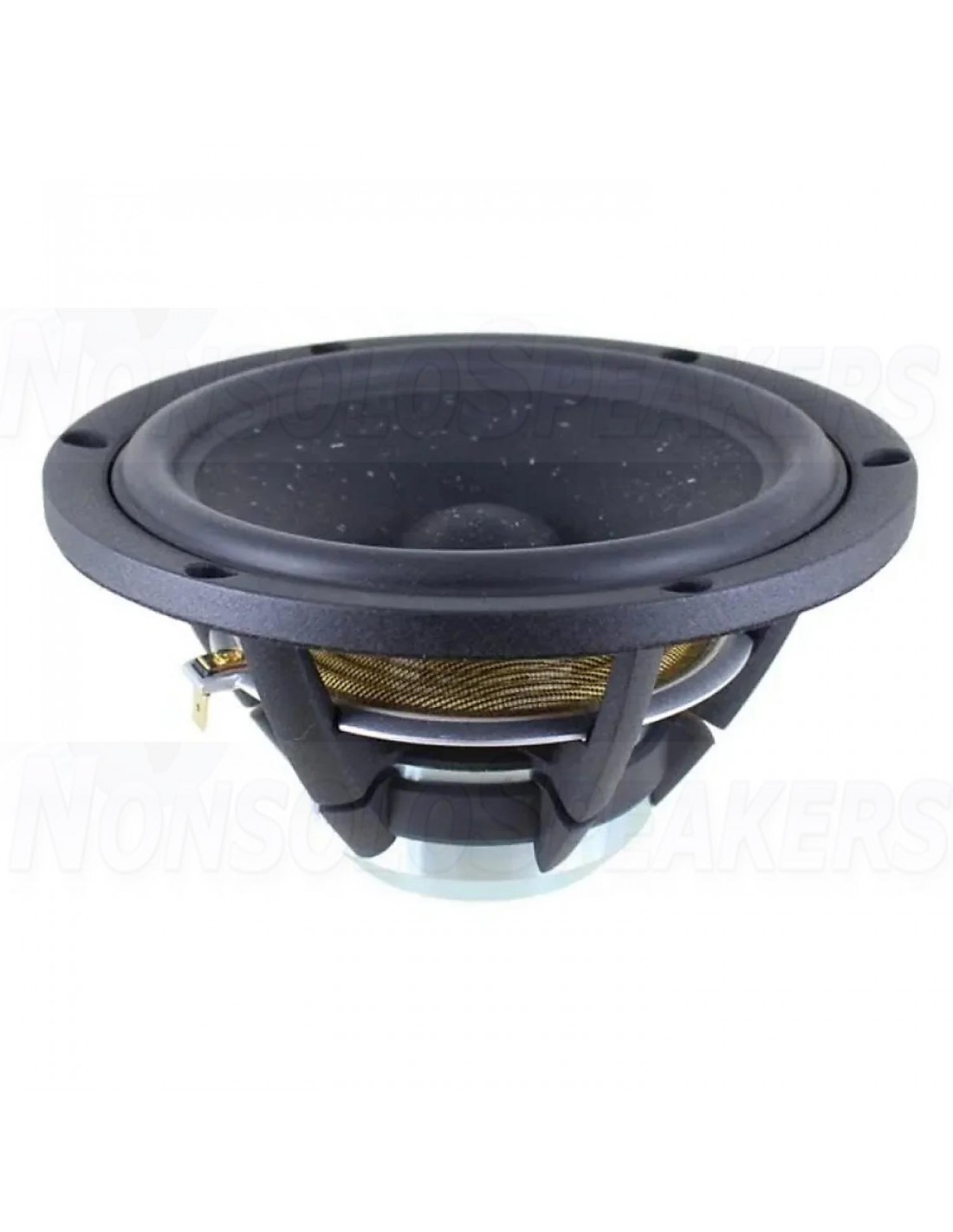

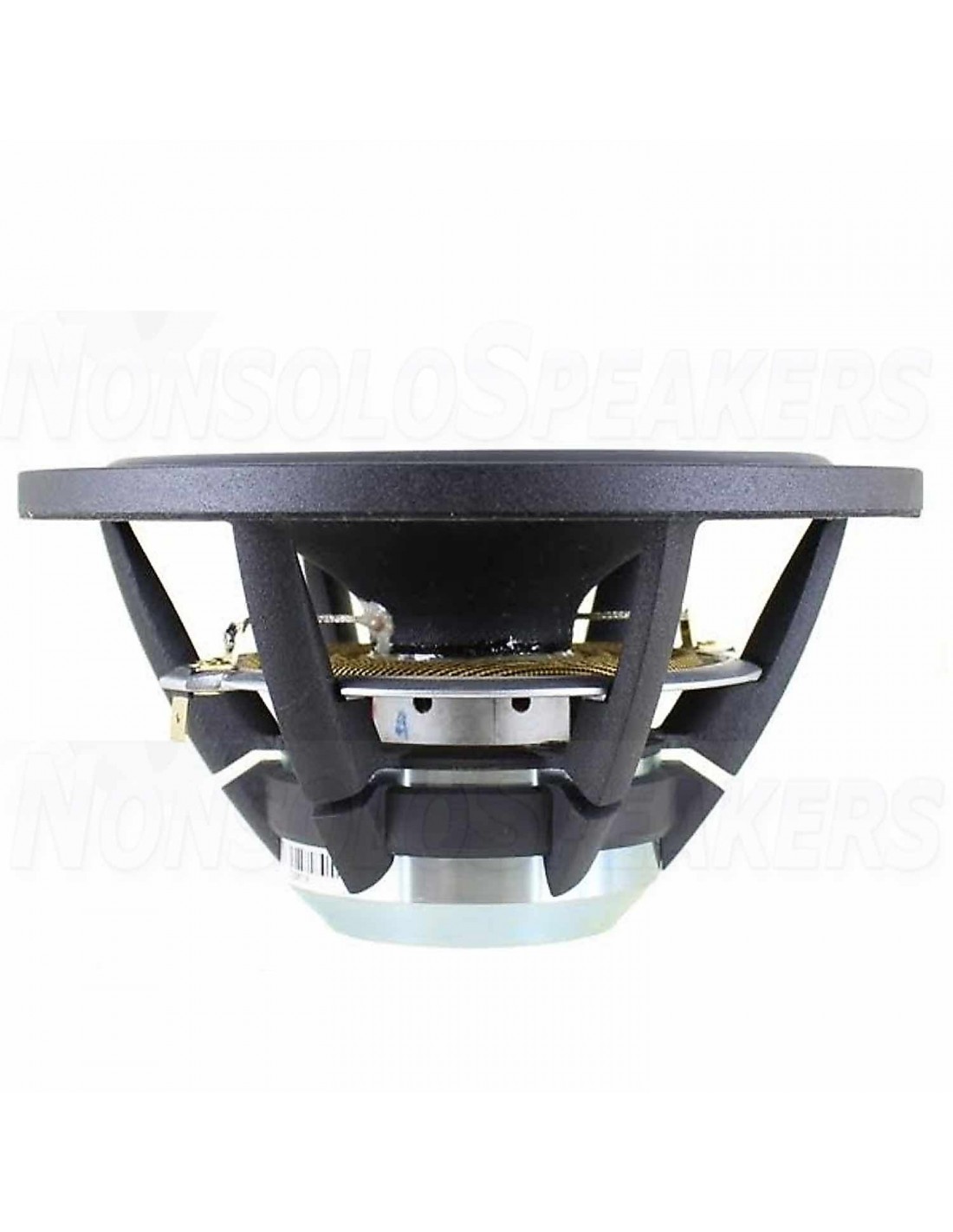

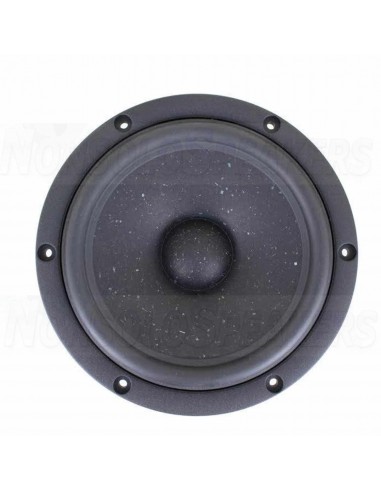

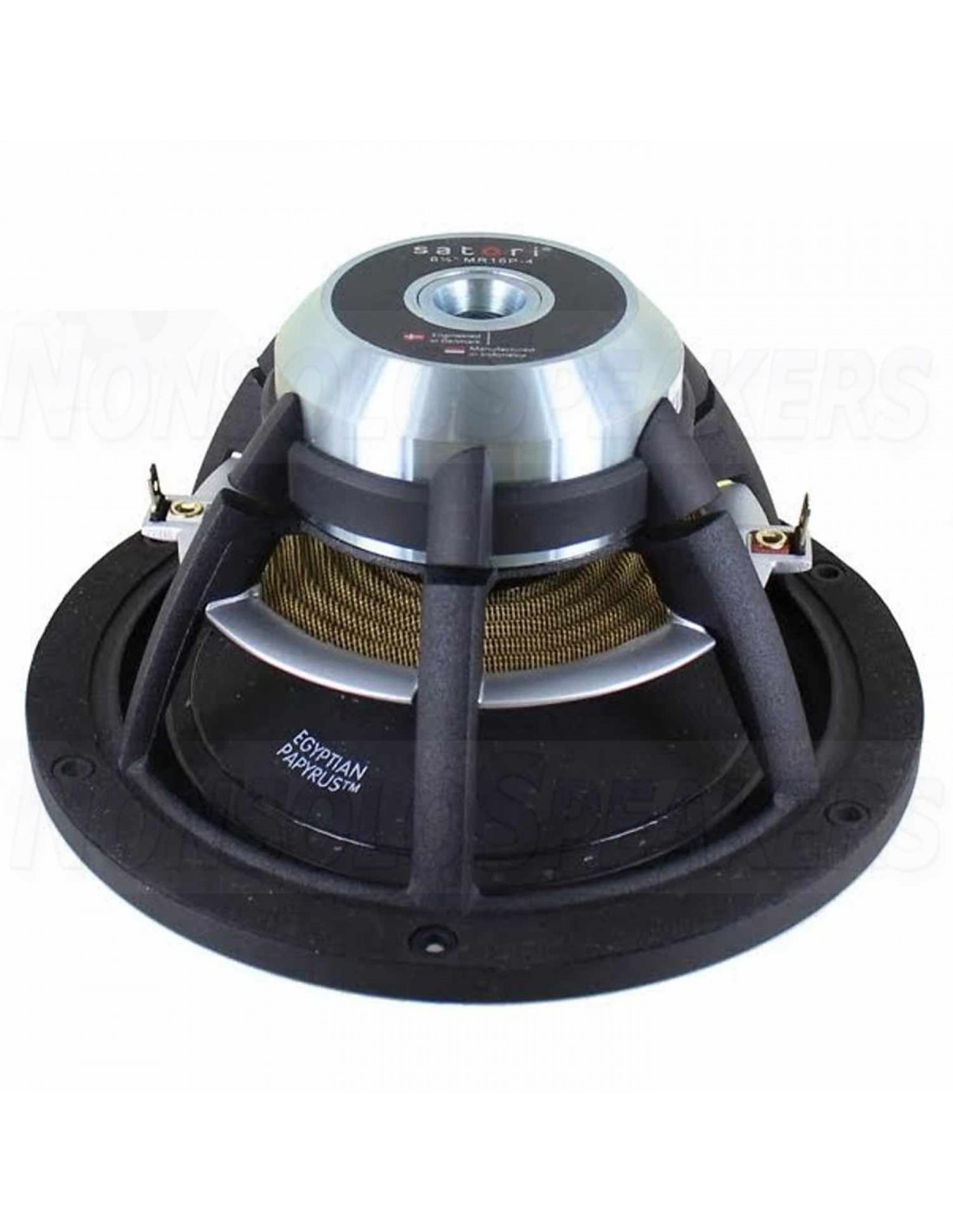

SB ACOUSTICS SATORI MW16P-8 - 6.5" Midwoofer SB Acoustics - 8ohm

The Satori MW16P-8 provides a vented aerodynamic cast aluminum chassis for optimum strength and low compression.

Estimated Shipping Costs
Shipping Costs
€14.40
Shipping Time
.
Want to check another country or courier?

You might also like



SB ACOUSTICS SATORI MW16P-8 - 6.5" Midwoofer SB Acoustics - 8ohm

The Satori MW16P-8 provides a vented aerodynamic cast aluminum chassis for optimum strength and low compression. Proprietary cone material with EGYPTIAN PAPYRUS™ fibers made in-house. Soft low damping rubber surround for optimum transient response. Advanced BIMAX spider for improved linearity. Powerful optimized low distortion neodymium motor system. Non-conducting fiber glass voice coil former for minimum damping. Extended copper sleeve on pole piece for low inductance and reduced distortion. CCAW voice coil for reduced moving mass.

.

Special Features:

  • Vented aerodynamic cast aluminium chassis for optimum strength and low compression
  • Proprietary cone material with EGYPTIAN PAPYRUS™ fibres made in-house
  • Soft low damping rubber surround for optimum transient response
  • Advanced BIMAX spider for improved linearity
  • Powerful optimized low distortion neodymium motor system
  • Non-conducting fibre glass voice coil former for minimum damping
  • Extended copper sleeve on pole piece for low inductance and reduced distortion
  • CCAW voice coil for reduced moving mass
  • Long life silver lead wires attached 180° apart for improved stability
  • Vented pole piece for reduced compression
  • High piston to chassis diameter ratio
  • Gasket and bolt hole protrusions for reduced coupling to speaker cabinet

.

Specifications

Article numberMW16P-8
Woofer SeriesSatori Series
Woofer TypeMidwoofer
Nominal Diameter6"
Power Handling (RMS)60 Watts
Impedance (Z)8 ohms
Sensitivity (SPL at 1m / 2.83V)87.5 dB
Voice Coil Diameter1.41"
DC Resistance (Re)6.2 ohms
Voice Coil Inductance (Le)0.2 mH
Resonant Frequency (Fs)29 Hz
Mechanical Q (Qms)4.5
Electromagnetic Q (Qes)0.35
Total Q (Qts)0.33
Diaphragm Mass Inc. Airload (Mms)12.4 g
Mechanical Compliance of Suspension (Cms)2.4 mm/N
Surface Area of Cone (Sd)119 cm2
BL Product (BL)6.3 Tm
Compliance Equivalent Volume (Vas)1.69 ft.³
Maximum Linear Excursion (Xmax)6 mm

DATA SHEETS:

MW16P-8
