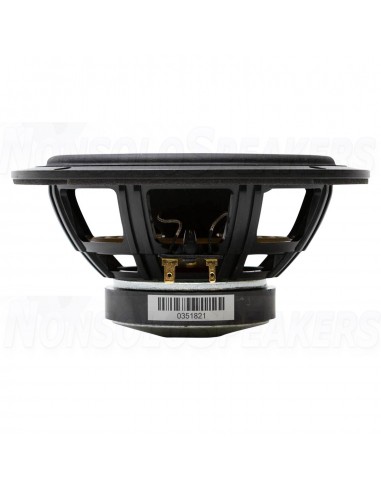

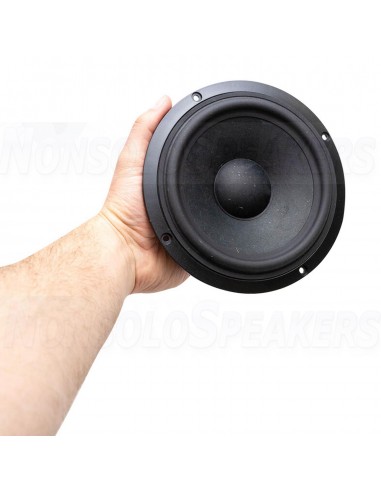

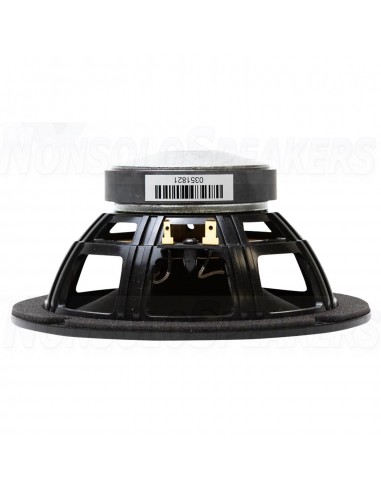

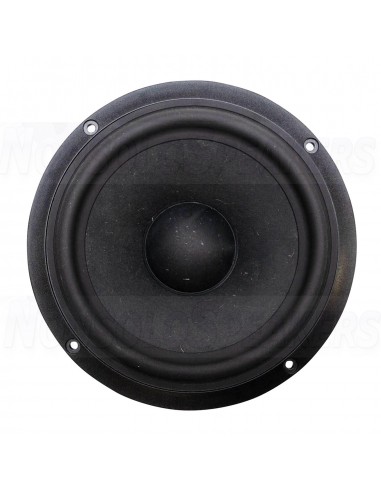

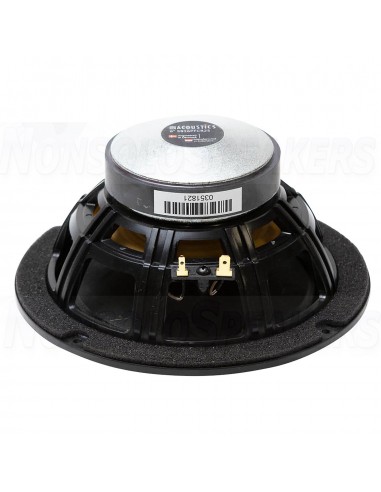

The SB Acoustics SB16PFCR25-8 is a 6.5-inch mid-range woofer with a paper cone, vented reinforced plastic chassis, and an optimized motor system with a high power ferrite magnet.

Variants
SB Acoustics SB16PFCR25-8 Mid-range Woofer
SB Acoustics SB16PFCR25-4-COAX Coaxial Woofer
SB Acoustics SB16PFCR25-8 Mid-range Woofer
SHIPMENT IN 7/10 WORKING DAYS
€30.35 €31.95 -5%
Tax included
rating No review at the moment

The minimum purchase order quantity for the product is 2.

Estimated Shipping Costs
Shipping Costs
€14.40
Shipping Time
.
Want to check another country or courier?

You might also like



SB Acoustics SB16PFCR25-8 Mid-range Woofer

.

Product description

The SB Acoustics SB16PFCR25-8 is a high-quality mid-range woofer that is perfect for a variety of speaker applications. It offers excellent performance at an affordable price. It is also very easy to install and use.

.

Highlights

Paper cone for smooth and natural sound

Vented reinforced plastic chassis for low resonance

Optimized motor system for high power handling

Ferrite magnet for high efficiency

Low damping rubber surround for improved transient response

Vented coil former for low compression

Non-resonant long life lead wires

.

Product details

SB Acoustics SB16PFCR25-8 Mid-range Woofer

The SB Acoustics SB16PFCR25-8 is a 6.5-inch mid-range woofer with a paper cone, vented reinforced plastic chassis, and an optimized motor system with a high power ferrite magnet. It has a frequency response of 50Hz to 5kHz, a sensitivity of 88dB, and a power handling capacity of 250W RMS. It is suitable for use in a variety of speaker applications, including bookshelf speakers, floorstanding speakers, and center channel speakers.

.

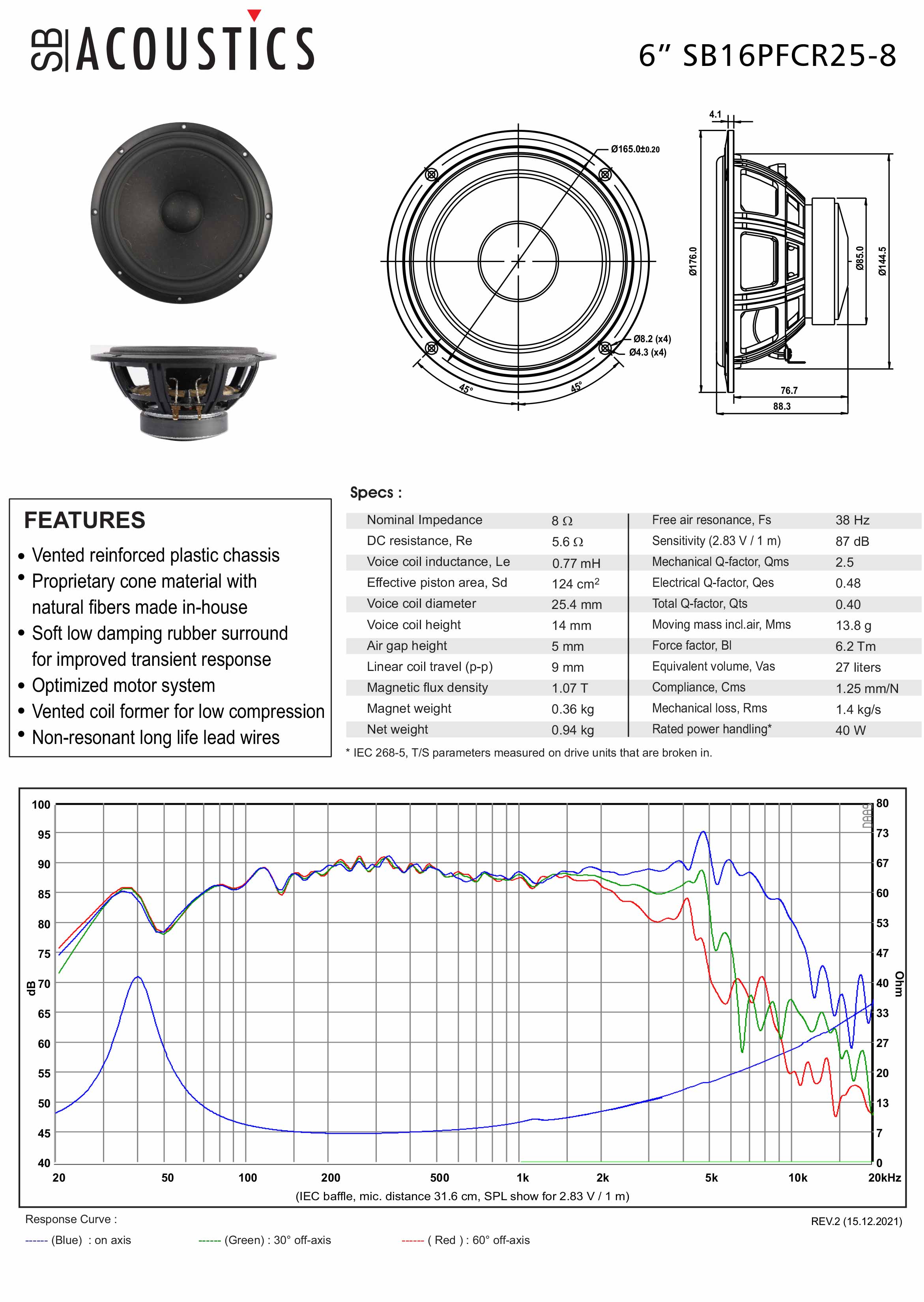

Specifications

  • Article number SB16PFCR25-8
  • EAN 8785256859870
  • Woofer Type Bass-Midwoofer
  • Nominal Diameter 6″
  • Power Handling (RMS) 40 W
  • Impedance (Z) 8 Ω
  • Sensitivity (SPL at 1m / 2.83V) 87 dB
  • Voice Coil Diameter 25.4 mm
  • DC Resistance (Re) 5.6 Ω
  • Resonant Frequency (Fs) 38 Hz
  • Mechanical Q (Qms) 2.5
  • Electromagnetic Q (Qes) 0.48
  • Total Q (Qts) 0.40
  • Diaphragm Mass Inc. Airload (Mms) 13.8 g
  • Mechanical Compliance of Suspension (Cms) 1.25 mm/N
  • Surface Area of Cone (Sd) 124 cm2
  • BL Product (BL) 6.2 Tm
  • Compliance Equivalent Volume (Vas) 27 Liters
  • Maximum Linear Excursion (Xmax) (p-p) 9 mm
  • Driver's Mechanical Losses (Rms) 1.4 kg/s
  • Overall Outside Diameter 176 mm
  • Overall Depth 88.3 mm
  • Baffle Cutout Diameter 144.5 mm
  • # Mounting Holes 4
  • Mounting Hole Diameter 4.3 mm
