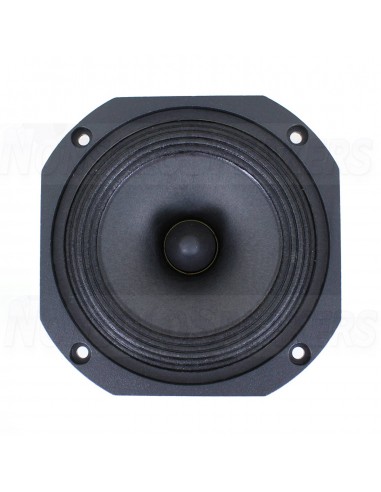

Audax HM170Z18 - 170mm Midwoofer HDA cone - Prestige Series - 8ohm
Audax HM170Z18 - 170mm Midwoofer HDA cone - Prestige Series - 8ohm
Audax HM170Z18 - 170mm Midwoofer HDA cone - Prestige Series - 8ohm
Audax HM170Z18 - 170mm Midwoofer HDA cone - Prestige Series - 8ohm
Audax HM170Z18 - 170mm Midwoofer HDA cone - Prestige Series - 8ohm
Audax HM170Z18 - 170mm Midwoofer HDA cone - Prestige Series - 8ohm

Audax 13LB25AL Fullrange speaker, 6 ohm, 5 inch

 Audax 13LB25AL Fullrange speaker, 6 ohm, 5 inch

Out-of-Stock
€96.90 €102.00 -5%

Tax included
rating No review at the moment

The minimum purchase order quantity for the product is 2.


Estimated Shipping Costs
Shipping Costs
€14.40
Shipping Time
.
Want to check another country or courier?

You might also like



Audax 13LB25AL Fullrange speaker, 6 ohm, 5 inch

.

General

  •  Product type : Cone driver
  •  Brand : Audax
  •  Manufacturer reference : 13 LB 25 AL
  •  Product code : 13LB25AL

Informations

  •  Nominal impedance : 6 ohm
  •  Dimensional category : 5.5 inch
  •  Frequency coverage type : Fullrange
  •  Manufacturer sensitivity : 96 dB
  •  Calculated sensitivity : 95.18 dB
  •  Nominal power handling : 25 W

Fundamental parameters

  •  Mms : 3.9 gr
  •  Le : 0.365 mH
  •  Re : 5.55 ohm

Small signal parameters

  •  Fs : 78 Hz
  •  Qes : 0.25
  •  Qms : 4.67
  •  Qts : 0.24
  •  Vas : 11.34 L

Datas

  •  Xmax : ±1.75 mm
  •  EBP : 312 Hz
  •  Fs / Qts : 325 Hz
  •  Vas * Qts² : 0.66 L
  •  Calculated efficiency : 2.07 %

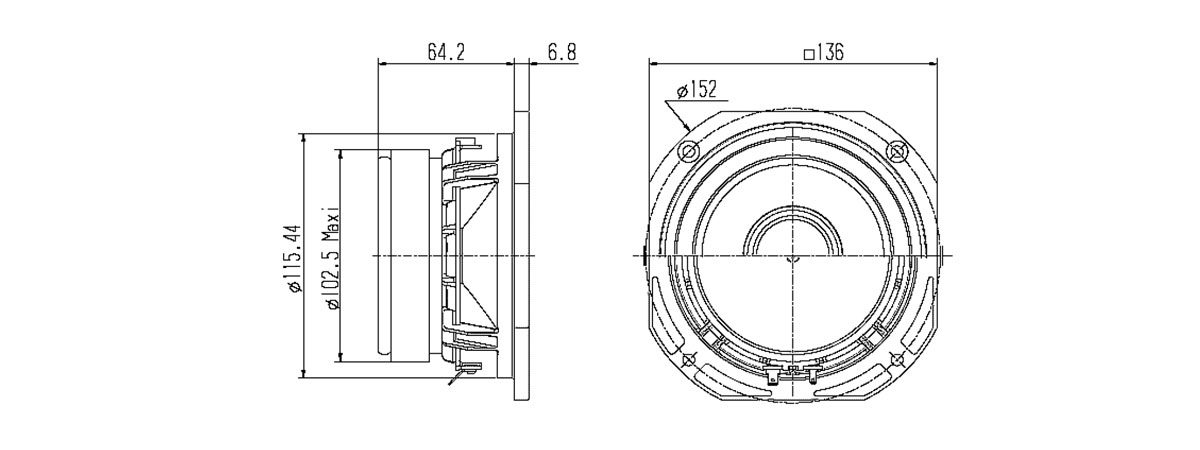

Dimensions

  •  Voice coil diameter : 1 inch
  •  External dimensions : 136 | 136 mm
  •  Diamètre d'encastrement (mm) : 115.44 mm
  •  Front thickness : 6.8 mm
  •  Depth after front : 64.2 mm
  •  Diamètre aimant (mm) : 102.5 mm

Shape & Materials

  •  Front chape : Non cylindrical

13LB25AL

The society AAC (stands for "Applications Acoustiques de Composites") is now the owner of AUDAX and take over the produciton of some designs.

In addition to the manufacture of cellulose fiber membranes (paper) , the company's initial activity and recognized expertise, it has diversified its activity by developing new technologies and using materials such as fiberglass , fiber aramid (®kevlar) , carbon fiber , titanium , aluminum , ceramics , plastics or more recently themagnesium or a composite sandwich .

On the strength of this experience and this know-how, the company has succeeded in establishing itself on this market and becoming one of the world leaders in the field of the manufacture of domes for tweeters , in particular for the automotive industry.
