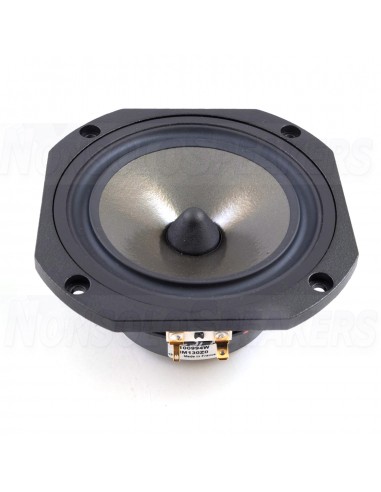

Audax HM130Z10 Midwoofer 130mm HDA cone - Prestige 8ohm
Audax HM130Z10 Midwoofer 130mm HDA cone - Prestige 8ohm
Audax HM130Z10 Midwoofer 130mm HDA cone - Prestige 8ohm
Audax HM130Z10 Midwoofer 130mm HDA cone - Prestige 8ohm
Audax HM130Z10 Midwoofer 130mm HDA cone - Prestige 8ohm
Audax HM130Z10 Midwoofer 130mm HDA cone - Prestige 8ohm

Audax HM130Z10 Midwoofer 130mm HDA cone - Prestige 8ohm

Audax HM130Z10 Midwoofer 130mm  HDA cone - Prestige 8ohm

Out-of-Stock
€83.60 €88.00 -5%

Tax included
rating No review at the moment

The minimum purchase order quantity for the product is 2.


Estimated Shipping Costs
Shipping Costs
€12.60
Shipping Time
.
Want to check another country or courier?

You might also like



Audax HM130Z10 Midwoofer 130mm  HDA cone - Prestige 8ohm

.

General

 Product type : Cone driver

 Brand : Audax

 Manufacturer reference : HM130Z10

 Product code : 102263N

Informations

  •  Nominal impedance : 8 ohm
  •  Dimensional category : 5.5 inch
  •  Manufacturer sensitivity : 90.2 dB
  •  Calculated sensitivity : 90.23 dB
  •  Nominal power handling : 50 W

Fundamental parameters

  •  Mms : 6.89 gr
  •  Le : 0.69 mH
  •  Re : 6.2 ohm
  •  BL : 7.16 T.m

Small signal parameters

  •  Fs : 63.5 Hz
  •  Qes : 0.33
  •  Qms : 2.69
  •  Qts : 0.25
  •  Vas : 8.89 L

Datas

  •  Xmax : ±2 mm
  •  EBP : 192 Hz
  •  Fs / Qts : 254 Hz
  •  Vas * Qts² : 0.56 L
  •  Calculated efficiency : 0.67 %
  •  Recommended load volume : 6.2 L
  •  Fréquence d'accord liée à la charge : 75 Hz

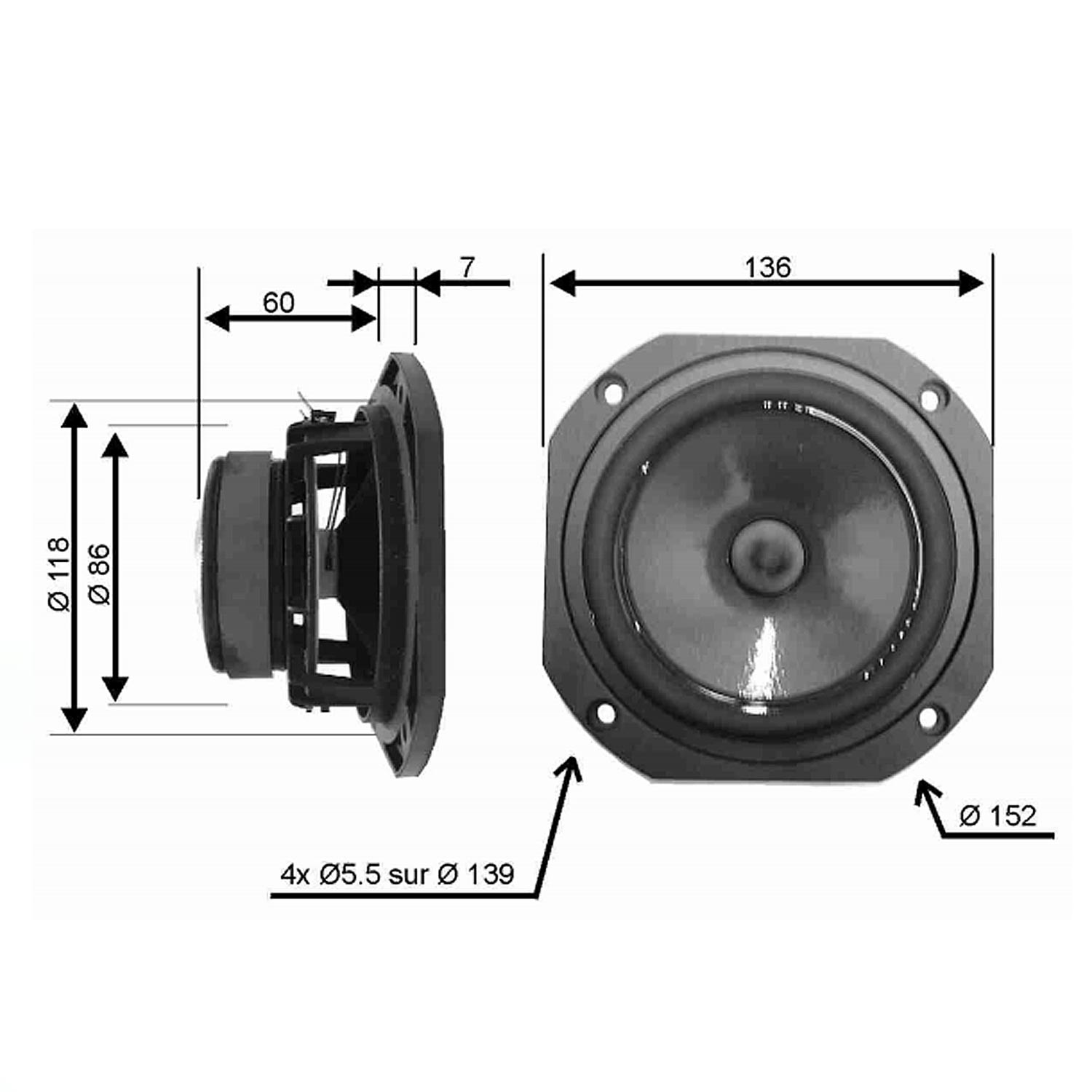

Dimensions

  •  Voice coil diameter : 1 inch
  •  Winding depth : 11.2 mm
  •  External dimensions : 136 | 136 mm
  •  Diamètre d'encastrement (mm) : 118 mm
  •  Front thickness : 7 mm
  •  Depth after front : 60 mm
  •  Diamètre aimant (mm) : 86 mm

Shape & Materials

  •  Front chape : Non cylindrical
  •  Magnet type : Ferrite
  •  Basket masterial : Zamak
  •  Voice coil former : Kapton
  •  Surround material : Rubber

HM130Z10

The society AAC (stands for "Applications Acoustiques de Composites") is now the owner of AUDAX and take over the produciton of some designs.

In addition to the manufacture of cellulose fiber membranes (paper) , the company's initial activity and recognized expertise, it has diversified its activity by developing new technologies and using materials such as fiberglass , fiber aramid (®kevlar) , carbon fiber , titanium , aluminum , ceramics , plastics or more recently themagnesium or a composite sandwich .

On the strength of this experience and this know-how, the company has succeeded in establishing itself on this market and becoming one of the world leaders in the field of the manufacture of domes for tweeters , in particular for the automotive industry.
