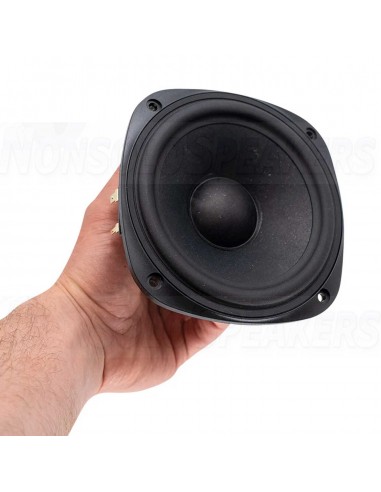

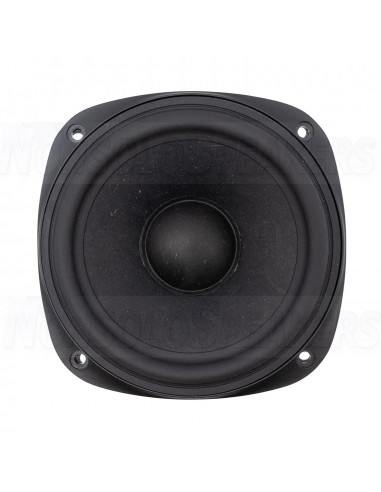

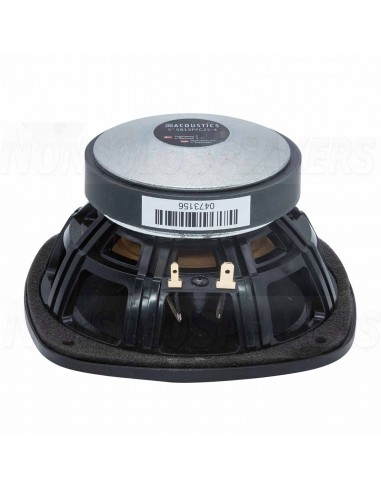

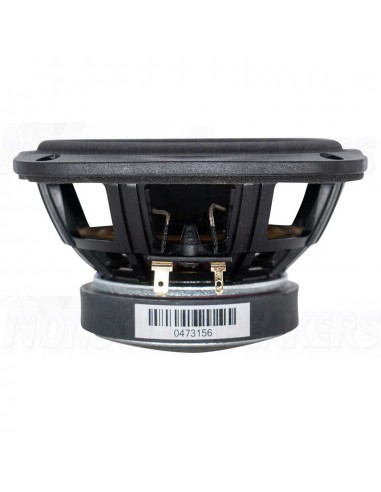

SB ACOUSTICS SB13PFC25-4 - 5" Midwoofer
SB ACOUSTICS SB13PFC25-4 - 5" Midwoofer
SB ACOUSTICS SB13PFC25-4 - 5" Midwoofer
SB ACOUSTICS SB13PFC25-4 - 5" Midwoofer
SB ACOUSTICS SB13PFC25-4 - 5" Midwoofer
SB ACOUSTICS SB13PFC25-4 - 5" Midwoofer
SB ACOUSTICS SB13PFC25-4 - 5" Midwoofer
SB ACOUSTICS SB13PFC25-4 - 5" Midwoofer
SB ACOUSTICS SB13PFC25-4 - 5" Midwoofer
SB ACOUSTICS SB13PFC25-4 - 5" Midwoofer
SB ACOUSTICS SB13PFC25-4 - 5" Midwoofer
SB ACOUSTICS SB13PFC25-4 - 5" Midwoofer

SB ACOUSTICS SB13PFC25-8 - 5" Midwoofer 8ohm

SB ACOUSTICS SB13PFC25-8 - 5" Midwoofer 8ohm

The SB Acoustics SB13PFC25-8 is composed by a vented reinforced plastic chassis and a proprietary cone material with natural made in-house fibers.

Variants
SB ACOUSTICS SB13PFC25-4 - 5" Midwoofer
SB ACOUSTICS SB13PFC25-4 - 5" Midwoofer
SHIPMENT IN 7/10 WORKING DAYS
€28.45
Tax included
rating No review at the moment

The minimum purchase order quantity for the product is 2.

Estimated Shipping Costs
Shipping Costs
€12.60
Shipping Time
.
Want to check another country or courier?

You might also like



SB ACOUSTICS SB13PFC25-8 - 5" Midwoofer 8ohm

.

Product description

Vented reinforced plastic chassis

Proprietary cone material with natural fibers made in-house

Soft low damping rubber surround for improved transient response

Optimized motor system

Vented coil former for low compression

Non-resonant long life lead wires

.

Product details

SB Acoustics SB13PFC25-8 5" Paper Cone Woofer

The SB Acoustics SB13PFC25-8 is composed by a vented reinforced plastic chassis and a proprietary cone material with natural made in-house fibers. The soft low damping rubber surround allows an improved transient response. Optimized motor system, vented coil former for low compression and non-resonant long life lead wires.

.

Properties

  • Item number SB13PFC25-8
  • EAN 0696277269556
  • Woofer series SB Acoustics PFC Paper series
  • Woofer type Midwoofer
  • Nominal diameter 5"
  • Power handling (QMW) 40 watts
  • Impedance (Z) 8 ohms
  • Sensitivity (SPL at 1m / 2.83V) 87 dB
  • Voice coil diameter 1"
  • DC resistance (Re) 5.6 ohms
  • Voice coil inductance (Le) 0.77 mH
  • Resonance frequency (Fs) 45 Hz
  • Mechanical quality factor (Qms) 2.2
  • Electrical quality factor (Qes) 0.39
  • Total quality factor (Qts) 0.33
  • Moving mass (Mms) 10 g
  • Suspension compliance (Cms) 1.25 mm/N
  • Membrane area (Sd) 87 cm2
  • Force factor (BL) 6.2 Tm
  • Equivalent volume (Vas) 0.47 ft³
  • Maximum displacement (Xmax) 4.5 mm
