MOREL CAT 308 -28mm Tweeter- Classic Advanced

MOREL CAT 308 - 28mm Tweeter - Morel Classic Advanced - 8ohm

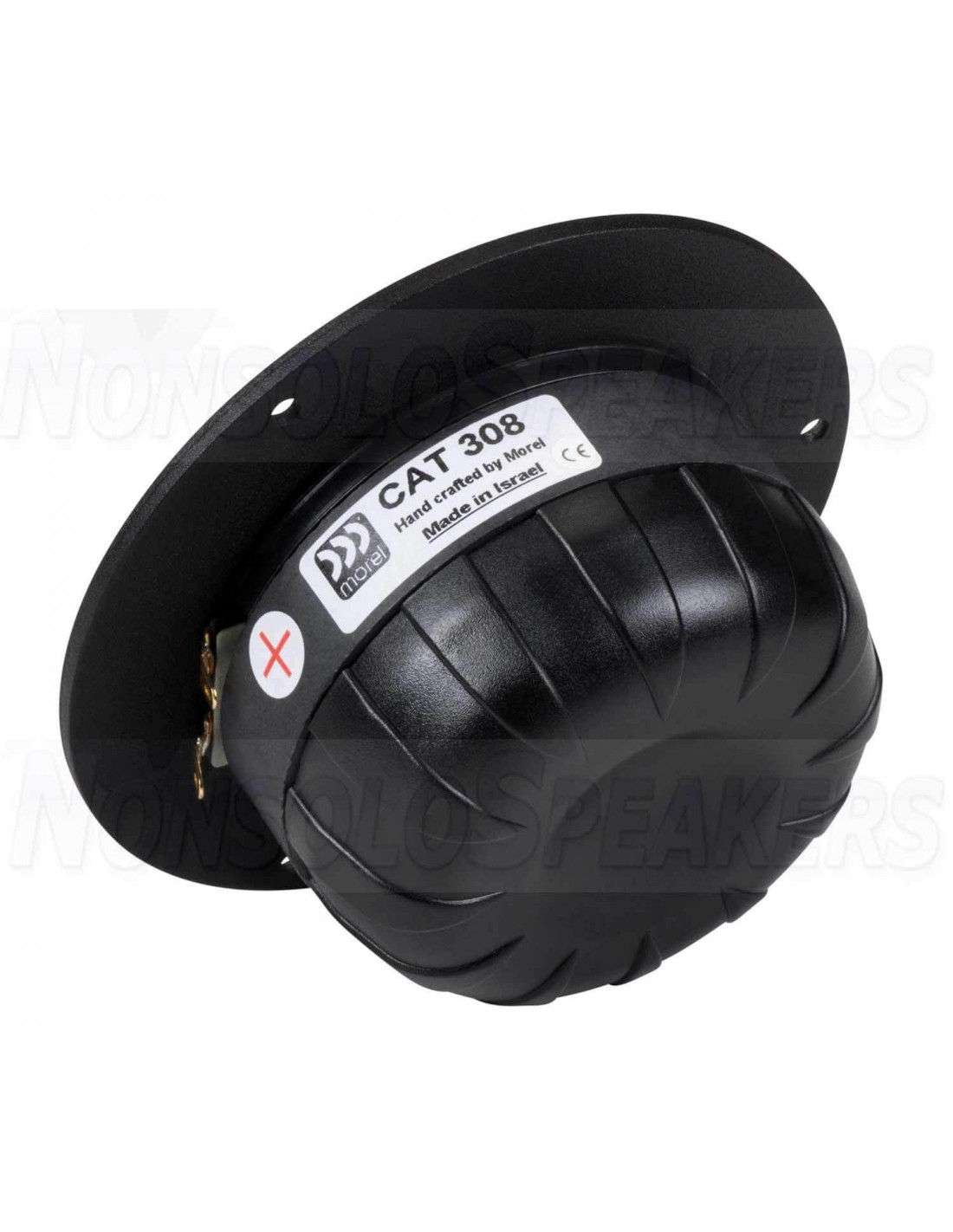

Morel CAT 308 1-1/8" Soft Dome Tweeter

A new version of Morel's classic MDT-30, the CAT308 is a very fast tweeter capable of high dynamic range without SPL compression. It features a single magnet system vented into a damped rear chamber that lowers resonance. The ferrofluid cooled aluminum voice coil contributes to the CAT308's low distortion and exceptionally smooth response. 1-1/8" treated soft dome. Replacement diaphragm (277-016).

Product Details

Brand Morel

Model CAT 308

Part Number 277-082

UPC 844632070754

Unit of Measure Each

Weight 1.4

-

Product Specifications

Cone / Dome Diameter 1.125"

Cutout Diameter 2.83

Tweeter Type Soft Dome

Power Handling (RMS) 200 Watts

Impedance 8Ω

Frequency Response 1,600 to 20,000Hz

Sensitivity 90dB 2.83V/1m

-

Thiele-Small Parameters

Resonant Frequency (Fs) 700Hz

DC Resistance (Re) 5.2Ω

Voice Coil Inductance (Le) 0.09mH

Mounting Information

Overall Outside Diameter 4.09"

Depth 1.69"
