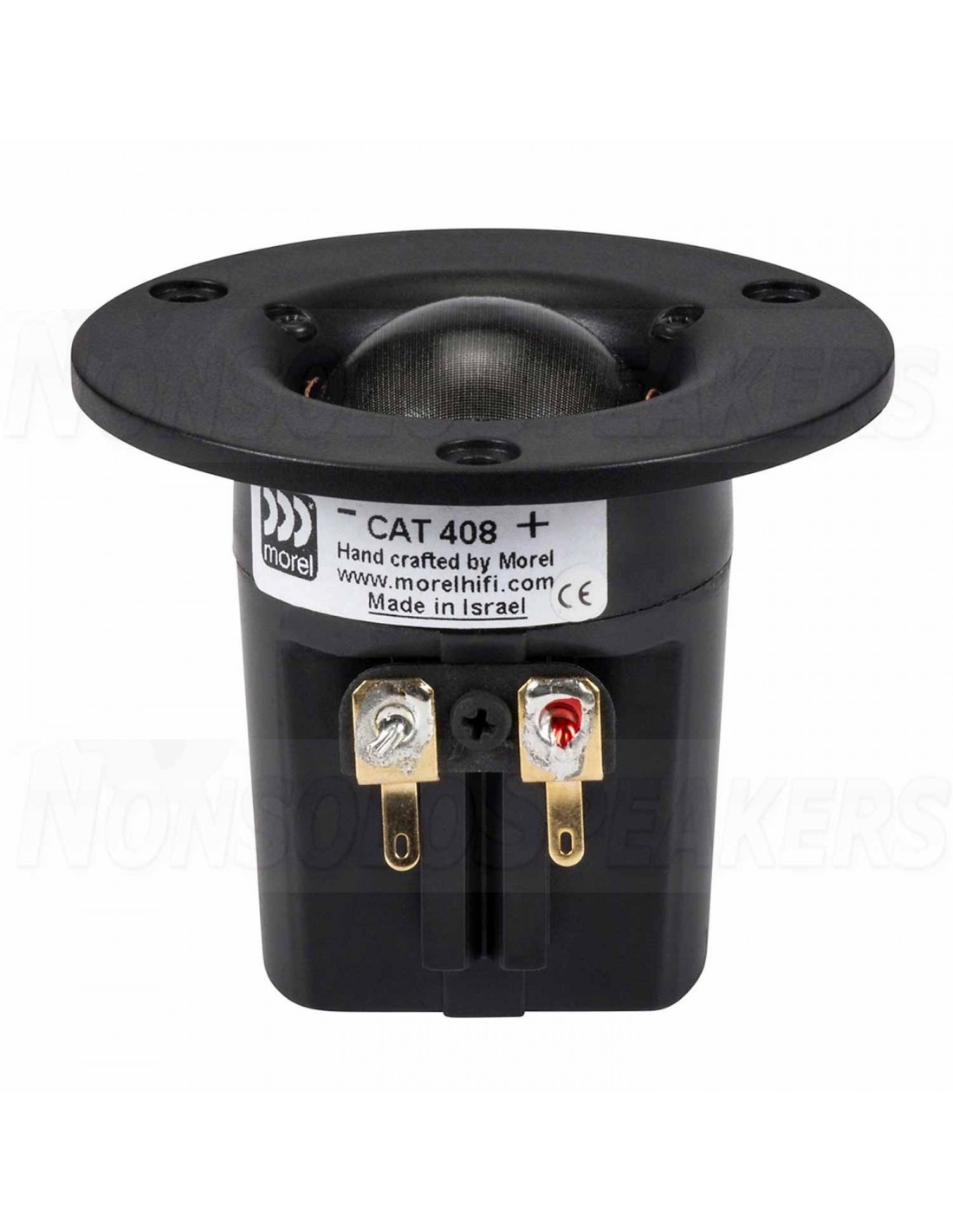

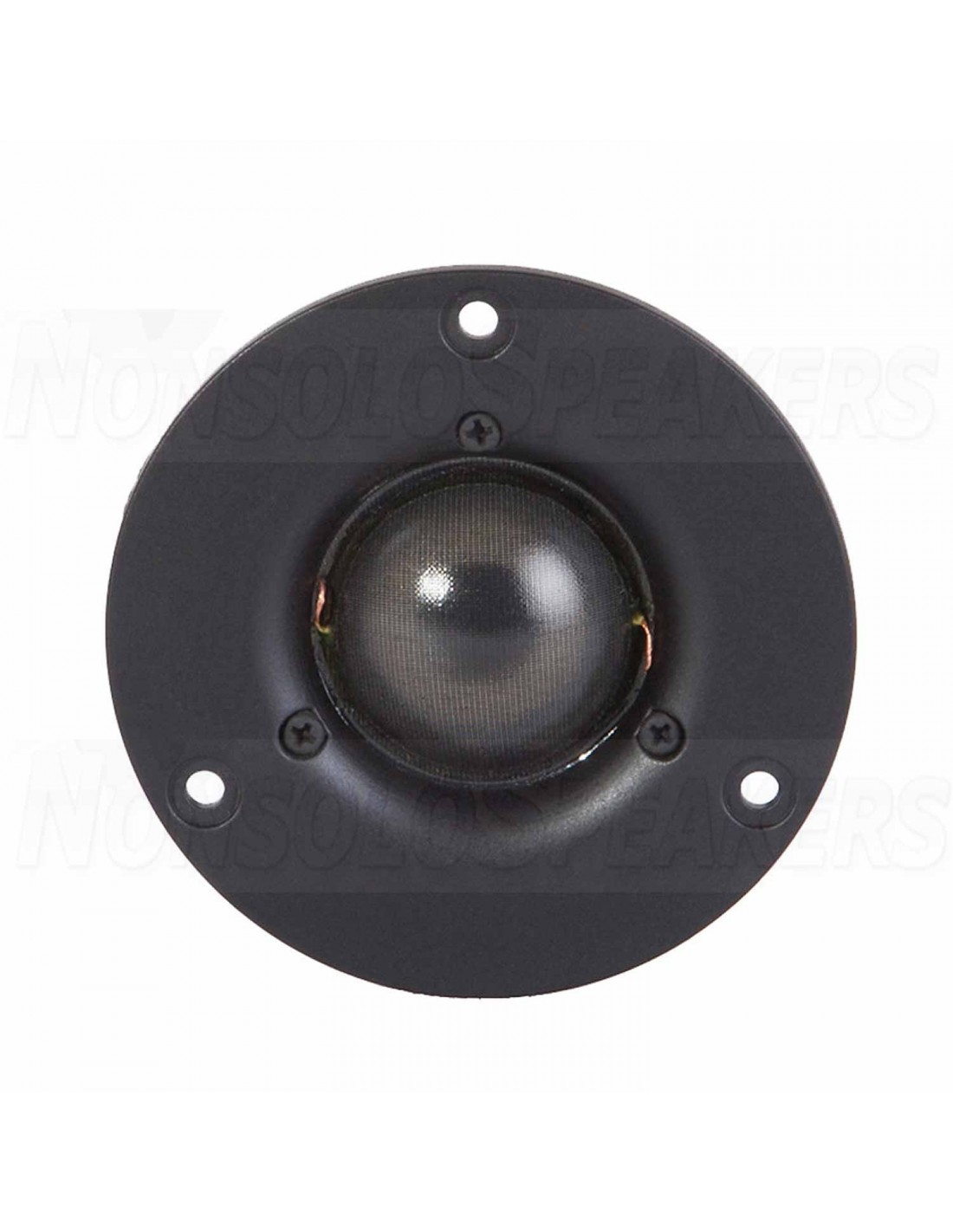

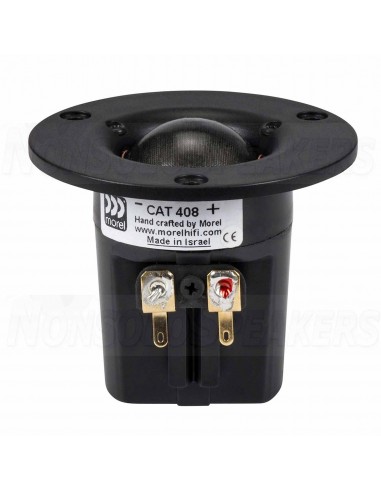

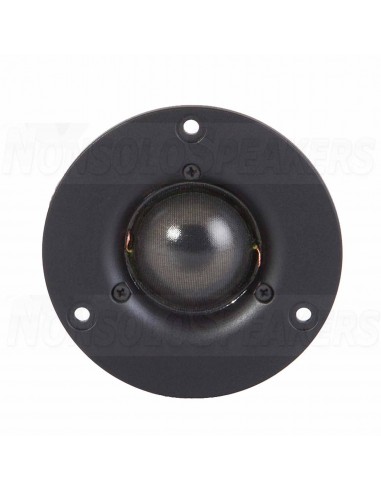

Morel CAT 408 - 28mm Tweeter Advanced - 8ohm

Morel CAT 408 - 28mm Tweeter  Advanced - 8ohm

The CAT408 is virtually identical to the superb MDT-39 but with one very important difference: it employs Morel's Hexatech aluminum voice coil technology to improve efficiency and greatly improve power handling (to 120 watts RMS!). Its small faceplate allows very close placement to a woofer or midrange for improved sound integration. Fully shielded for A/V use. Latest evolution of Morel's MDT-40.

Specifications: • Power handling: 120 watts RMS/170 watts max • VCdia: 1-1/8" • Impedance: 8 ohms • DC resistance: 5.2 ohms • Frequency response: 2,200-20,000 Hz • Fs: 750 Hz • SPL: 89 dB 1W/1m • Dimensions: Overall diameter: 2.83" x 2.83", Cutout diameter: 1.73", Depth: 2.36".

Product Details

Brand Morel

Model CAT 408

Part Number 277-086

UPC 844632070778

Unit of Measure Each

Weight 0.25

-

Product Specifications

Cone / Dome Diameter 1.125"

Cutout Diameter 1.73

Tweeter Type Soft Dome

Power Handling (RMS) 120 Watts

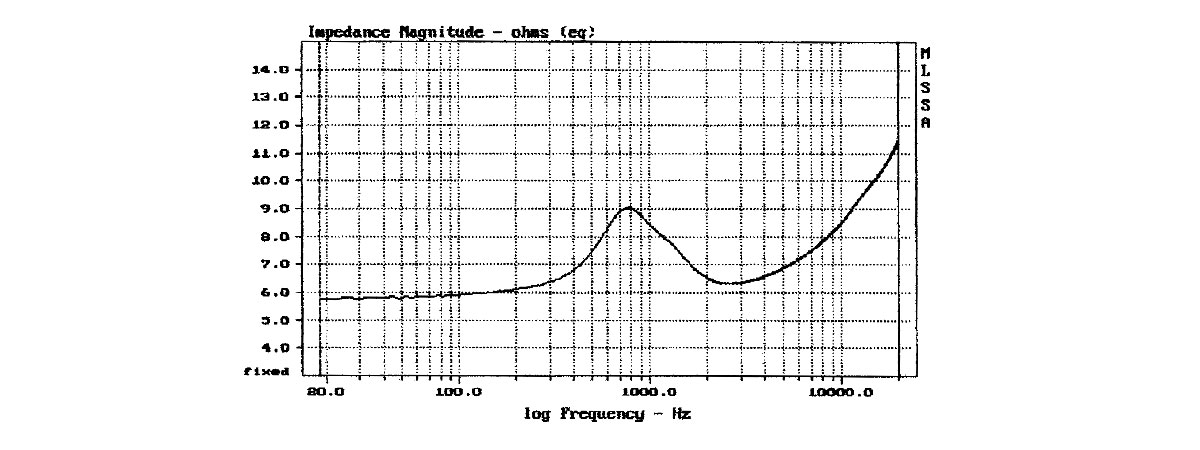

Impedance 8Ω

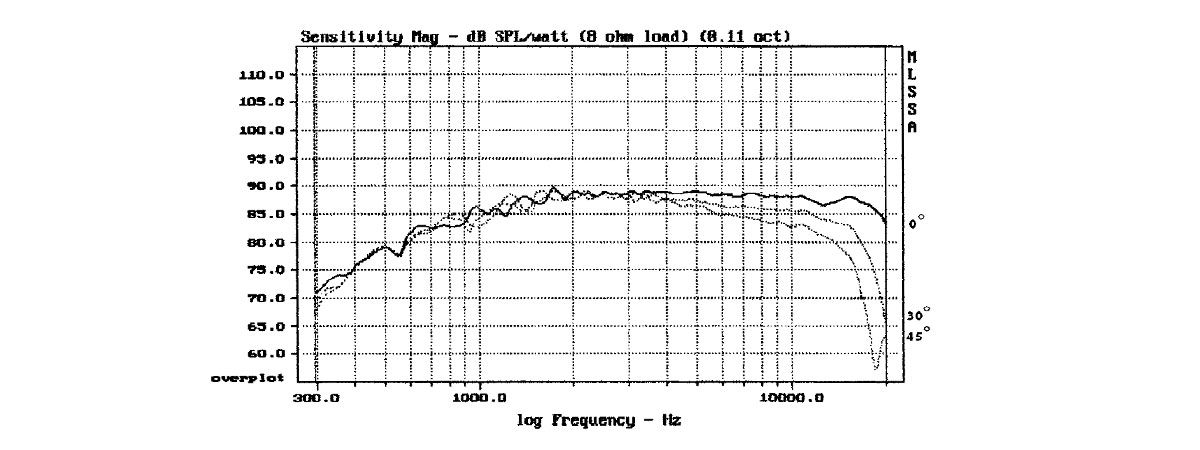

Frequency Response 1,600 to 25,000Hz

Sensitivity 89dB 2.83V/1m

-

Thiele-Small Parameters

Resonant Frequency (Fs) 780Hz

DC Resistance (Re) 5.2Ω

Voice Coil Inductance (Le) 0.09mH

Mechanical Q (Qms) 0.87

Electromagnetic Q (Qes) 1.3

Total Q (Qts) 0.52

-

Mounting Information

Overall Outside Diameter 2.83"

Depth 2.24"
