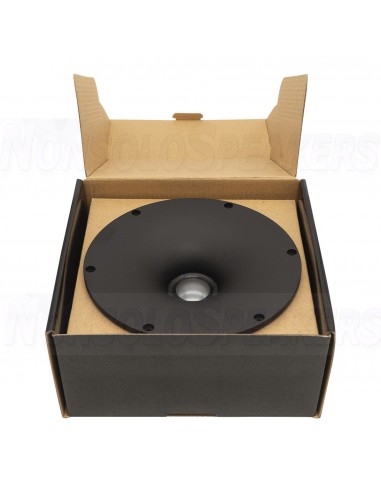

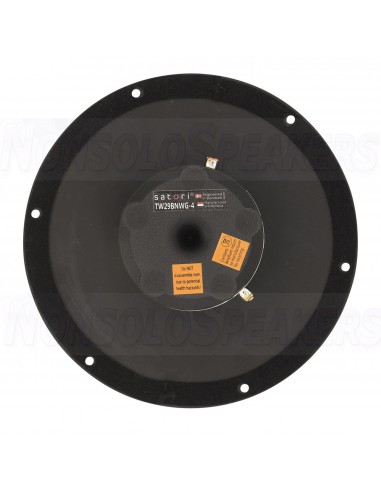

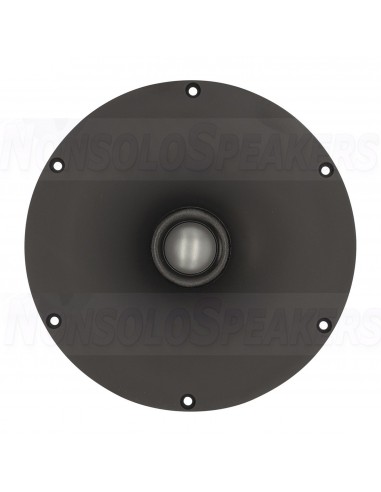

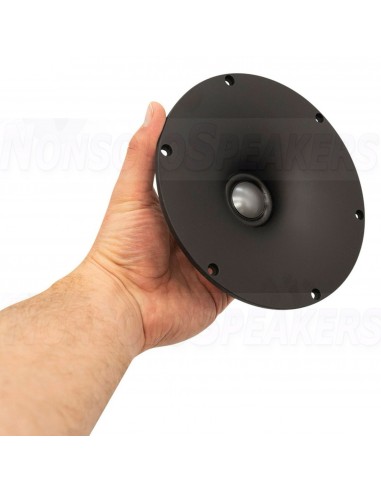

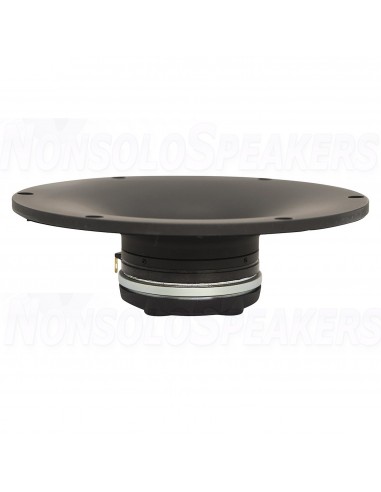

SB Acoustics Satori TW29BNWG-4 Beryllium Tweeter
SB Acoustics Satori TW29BNWG-4 Beryllium Tweeter
SB Acoustics Satori TW29BNWG-4 Beryllium Tweeter
SB Acoustics Satori TW29BNWG-4 Beryllium Tweeter
SB Acoustics Satori TW29BNWG-4 Beryllium Tweeter
SB Acoustics Satori TW29BNWG-4 Beryllium Tweeter
SB Acoustics Satori TW29BNWG-4 Beryllium Tweeter
SB Acoustics Satori TW29BNWG-4 Beryllium Tweeter
SB Acoustics Satori TW29BNWG-4 Beryllium Tweeter
SB Acoustics Satori TW29BNWG-4 Beryllium Tweeter
SB Acoustics Satori TW29BNWG-4 Beryllium Tweeter
SB Acoustics Satori TW29BNWG-4 Beryllium Tweeter

SB Acoustics Satori TW29BNWG-4 Beryllium Tweeter

SB Acoustics Satori TW29BNWG-4 Beryllium Tweeter

The new Satori Beryllium dome tweeter has arrived!  Beryllium is known for its open and spatial sound, often described as holographic.

Out-of-Stock
€806.55 €849.00 -5%
Tax included
rating No review at the moment


Estimated Shipping Costs
Shipping Costs
€14.40
Shipping Time
.
Want to check another country or courier?

You might also like



SB Acoustics Satori TW29BNWG-4 Beryllium Tweeter

.

Product description

Beryllium dome for non-resonant high-frequency extension

Dual balanced compression chambers for improved dynamics

Dual copper caps for absolute minimum voice coil inductance and minimum phase shift

High saturation neodymium motor system with T-shaped pole piece for lower distortion

Non-reflective cast aluminium chamber with optimized damping for improved dynamics

Shallow flow optimized magnet structure for optimum coupling to the rear chamber

CCAW voice coil for low moving mass

Long-life silver lead wires

Low resonance frequency for extended range

Solid aluminium waveguide

Controlled directivity

Adapter ring for bolt-less mounting to driver

-

Product details

SB Acoustics Satori TW29BNWG-4 Beryllium Dome Tweeter with Waveguide

Beryllium is known for its open and spatial sound, often described as holographic. The self damping properties of Beryllium allow for an extended response without a huge spike in the response at higher frequencies seen in most metal dome tweeters. All dome materials have a different tonal and spatial presentation. Beryllium has a real positive difference, providing a experience unlike all other dome materials.

,

Specifications

Article numberTW29BNWG-4
Tweeter TypeDome tweeter
Tweeter SeriesSatori
Cone / Dome Diameter19 mm | 3/4"
Power Handling (RMS)80 Watts
Impedance (Z)4 Ω
Sensitivity (SPL at 1m / 2.83V)97 dB
Resonant Frequency (Fs)700 Hz
DC Resistance (Re)3.0 Ohms
Voice Coil Inductance (Le)0.02 mH
Mechanical Q (Qms)2.1
Electromagnetic Q (Qes)0.60
Total Q (Qts)0.46
TW29BNWG-4
