Thanks to the low resonance frequency, linear response and high power handling, this tweeter is ideally suited for the more demanding speaker builds where other tweeters would be easily strained.

SHIPMENT IN 7-10 WORKING DAYS
€52.70
Tax included
rating No review at the moment

Estimated Shipping Costs
Shipping Costs
€14.40
Shipping Time
.
Want to check another country or courier?

You might also like



SB Acoustics SB26CDC-C000-4 Dome Tweeter

.

Product description

The well-designed SB26CDC-C000-4 tweeter not only matches the SB Acoustics Ceramic woofers aesthetically but also technically. Thanks to the low resonance frequency, linear response and high power handling, this tweeter is ideally suited for the more demanding speaker builds where other tweeters would be easily strained.

Phase optimized diaphragm design for coherent high frequency radiation

Copper cap for reduced voice coil inductance and minimum phase shift

Saturation controlled motor system for low distortion

Non-reflective rear chamber with optimized damping for improved dynamics

Flow optimized vented pole piece for optimum coupling to rear chamber

CCAW voice coil for low moving mass

Long life silver lead wires

Low resonance frequency

-

Product details

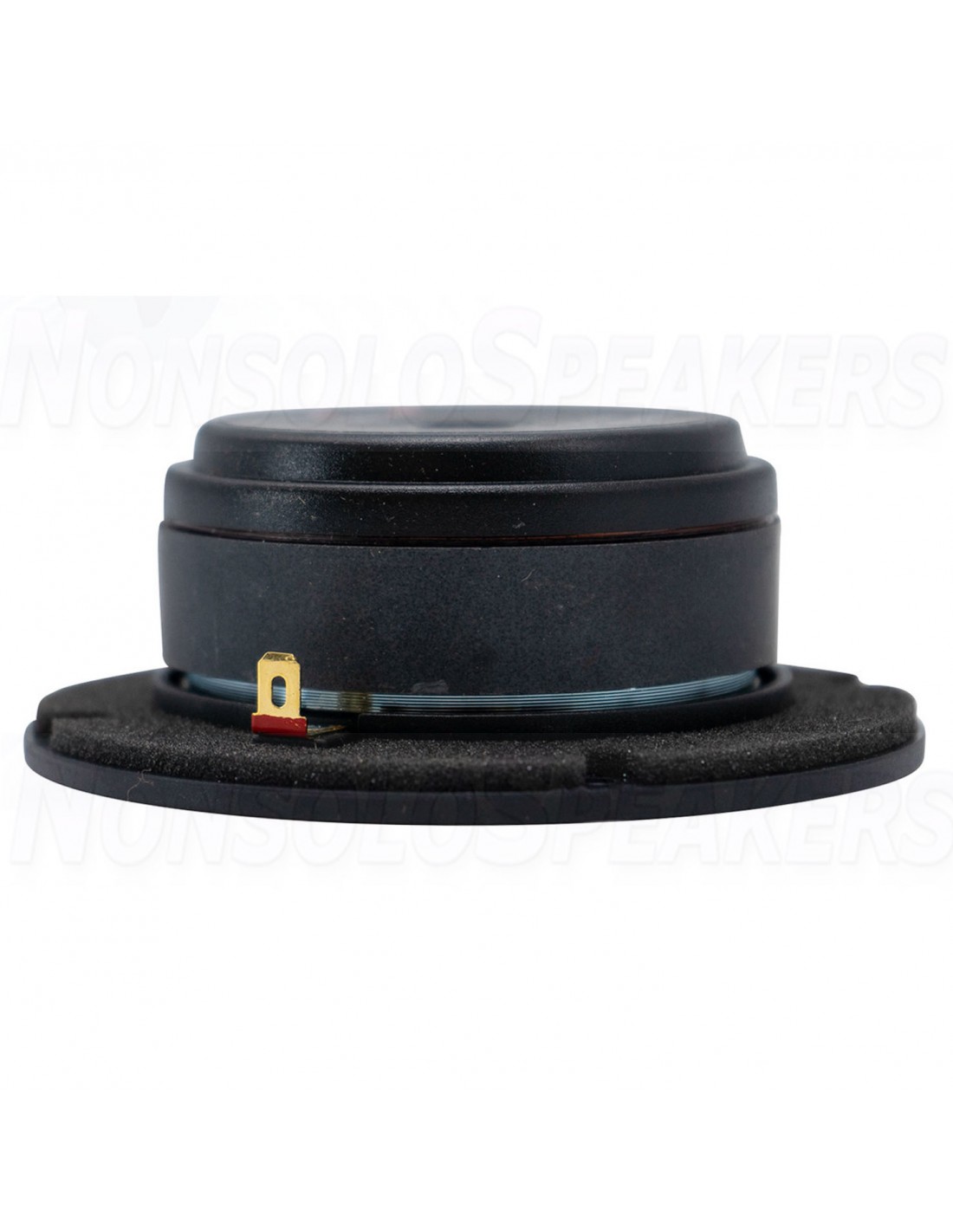

SB Acoustics SB26CDC-C000-4 1’’ Aluminium/Ceramic Dome tweeter

The well-designed SB26CDC-C000-4 tweeter not only matches the SB Acoustics Ceramic woofers aesthetically but also technically. Thanks to the low resonance frequency, linear response and high power handling, this tweeter is ideally suited for the more demanding speaker builds where other tweeters would be easily strained.

Other than that, ceramic domes offer smoothness and harmonic richness unavailable from conventional paper cone material. Ceramic materials also offer significantly higher stiffness numbers and slightly better internal losses than typical metals such as titanium or aluminum. Compared to polymers, paper, and other soft materials, ceramics provide: significantly higher stiffness to weight ratio, more consistent performance over a wide range of temperature and humidity as well as superior immunity to UV light and sunlight, to water and salt water and to combustibility.

.

Specifications

Article numberSB26CDC-C000-4
Tweeter TypeAluminium/Ceramic Dome
Cone / Dome Diameter25 mm | 1"
Power Handling (RMS)120 Watts
Impedance (Z)4 Ω
Sensitivity (SPL at 1m / 2.83V)89 dB

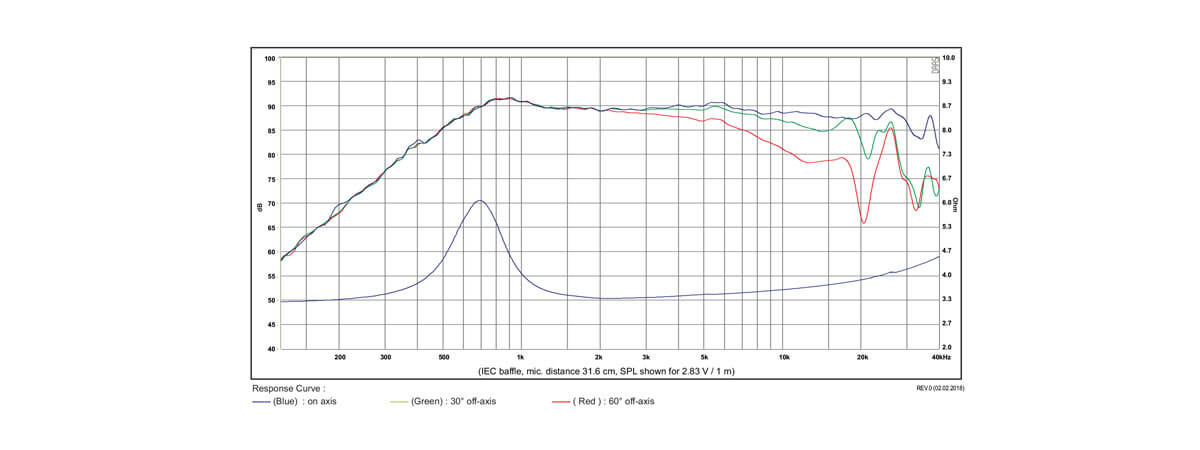

Frequency Response1,400 to 20,000 Hz
Resonant Frequency (Fs)690 Hz
DC Resistance (Re)3.2 ohms
Voice Coil Inductance (Le)0.04 mH
Mechanical Q (Qms)2.55
Electromagnetic Q (Qes)2.00
Total Q (Qts)1.12

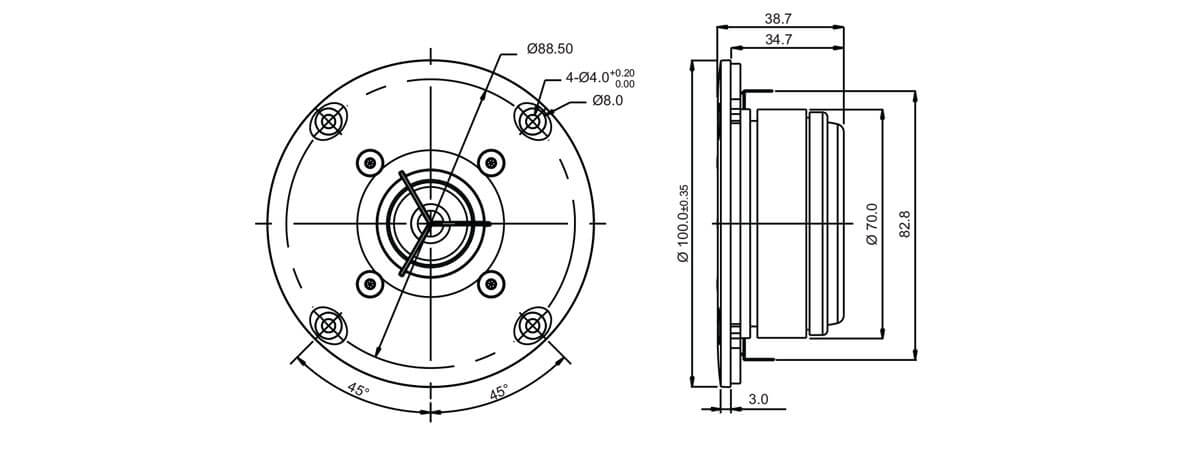

Overall Outside Diameter3.94"
Cutout Diameter2.76"
Depth1.37"

SB26CDC-C000-4
