Monacor 5-612/C8/25RP hi-fi bass-midrange 50 W 8 Ω

.

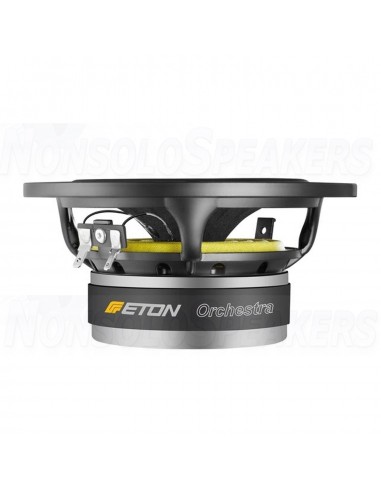

Our orchestra series with standard paper cone has been redeveloped using the know-how by ETON. The special radial reinforcement ribs and long-fibred paper compound with high damping does not only achieve an individual look; it also generates an undistorted and a very high pulse fidelity, even at high volume levels. The special paper compound prevents moding and thus, ensures a homogeneous reproduction of any frequency range possible. The midrange speakers and bass speakers of the Orchestra series feature a warm and natural sound. This results in a well-defined and well-balanced midrange. With a voluminous and vivid bass reproduction, our orchestra series is also very impressive in the low bass frequency range. Multiple ventilation of the ferrite drive and an aerodynamically efficient design of the diecast basket ensure that compression effects are reduced to a minimum. The Orchestra series is a reinterpretation of sound with classic materials - Made in Germany.

.

High-end hi-fi bass-midrange speaker, 50 W, 8 Ω

13 cm (5") bass-midrange speaker for versatile applications

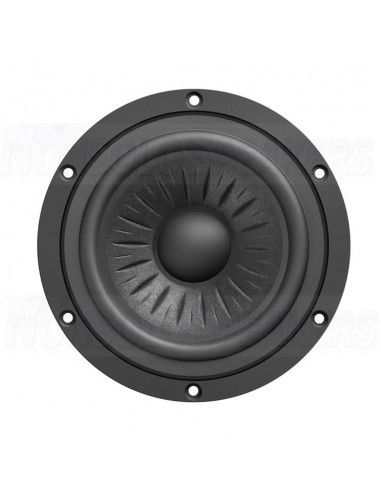

Ribbed cone geometry, paper version

Neutral sound with a warm, well-balanced midrange and a solid fundamental bass

Equipped with dust cap

.

Technical Specifications

5-612/C8/25RP

Impedance (Z)  8 Ω

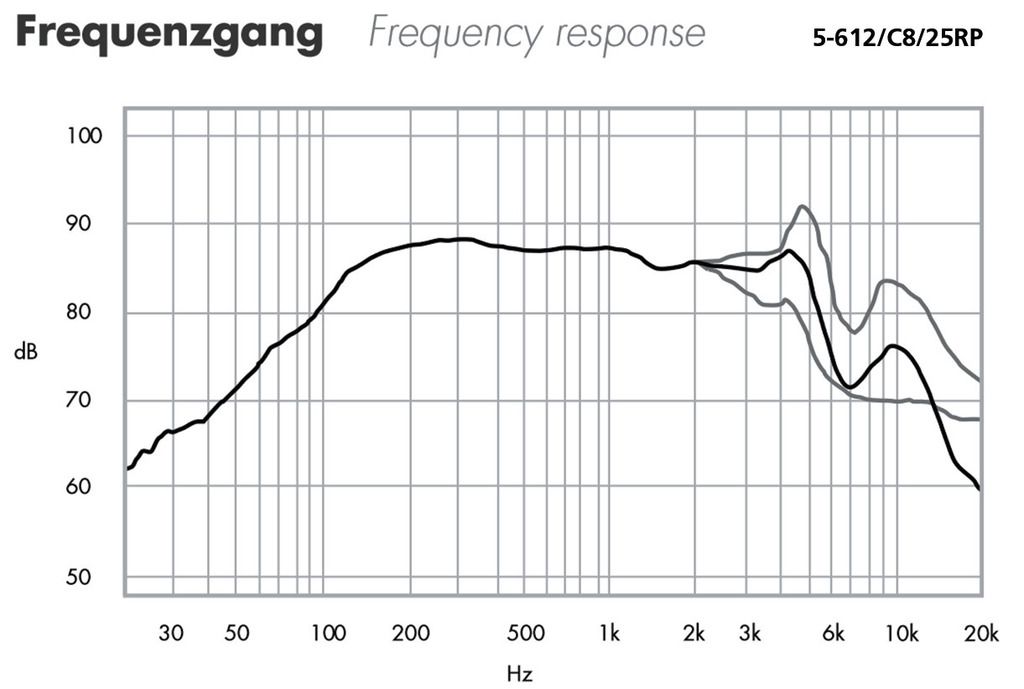

Frequency range f3-4,000 Hz

Resonant frequency (fs) 53 Hz

Power rating (RMS)  50 W

Peak music power output (MAX) 100 W

Sensitivity 88 dB/W/m

Suspension compl. (Cms) 1.09 mm/N

Moving mass (Mms) 7.8 g

Mech. Q factor (Qms) 7.89

Electr. Q factor (Qes) 0.38

Total Q factor (Qts)  0.36

Equivalent volume (Vas)  9.8 l

DC resistance (Re) 5.4 Ω

Force factor (BxL) 5.90 Tm

Voice coil induct. (Le) 0.44 mH

Voice coil diameter Ø 25 mm

Voice coil former Kapton

Linear excursion (XMAX)  ± 2.5 mm

Eff. cone area (Sd) 80 cm2

Magnet diameter Ø 90 mm

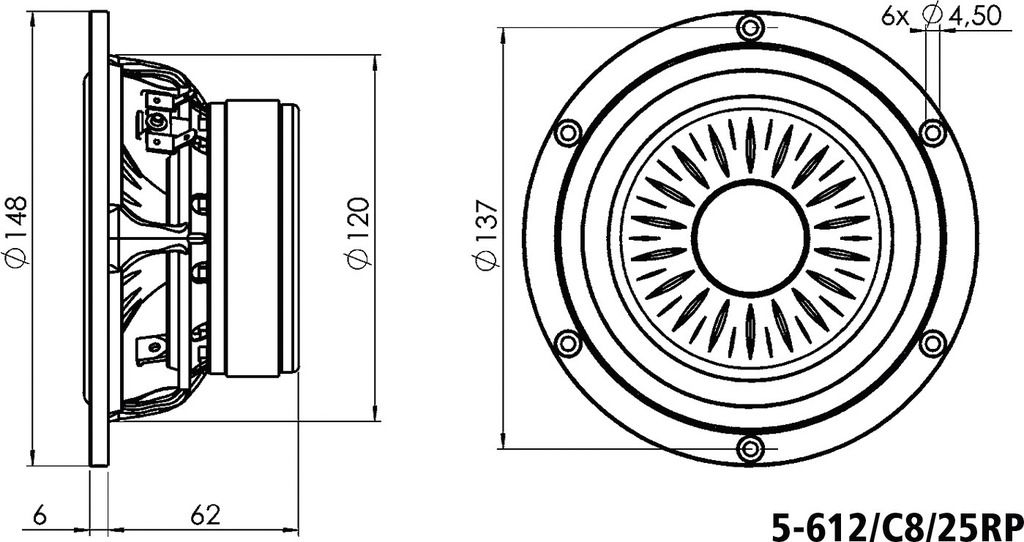

Mounting cutout Ø 120 mm

Mounting depth 68 mm

Mounting hole diameter Ø 137 mm

Dimensions Ø 148 mm x 68 mm

Outside diameter Ø 148 mm

Width Ø 148 mm

Depth 68 mm

Colour black

Admiss. ambient temp. 0-40 °C

Weight 1.25 kg

Packing unit 1

Type of speaker 5"

Packing dimensions (W x H x L) 0.17 x 0.12 x 0.17 m

Gross weight 1.37 kg

Net weight 1.23 kg

-
