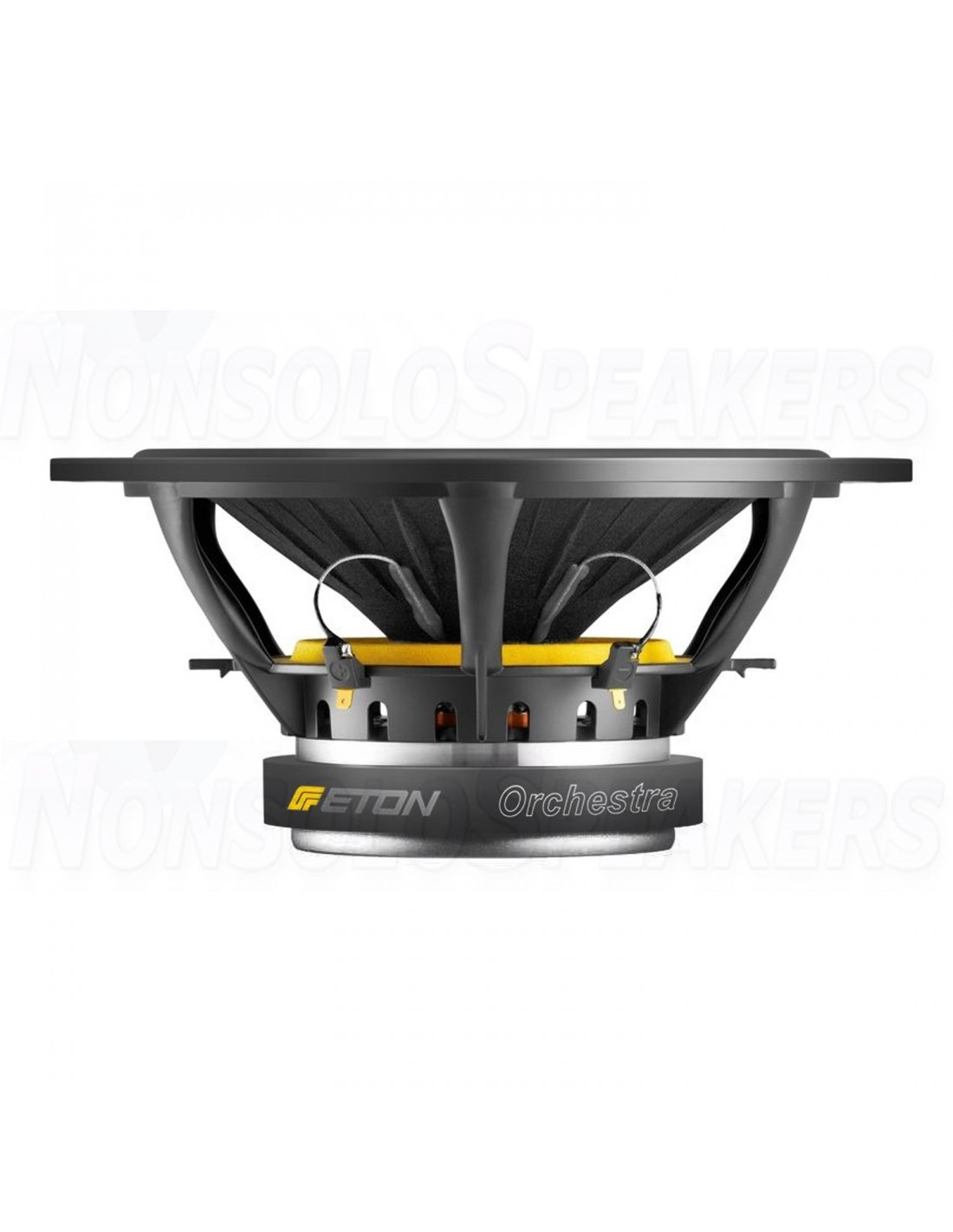

Monacor 12-612C8/62RP High-end hi-fi woofer 150 W 8 Ω

Monacor 12-612C8/62RP High-end hi-fi woofer 150 W 8 Ω

Our Orchestra series with a classic paper membrane, reinterpreted through ETON know-how. The special radial rib stiffening and the long-fiber, highly damping paper mix produce a very high level of impulse fidelity and precision, even at high levels - not to mention the resulting individual look. The special paper mixture guarantees homogeneity in all representable frequency ranges by avoiding the formation of modes. The orchestra mid and woofer are characterized by their natural, warm sound. The result is a balanced, well-contoured and smooth midrange. In the bass range, our Orchestra series is more than convincing with its voluminous and impulsive bass reproduction. The ferrite drive ensures through multiple ventilation and a streamlined cast basket that any compression effects that may occur are reduced to a minimum. Orchestra - a tonal reinterpretation with classic materials - Made in Germany.

High-end hi-fi woofer, 150 W, 8 Ω

Classic 30.5 cm (12 ") woofer for 3-way systems

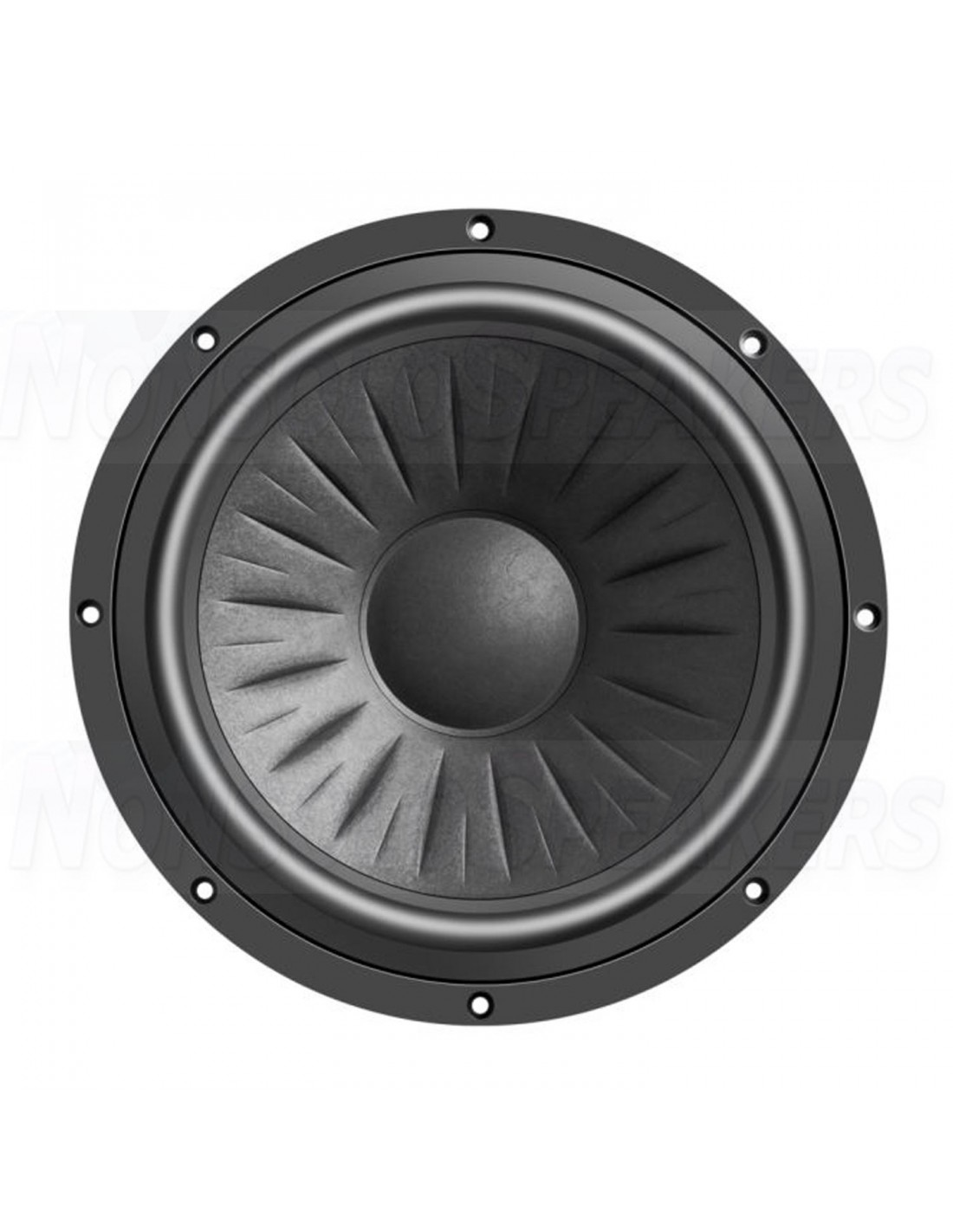

Ribbed membrane geometry in paper design

Very precise bass reproduction

Reaches far into the lowest frequencies

Agile sound character

Technical specifications

12-612C8 / 62RP

Impedance (Z) 8 Ω

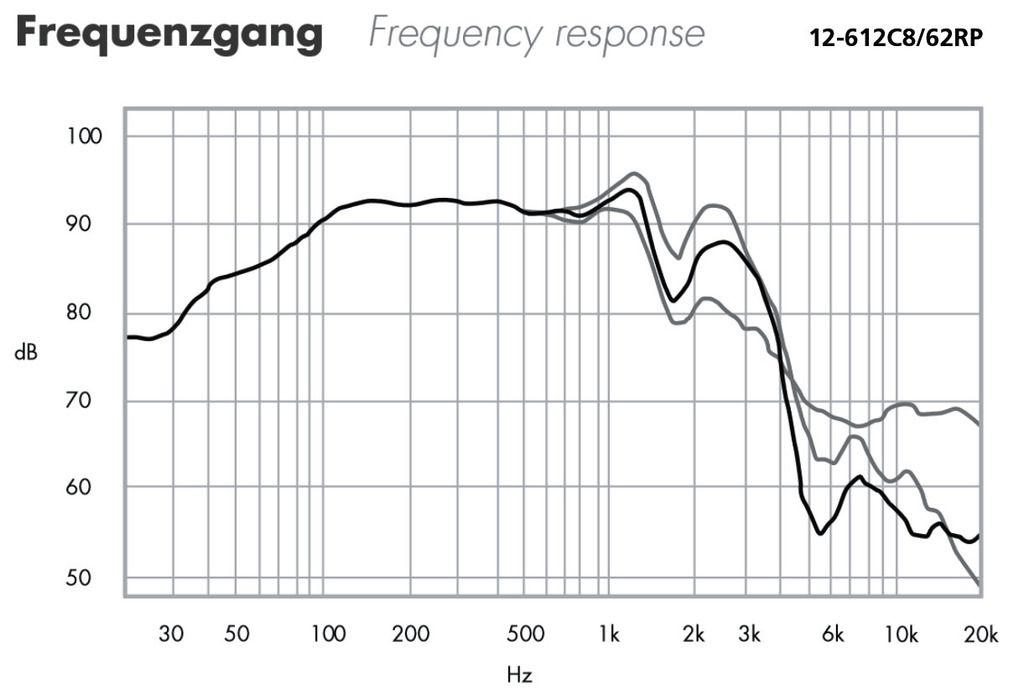

Frequency range f3-500 Hz

Resonance frequency (fs) 28 Hz

Nominal load capacity (RMS) 150 W

Music load capacity (MAX) 300 W

Sound pressure level 93 dB / W / m

Compliance (Cms) 0.36 mm / N

Moving mass (Mms) 78 g

Mechanical quality (Qms) 5.16

Electrical quality (Qes) 0.34

Total Q factor (Qts) 0.32

Equivalent volume (Vas) 134 l

DC resistance (Re) 6.2 Ω

Power factor (WxL) 15.70 Tm

Voice coil ind. (Le) 1.6 mH

Voice coil diameter Ø 62 mm

Voice coil former Kapton

Linear excursion (XMAX) ± 8.5 mm

Eff. Membrane area (Sd) 515 cm2

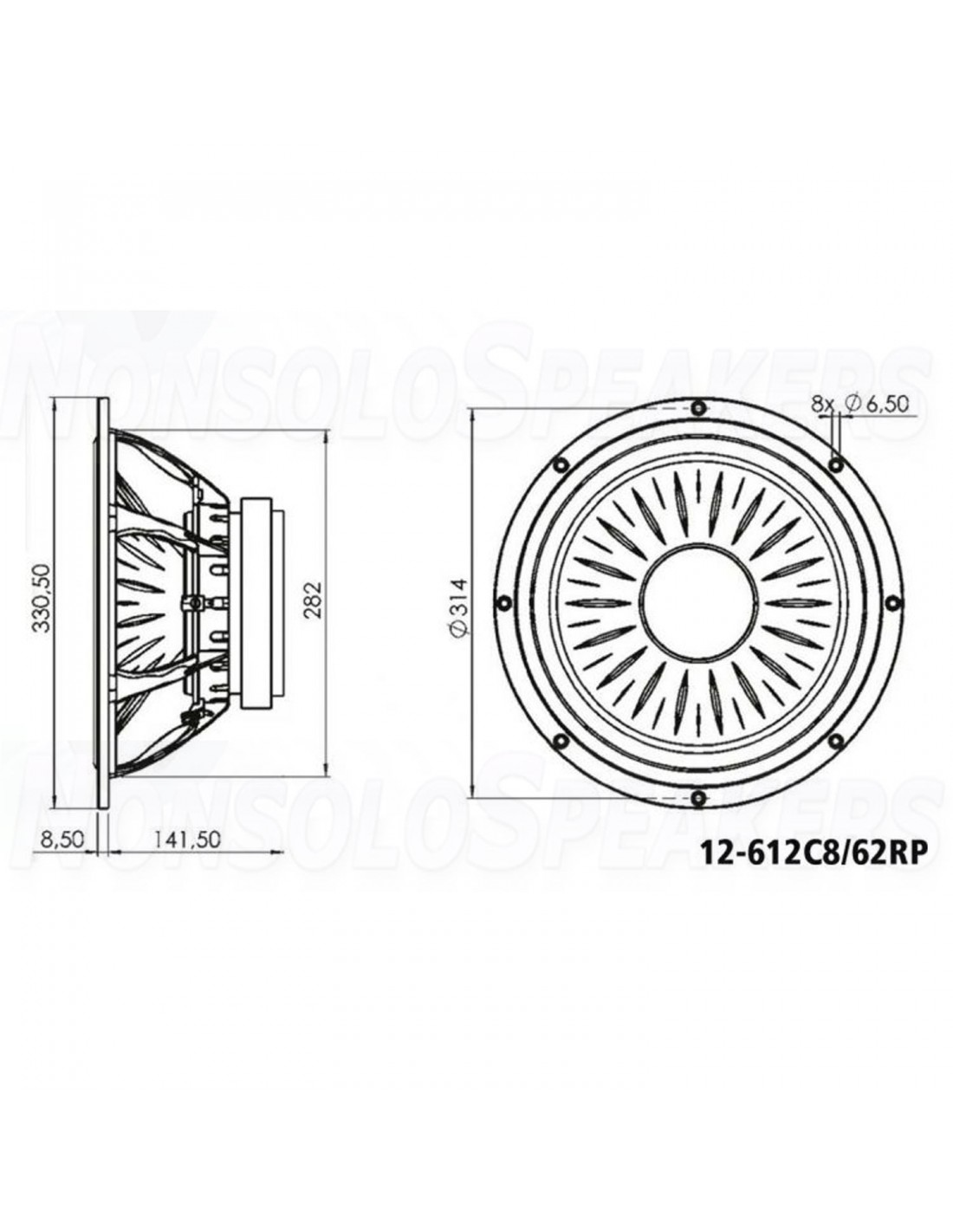

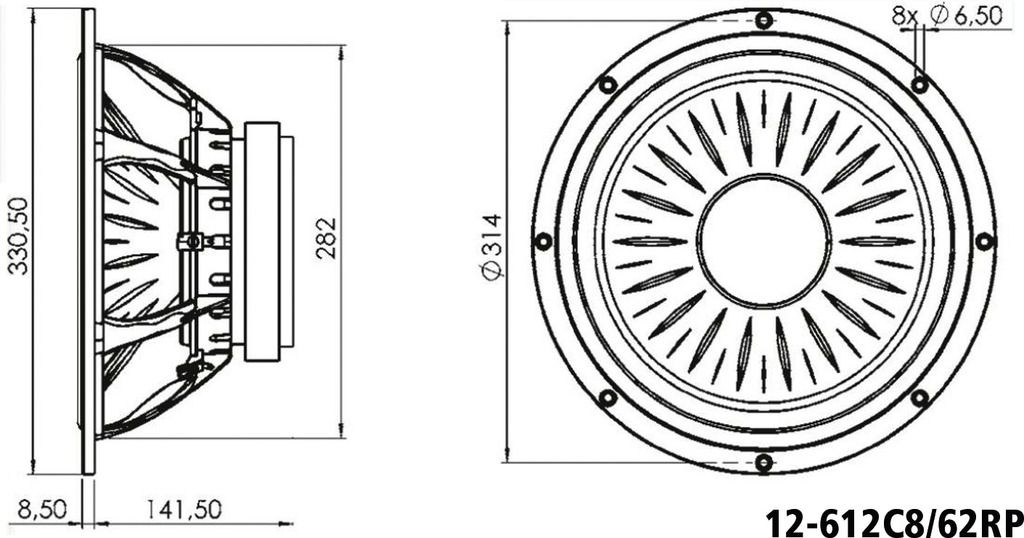

Magnet diameter Ø 169 mm

Installation opening Ø 282 mm

Installation depth 141.5 mm

Hole circle diameter Ø 314 mm

Dimensions Ø 330.5 mm x 150 mm

Outside diameter Ø 330.5 mm

Width Ø 330.5 mm

Depth 150 mm

Color: Black

Perm. Operating temperature 0-40 ° C

Weight 6.21 kg

Packing unit 1

Speaker type 12 "

Packaging dimensions (W x H x L) 0.36 x 0.22 x 0.36 m

Gross weight 7.04 kg

Net weight 6.21 kg

-
