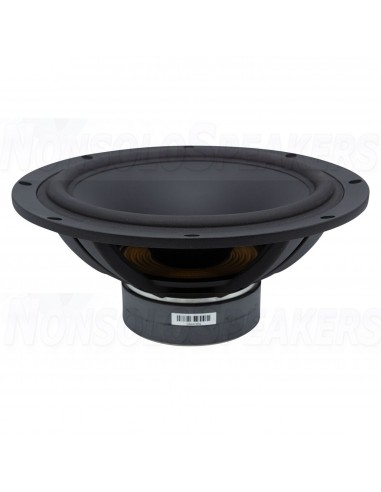

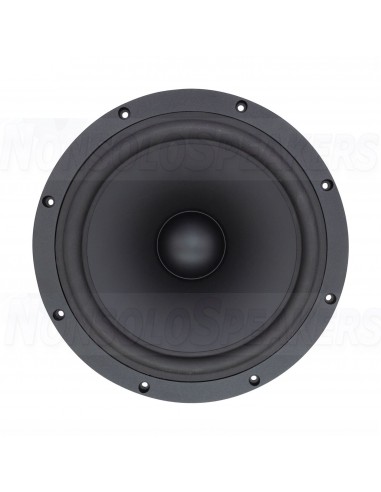

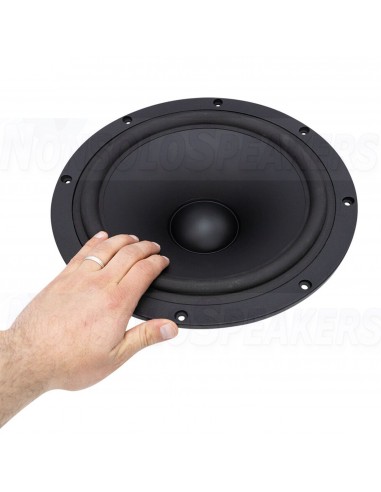

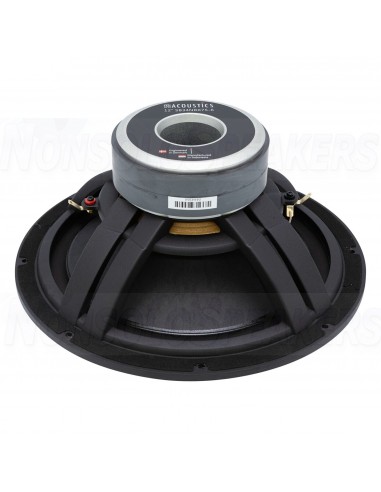

SB Acoustics SB34NRX75-16 12" Woofer 16 ohm

The SB Acoustics SB34NRX75-16 12" woofer uses a large 3" voice coil on a cast aluminum chassis. Hard Paper proprietary cone materials made in-house for consistency.

Estimated Shipping Costs
Shipping Costs
€19.20
Shipping Time
.
Want to check another country or courier?

You might also like



SB Acoustics SB34NRX75-16 12" Woofer 16 ohm

.

Product description

High flow venting center pole

3" voice coil

Low dampening surround

Non-inductive voice coil former

Proprietary cone materials made-in-house

Cast Aluminum chassis

.

Product details

SB Acoustics SB34NRX75-16 12" Woofer

The SB Acoustics SB34NRX75-16 12" woofer uses a large 3" voice coil on a cast aluminum chassis. Hard Paper proprietary cone materials made in-house for consistency. Low damping SBR rubber surround with high exertion and resilience. Open structure cast frame for reduced reflections and compression. Aluminum alloy for light weight, non-magnetic and extra rigidity. Shorting Copper cap on pole piece. Non-inductive 75mm coil former.

.

Specifications

Article numberSB34NRX75-16
Woofer SeriesNRX Series
Woofer TypeWoofer
Nominal Diameter12 ''
Power Handling (RMS)100 Watts
Power Handling (max)200 Watts
Impedance (Z)16 Ohms
Sensitivity (SPL at 1m / 2.83V)86 dB
Frequency Response24-500 Hz
DC Resistance (Re)14 Ohms
Voice Coil Inductance (Le)3.2 mH
Resonant Frequency (Fs)24.5 Hz
Mechanical Q (Qms)6.52
Electromagnetic Q (Qes)0.74
Total Q (Qts)0.66
Diaphragm Mass Inc. Airload (Mms)72 g
Mechanical Compliance of Suspension (Cms)0.59
Surface Area of Cone (Sd)508 cm2
BL Product (BL)14.5 Tm
Compliance Equivalent Volume (Vas)216 l
Maximum Linear Excursion (Xmax)11 mm
Cone / Diaphragm MaterialHard coated paper
Surround MaterialRubber
Voice Coil Wire MaterialCopper
Voice Coil FormerCCAW
Basket / Frame MaterialCast aluminum
Magnet MaterialFerrite
Overall Outside Diameter346 mm
Overall Depth156 mm
Baffle Cutout Diameter305 mm
# Mounting Holes8
Mounting Hole Diameter5.5 mm

SB34NRX75-16
