Dayton Audio DAEX25X4-4 25mm x 4 Exciters 40W 8 Ohm

Dayton Audio DAEX25X4-4 25mm x 4 Exciters 40W 8 Ohm

Dayton Audio DAEX25X4-4 Bullfrog Vented Disc Spider 25mm x 4 Exciter with 320mm Cable 40W 8 Ohm

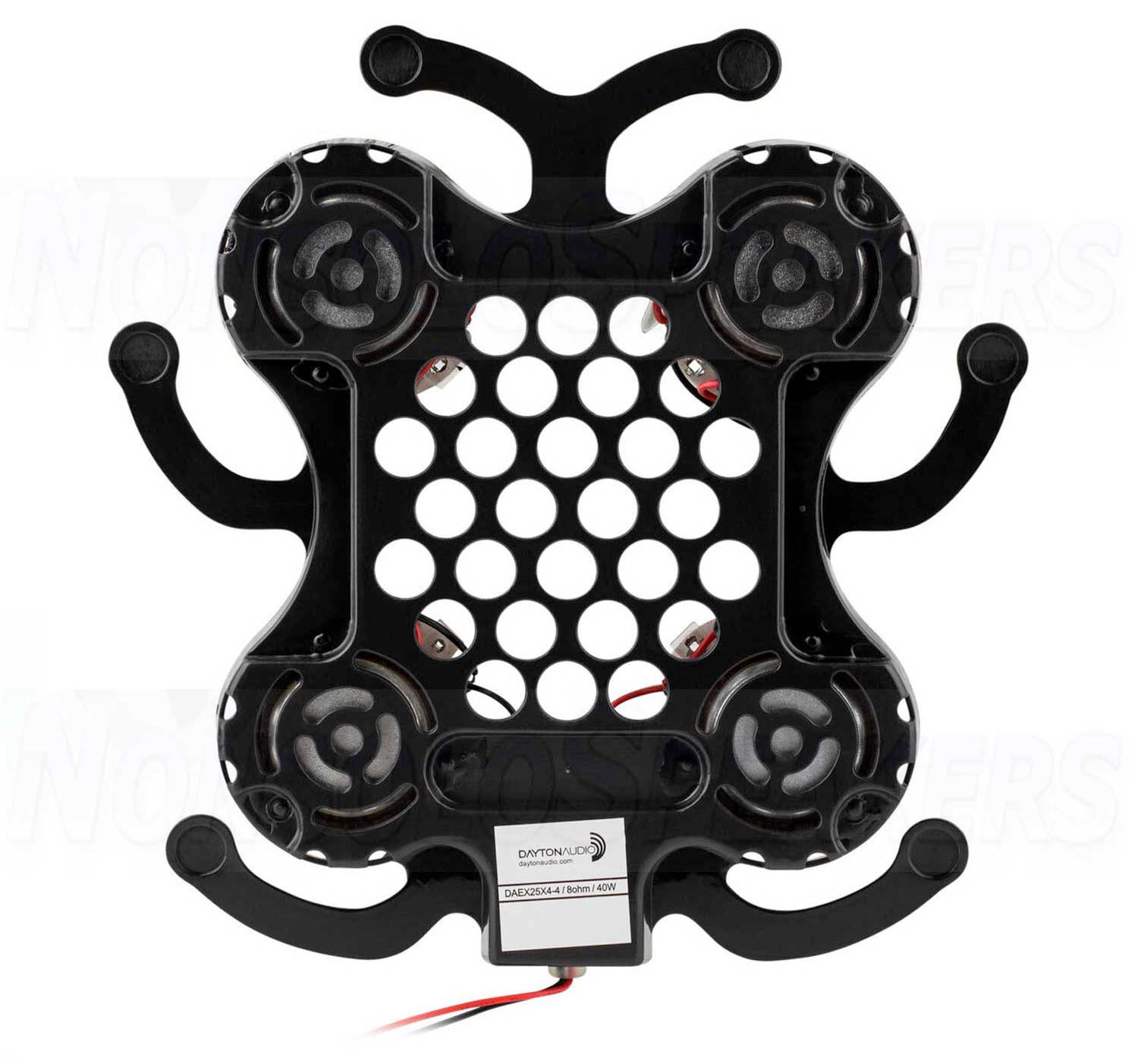

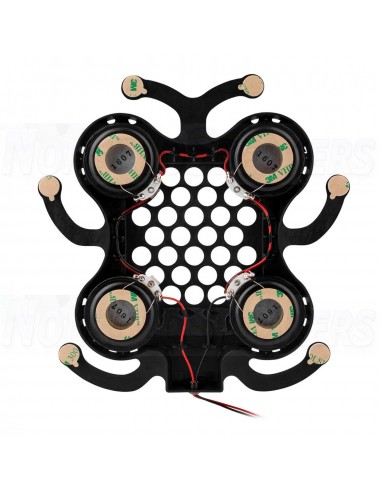

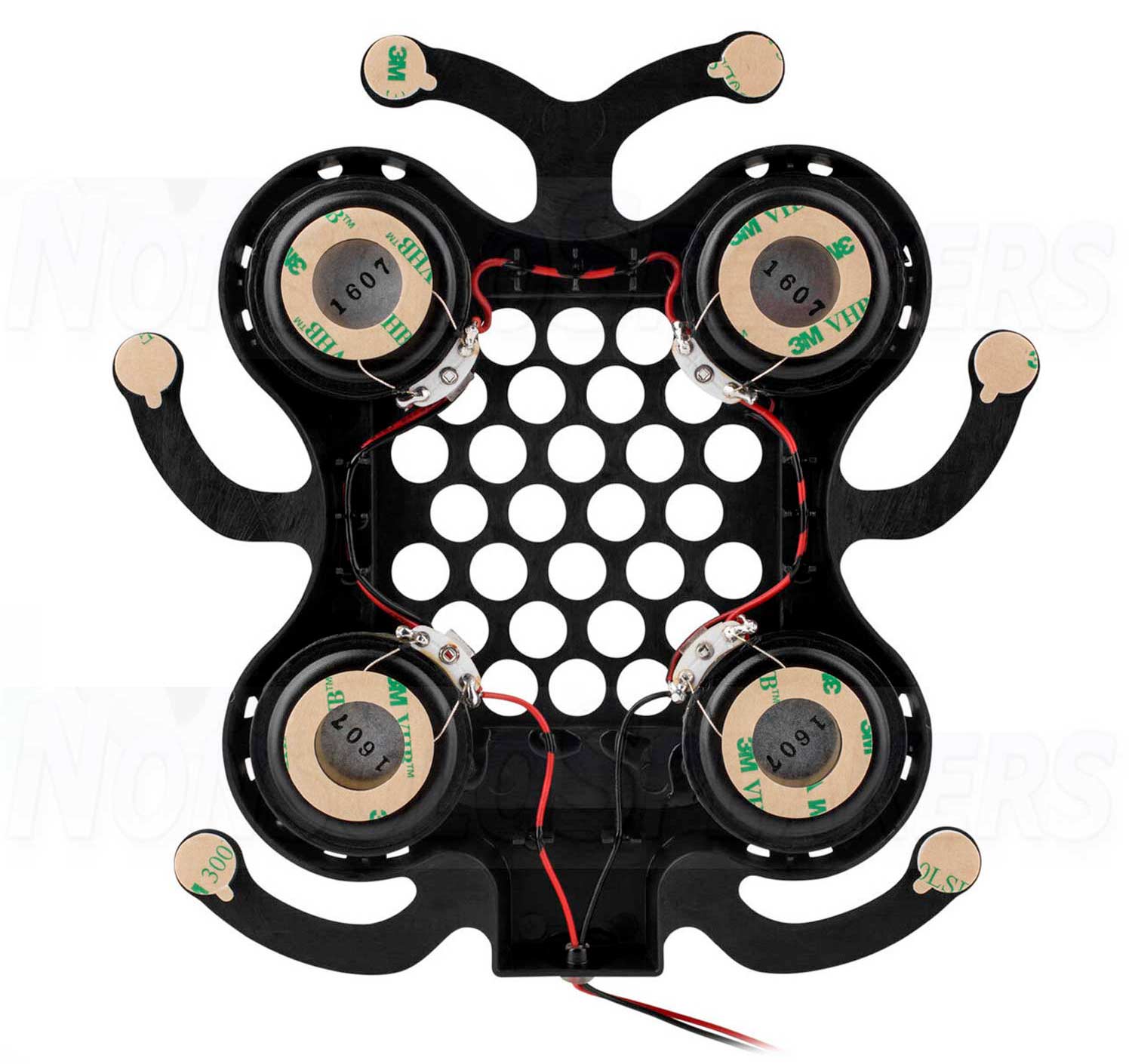

The Dayton Audio exciter assembly's unique design uses four 25 mm exciters coupled to a plastic frame to actuate a larger area with more force than conventional designs. This array of exciters is wired in a series-parallel configuration for an overall impedance of 8 ohms and power handling of up to 40 watts RMS.

The DAEX25X4-4 exciter features the same ability to turn nearly any surface into a speaker as other exciters and tactile transducers do, only with a larger contact area and moving mass that increases energy transfer. Perfect for use in walls, drop ceilings, or even cabinet doors.

To ensure maximum acoustic energy transfer between the transducer and the surface to which it is attached, 3M VHB (Very High Bond) adhesive is pre-applied... just peel and stick! Connection is made with 10" wire leads to keep installation and wiring as simple as possible.

Specifications: • Power handling: 40 watts RMS • VCdia: 4 x 25 mm • Nominal impedance: 8 ohms • Re: 7.3 ohms • Le: 0.29 mH • Fs: 285 Hz • Dimensions: 7.5" W x 7.5" H x 0.75" D • Weight: 240 grams.

To learn more about Dayton Audio Exciters, and for help on which Exciter is right for you, check out Dayton Audio's Understanding and Using Dayton Audio Exciters Buyer's Guide.

Product Details

Brand Dayton Audio

Model DAEX25X4-4

Part Number 295-242

UPC 848791001581

Unit of Measure Each

Weight 0.65

Product Specifications

Application Full-Range Exciter

Power Handling (RMS) 40 Watts

Impedance 8Ω
