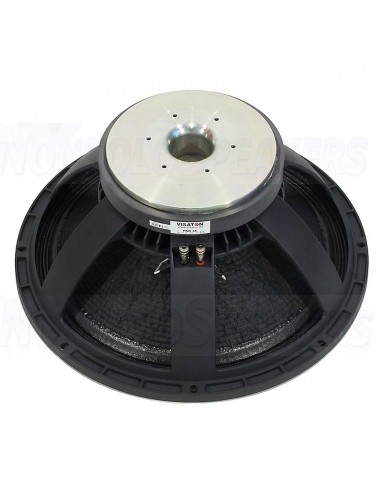

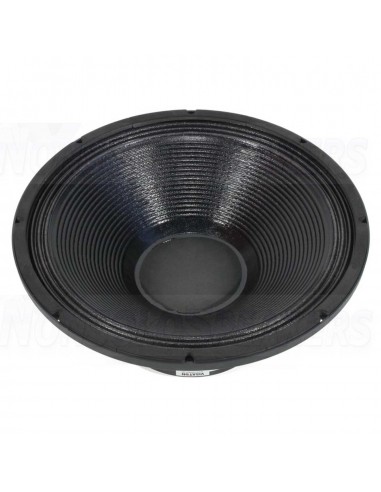

Visaton PAW 46 - 8 Subwoofer

The Visaton PAW 46 - 8 is a powerful subwoofer designed to deliver deep bass for professional audio applications. Boasting a massive 18-inch cone and a power handling capacity of 700 watts continuous and 1000 watts peak, this subwoofer can effortlessly produce low frequencies for live bands, DJs, or presentations.

.

Highlights

• Die cast basket
• Reinforced paper membrane
• 100 mm voice coil for high power handling
• Til voice coil former
• Additional vented air gap (6 holes)
• 55 mm t-yoke venting
• M shape surround for high excursion
• Nomex spider
• EVA gasket
• Ferrite magnet

Product Details

Visaton PAW 46 - 8 Subwoofer

Its durable construction ensures it can withstand the demands of professional use.

The die-cast basket provides a solid foundation, while the reinforced paper cone and Nomex spider are built to handle high power and temperature.

Additional features like the vented air gap and T-yoke contribute to improved heat dissipation and reduced compression for clear, undistorted sound.

.

Technical Data

Rated power capacity     Rated power 700 W

Music power capacity     Maximum power 1000 W

Impedance                    Impedance 8 Ω

Transmission range (–10 dB)       Frequency response (–10 dB) fu–3200 Hz

Mean sound pressure level          Mean sound pressure level 93 dB (2.83 V/1 m)

Excursion limit xmech                 Excursion limit xmech ± 10 mm

Max. linear stroke xlin                Max. linear displacement xlin ± 4.9 mm

Resonant frequency                    Resonant frequency 29 Hz

Voice coil diameter                     Voice coil diameter 100 mm

Baffle opening                            Cut-out diameter 422 mm

Connection Spring terminals        Terminal Spring terminals

Net weight                                 Net weight 11.5 kg
