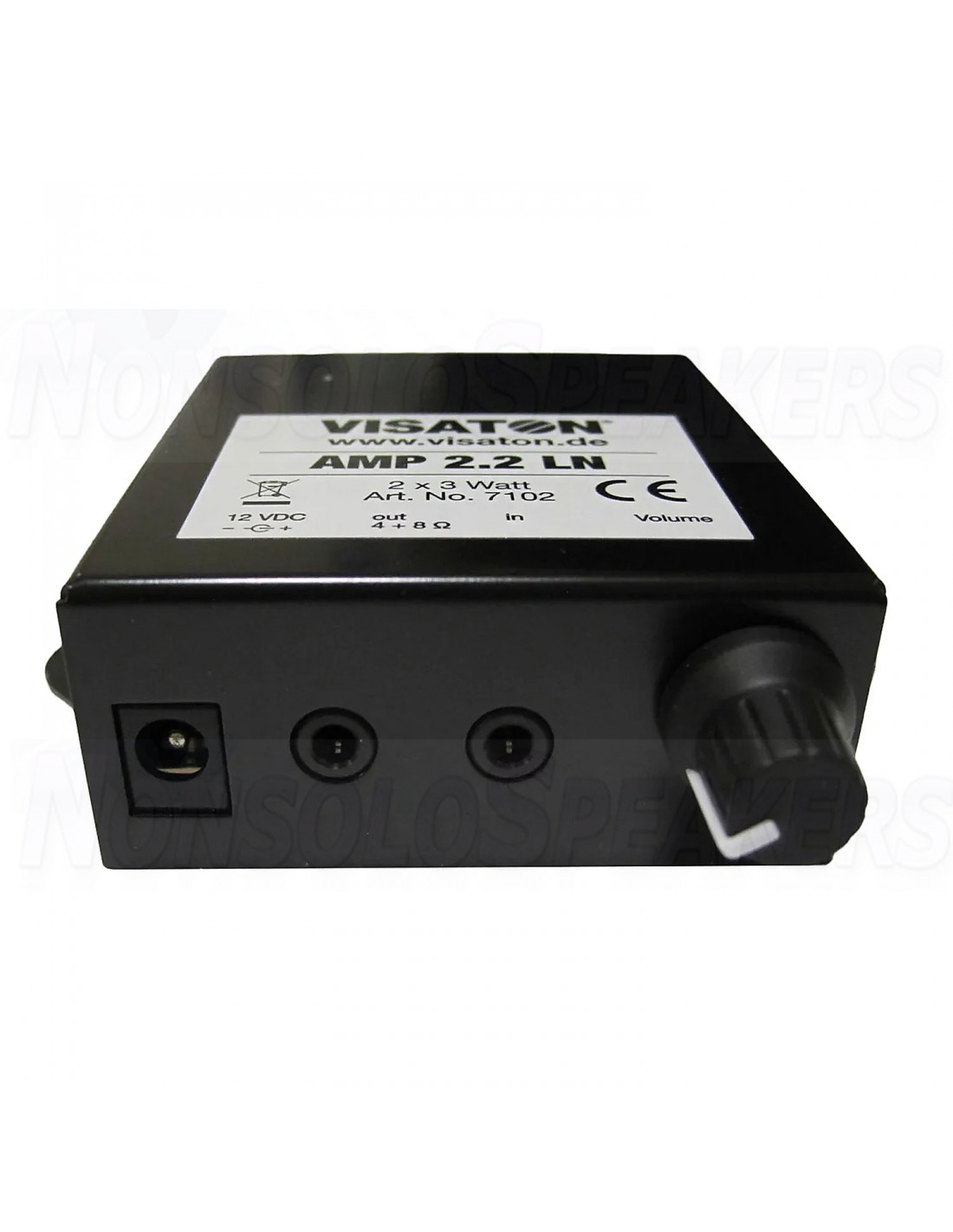

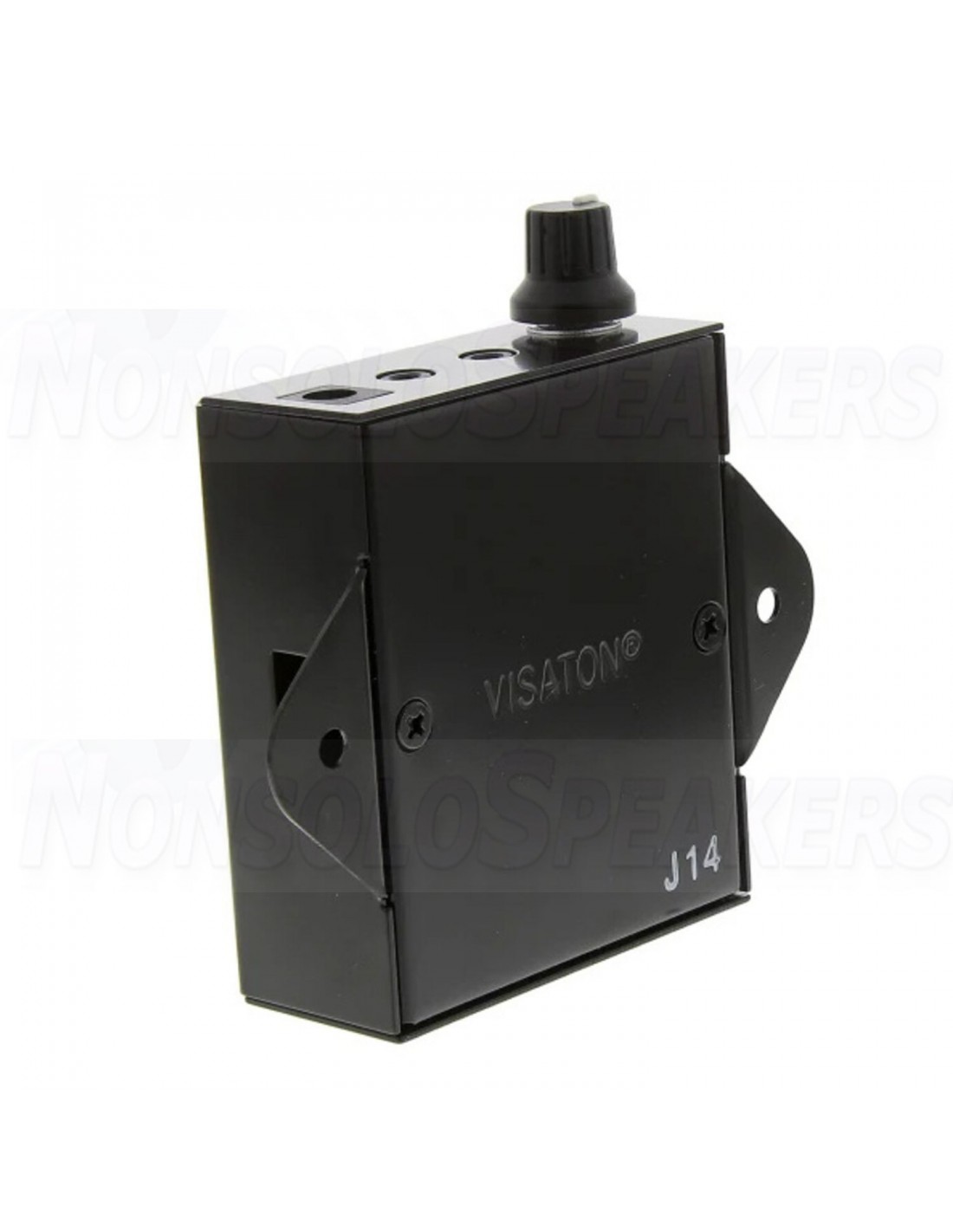

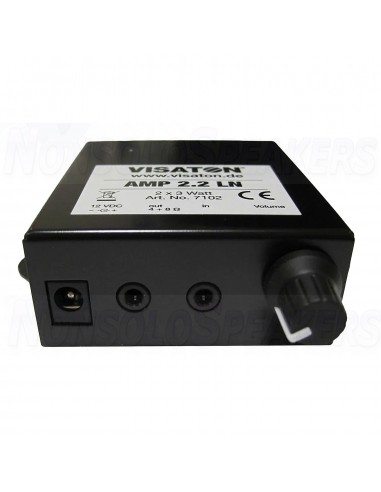

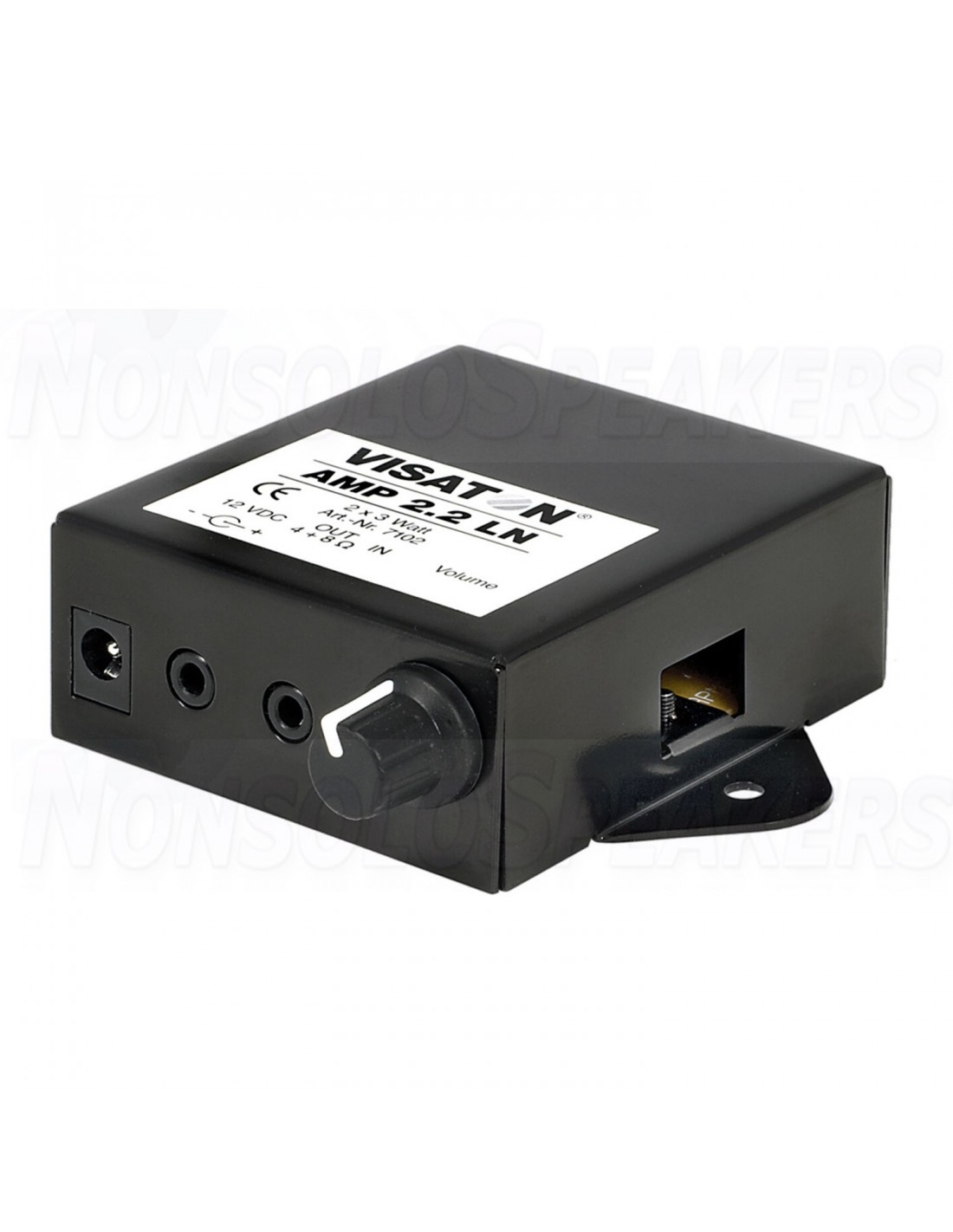

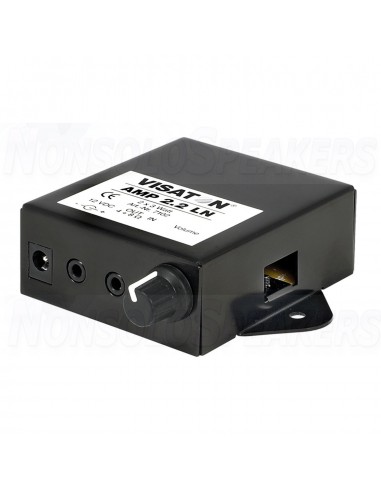

Visaton AMP 2.2 LN Stereo Amplifier

Spruce up your computer audio or breathe new life into your bookshelf speakers with the Visaton AMP 2.2 LN Stereo Amplifier. This compact amplifier is designed specifically for multimedia applications, making it ideal for bedrooms, home offices, or even small living spaces.

.

Highlights of the Visaton AMP 2.2 LN

Compact Design: Takes up minimal space, making it ideal for desktops, bedrooms, or small living areas.

Powers Low-Wattage Speakers: Suitable for speakers with impedances of 4 to 8 ohms, which covers a wide range of bookshelf and multimedia speakers.

Level Controls: Allows for independent volume adjustments for each speaker (left and right channels).

DC Power Supply: Powered by a readily available 12VDC, 700mA power supply (usually included).

Product details

Despite its unassuming size, the Visaton AMP 2.2 LN packs enough power to comfortably drive most bookshelf and multimedia speakers. Its compatible impedance range of 4 to 8 ohms covers a wide variety of models. The amplifier also features independent level controls for each speaker, allowing you to fine-tune the balance for an optimal listening experience. Powered by a common 12VDC, 700mA power supply (usually included), the Visaton AMP 2.2 LN offers a user-friendly and space-saving solution to elevate your audio. While it may not be a perfect fit for audiophiles or powerful speaker setups, the Visaton AMP 2.2 LN is a great choice for those looking for a simple and affordable way to enhance their everyday listening experience.

.

AMP 2.2 LN

• Current Power supply 12 V DC / 1.0 A
• Quiescent current 46 mA
• Input impedance 10 kOhm
• Max. current consumption 1.1 A 1.1 A
• Power output 2 x 2.1 / 3.1 / 3.3 W (4 Ohm)
• (sinus, 1% / 5% / 10% THD)
• Input voltage (full conduction) 60 mV 700 mV
• Output impedance 1.1 Ohm
• Signal-to-noise ratio SNR 61 dB (A) 81 dB (A)
• 59 dB (external) 78 dB (external)
• Transmission range (–3 dB) Frequency response (–3 dB) 40 Hz–40 kHz
• Connection Input/Output Terminal In-/Output  Jack socket 3.5 mm
• Connection DC Terminal DC outer Ø 5.5 mm (–) inner Ø 2.1 mm (+)
•  Net weight 0.178 kg 0.178 kg
• Temperature range –10 … 50 °C
