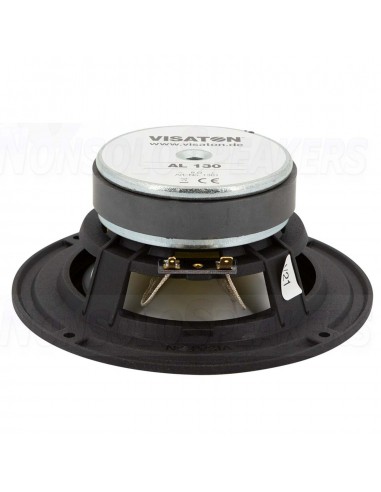

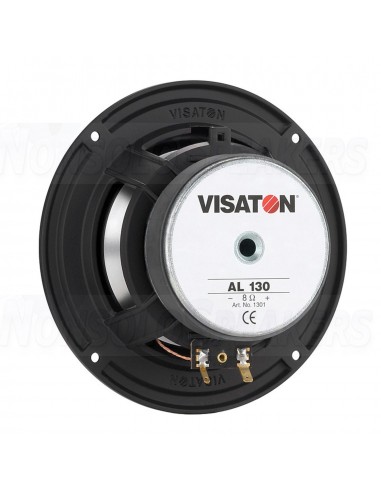

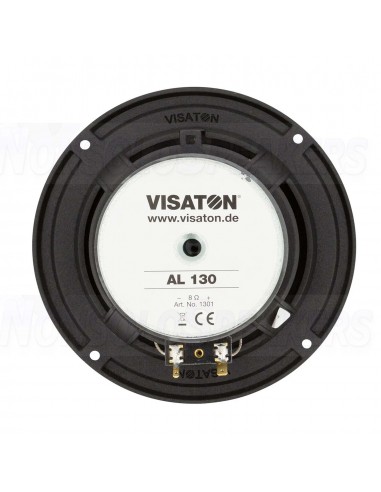

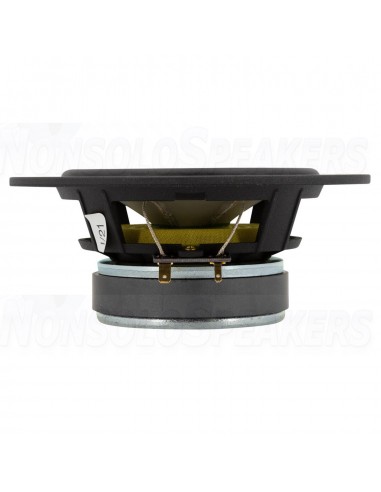

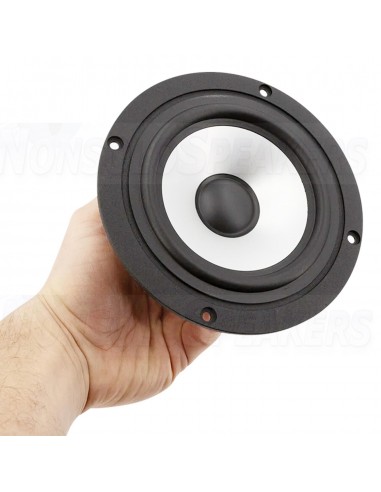

Visaton AL 130 5" High-End Woofer 8 Ohm
Visaton AL 130 5" High-End Woofer 8 Ohm
Visaton AL 130 5" High-End Woofer 8 Ohm
Visaton AL 130 5" High-End Woofer 8 Ohm
Visaton AL 130 5" High-End Woofer 8 Ohm
Visaton AL 130 5" High-End Woofer 8 Ohm
Visaton AL 130 5" High-End Woofer 8 Ohm
Visaton AL 130 5" High-End Woofer 8 Ohm
Visaton AL 130 5" High-End Woofer 8 Ohm
Visaton AL 130 5" High-End Woofer 8 Ohm
Visaton AL 130 5" High-End Woofer 8 Ohm
Visaton AL 130 5" High-End Woofer 8 Ohm
Visaton AL 130 5" High-End Woofer 8 Ohm
Visaton AL 130 5" High-End Woofer 8 Ohm
Visaton AL 130 5" High-End Woofer 8 Ohm
Visaton AL 130 5" High-End Woofer 8 Ohm

Visaton AL 130 5" High-End Woofer 8 Ohm

Visaton AL 130 5" High-End Woofer 8 Ohm

13 cm (5") High-End low midrange driver with stiff, anodized aluminum cone, solid aluminum die-cast basket and elastic rubber surround.

SHIPMENT IN 5-7 WORKING DAYS
€164.95
Tax included
rating No review at the moment

Estimated Shipping Costs
Shipping Costs
€19.08
Shipping Time
.
Want to check another country or courier?

You might also like



Visaton AL 130 5" High-End Woofer 8 Ohm

13 cm (5") High-End low midrange driver with stiff, anodized aluminum cone, solid aluminum die-cast basket and elastic rubber surround.

.

Highlights

  • Low electrical and mechanical losses
  • Long stroke voice coil
  • Extremely long cone displacement

.

Product Details

Visaton AL 130 5" High-End Midrange Driver 8 Ohm
Extremely low electrical and mechanical losses due to vented pole plate and vented damper. Capton voice-coil and impedance control ring. Extremely long cone displacement due to long stroke voice coil.
Suitable as low-midrange driver for 3-way High-End applications up to 5000 Hz.
.

Technical Specifications

  • Article number AL 130
  • Woofer Series High-End
  • Woofer Type Midwoofer
  • Nominal Diameter 5"
  • Power Handling (RMS) 60 watts
  • Power Handling (max) 90 watts
  • Impedance (Z) 8 ohms
  • Sensitivity (SPL at 1m / 2.83V) 87 dB
  • Frequency Response 43 – 8,000 Hz
  • Voice Coil Diameter 25 mm
  • DC Resistance (Re) 5.6 ohms
  • Voice Coil Inductance (Le) 0.9 mH
  • Resonant Frequency (Fs) 43 Hz
  • Mechanical Q (Qms) 4.37
  • Electromagnetic Q (Qes) 0.42
  • Total Q (Qts) 0.38
  • Diaphragm Mass Inc. Airload (Mms) 9g
  • Mechanical Compliance of Suspension (Cms) 79 cm2
  • Maximum Linear Excursion (Xmax) 3 mm
  • Cone / Diaphragm Material Aluminum
  • Surround Material Rubber
  • Voice Coil Former Kapton
  • Basket / Frame Material Cast Aluminum
  • Overall Outside Diameter 153 mm
  • Overall Depth 62.5 mm
  • Baffle Cutout Diameter 115 mm
  • Bolt Circle Diameter 141 mm
  • # Mounting Holes 4
  • Mounting Hole Diameter 4.3 mm
Visaton AL 130
