Visaton WS 13 E 5" HiFi Full-Range Driver 8 Ohm
Visaton WS 13 E 5" HiFi Full-Range Driver 8 Ohm
Visaton WS 13 E 5" HiFi Full-Range Driver 8 Ohm
Visaton WS 13 E 5" HiFi Full-Range Driver 8 Ohm
Visaton WS 13 E 5" HiFi Full-Range Driver 8 Ohm
Visaton WS 13 E 5" HiFi Full-Range Driver 8 Ohm

Visaton WS 13 E 5" HiFi Full-Range Driver 8 Ohm

SHIPMENT IN 5-7 WORKING DAYS
€21.95
Tax included
rating No review at the moment

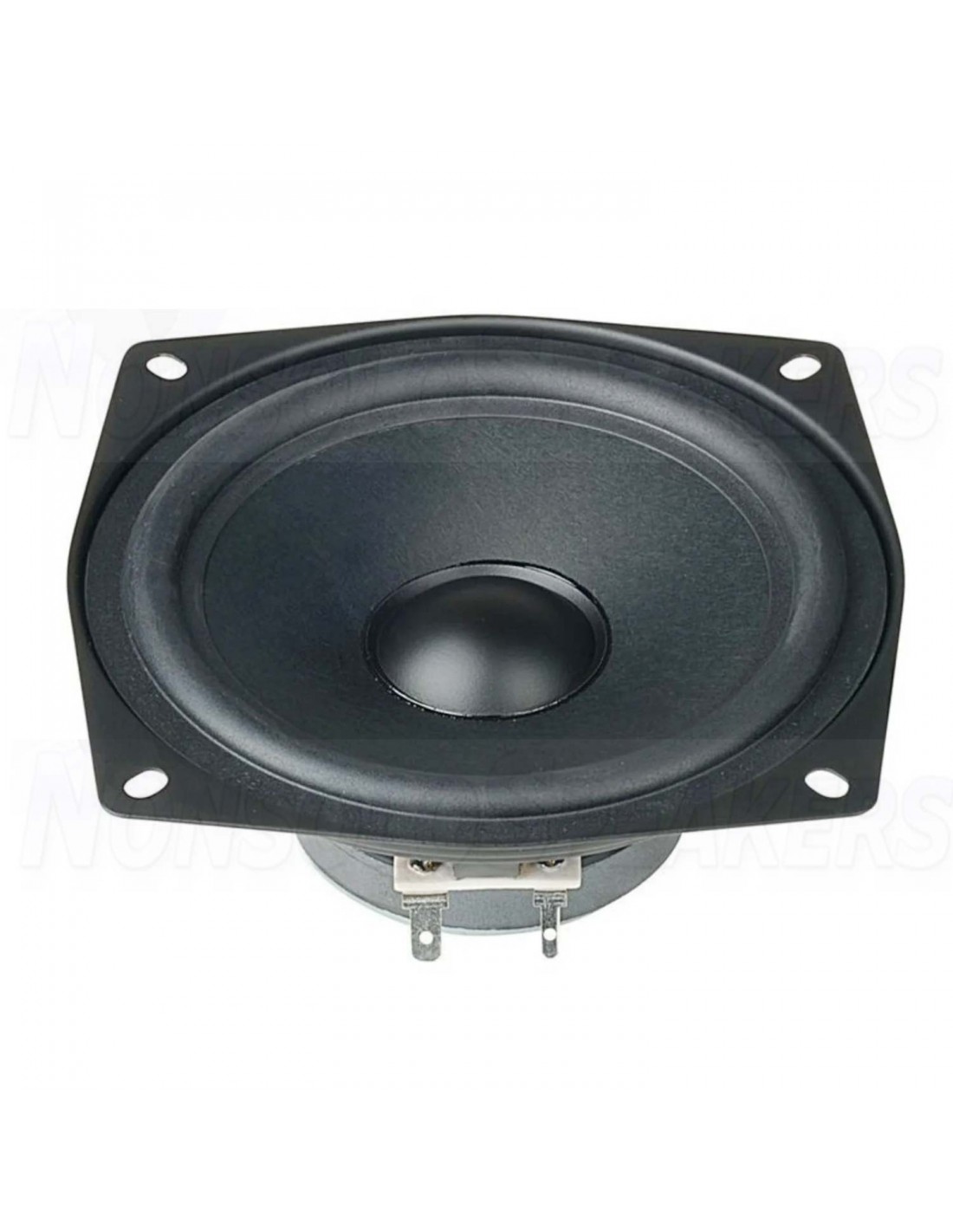

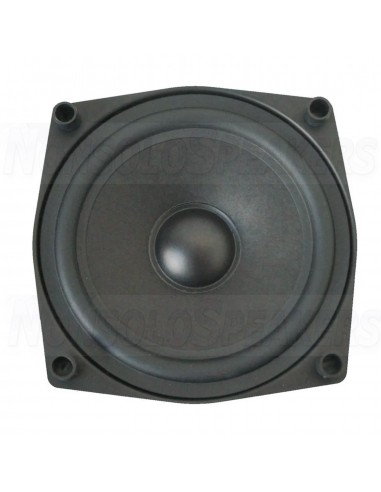

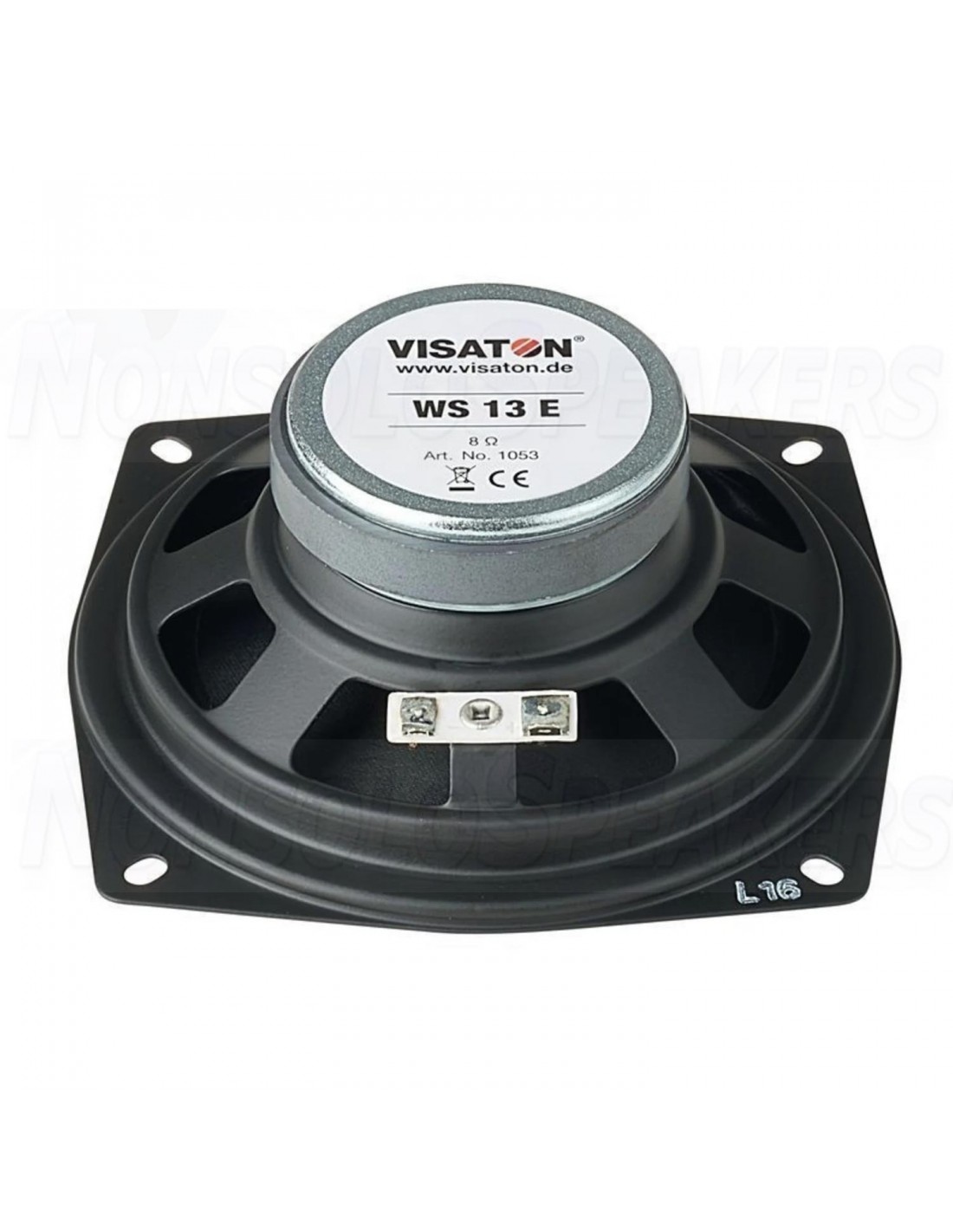

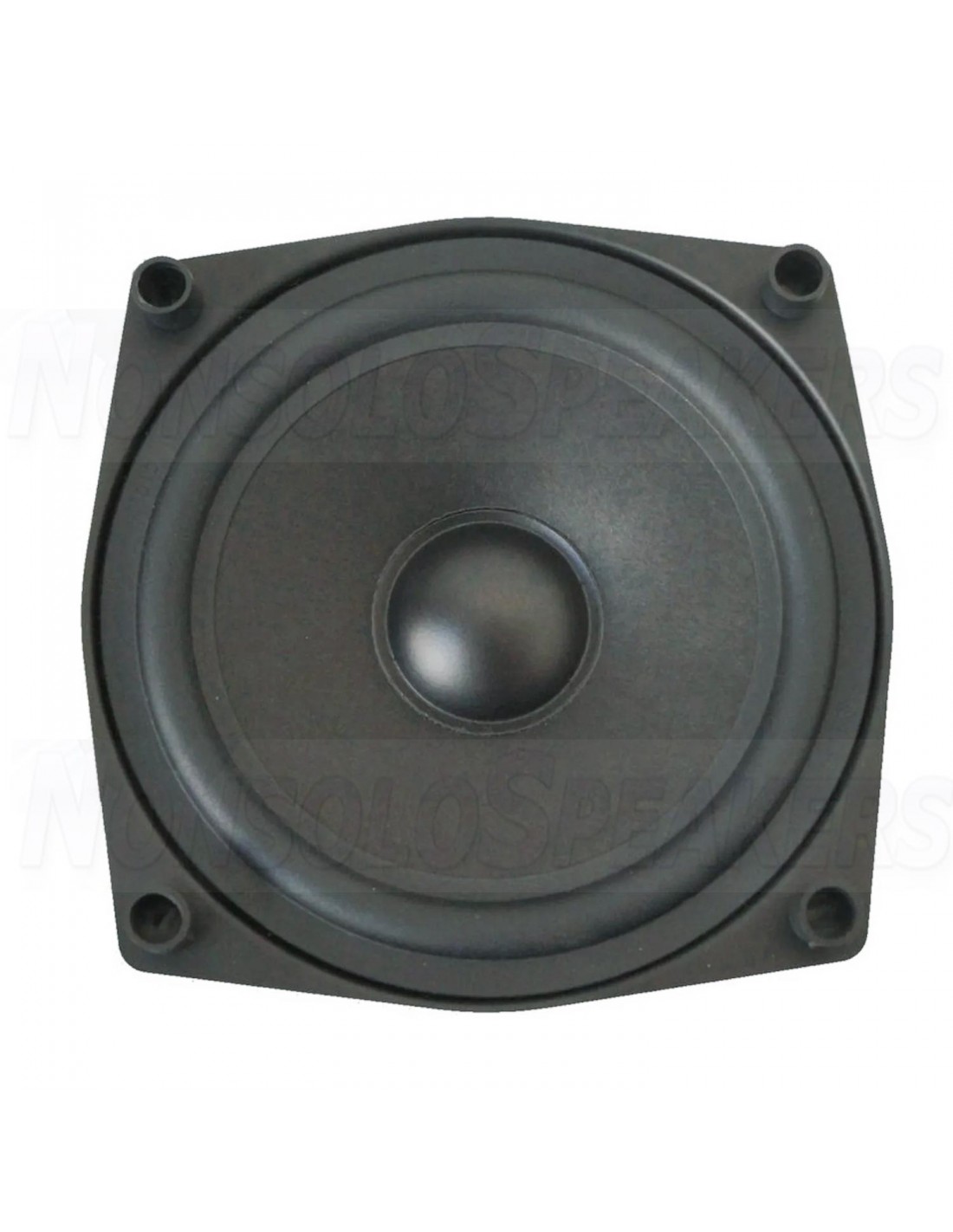

Visaton WS 13 E 5" HiFi Full-Range Driver 8 Ohm

13 cm (5") HiFi full-range driver with paper cone and elastic rubber surround.

Estimated Shipping Costs
Shipping Costs
€16.80
Shipping Time
.
Want to check another country or courier?

You might also like



Visaton WS 13 E 5" HiFi Full-Range Driver 8 Ohm

13 cm (5") HiFi full-range driver with paper cone and elastic rubber surround.

.

Highlights

  • Full-range or low-midrange implementation
  • Great replacement driver
  • Special basket design.

Product Details

Visaton WS 13 E 5" HiFi Full-Range Driver Can be used as a low-midrange driver too. Due to the special basket design especially suitable as replacement driver for many HiFi speakers.

.

Technical data

  • Article number WS 13 E
  • Woofer Series HiFi Series
  • Woofer Type Full-Range
  • Nominal Diameter 5"
  • Power Handling (RMS) 40 Watts
  • Power Handling (max) 60 Watts
  • Impedance (Z) 8 ohms
  • Sensitivity (SPL at 1m / 2.83V) 86 dB
  • Frequency Response 83 - 12,000 Hz
  • Voice Coil Diameter 20 mm
  • DC Resistance (Re) 7.7 ohms
  • Voice Coil Inductance (Le) 0.8 mH
  • Resonant Frequency (Fs) 83 Hz
  • Mechanical Q (Qms) 3.52
  • Electromagnetic Q (Qes) 1.56
  • Total Q (Qts) 1.08
  • Diaphragm Mass Inc. Airload (Mms) 5.1g
  • Surface Area of Cone (Sd) 86.5 cm2
  • BL Product (BL) 3.6 mH
  • Maximum Linear Excursion (Xmax) 0.75 mm
  • Cone / Diaphragm Material Paper
  • Surround Material Rubber
  • Overall Outside Diameter 162 mm (diagonal)
  • Overall Depth 52 mm
  • Baffle Cutout Diameter 113 mm
  • Bolt Circle Diameter 145 mm
  • # Mounting Holes 4
  • Mounting Hole Diameter 5 mm

Visaton WS 13 E
